14389 VALVE GAS NG HI-LO MANUAL 0820652
In stock
Part Number
14389
$145.90
14389 is the Natural Gas Remote Ready Gas Control Valve for many gas logs sets and fireplaces produced by Desa International, Majestic, Empire, Comfort Glow, FMI, Vanguard and others.

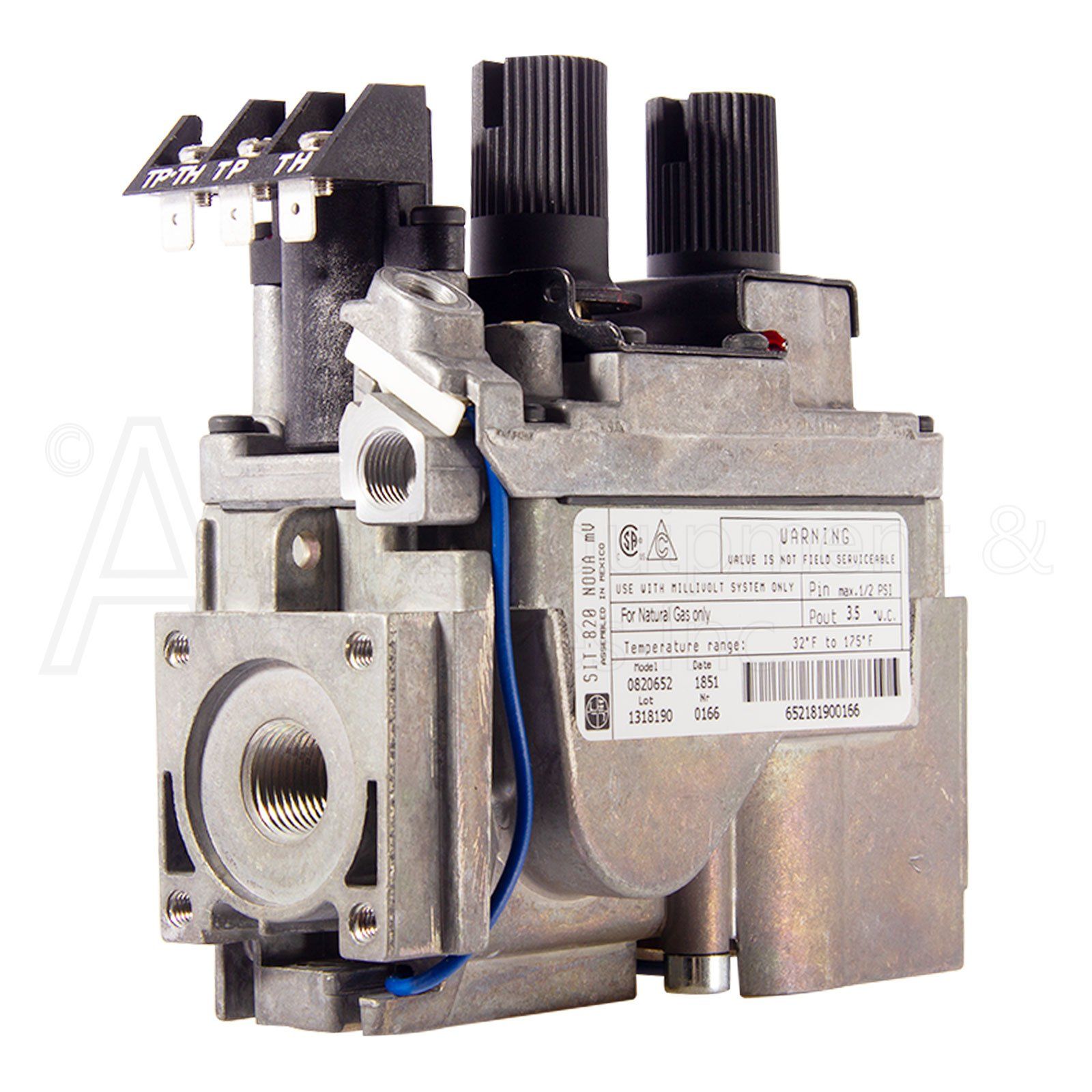

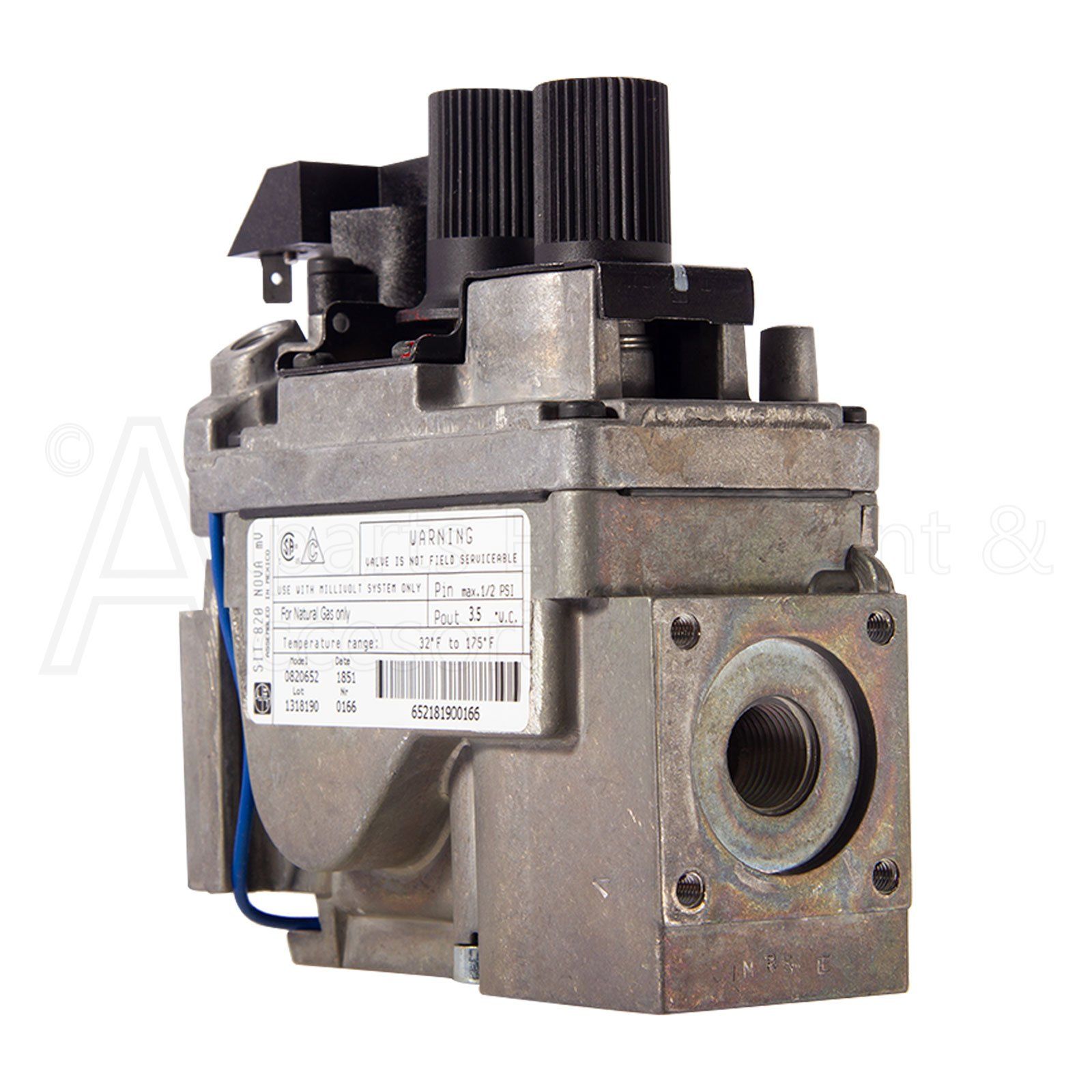

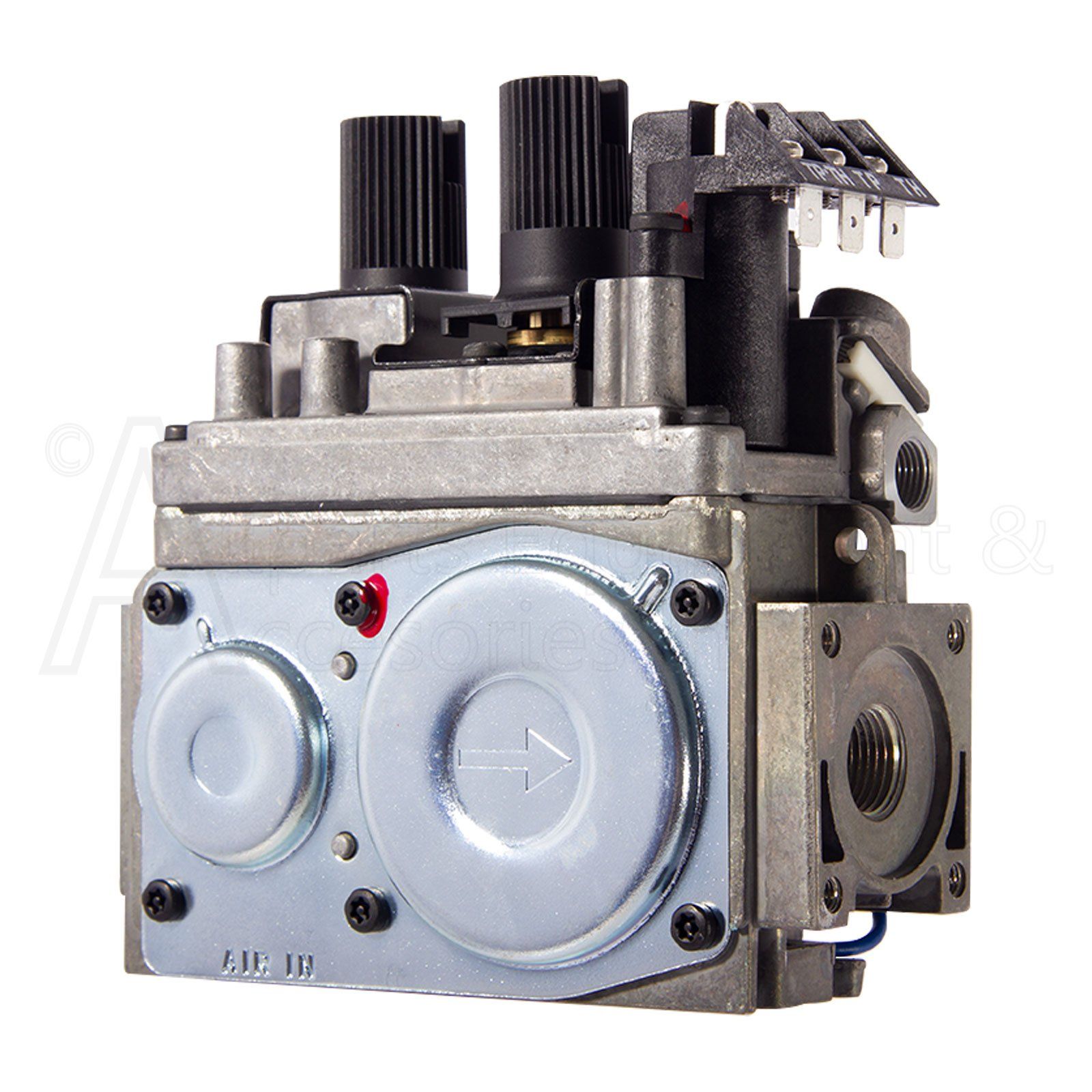

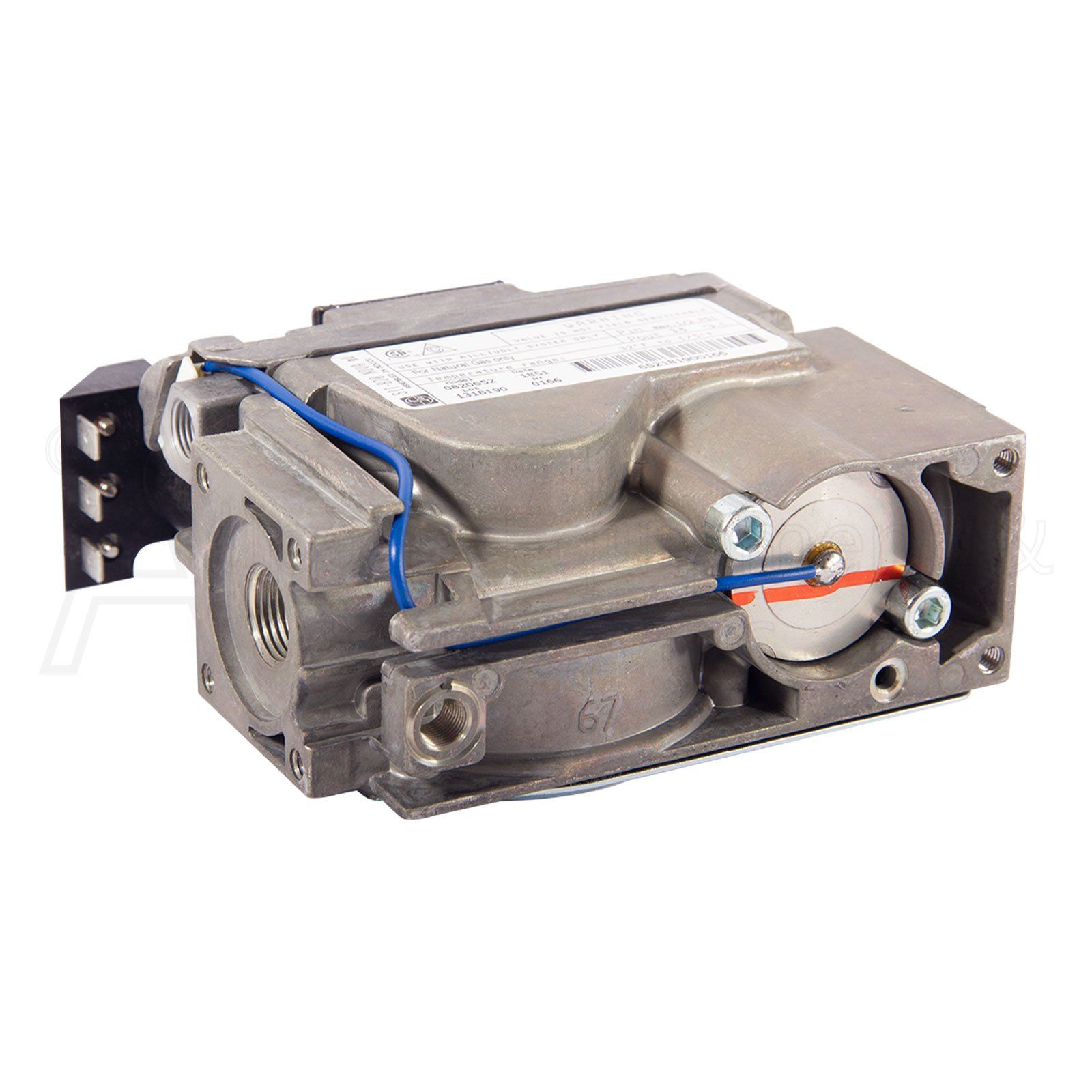

The 14389 is a SIT Controls Series 820 Nova Millivolt gas valve.
This 14389 Gas Valve is a Manual Gas Control valve for use with Natural Gas NG and is remote ready.
The 14389 Sit Control Valve is SIT Controls Model Number 0.820.652.
The Sit 0820652 Control Valve will replace the following models of Gas Valves by SIT Controls
Model 0.820.654 or 0820654
Model 0.820.644 or 0820644
Model 0.820.652 or 0820652
Model 0.820.655 or 0820655
Model 0.820.662 or 0820662
Model 0.820.952 or 0820952
Empire Model R-7577
Wood Heat Stoves 721-300-HS
For further technical please contact our customer service department at: customerservice@allpartsinc.com
We are sorry but Gas valve and related gas Products are NOT RETURNABLE for refunds!
These items comes with a 90 day warranty for exchange only.
Please look at all pictures carefully and study your manual before you purchase this item because no returns for refunds will be accepted.
0820652 SIT NOVA mV Natural Gas Millivolt remote ready gas valve with variable flame adjustment.
The Sit Controls gas valve 14389 has the following specifications.
Split-system millivolt control natural gas valve for use in vented appliances.

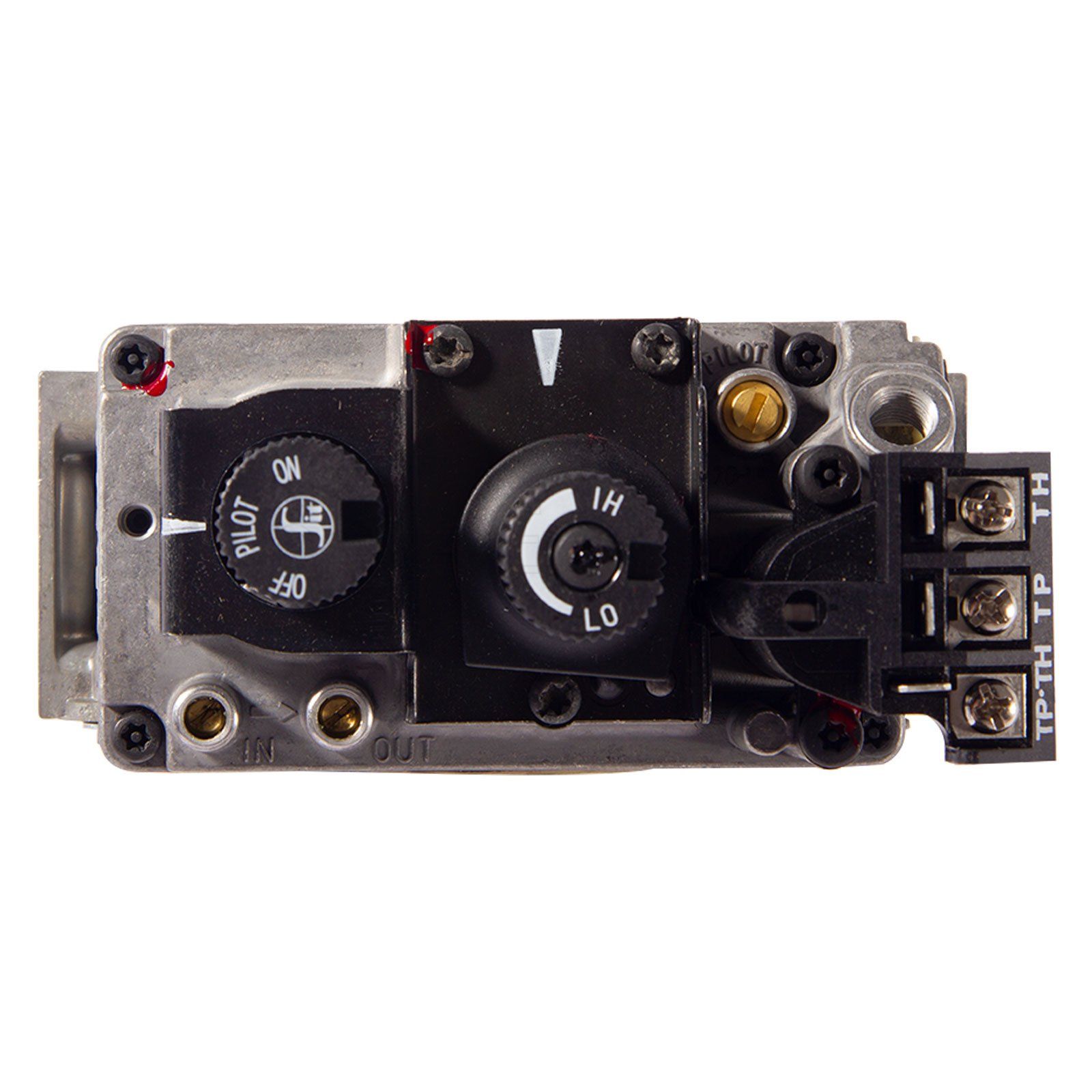

HI/LO burner adjustment with manually operated knob
Minimum voltage 145mV Coil resistance 2.25±0.5
The Sit Controls gas valve 14389 has the following specifications.
Split-system millivolt control natural gas valve for use in vented appliances.
HI/LO burner adjustment with manually operated knob
Minimum voltage 145mV Coil resistance 2.25±0.5
Thermo-Electric Unit Hold-in current less than 285Ma
Drop-out current Greater than 125mA with coil resistance 0.018± 0.003
Gas type Natural Gas HI/LO action Manual Pressure set-point 3.5” w.c. ± 0.3
Drop-out current Greater than 125mA with coil resistance 0.018± 0.003
Gas type Natural Gas HI/LO action Manual Pressure set-point 3.5” w.c. ± 0.3
Range of adjustment 3.5” w.c. -1.6” w.c. Set at 30K btu/hr
Thermocouple connection 11/32 ASA-DNC
Natural Gas Inlet 3/8 in. NPT
Natural Gas Outlet 3/8 in. NPT
Maximum natural gas inlet pressure 1/2 PSIG Ambient operating
temperature 32° to 175° F
Maximum @ 1 in. w.c. pressure drop 100,000 BTU per hour Regulation capacity 5,000 to 195,000 BTU AP per hour
