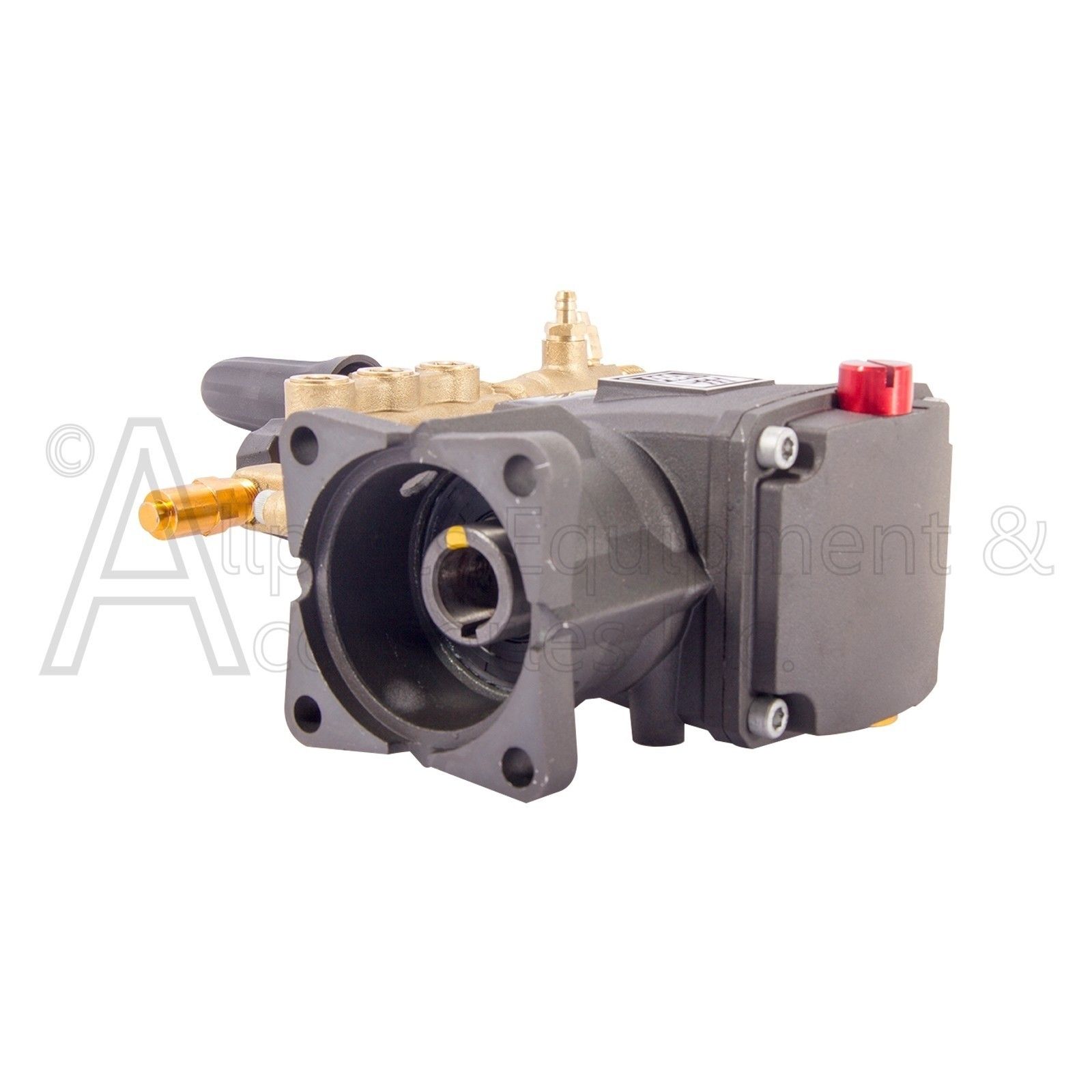

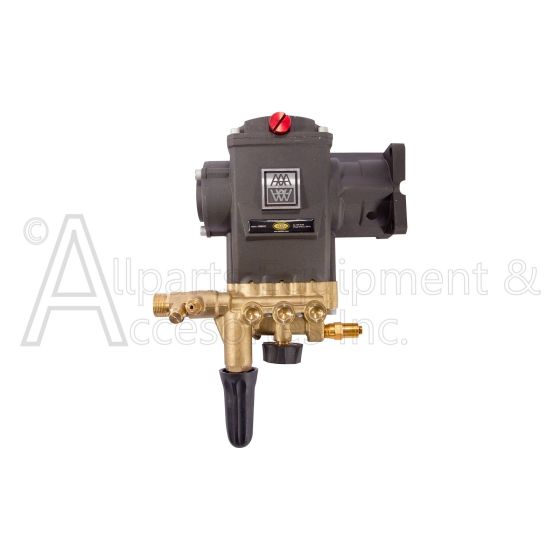

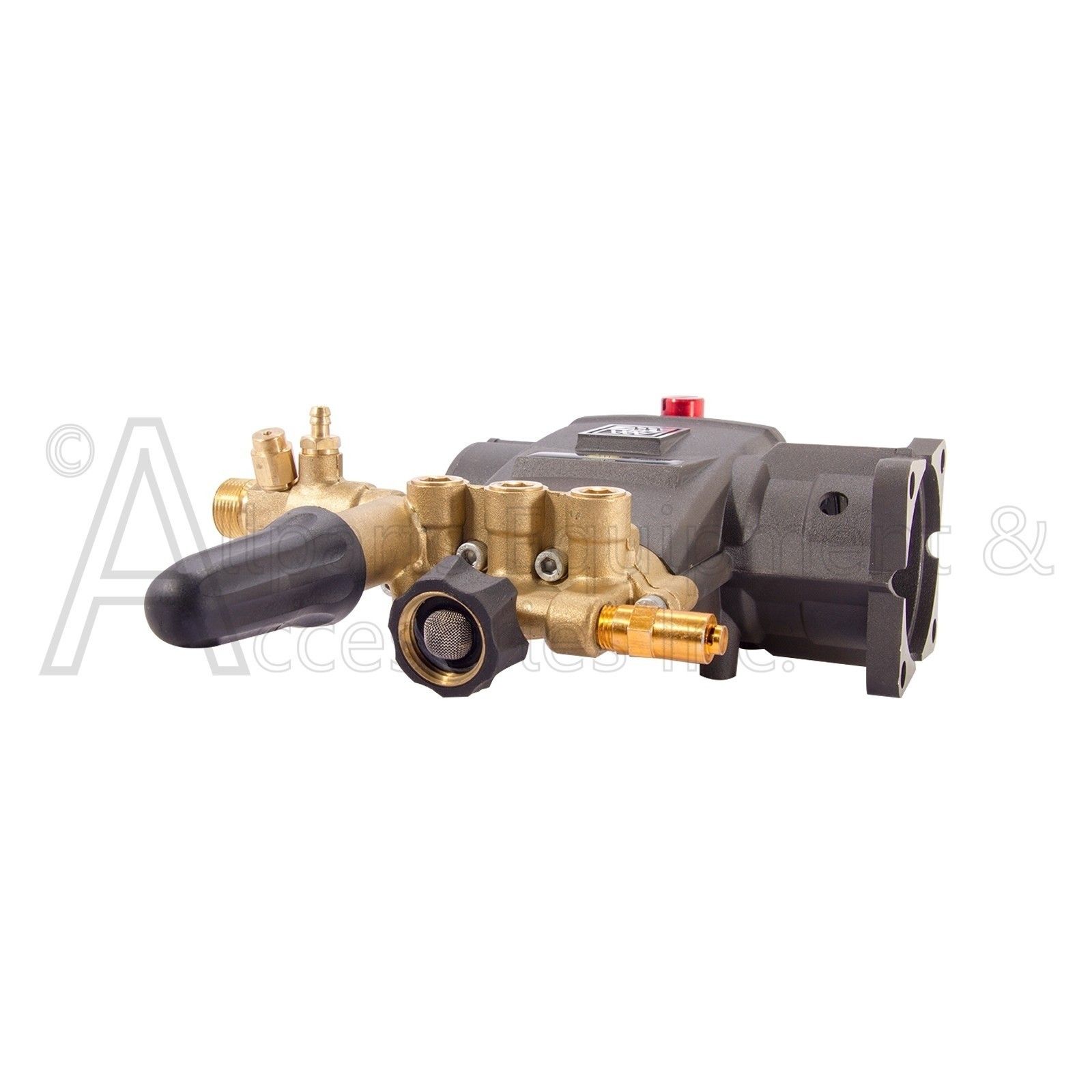

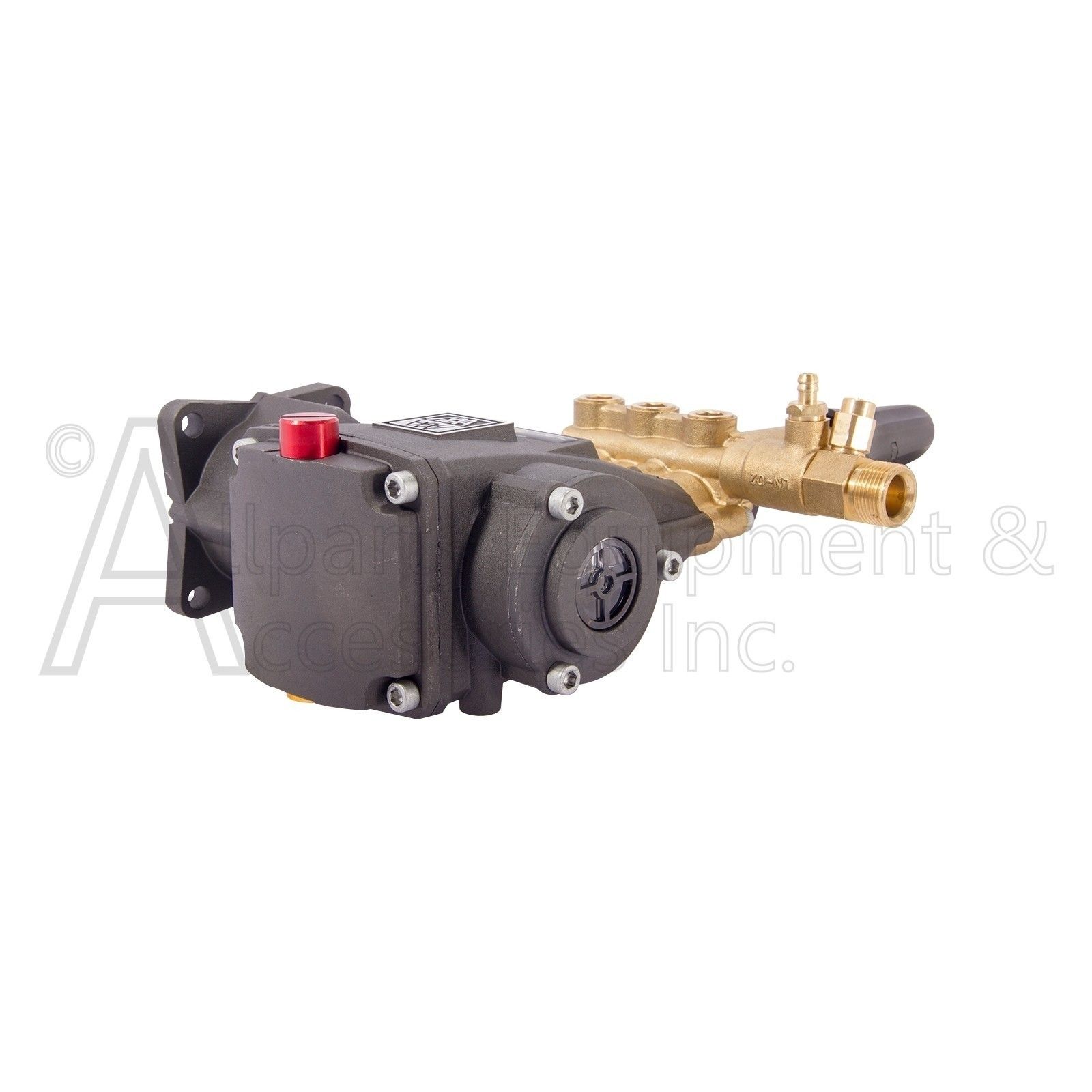

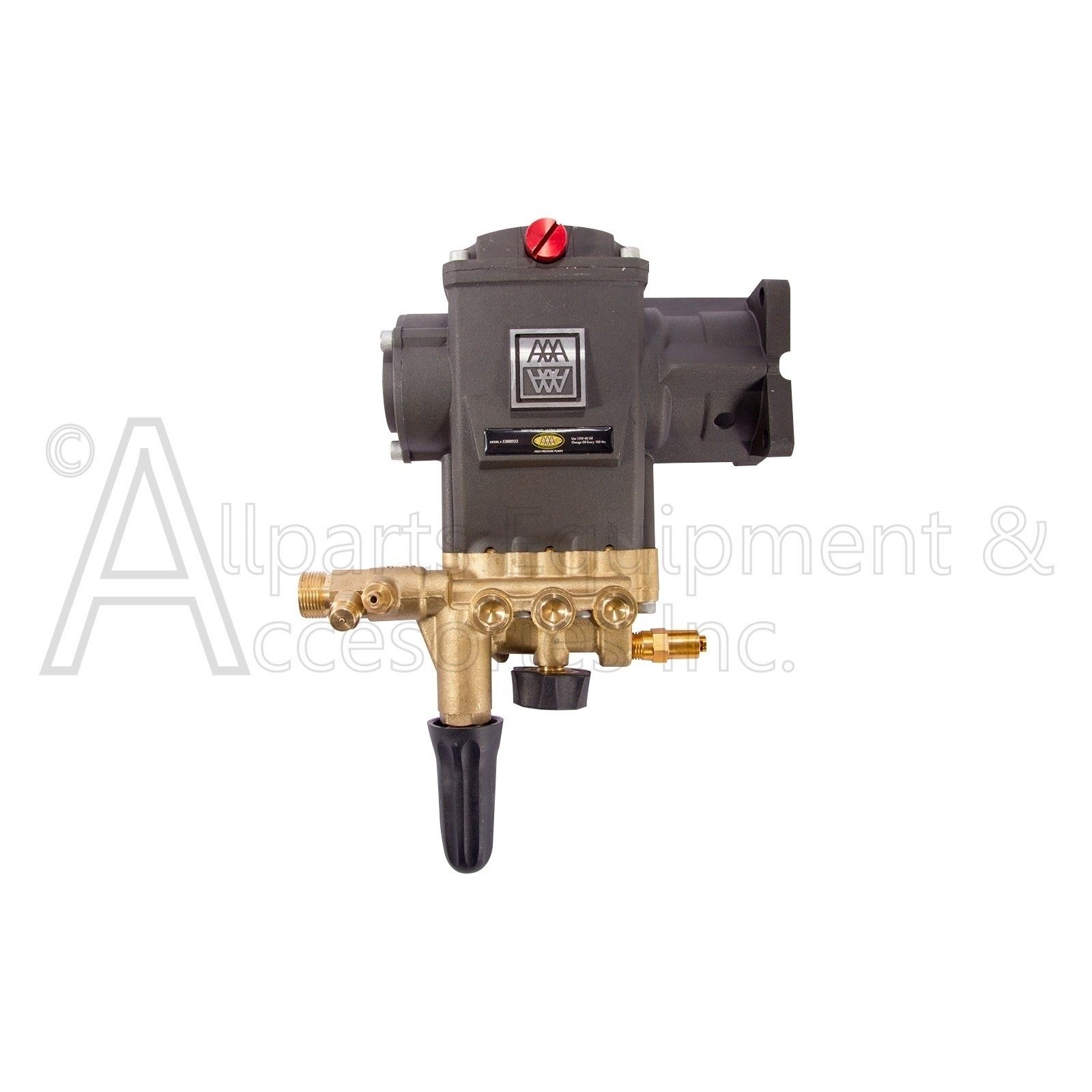

53BRD28 Triplex Plunger Pump 3200 PSI Max 2.8 GPM

53BRD28 AAA Triplex Plunger Pump Kit is a highly efficient pump that minimizes engine load while delivering top performance.

This 53BRD28 Triplex Plunger Pump is equipped with a patented Power Boost technology that provides higher pressure at the spray nozzle.

53BRD28 contains dual oversized ball bearings for better wear, friction resistance and long-lasting performance in tough cleaning environments.

Features:

3200 PSI @ 2.8 GPM
PowerBoost Technology
Fully adjustable unloader system with ergonomic control
Sight glass and advanced oil seal technology does away with the need for a dipstick
Thermal relief protection to prevent pump overheating
Dual oversized radial ball bearings are installed for better wear, friction resistance and precision ceramic coated pistons for extended seal life
The crankcase is manufactured from fully anodized die-cast aluminum for corrosion protection and is sealed to prevent contamination and lube failure
Gas engine flange and hollow shaft that fits most horizontal shaft engines


Specifications:

PSI: 3200
GPM: 2.8
Inlet Port: 3/4" GH
Discharge Port: Threaded male fitting
Inlet Pressure Range: 10-60 PSI
Thermal Relief Port: 1/4" NPT
Shaft Diameter: 3/4"
Flange Bolt Pattern: SAE J-609A
Key Way: 3/16"
Pump Oil Capacity: 8.0 fl oz.
PowerBoost®: Yes
Head: Brass
Model: 53BRD28
