A00253 TIRE REPLACEMENT KIT STUD DESIGN TREAD FOR 3" HUBS
In stock
Part Number
A00253
$81.00

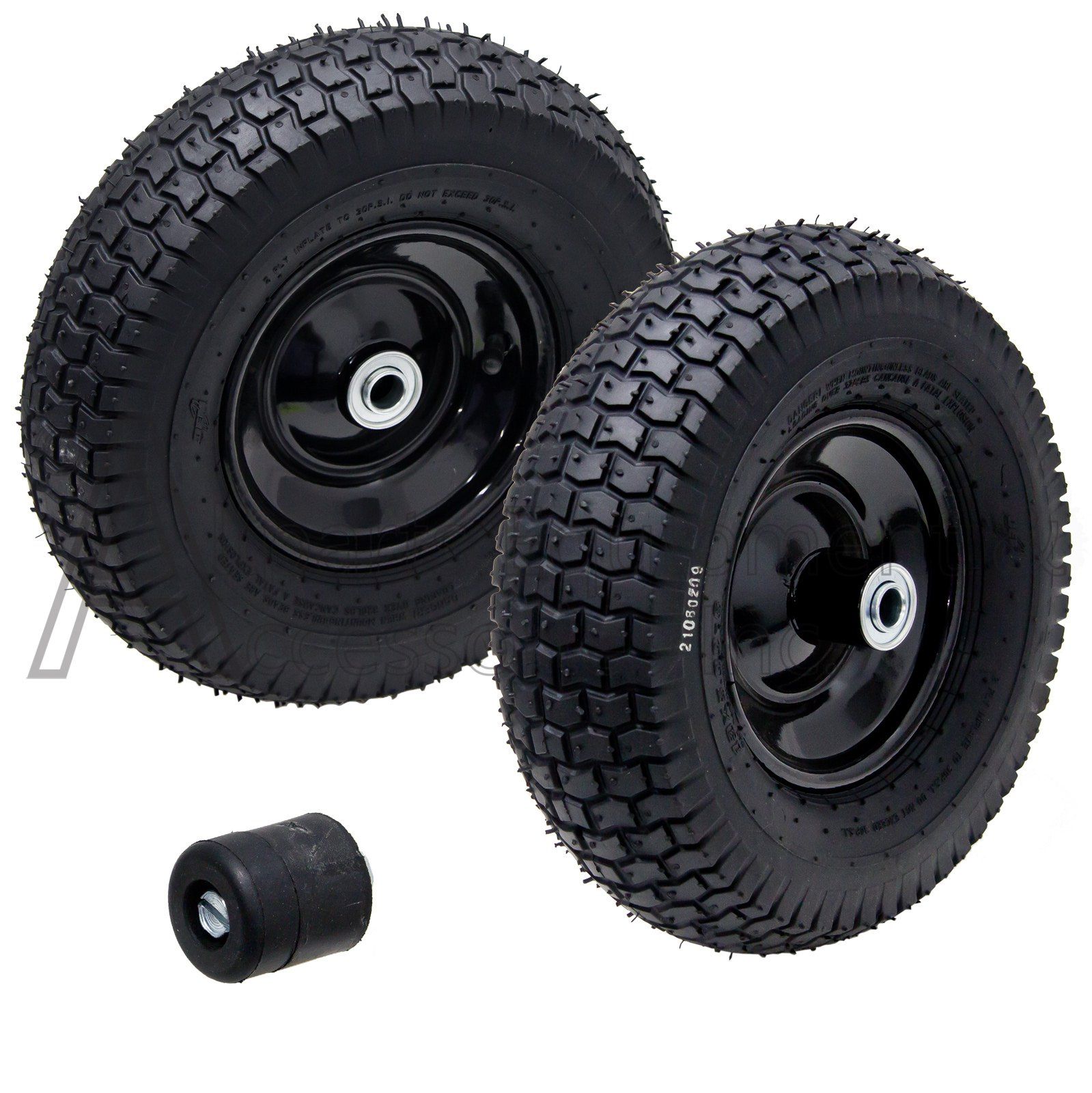

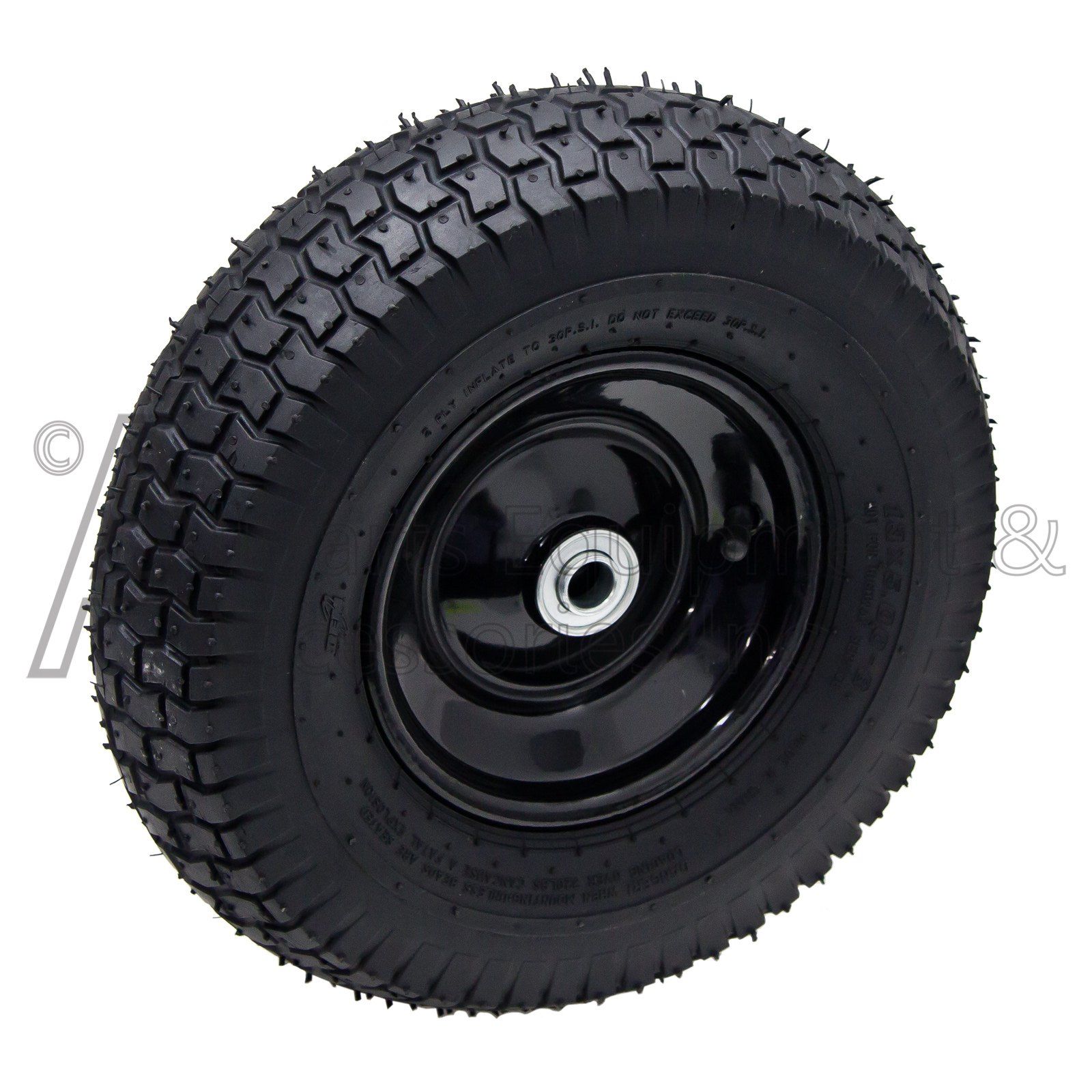

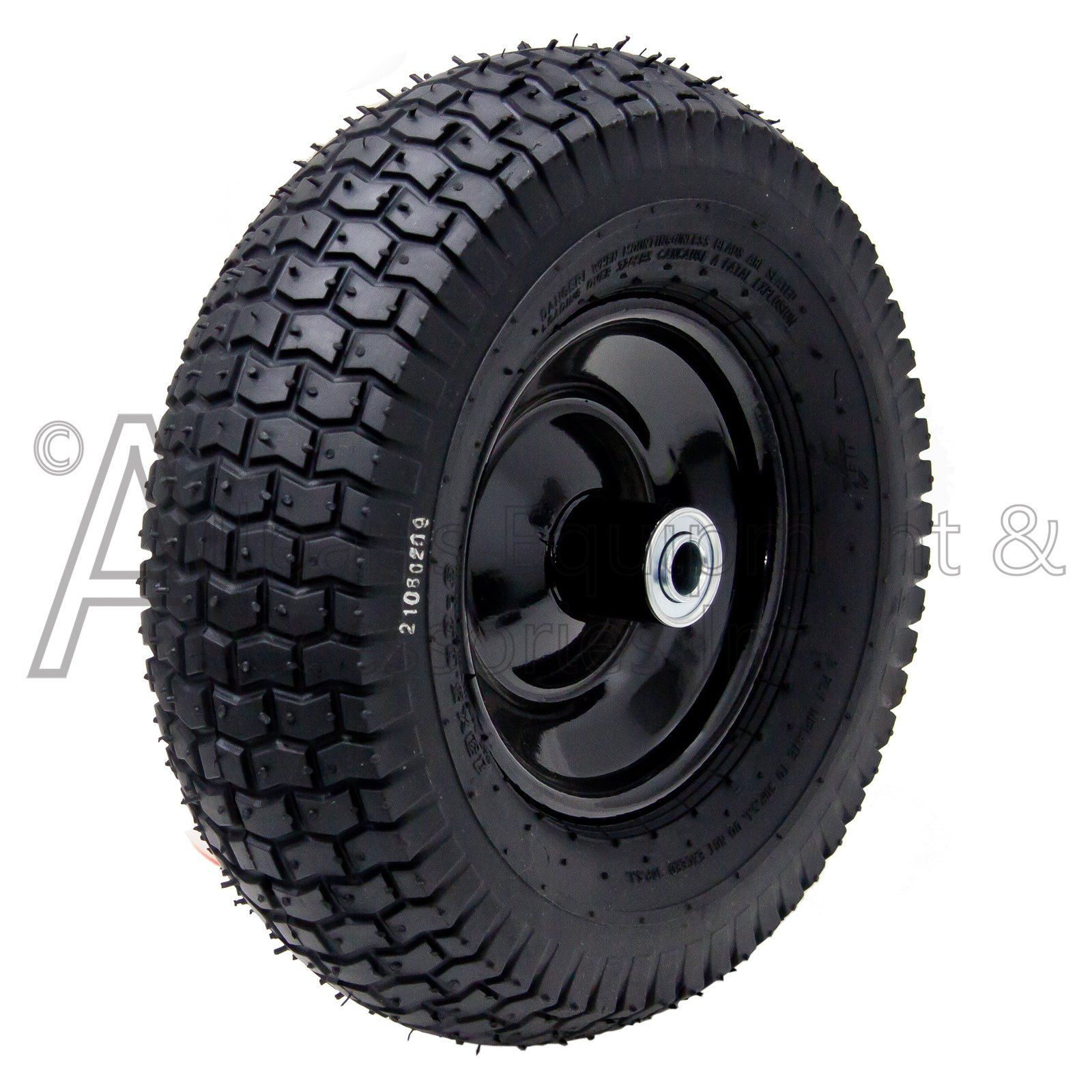

The A00253 Replacement wheel kit will be a set of 2 new 13 Inch service tires with 3 inch hubs- ** Please See Service Note**

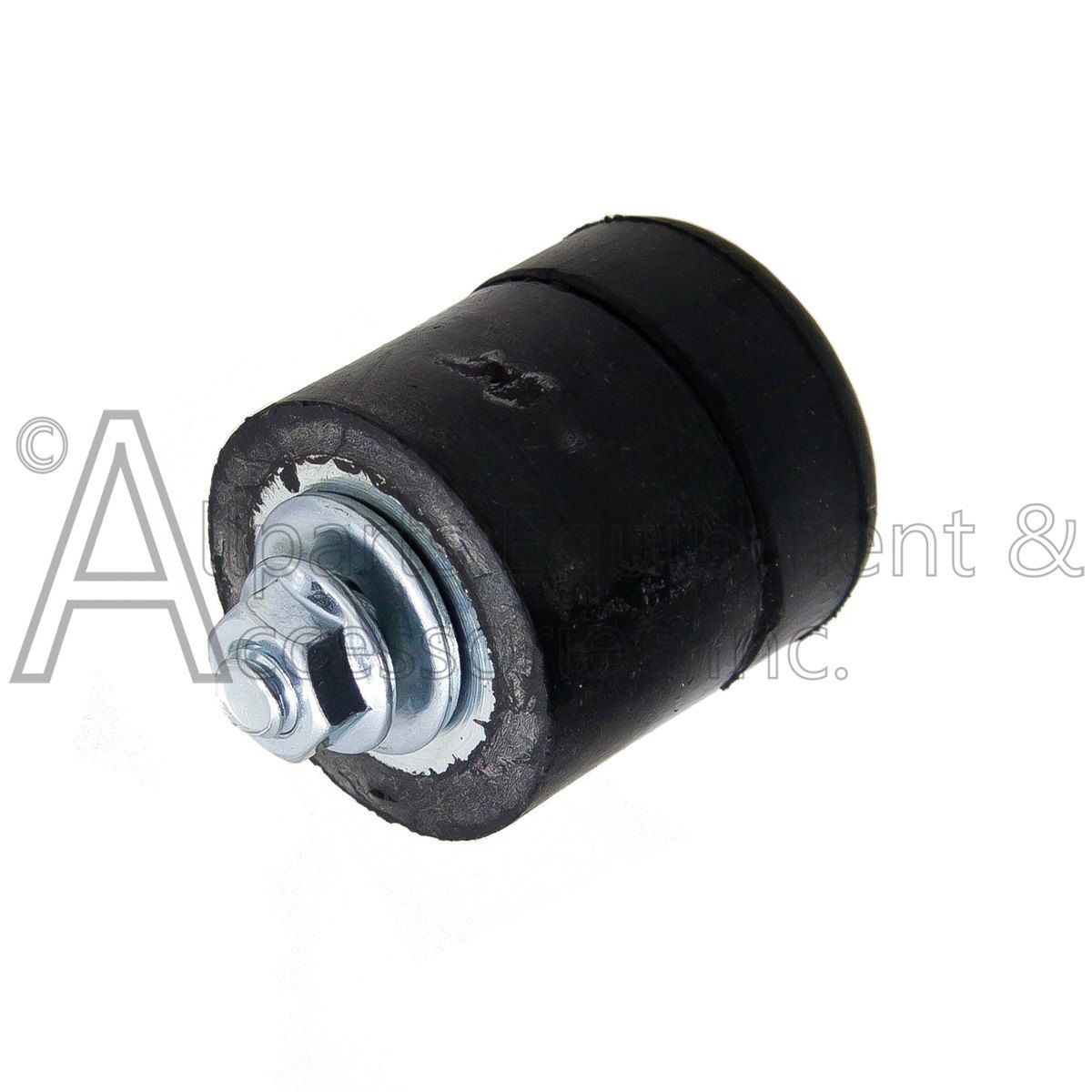

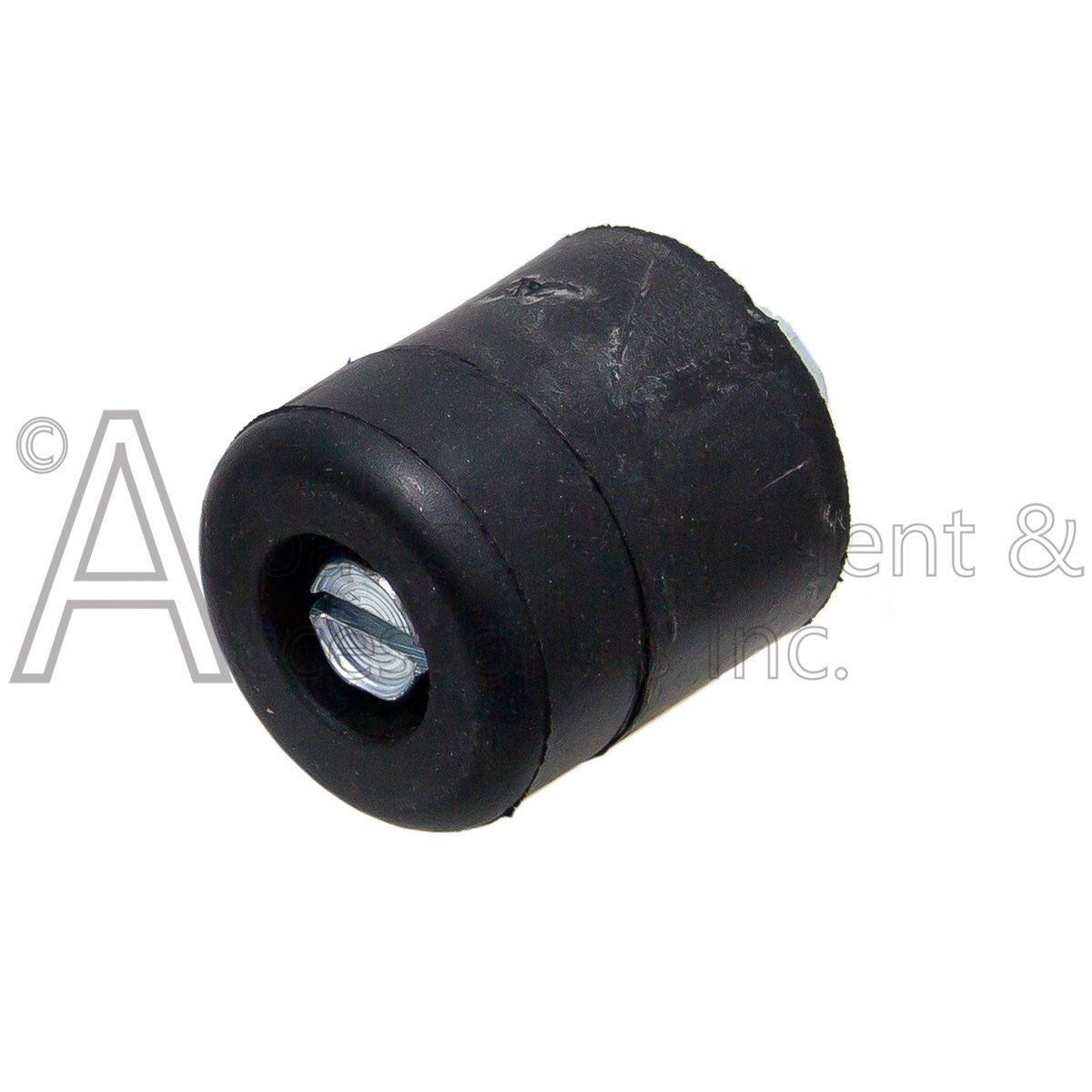

This kit will also come with ONE 1 Inch taller rubber isolation foot to keep the pressure washer frame level.
If your pressure washer has 2 rubber isolation feet you will need to order an additional D22268-EXT Foot.
The A00253 Tire and Wheel Service Kit will fit many of the Dewalt, Ex-Cell, Delta Pressure washers including the following models.
Service Note:
These new replacement hubs are 3 Inches in width and have 5/8 bearings.
Please verify this measurement before ordering this replacement kit
Service Note:
Some DeVilbiss units had shorter axles with no spacers and the New Hubs will be too long.
If this is the case the only solution is to remove the bearing on the long side of the wheel hub and shorten the hub by grinding it down.
Then install the bearing back into the hub and reassemble the wheel on the axle
Service Note for unit with shorter axles:
Some DeVilbiss units had shorter axles with no spacers and the New Hubs will be too long.
If this is the case the only solution is to remove the bearing on the long side of the wheel hub and shorten the hub by grinding it down.
Then install the bearing back into the hub and reassemble the wheel on the axle
D3200H Type 0
DP2800 Type 1
DP2800A Type 2
DP3400 Type 1
DP3400HR Type 1
DP3700 Type 2
DP3750 Type 1
DP3750HR Type 1
DP3750IC Type 1
DP3850 Type 1
DP3900 Type 1
DPD3800 Type 1
DPE3800X Type 1
DPH3800 Type 1
DTH3635 Type 0
H1000IS-W Type 1
PCH3740 Type 0
PWH3635 Type 0
ZR2800 Type 0-With Axle Spacers
ZR2800 Type 1- With Axle spacers
ZR3700 Type 1
Write Your Own Review
Service Note: Some DeVilbiss units had shorter axles with no spacers and the Nee Hubs will be too long. If this is the case the only solution is to remove the bearing on the long side of the wheel hub and shorten the hub. Then install the bearing back into the hub and reassemble the wheel on the axle
