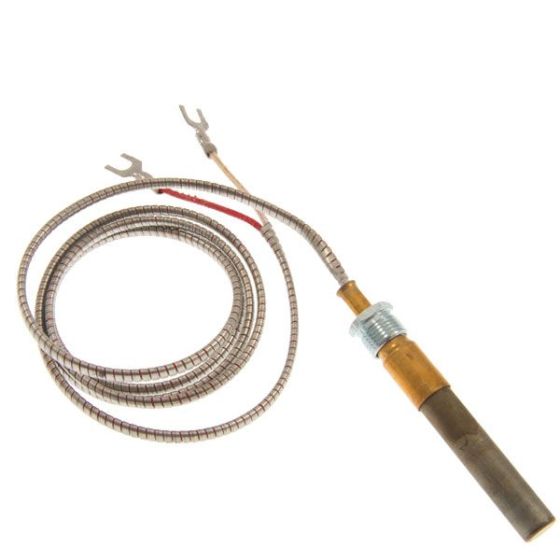

0.240.003 THERMO-GENERATOR WITH 35 INCH WIRE 750mV
In stock
Part Number
0.240.003
$45.90
The 0240003 Sit Thermopile Generator from Sit Controls is a Honeywell Thermopile that generates a maximum 750 millivolt mV DC power to operate most millivolt gas control system, independent of any outside power source.
This 0.240.00 Honeywell Sit Thermopile Generator Features:
35 Inch Braided Leads with Split Connection Terminals
Male nut connector for direct vent installation applications.
Fits ODS safety control power units.
Service Note
When replacing the thermopile industries standards are as follows
Red wire from braided lead goes to the TP Terminal on your gas valve.
White wire from braided lead goes to the TPTP Terminal on your gas valve.
Your Off On switch wire or Remote wires will connect to the TP connection and the TH connections.
Failure to connect wires properly will result in the unit now working properly.
This 0.240.00 Honeywell Sit Thermopile Generator Features:
35 Inch Braided Leads with Split Connection Terminals
Male nut connector for direct vent installation applications.
Fits ODS safety control power units.
Service Note
When replacing the thermopile industries standards are as follows
Red wire from braided lead goes to the TP Terminal on your gas valve.
White wire from braided lead goes to the TPTP Terminal on your gas valve.
Your Off On switch wire or Remote wires will connect to the TP connection and the TH connections.
Failure to connect wires properly will result in the unit now working properly.
The product specifications for the SIT 0.240.002 are as follows:
Voltage: 750 mV
Connection Type: Spade Terminals
Lead Length (in.): 35 in.
Lead Length (mm):888 mm
Open Circuit Output (mV): 400 mV to 750 mV
Resistance: 2.88 ohms
Temperature Ratings (F): Hot Junction 1400 F
Temperature Ratings (C): Hot Junction 760 C
Temperature Ratings (F): Cold Junction 780 F
Temperature Ratings (C): Cold Junction 416 C
Includes:Termopile attaching nut
Voltage: 750 mV
Connection Type: Spade Terminals
Lead Length (in.): 35 in.
Lead Length (mm):888 mm
Open Circuit Output (mV): 400 mV to 750 mV
Resistance: 2.88 ohms
Temperature Ratings (F): Hot Junction 1400 F
Temperature Ratings (C): Hot Junction 760 C
Temperature Ratings (F): Cold Junction 780 F
Temperature Ratings (C): Cold Junction 416 C
Includes:Termopile attaching nut
