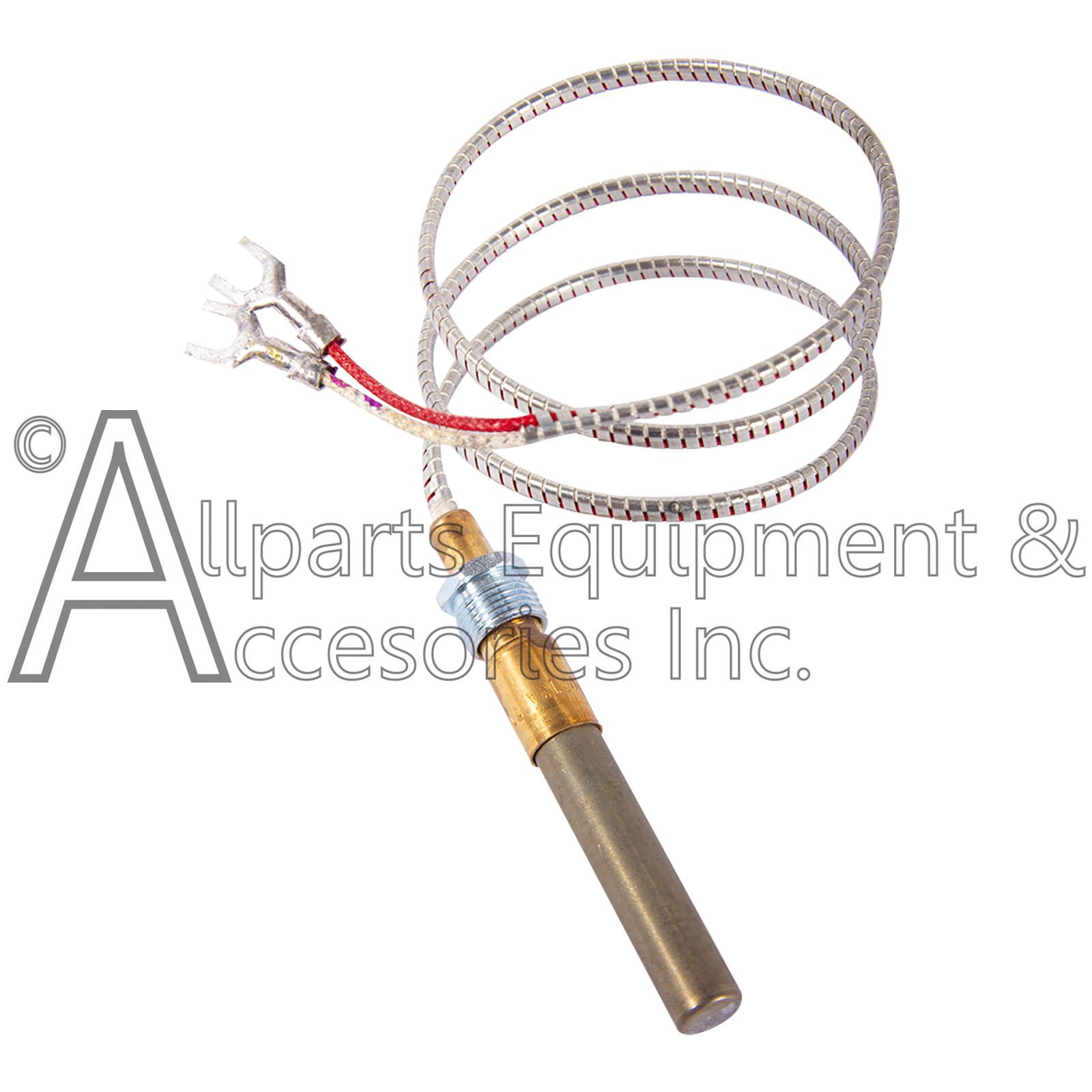

The 0.240.002 Honeywell thermopile and its 24-inch braided lead wires.

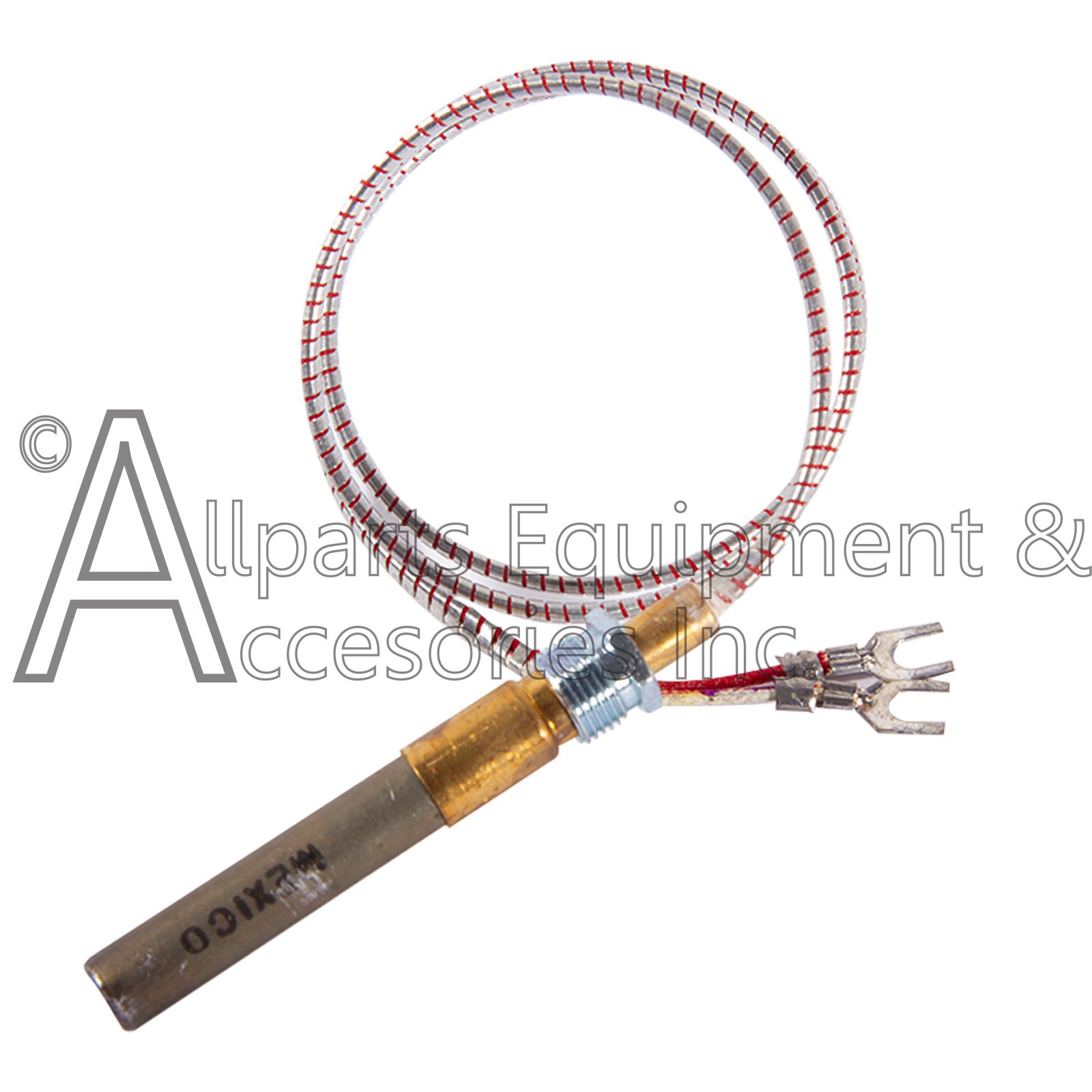

The 0.240.002 Honeywell thermopile and its 24-inch braided lead wires. The 0.240.002 Honeywell thermopile, with its braided lead wire shown coiled.

0.240.002 Thermopile Thermo Generator with 23 Inch Braided Leads

In stock
Part Number
0.240.002
$34.50
Part Number: 0.240.002
Brand: SIT CONTROLS AND DEVICES
Shipping Weight: 0.25 Lbs

0.240.002 is a Honeywell SIT Thermopile Generator. This thermopile generates a maximum 750 millivolt mV DC power to operate most millivolt gas control system, independent of any outside power source.


Features of the 0.240.002 Honeywell SIT Thermopile

  • 23 Inch Braided Leads with Split Connection Terminals
  • Male nut connector for direct vent installation applications.
  • Fits ODS safety control power units.

Service Note

When replacing the thermopile, please note the following wiring information:


Red wire from braided lead goes to the TP Terminal on your gas valve.
White wire from braided lead goes to the TPTP Terminal on your gas valve.

Your Off On switch wire or Remote wires will connect to the TP connection and the TH connections.
The wires need to be connected properly for the unit to function.

Need Help? Call us:

1-269-685-4123

The product specifications for the SIT 0.240.002 are as follows:

Voltage: 750 mV
Connection Type: Spade Terminals
Lead Length (in.): 23 in.
Lead Length (mm):584 mm
Open Circuit Output (mV): 400 mV to 750 mV
Resistance: 2.88 ohms
Temperature Ratings (F): Hot Junction 1400 F
Temperature Ratings (C): Hot Junction 760 C
Temperature Ratings (F): Cold Junction 780 F
Temperature Ratings (C): Cold Junction 416 C
Includes:Termopile attaching nut
