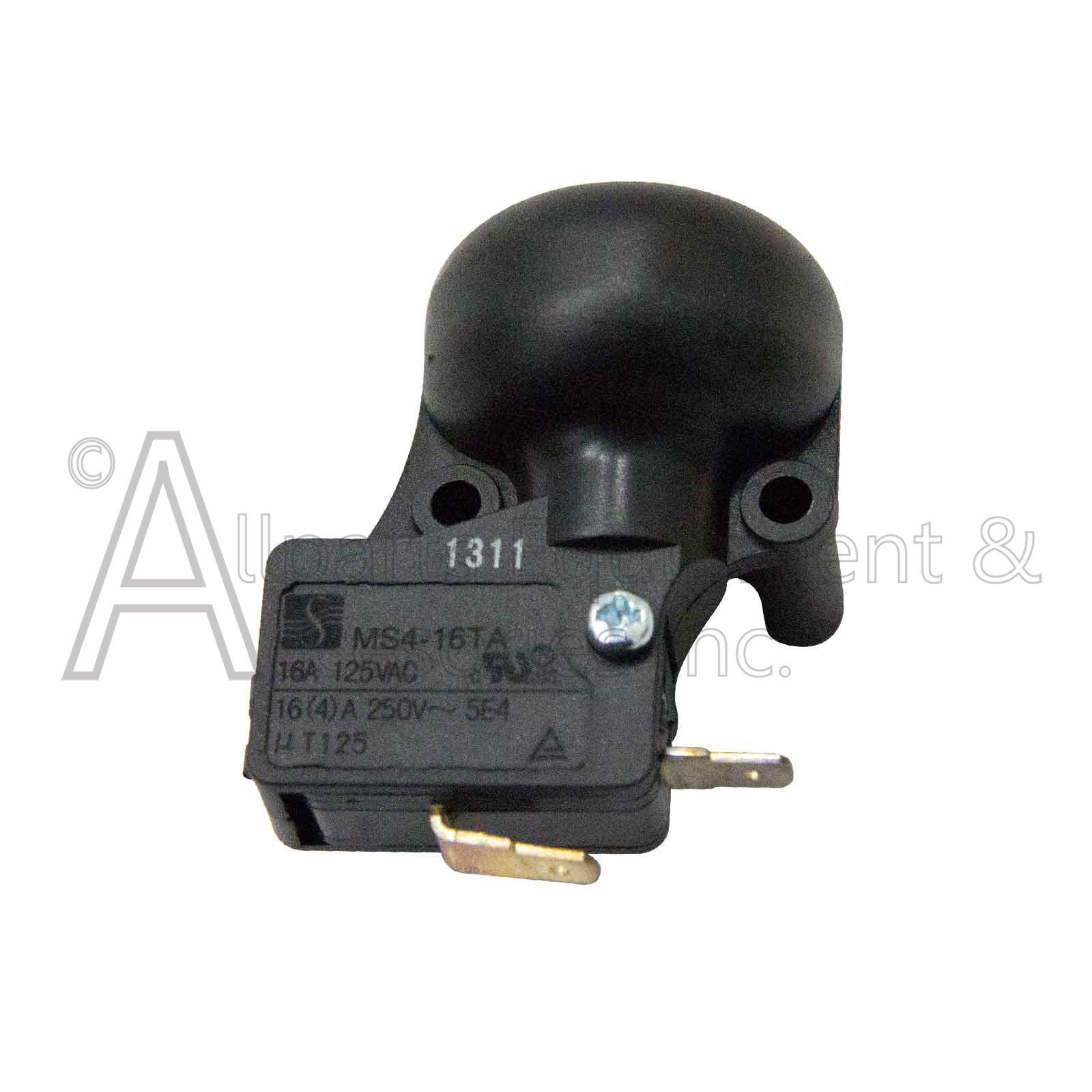

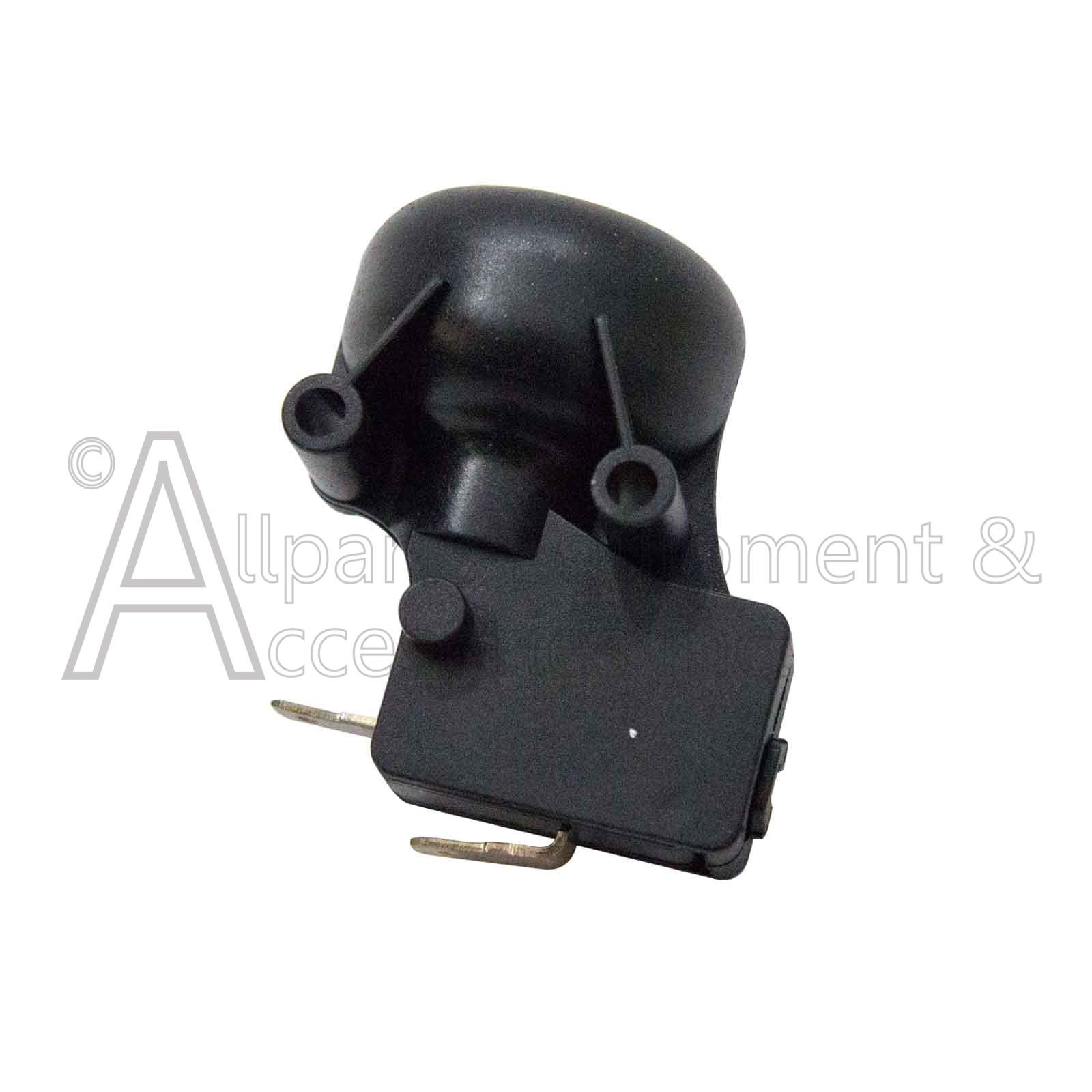

27519 SWITCH, TIPOVER, MH18CH

The 27519 Tip Switch is a replacement mechanical tip over safety cut out switch used on multiple brands of tank top heaters, patio heaters and other various portable heating solutions that require the use of a a tip over safety device..

Current Switch Specifications

MS4-16A

16A 125VAC

16(4) A 250V 5E4

Previous Version Switch Specifications.

FD4 Dump Switch
10A 15A 20A
125V / 250V / AC125

JINHE ELECTRICS SHINA

Service Note
Amperage on these switches does not matter because they are used in a Thermocouple Millivolt Circuit of less than 1 Amp and are designed to open the millivolt circuit and stop operation on the heater in the unit exceed a specific angle.
