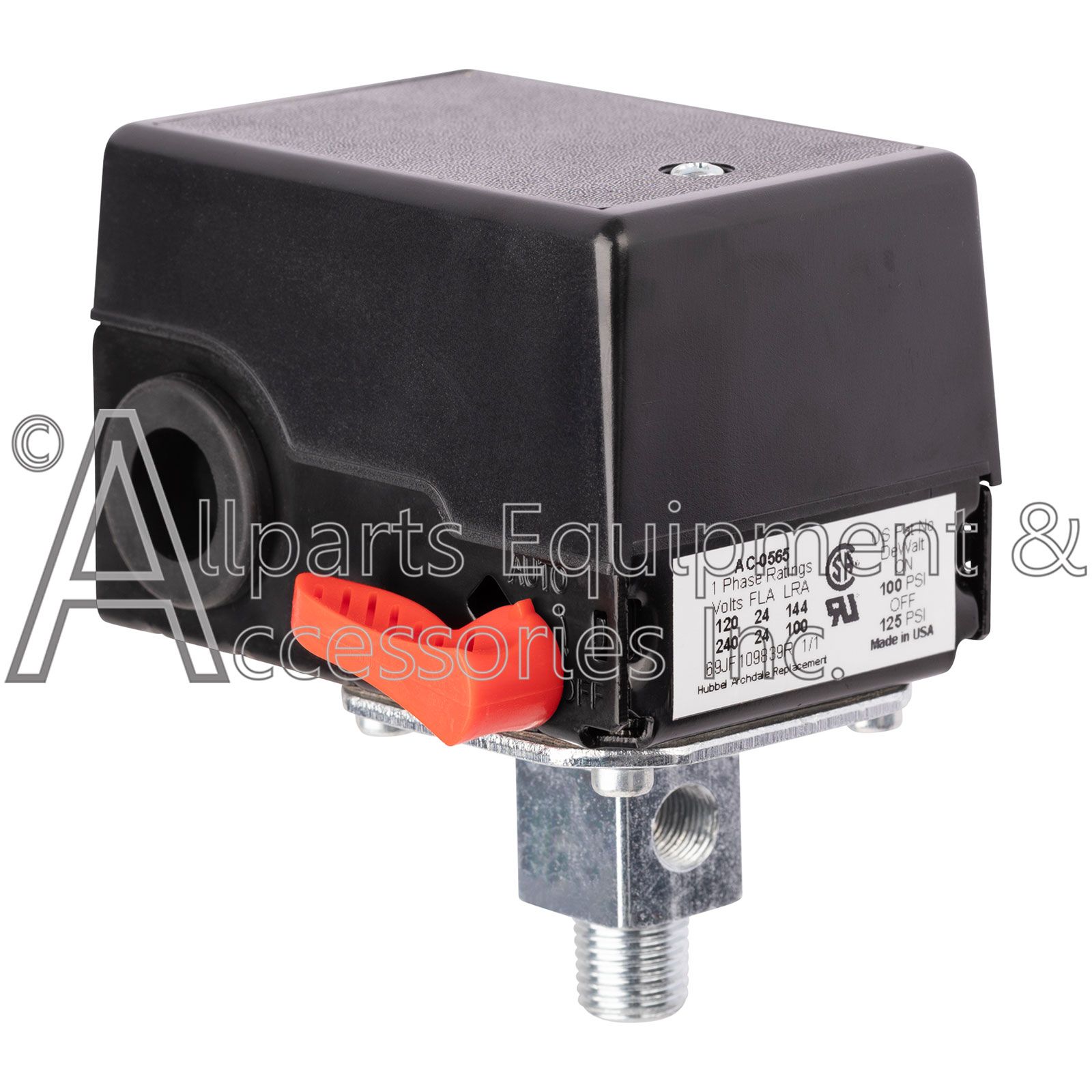

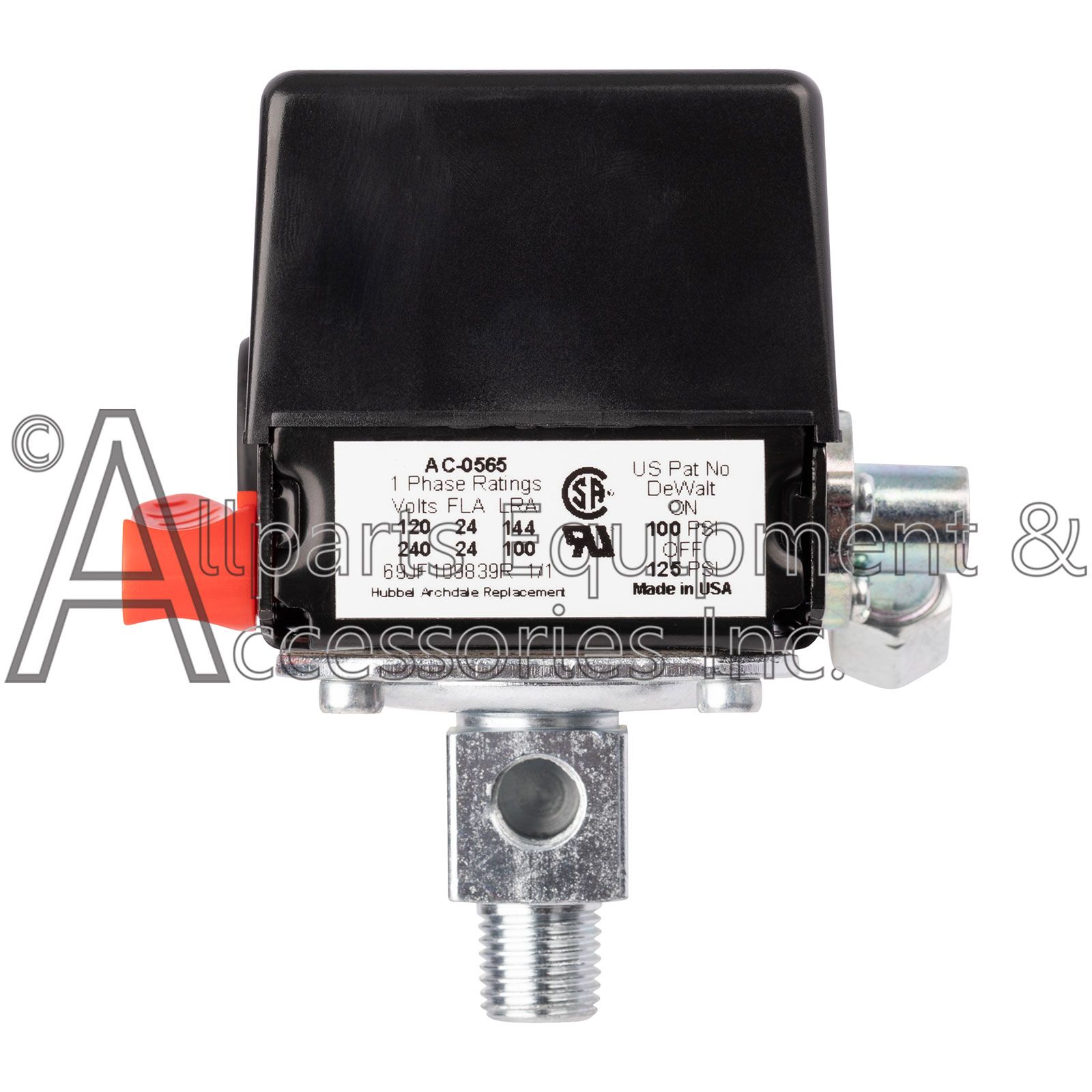

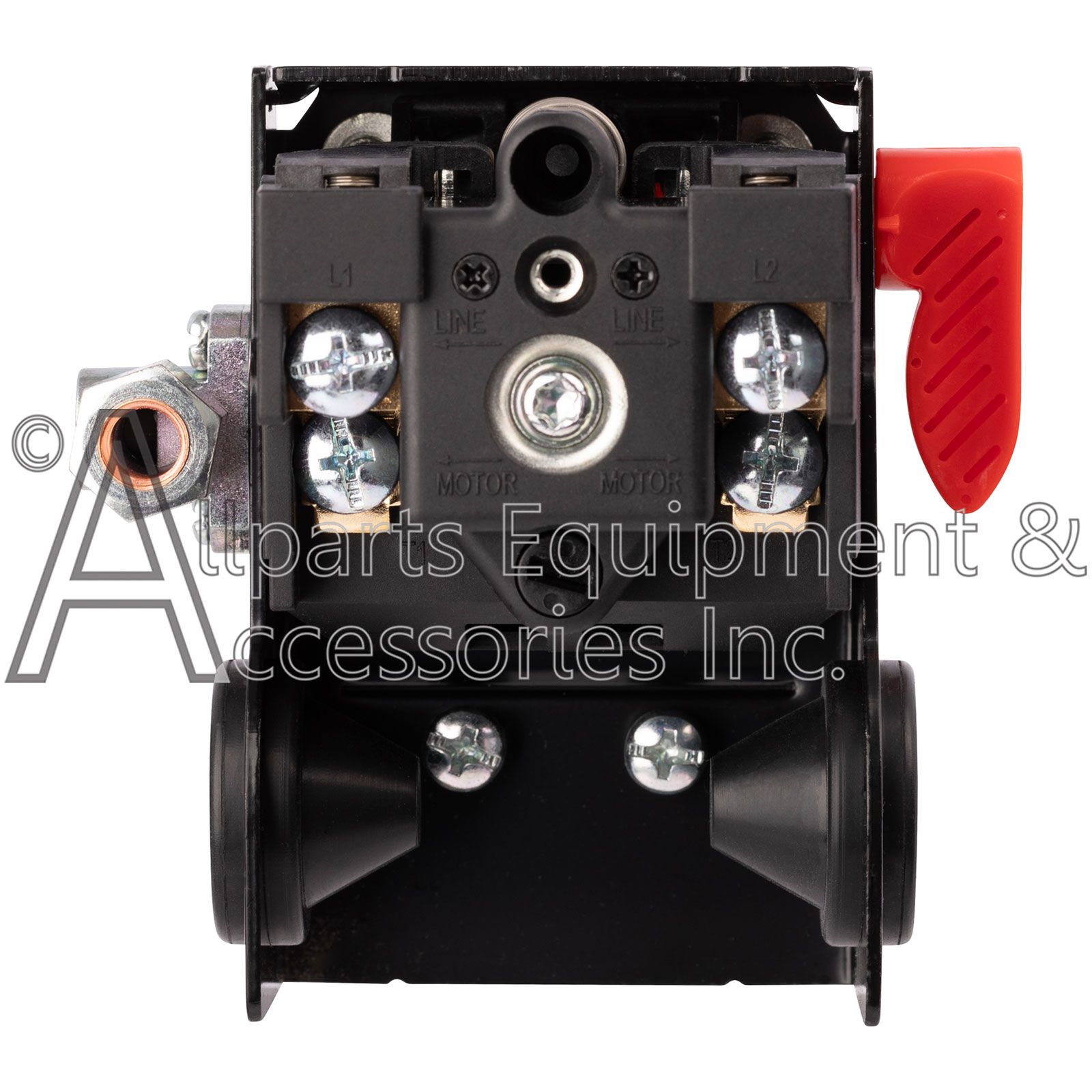

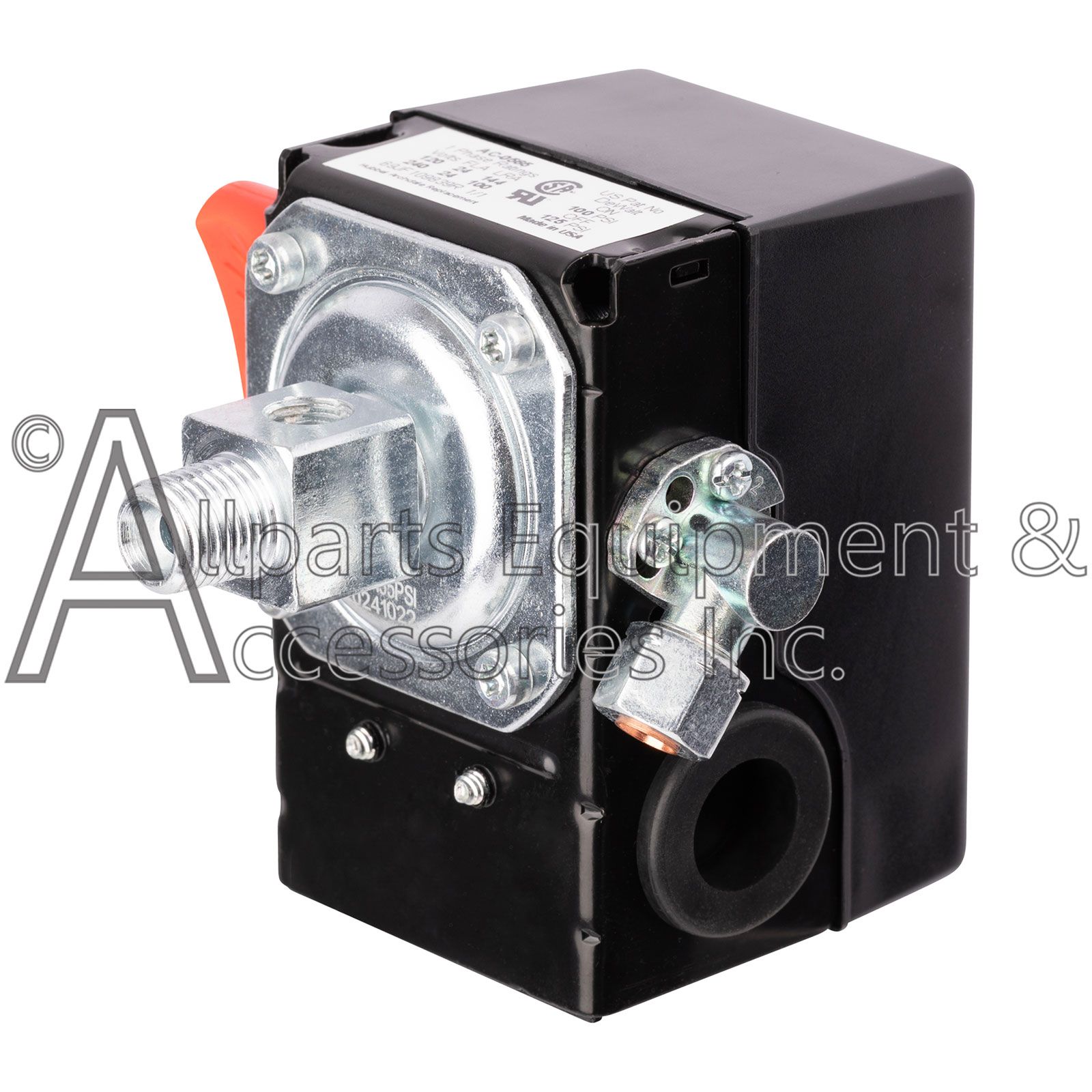

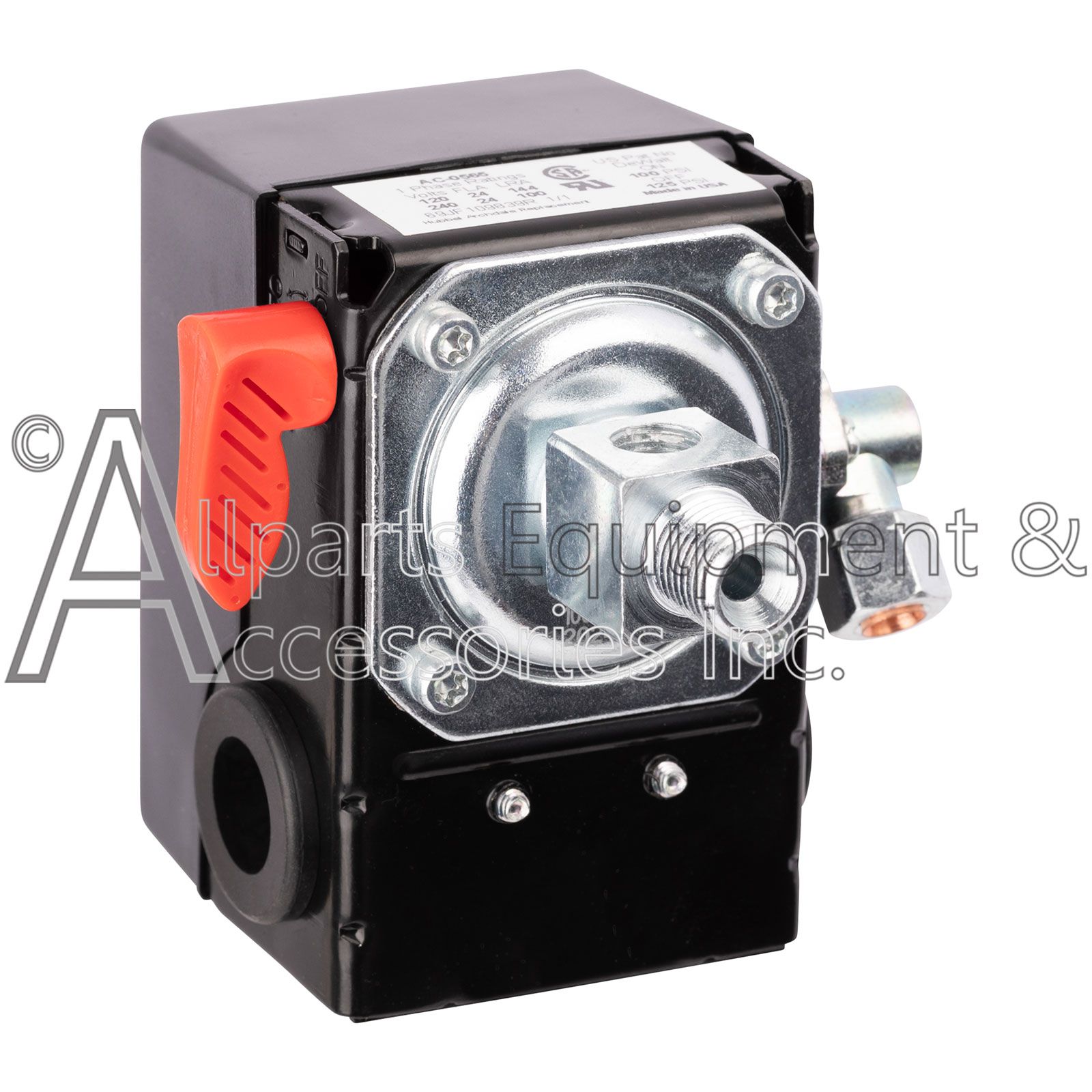

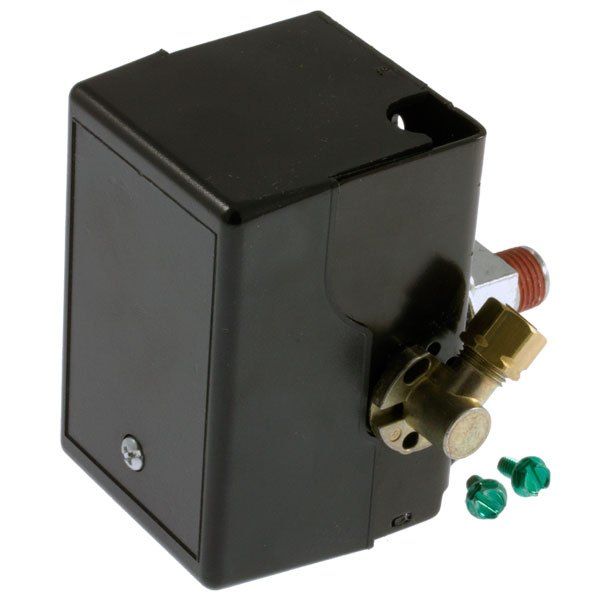

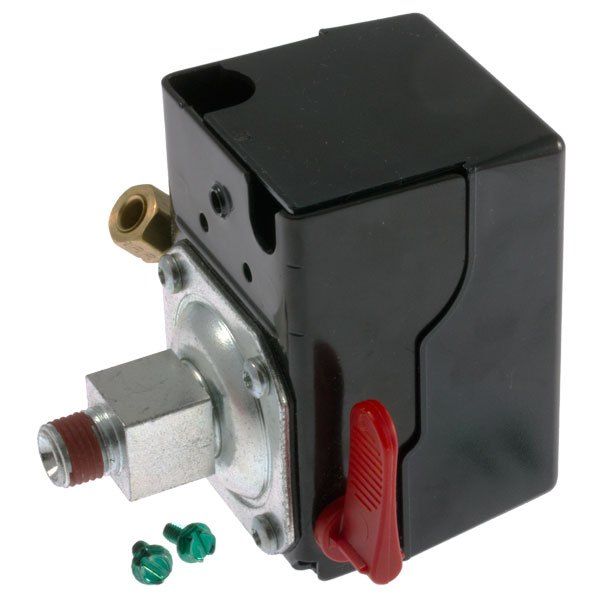

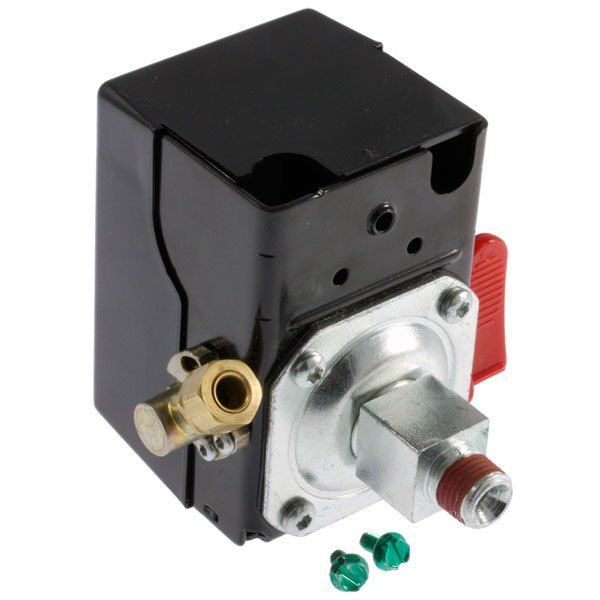

AC-0565 Adjustable 2-Port Air Compressor Pressure Switch 100/125 PSI

The AC-0565 pressure switch is an adjustable two-port on/off control switch designed to regulate air compressor tank pressure by cycling the motor at a 100 PSI cut-in and 125 PSI cut-out setting. It is used as a replacement pressure switch in compatible air compressor applications.

This pressure switch automatically controls compressor operation based on tank pressure levels. The AC-0565 is intended for air compressor systems requiring a 2-port pressure switch configuration.

AC-0565 Specifications

• Switch type: Adjustable on/off pressure switch
• Cut-in pressure: 100 PSI
• Cut-out pressure: 125 PSI
• Port configuration: 2-port

Compatible Models

The AC-0565 pressure switch is known to properly fit and function with the following partial list of air compressors:

• IRFB5020
• RAFB412-1

Additional compatibility may exist for other brands and models manufactured using the same pressure switch configuration. Always verify compatibility by confirming your unit’s model number and part diagram.
