108394-01 Lighted Red Switch On / Off With Cover For DESA Heaters

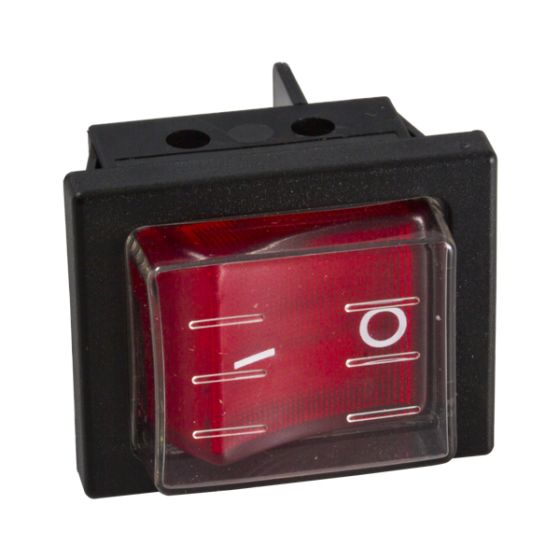

The 108394-01 Switch is an Lighted On/Off rocker style red switch with cover for several styles of Desa branded portable heating products.

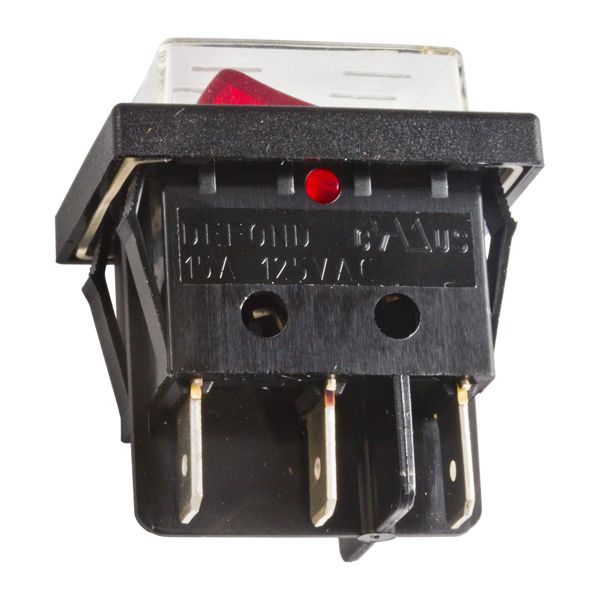

This 108394-01 has 3 prongs on the back and a protective cover that helps protect the switch face against outside elements.

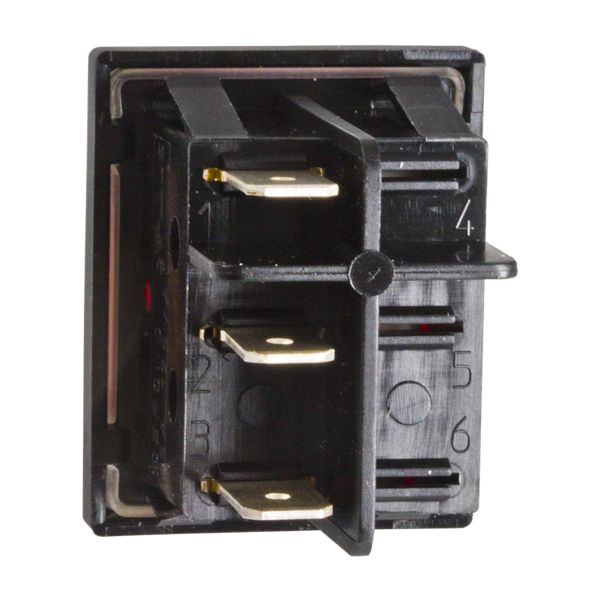

These tabs are numbered 1, 2, 3, and will need to be placed in the correct position on the switch in order for the switch to operate properly.

• Tab 1 White Wire from control Board

• Tab 2 Black wire from thermostat switch

• Tab 3 Black wire from control board

Switch Specifications
:

Defond

15A @ 125vac SPST ON/OFF

Lighted Rocker Switch with Cover

Face Size 1.425" x 1.15" Mounting 1.25" x 0.85" Mounting Depth 1.1"
