Z-AC-0809 Pressure Switch

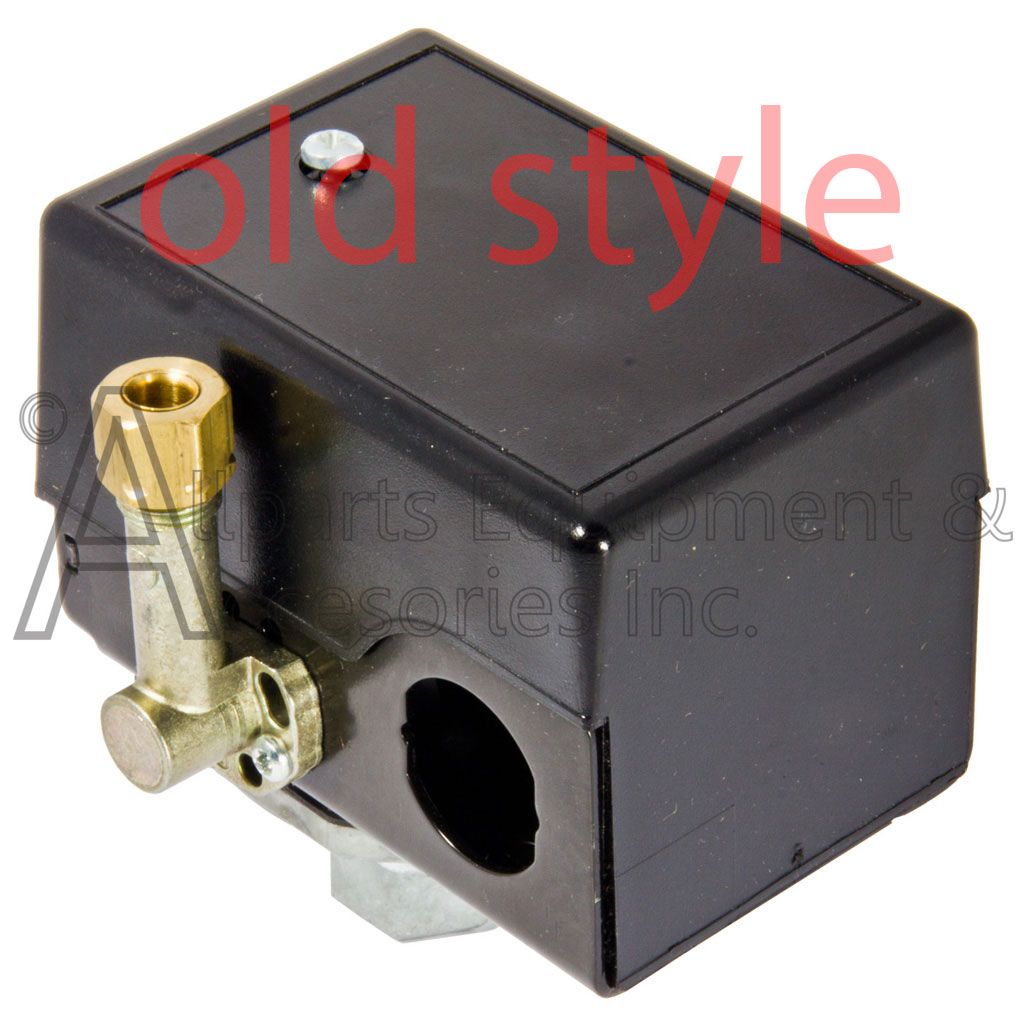

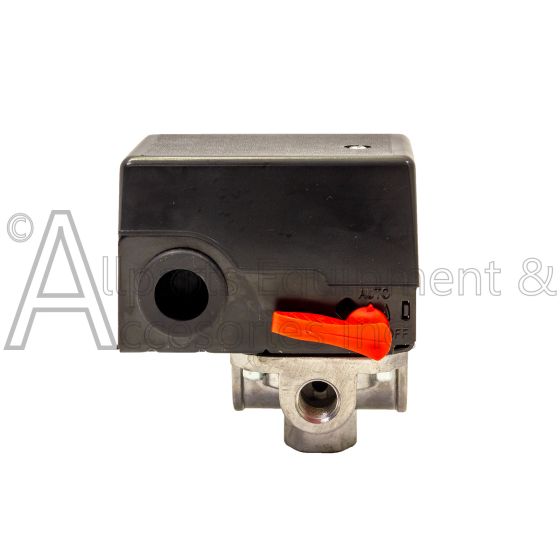

Z-AC-0809 Pressure Switch Z-AC-0809 Original Equipment 4 port pressure switch Z-AC-0809 Old style of Z-AC-0809 Z-AC-0809 power supply diagram Z-AC-0809 diagram

Z-AC-0809 PRESSURE SWITCH 4 PORT ON/OFF 110-135

In stock
Part Number
Z-AC-0809
$41.88
Part Number: Z-AC-0809
Brand: DeVilbiss Air Compressor and Equipment
Shipping Weight: 2 Lbs

Z-AC-0809 Pressure Switch is a Original Equipment 4 port pressure switch Furnas 69 Series with a preset pressure rating of 110 PSI Cut In and 135 PSI cut out.

The Z-AC-0809 Pressure Switchs were used on the following air compressors contain a pre installed pressure relief unloader valve.

Sears Craftsman Air Compressor 919-16745 Type 0
Sears Craftsman Air Compresso 919-72758 Type 0

Porter Cable Air Compressor CPF23400P Type 0
Porter Cable Air Compressor CPF23400P Type 1

Porter Cable Air Compressor CPF23400S Type 0
Porter Cable Air Compressor CPF23400S Type 1
Porter Cable Air Compressor CPF23400S Type 2

Porter Cable Aie Compressor CPFFC350 Type 0
