SSG-8156 O-Ring Cylinder To Valve Plate

In stock

Part Number

SSG-8156

$1.29

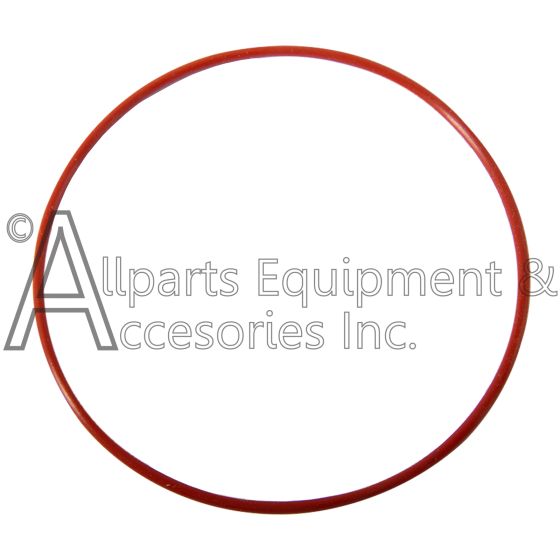

The SSG-8156 O-Rings is the O-ring that sits on the top of the cylinder sleeve in between the valve plate and the cylinder sleeve on most of the single cylinder oil free air compressor pumps and twin cylinder oil free air compressor pumps manufactured for DeVilbiss, DeWalt, Sears, Porter Cable and several other manufactures.

The SSG-8156 O-Ring has a measurement of 2.759 outside diameter and 2.719 inside diameter.

The SSG-8156 is not the Piston Ring if you have a problem with the piston ring please order part DAC-308

Assure that O-ring seals are seated in the valve plate grooves on both sides of the valve plate.
If needed a little bit of Vaseline can be used to help keep the O-rings in place during reassembly.
Align the gasket, intake muffler and valve plate and tighten the head bolts to 7-10 ft. lbs.
If either of the O-rings are damaged you should replace the damaged O-rings with new O-rings.
