121213-03 Spark plug flame sensor for Desa heaters

In stock
Part Number
Part Number: 121213-03
Brand: Fireplace, heaters, outdoor equipment
Shipping Weight: 1 Lbs
121213-03 Spark Plug Flame Sensor was used by Desa International, Mr Heater and HeatStar on the several lines of portable construction heaters.

This 121213-03 Spark Plug flame sensor has been replaced with a new Flame sensor kit. Please view the replacement kit for instructions to replace your 121213-03 Spark Plug.

Service Note:

The 121213-03 Spark Plug replacement kit instruction to convert to the new style sensor are as follows:

1.) Make sure the gas hose is not connected & the unit is unplugged from a power source before beginning the next steps.

2.)Take off bottom cover by removing the 4 support screws, carefully cut the zip tie at the wire bundle with the sleeve, the set of wires nearest the motor assembly/fan side of the unit (will not have the space to extract the motor until doing this step).

3.)Remove the 6 screws that mount the motor assembly into the unit. There are two at the top, two on the left & two on the right.

4.) Use a 13/16 socket or wrench with a long enough extension to reach inside the barrel of the heater from the motor end to loosen the nut on the spark plug. Once unloosened, the spark plug is to be removed from the unit along with the red ignitor wire that was connected to it. Remove this wire from the control board also, it will be replaced with the new wire in the retro-fit kit.

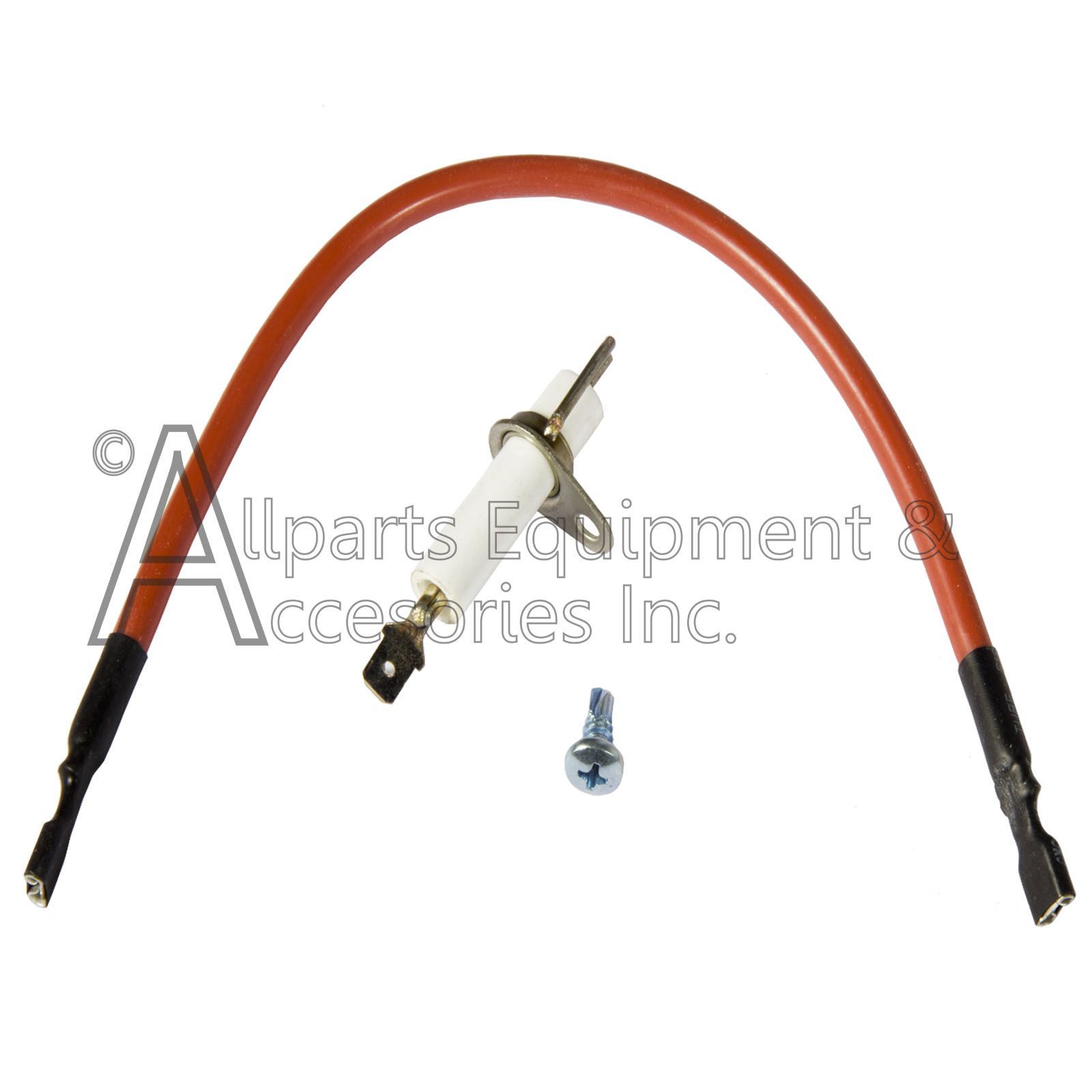

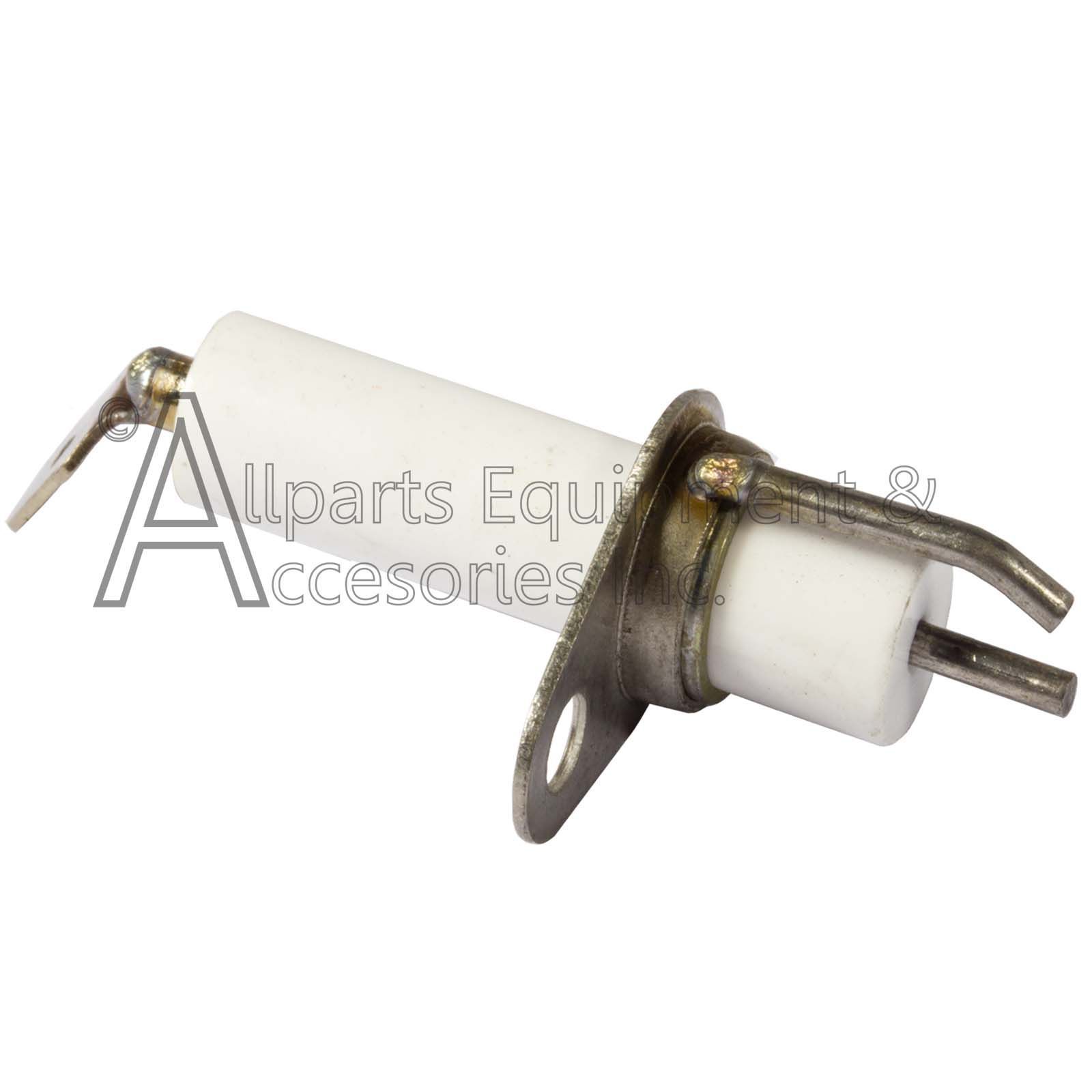

5.) Once the spark plug has been completely removed, place new ignitor into the same hole & use the self-tapping screw (#10 included in the kit) to mount it through the bracket hole & the heat shield as shown. (see picture in overview)

6.) Swap the red ignitor wire with the wire provided in the replacement kit. Plug the new wire into control board & route it through the same hole the original wire was routed through.

7.) Remount the motor/ bottom plate & replace the zip tie.
