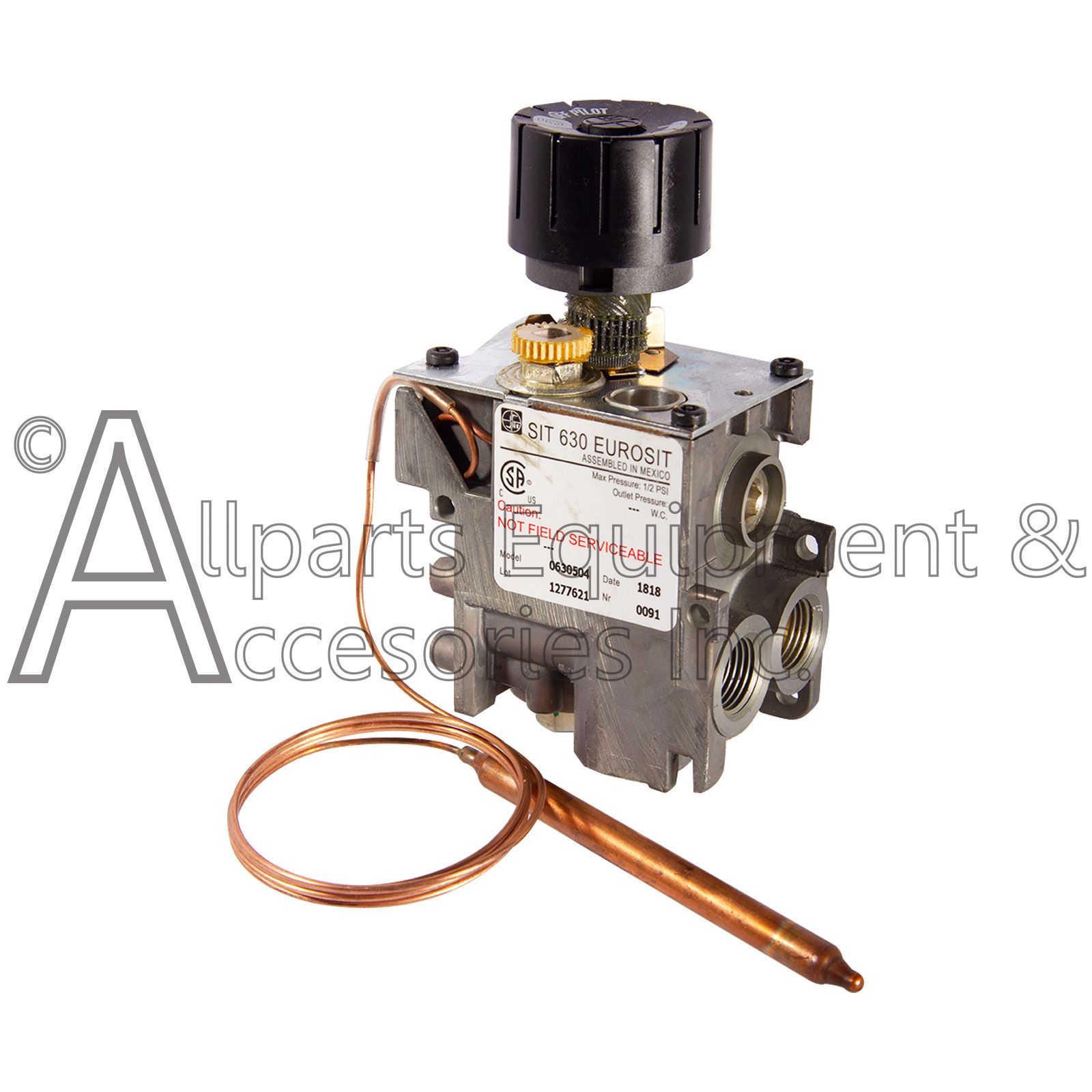

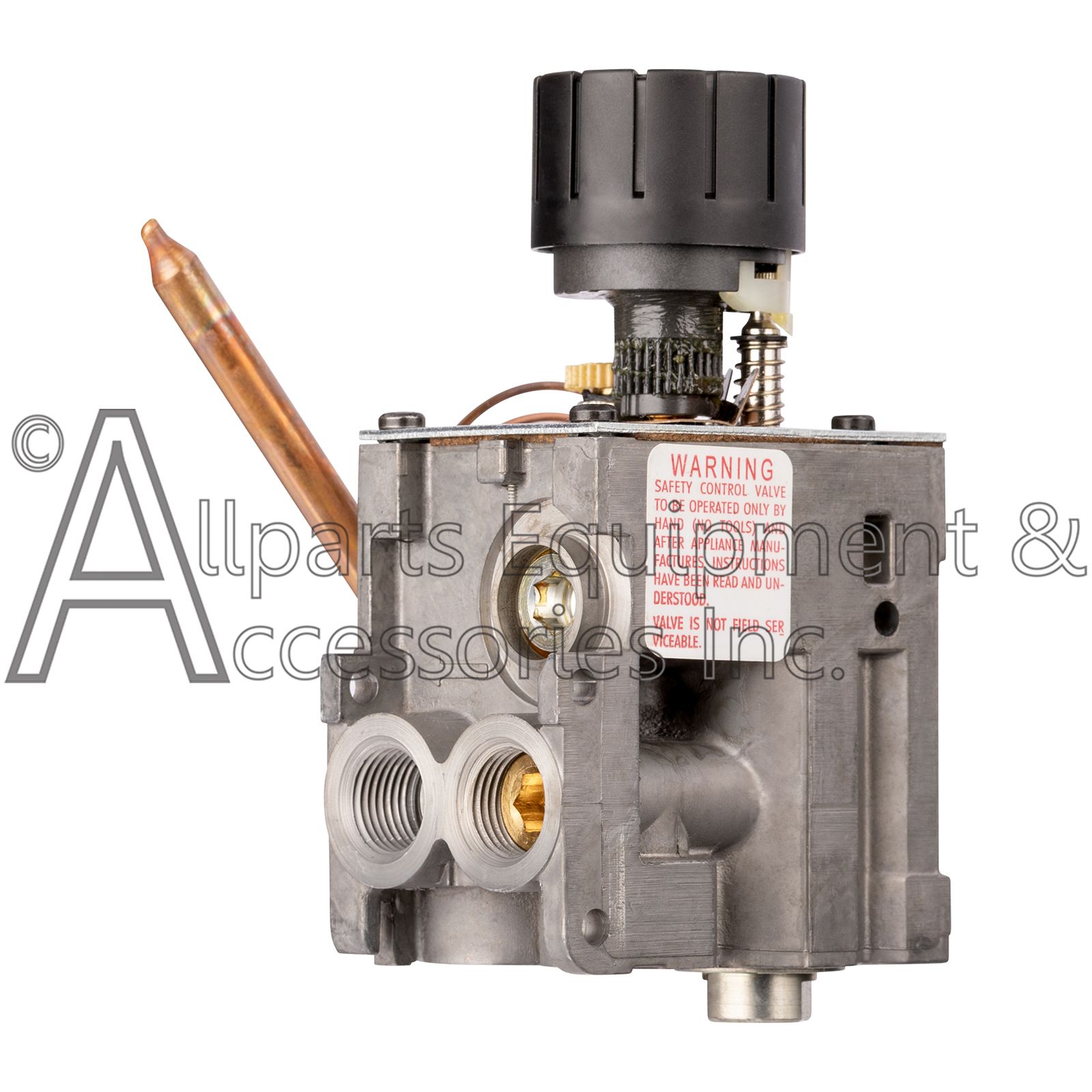

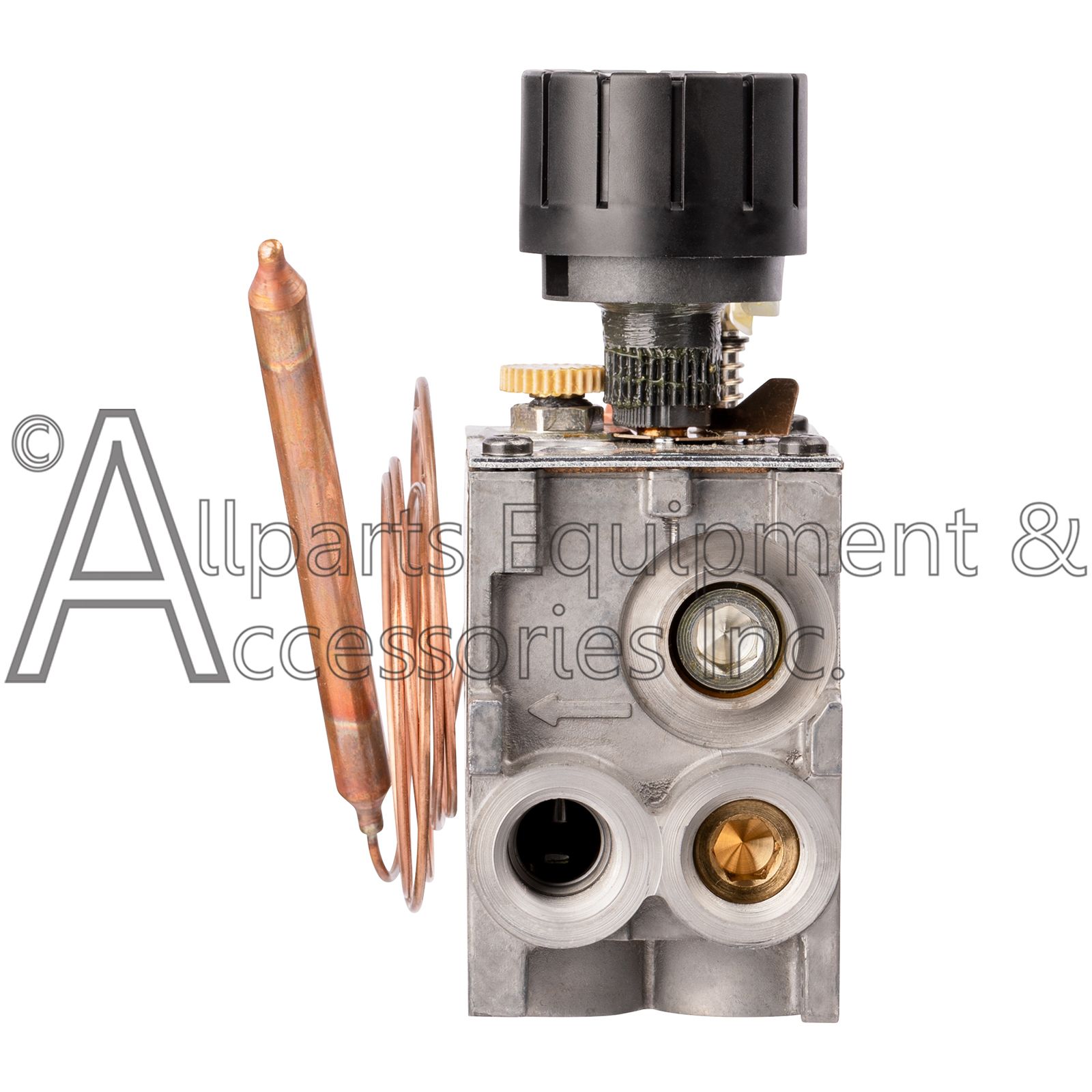

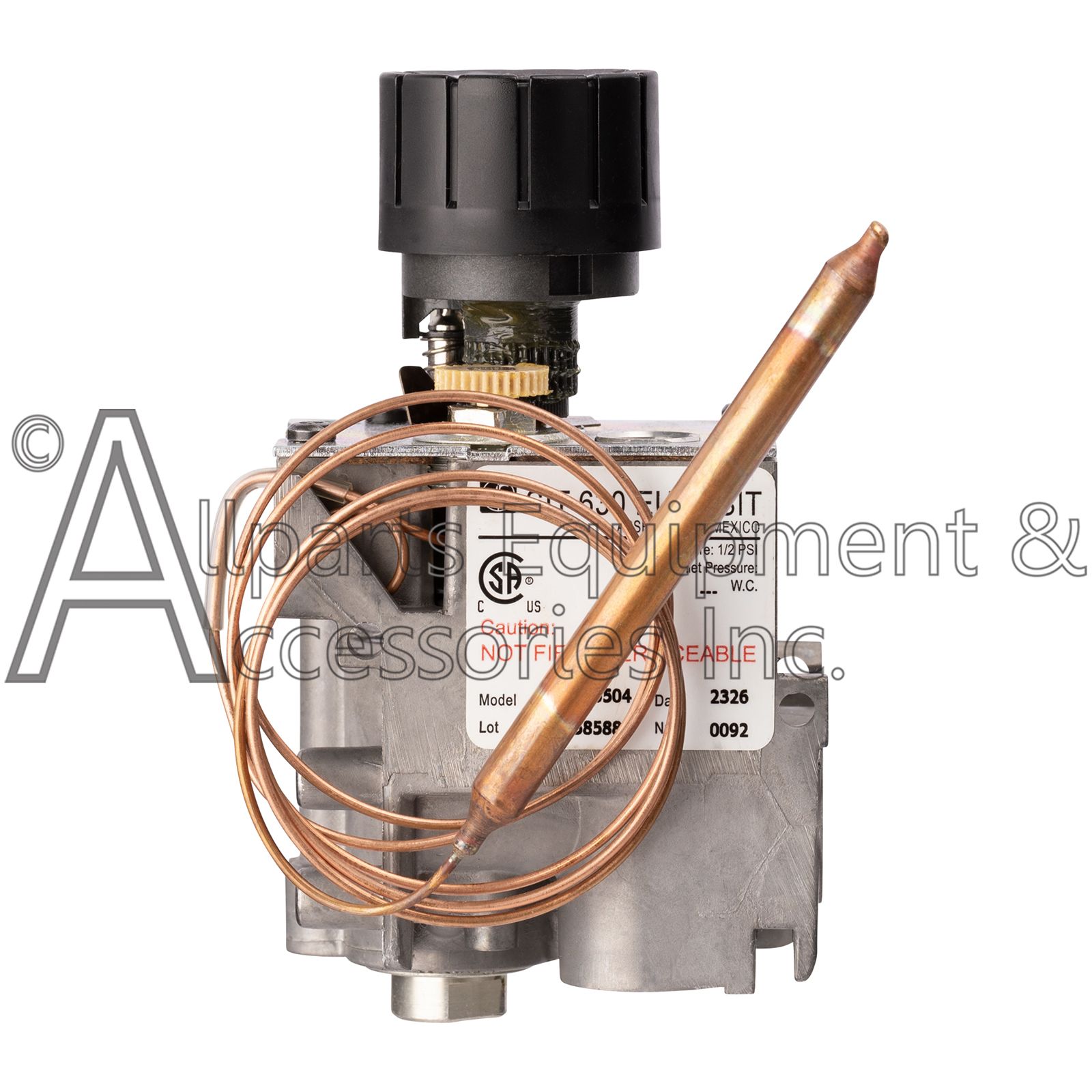

0630504 SIT 630 EUROSIT SERIES GAS CONTROL VALVE
The Eurosit 630504 Gas Control valve by Sit Controls is a multi-function valve that will provide a long life for your appliance using either Liquid Propane Gas LPG or Natural Gas NG.
This Eurosit 630504 Multi-Gas control valve has been used by many different manufacturers in producing various hearth products including Gas Logs, Vent-Free Wall Heaters, Ventless Fireplaces, Pedestal Stoves, and other vent-free hearth related products.
The SIT 630 Eurosit gas control valve is particularly for use with most gas hearth related heating applications as well as many other vent-free appliance applications.
The SIT 630 Eurosit does not require electrical supply and is suitable for operations in ambient temperatures up to 120 degrees Celsius.
The 630 Series gas valve is available in a wide range of configurations. It is particularly suitable for use in vent free gas wall heaters, vent-free gas fireplaces, gas log sets, and many hearth appliances that require accurate temperature control without an external power supply.
We are sorry but Gas Valve and related Gas Products are NOT RETURNABLE for refunds.
These items come with a 90-day warranty for exchange only.
Please look at all pictures carefully and study your manual before you purchase this item because no returns for refunds will be accepted.
Gas Valve Return Policy
Need Help? Call us:1-269-685-4123

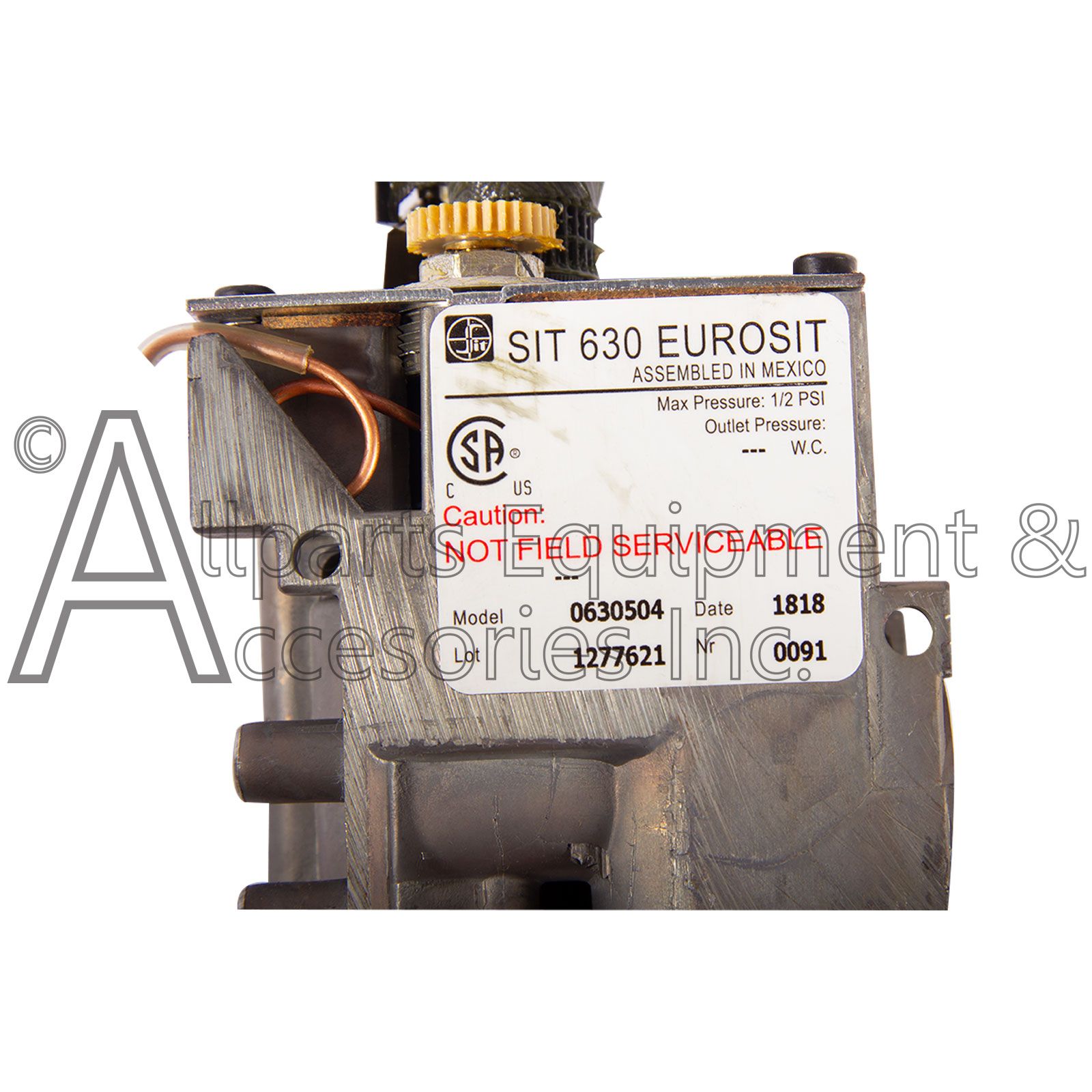

SIT Eurosit Gas Valve Model 0630504 also known as 0.630.504 , 630504 , 630.504
The 0630504 can be used to replaces SIT Model Numbers:
0630553 , 0.630.553 , 630553 , 630.553
0630555 , 0.630.555 , 630555 , 630.555
The 0630504 valve was also used by manufacturers under the following part numbers:
Desa International Reference Number:
098237-01 , 098237 01 , 09823701
098522-03 , 098522 03 , 09852203
098522-04 , 098522 04 , 09852204
101329-07 , 101329 07 , 10132907
101329-08 , 101329 08 , 10132908
Other Reference Numbers:
PE-0630504 , PE0630504, PE0630504-NAT
The 630 Series gas control valve is configured for both LPG and NG applications. See sit 630 eurosit instructions for more information.
The SIT 630 Eurosit Valve has the following features:

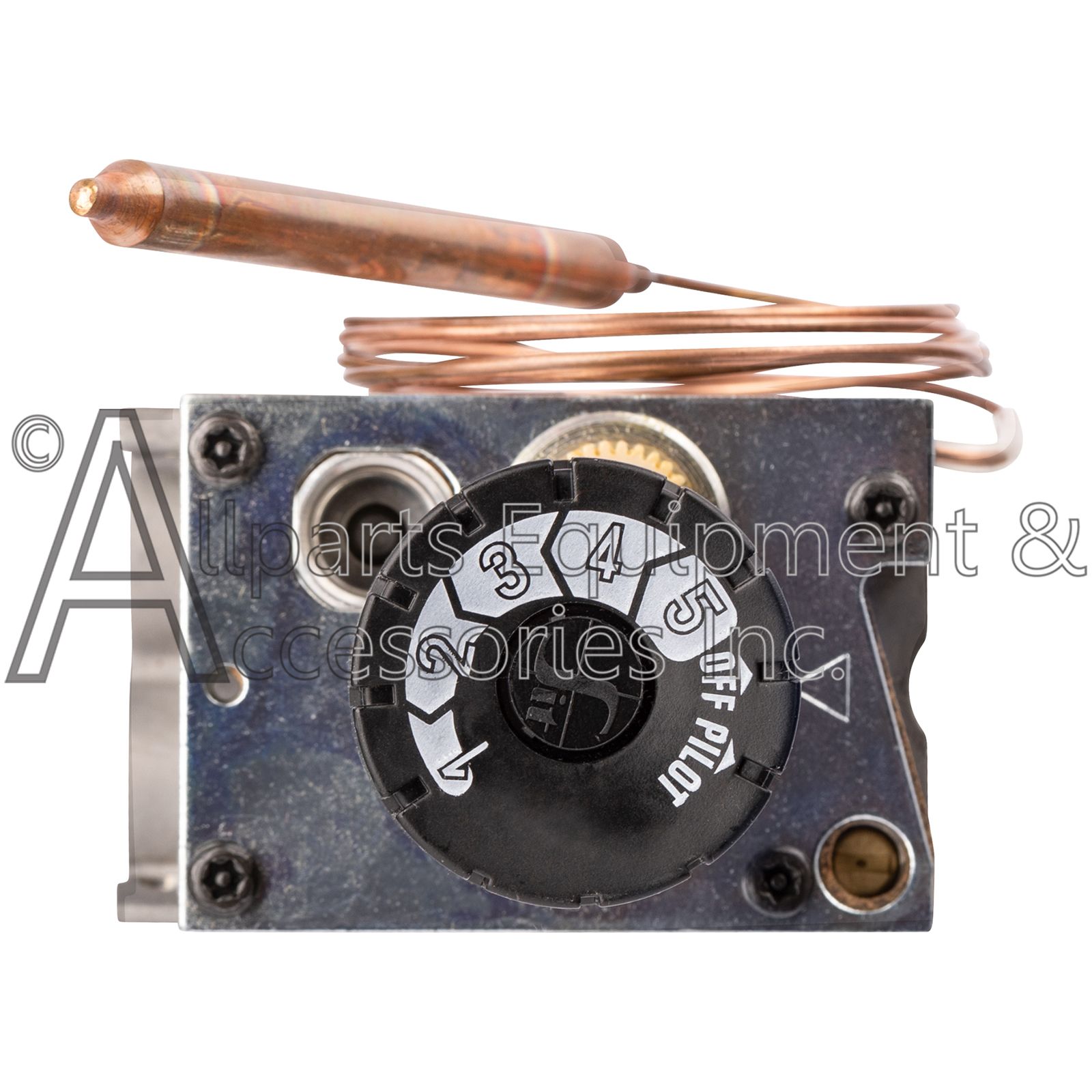

Control knob with positions for off, pilot and temperature selections
Thermo-electric flame supervision device with optional interlock
Pressure regulator or alternatively flow adjuster
Modulating an on-off thermostat
Pilot outlet with the pre-setting device of the gas flow
Inlet and Pilot Filters
Inlet and Outlet pressure test points

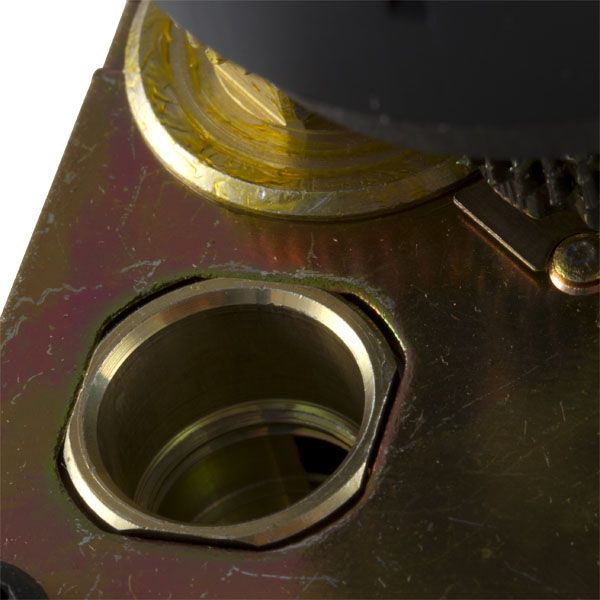

Side or bottom main gas inlet and outlet
Main gas connections with threaded 3/8 NPT pipe or suitable for compression nut fitting.
