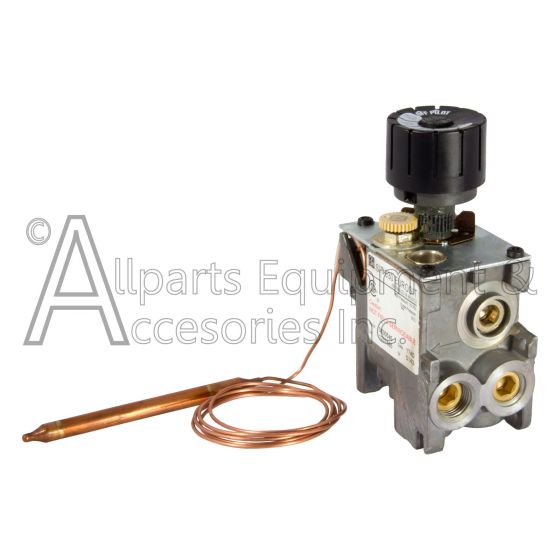

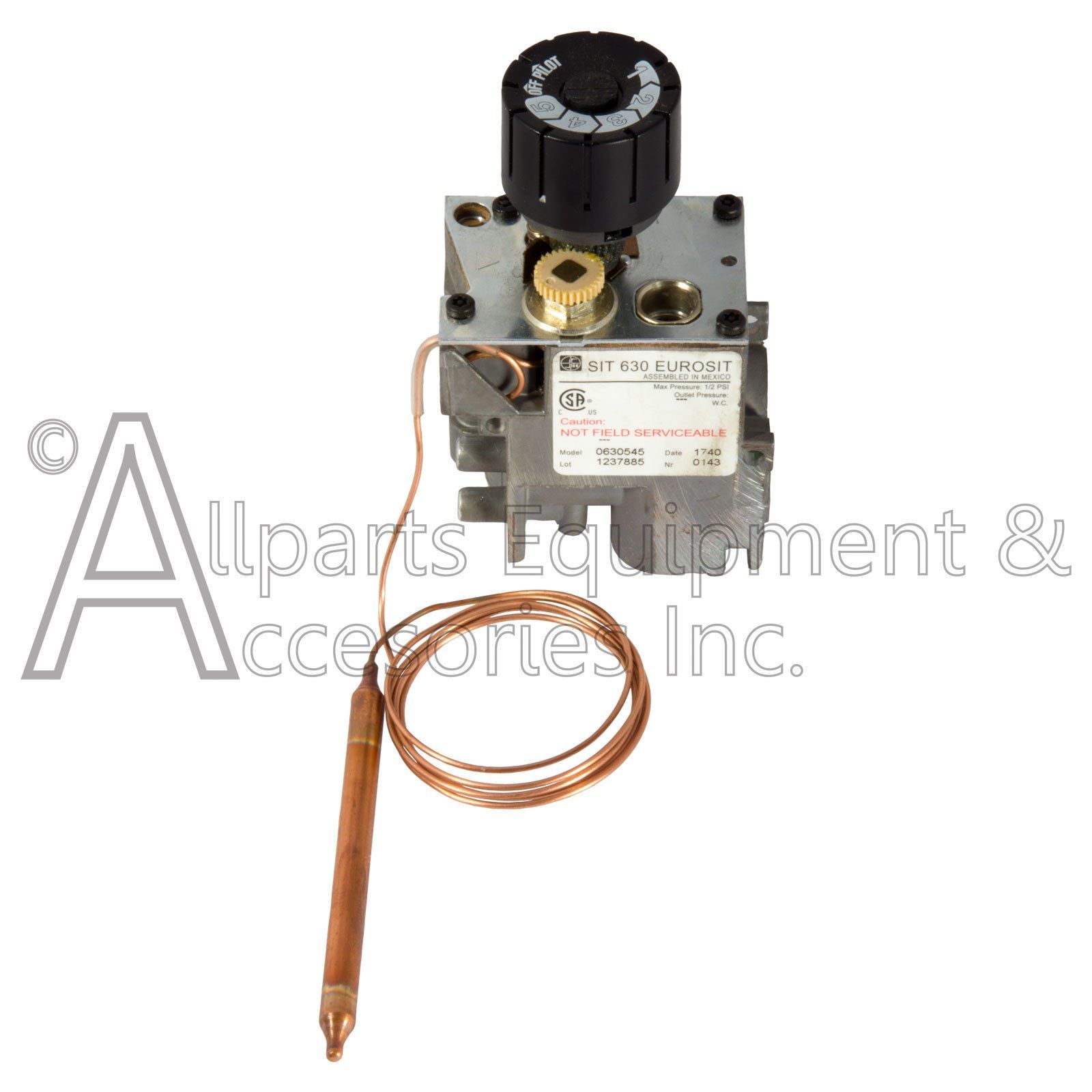

0630545 EUROSIT GAS CONTROL VALVE KIT
In stock
Part Number
0630545
$136.90
630545 Gas Control valve by Sit Controls is a Eurosit SIt 630 series multi-function valve that will provide long life for your appliance using either Liquid Propane Gas LPG or Natural Gas NG.
This 0630545 Multi-Gas control valve has been used by many different manufacturers in producing several different hearth products including Gas Logs, Vent-Free Wall Heaters, Ventless Fireplaces, Pedestal Stoves, and other vent-free hearth related products.
The SIT 630 630545 Eurosit Gas Control Valve is a multi-functional single control knob combination gas control with combined modulating snap action thermostat and safety interlock system. This Eurosit gas control valve is particularly for use with most gas hearth related heating applications as well as many other vent-free appliance applications.
630545 Eurosit valves do not require electrical supply and are suitable for operations in ambient temperatures up to 120 degrees Celsius.
The SIT 630 Series gas valve is available in a wide range of configurations. It is particularly suitable for use in vent free gas wall heaters, vent-free gas fireplaces, gas log sets, and many hearth appliances that require accurate temperature control without an external power supply.
The 630 Series gas control valve is configured for both LPG and NG applications. See sit 630 eurosit instructions for more information.
The SIT 630 Eurosit Valve has the following features:

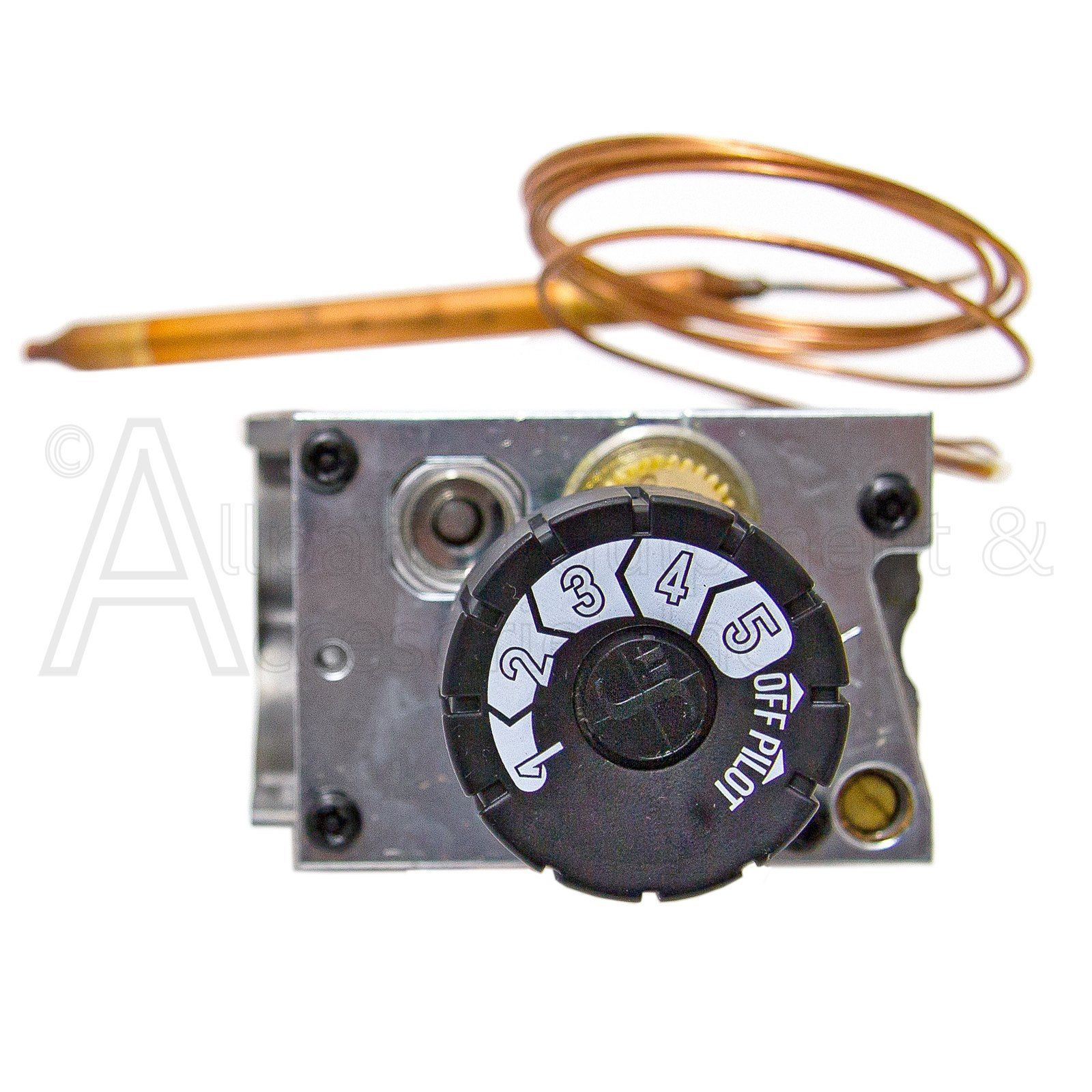

Control knob with positions for off, pilot and temperature selections
Thermo-electric flame supervision device with optional interlock
Pressure regulator or alternatively flow adjuster
Modulating and on-off thermostat
Pilot outlet with pre-setting device of the gas flow
Inlet and Pilot Filters
Inlet and Outlet pressure test points
Side or bottom main gas inlet and outlet
Main gas connections with threaded 3/8 NPT pipe or suitable for nut or compression fitting
This 0630545 Multi-Gas control valve has been used by many different manufacturers in producing several different hearth products including Gas Logs, Vent-Free Wall Heaters, Ventless Fireplaces, Pedestal Stoves, and other vent-free hearth related products.
The SIT 630 630545 Eurosit Gas Control Valve is a multi-functional single control knob combination gas control with combined modulating snap action thermostat and safety interlock system. This Eurosit gas control valve is particularly for use with most gas hearth related heating applications as well as many other vent-free appliance applications.
630545 Eurosit valves do not require electrical supply and are suitable for operations in ambient temperatures up to 120 degrees Celsius.
The SIT 630 Series gas valve is available in a wide range of configurations. It is particularly suitable for use in vent free gas wall heaters, vent-free gas fireplaces, gas log sets, and many hearth appliances that require accurate temperature control without an external power supply.
The 630 Series gas control valve is configured for both LPG and NG applications. See sit 630 eurosit instructions for more information.
The SIT 630 Eurosit Valve has the following features:
Control knob with positions for off, pilot and temperature selections
Thermo-electric flame supervision device with optional interlock
Pressure regulator or alternatively flow adjuster
Modulating and on-off thermostat
Pilot outlet with pre-setting device of the gas flow
Inlet and Pilot Filters
Inlet and Outlet pressure test points
Side or bottom main gas inlet and outlet
Main gas connections with threaded 3/8 NPT pipe or suitable for nut or compression fitting
We are sorry but Gas valve and related gas Products are NOT RETURNABLE for refunds!
These items comes with a 90-day warranty for exchange only.
Please look at all pictures carefully and study your manual before you purchase this item because no returns for refunds will be accepted.
The SIT 0630545 gas valve can also be cross referenced to the following Sit Control gas Valves.
SIT545 , SIT 545
SIT 545-000 , SIT 545.000 , SIT 545000 , SIT545000
SIT545-130 , SIT 545.130 , SIT 545130 , SIT545130
SIT545-175 , SIT 545.175 , SIT 545175 , SIT545175
SIT545-200 , SIT 545.200 , SIT 545200 , SIT545200
SIT545-218 , SIT 545.218 , SIT 545218 , SIT545218
SIT545-250 , SIT 545-250 , SIT 545250 , SIT545250
SIT5455-200 , SIT 5455.200 , SIT 5455200 , SIT5455200
Write Your Own Review
No
The following Desa International part number gas valve may have been replaced with the SIT 630 Eurosit gas control valve model 0630545.
Please verify the exact model number of your current gas valve before ordering.
630545, 630.545, 0.630.545
630545, 630.545, 0.630.545
098522-10, 09852210, 098522 10
098522-11, 09852211, 098522 11
098522-12, 09852212, 098522 12
098522-13, 09852213, 098522 13
098522-16, 09852216, 098522 16 Note specific models may used the 0630544
098522-18, 09852218, 098522 18 Note specific models may used the 0630544
098522-24, 09852224, 098522 24
098522-25, 09852225, 098522 25
