HA3005 ROTOR KIT WITH BLADES AND INSERT 5/8

The HA3005 has been replaced by the new PP205 Rotor Kit.

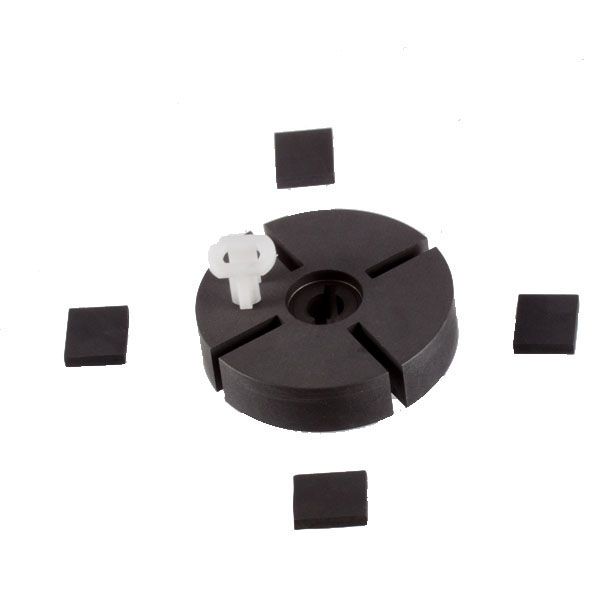

The PP205 Rotor Kit is the heater's air pump assembly and consists of a rotor, rotor insert and four carbon blades rotating inside a pump ring body.

The PP205 Kit consist of the following parts:

1 M22456-2 Rotor 1/2 Thick Carbon

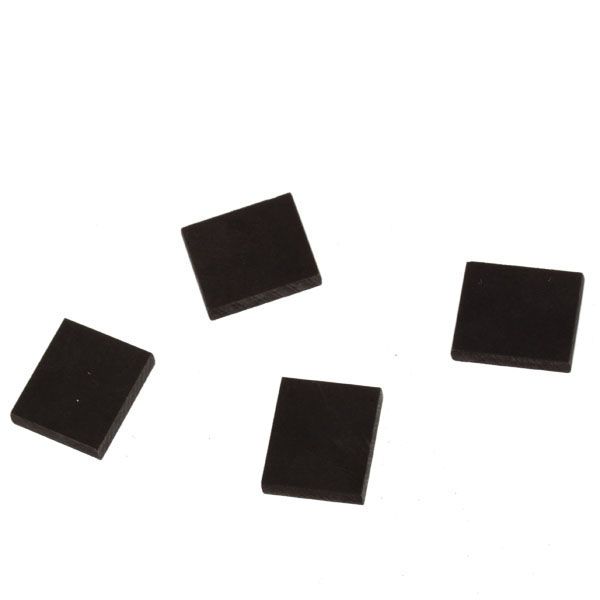

4 M8643-2 Carbon Blades
1 M22009 Insert, Plastic

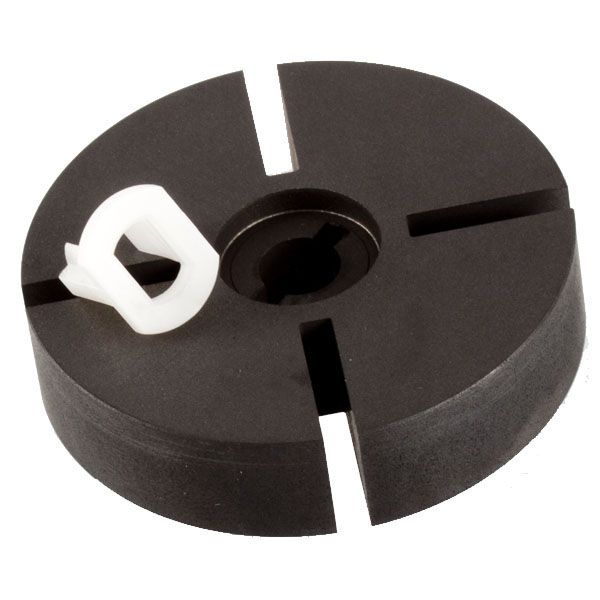

The PP205 rotor is driven directly by the motor and is attached to the motor shaft by means of a plastic insert. As the motor rotates, the carbon blades travel outward rubbing against the inside surface of the steel pump body.
The rotor's position inside the pump body is such that it is not concentric with the pump body and a .003/.004 of an inch gap is set at the uppermost quadrant.
As the motor rotates, the air between the blades is compressed and routed to the nozzle through the air line.

The carbon rotor blades will wear out after time and cause the output filter to fill with carbon particles. Replacement of the output filter and carbon blades should be done on a regular basis
