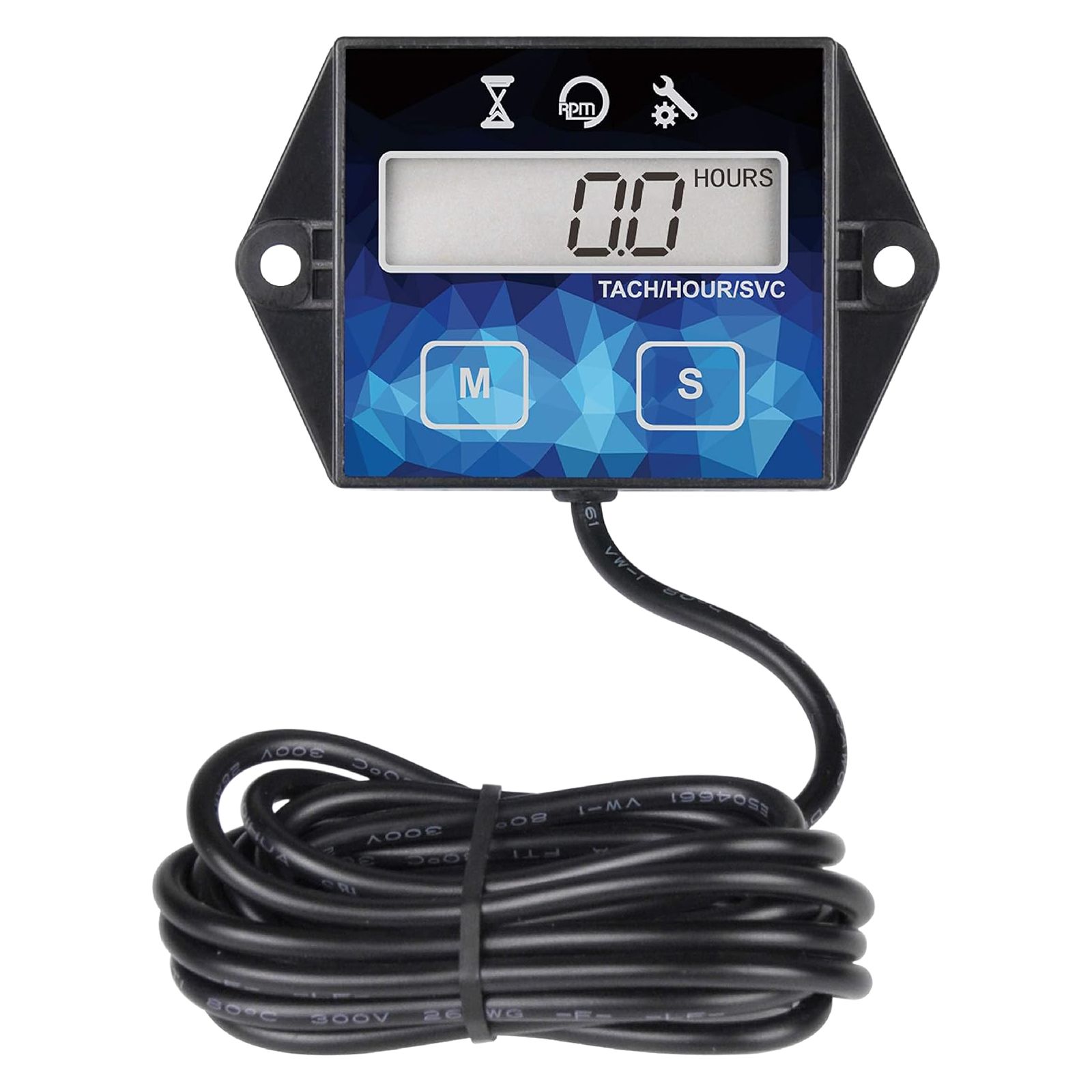

RL-HM011F Digital Tachometer & Hour Meter Gauge for 2 & 4 Stroke Spark Gas Engines

The RL-HM011F is a mini tachometer designed to measure the accumulated working hours and real-time RPM values of your gasoline engine. It uses an electrical signal from your engine's spark plug in order to measure the engine's RPM.

This electric tachometer assists in properly setting the RPM on your engine to match the engine's application.

The RL-HM011F supports programmable firing patterns that help keep the RPM measurement accurate. These programmable firing patterns aren't lost when shutting down the unit.

A waterproof design protects the RL-HM011F from external weather conditions.

Features of the RL-HM011F Tachometer

• Tachometer tracks an engine's real-time RPM
• Hour Meter tracks the total working hours of the engine
• A programmable maintenance interval service timer helps track when your engine requires service.
• Comes with 3 programmable firing patterns
• Replaceable CR 2450 internal battery allows for data retention
• Features a display shutdown
• Built with a IP65-rated Waterproof design

Installation:

Installing the RL-HM011F is made easy with the following components:

• Signal wire connection
• Surface screw installation
• Surface 3M Velcro
