R7612 PILOT ASSEMBLY, TRI-FLAME, NG NATURAL GAS
In stock
Part Number
R7612
$77.26

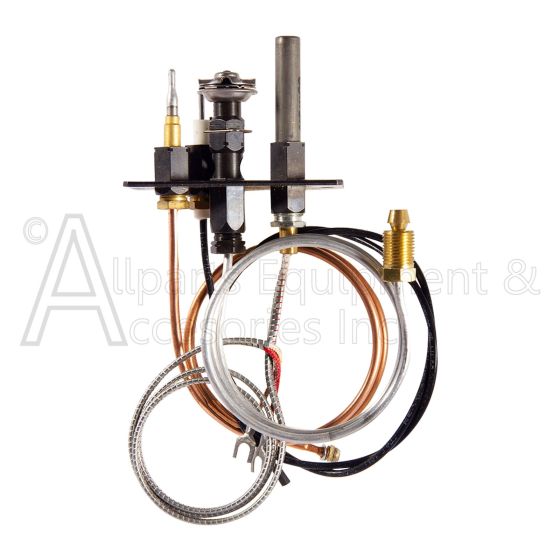

The Empire R7612 Pilot is an OEM Natural Gas complete pilot assembly used in various Empire Comfort Systems direct vent gas fireplaces, stoves, and gas log sets.
Empire Comfort Systems brands use this original equipment pilot assembly in many direct vent fireplaces, including American Hearth, Plaza, and White Mountain Hearth fireplaces.
It is a tri-flame pilot, meaning it has three flames coming out simultaneously to heat the thermocouple thermopile generator and ignite the burner.
The R7611 pilot assembly includes the pilot burner with tri-directional hood, R9823 thermocouple, R9824 thermopile generator, R9825 spark igniter electrode, and R9826 pilot tubing.
This is the OEM component for the following partial list of Empire direct vent fireplaces that use the R7612 pilot assembly.
The Empire R7612 OEM Pilot is made to the highest standards of Sit Controls Group and features:
This Pilot ODS Assembly should only be ordered if this is the exact replacement part for your heater, as listed in your owner’s manual.
All appliance repairs should be made by a qualified certified HVAC technician with proper testing equipment.
This is the OEM component for the following partial list of Empire direct vent fireplaces that use the R7612 pilot assembly.
DVCD32FP30N-1
DVCD32FP50N-1
DVCD36FP30N-1
DVCD36FP50N-1
DVCD42FP30N-1
DVD36FP52N-3
DVCD42FP50N-1
The Empire R7612 OEM Pilot is made to the highest standards of Sit Controls Group and features:
Sit Controls Pilot with SIT Bracket Reference 654
Sit Controls Thermo-Generator Thermopile 750Mv.
Sit Controls Pilot Tube with Fittings.
Sit Controls Electrode and Ceramic Cable.
Sit Controls Thermocouple.
Sit Controls Natural Gas Pilot Orifice Injector
This Pilot ODS Assembly should only be ordered if this is the exact replacement part for your heater, as listed in your owner’s manual.
All appliance repairs should be made by a qualified certified HVAC technician with proper testing equipment.
If you are having problems with your fireplace’s pilot assembly, it is essential to consult a qualified technician to perform and needed repairs.
They can diagnose the problem and replace the assembly if necessary.
The R7612 Empire Natural Gas Pilot will work on the partial list of the following models using Natural Gas for combustion.
