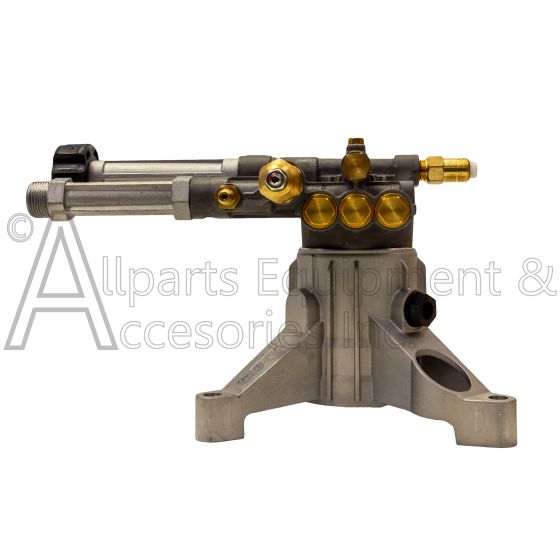

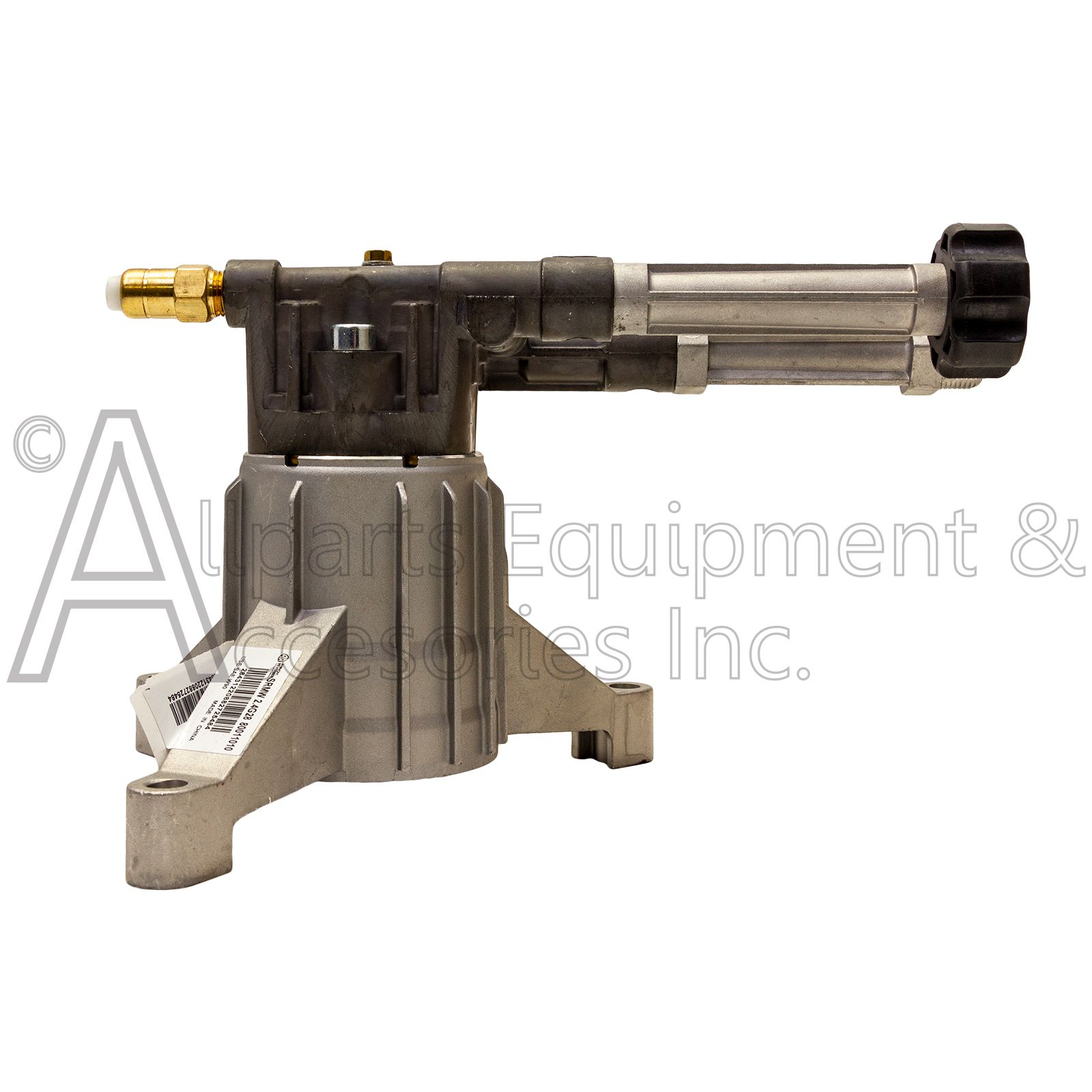

SRMW2.4G28EZ Replacement Pressure Washer Pump Oil Filled Axial Cam 3 Legs by AR North America
In stock
Part Number
SRMW2.4G28EZ
$162.30
The SRMW2.4G28 AR (Annovi Reverberi) pump is an oil filled axial cam pump used on various brands of pressure washers including Briggs & Stratton, Generac, Troy-bilt, and others.
This SRMW2.4G28 Plunger pump is rated at 2.4 GPM at 2800 PSI when operated at 3400 rpm. Direct drive system provides connection to most vertical 7/8" shaft engine with at least 4.8 HP.
The hollow shafted pump includes a three-leg vertical gas engine flange, a built-in pressure control valve and chemical injection system.
The SRMW2.4G28-EZ comes standard with a 22mm-14 twist connect outlet tube and EZ start valves.
The SRMW24G28 AR (Annovi Reverberi) pump is an oil filled economy axial radial pump used in various pressure washers.
The SRMW2.4G28 plunger pump is rated at up to 2.4 GPM at 2800 PSI. Direct drive system provides connection to most 7/8" shaft 4.8 HP and above engines and spins at 3400 RPM.
The hollow shafted pump includes vertical gas engine flange, a built-in pressure control valve and chemical injection system. Comes with a standard 22mm-14 twist connect outlet, and EZ start valves.
Max GPM = 2.4
Max L/Min = 8.3
Max PSI = 2800
Max Static PSI= 3100
Max Bar = 173
Mounting Version=EZ
Power EBHP = 4.8
Bore DIA MM = 12
Stroke MM = 9.7
Crankshaft ID Stamp = 1
Weight LBS. = 7.7
