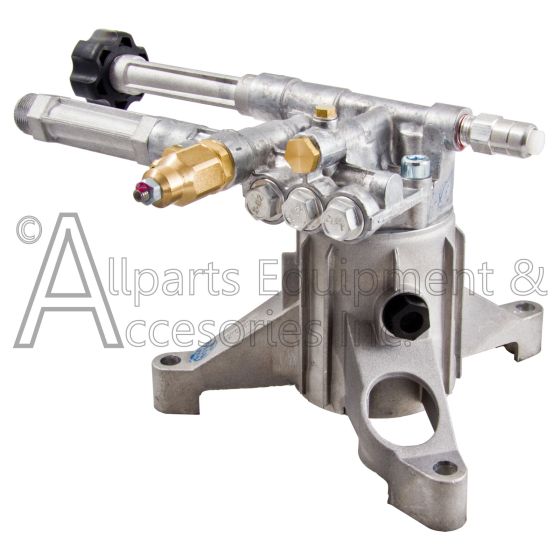

704676 Pressure Washer Pump 3 Leg Front Mounting 2800 PSI
In stock
Part Number
704676
$128.40
704676 pumps are an economy, oil filled axial cam pump used on various brands of pressure washer including Briggs & Stratton, Generac, Troy-bilt, and various others.
It is designed for units with the Inlet and Outlet tube facing the front of the pressure washer.
The 704676 plunger pump is rated for 2.3 GPM at 2800 PSI when operated at 3400 rpm.
Direct drive system provides connection to most vertical, 7/8" shaft engines with at least 4.8 HP.
The hollow shafted pump includes a three leg, vertical gas engine flange, a built-in pressure control valve, and chemical injection system.
The 704676 comes standard with a 22mm-14 twist connect outlet tube, and EZ start valve.
Below are the following specifacation for the 704676 Pressure Washer Pump:
| Max GPM: | 2.3 |
| Max L/min: | 8.3 |
| Max PSI: | 2800 |
| Max Bar: | 173 |
| Power EBHP: | 4.8 |
| Bore DIA MM: | 12 |
| Stroke MM: | 9.7 |
| Crankshaft ID Stamp: | 1 |
| Weight LBS: | 7.7 |
Service Note:
In some cases, in units with extended reach inlet and outlet tubes, the extension from the previous pump will need to be removed and reused on the new pump to provide the proper clearance and access to the high-pressure hose outlet and cold water inlet fitting.
Write Your Own Review
Service Note:
In some cases, in units with extended reach inlet and outlet tubes, the extension from the previous pump will need to be removed and reused on the new pump to provide the proper clearance and access to the high-pressure hose outlet and cold water inlet fitting.
In some cases, in units with extended reach inlet and outlet tubes, the extension from the previous pump will need to be removed and reused on the new pump to provide the proper clearance and access to the high-pressure hose outlet and cold water inlet fitting.
Briggs and Stratton 311039
SRMW2.2G26
SRMW2.2G26EZ
