CAC-4336 95-125 PSI Pressure Switch Kit

In stock

Part Number

CAC-4336

$65.41

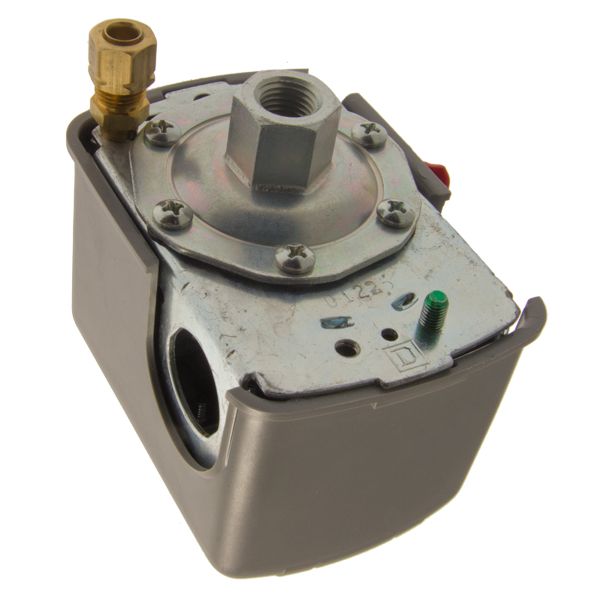

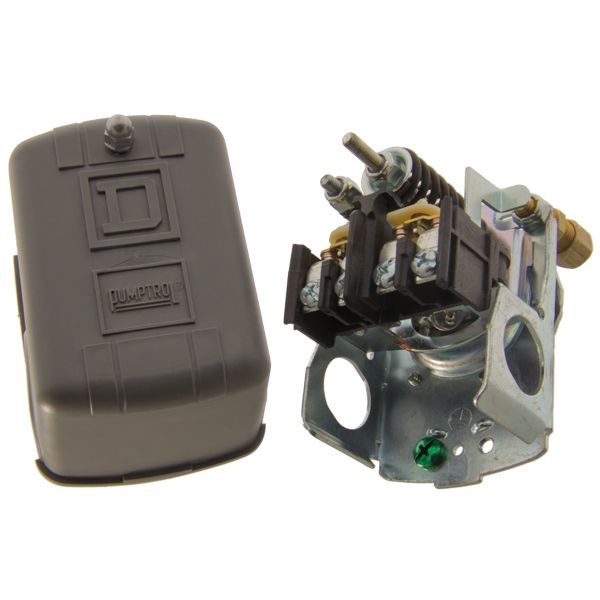

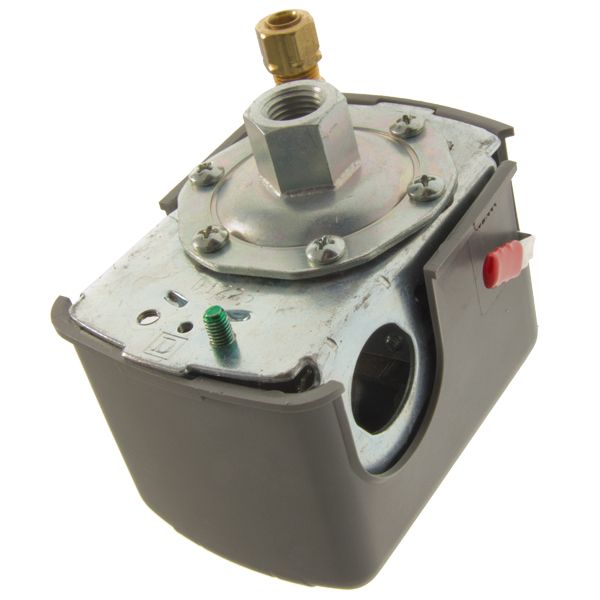

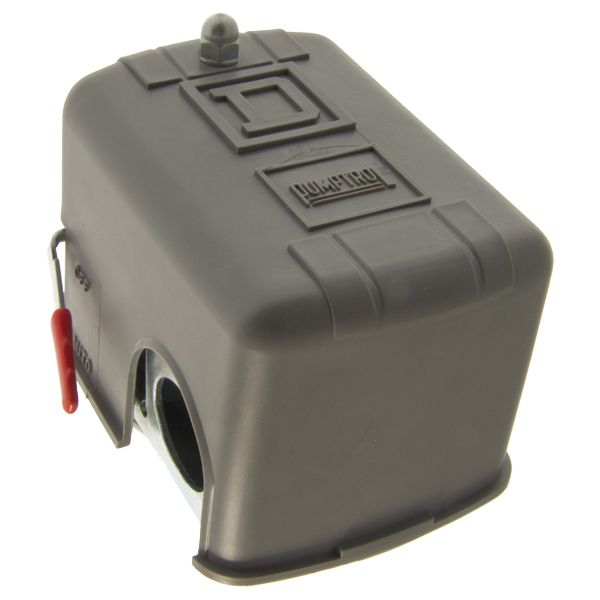

The CAC-4336 Pressure Switch is a preset 95-125 PSI Air Compressor Duty Rated diaphragm actuation automatic pressure switch.
This CAC-4336 CAC-4336 Standard Action Pressure Switch was used on both single and 3 phase air compressors ranging from 1.5 HP motors to 6.5HP single phase motors.
The Z-CAC-4336 Pressure switch comes preset to a cut on PSI of 95 and a cut out pressure of 125PSI but does have the ability to be adjusted if needed for lower pressure applications>
The CAC-4336 Air Compressor Duty rated pressure switch was used by many different brands of air compressors including DeVilbiss, Charge Air, Porter Cable, Sears Craftsman and several others.

Need Help? Call us:

1-269-685-4123

Details

The CAC-4336 Pressure Switch was used of the following list of Air Compressors as well as many other privately labeled units:
Sears Craftsman Air Compressor Models:
919.175960 919175960

ACBL320 Type 0
ACBL320 Type 1
AFL2512 Type 0
AFL2512 Type 1
AFL2512 Type 2
AFL2512 Type 3
AFL2520 Type 0
AFL2520 Type 1
AFL2520 Type 2
AFL2520 Type 3
AFL320 Type 0
AFL320 Type 1
AFL320 Type 2
AFL320 Type 3
IR35E20AD Type 1
IR35E20AD Type 2
IR5E20AD Type 1
IR5E20AD Type 2
IRC5E20AD Type 1
IRC5E20AD Type 2
L2512 Type 0
L2512 Type 1
L2512 Type 2
L2512 Type 3
L2520 Type 0
L2520 Type 2
L2520 Type 3
L2520 Type 4
L320 Type 0
L320 Type 1
L320 Type 2
L320 Type 3
RA5E20AD Type 1
RA5E20AD Type 2
RAC5E20AD Type 1
RAC5E20AD Type 2

Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Service Information

Do I need to replace my On/Off Pressure Switch?

QUESTION: Once my compressor builds to its maximum pressure and cuts off if there is a constant flow of air coming from the "Pressure Relief Valve" located on the side o
