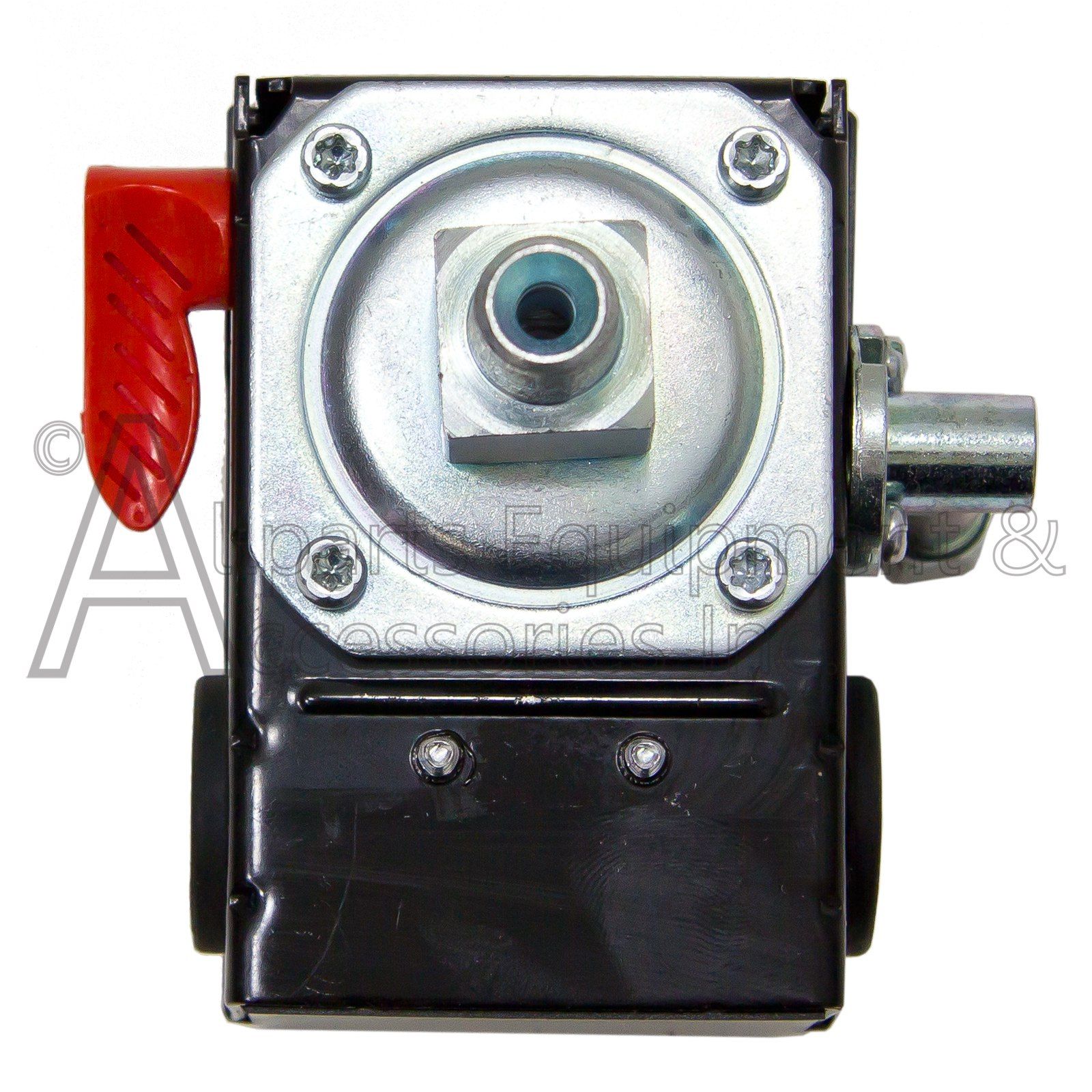

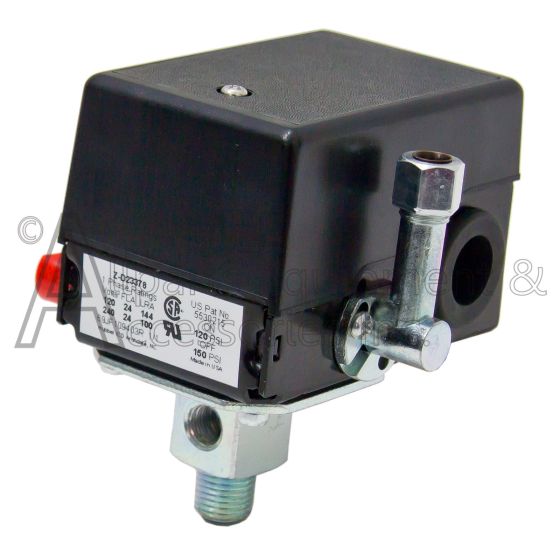

Z-D23378 Air Compressor Pressure Switch 120-150 PSI 2-Port 1/4 NPT

The Z-D23378 pressure switch is a 2-port mechanical control component designed for air compressor systems to regulate tank pressure through automatic electrical switching. It operates within a defined pressure range and features a 1/4” NPT threaded configuration with an integrated relief valve.

This switch controls system cycling by activating and deactivating operation based on preset pressure thresholds. The internal mechanism supports consistent pressure regulation within its rated limits while maintaining controlled startup and shutdown functions.

Z-D23378 Specifications

• Cut-In Pressure: 120 PSI
• Cut-Out Pressure: 150 PSI
• Port Configuration: 2-Port
• Port Size: 1/4" NPT

Z-D23378 Features

• Air compressor pressure switch for system pressure control
• 2-port configuration with 1/4" NPT connections
• Integrated relief valve
• Automatic pressure-based cycling mechanism
• Designed for consistent startup and shutdown control
