D20113 2-Port Air Compressor Pressure Switch Kit 100/130 PSI

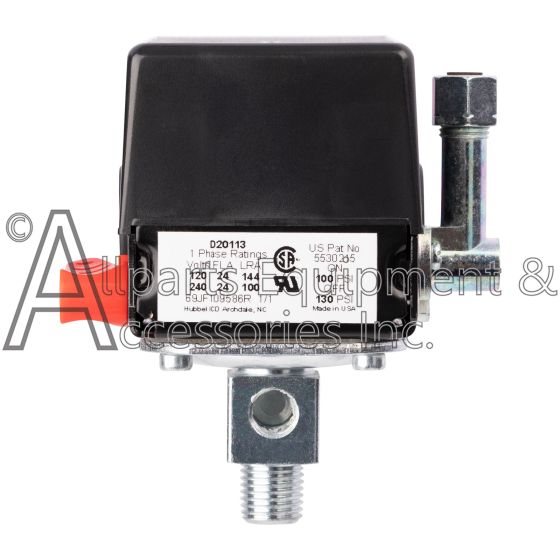

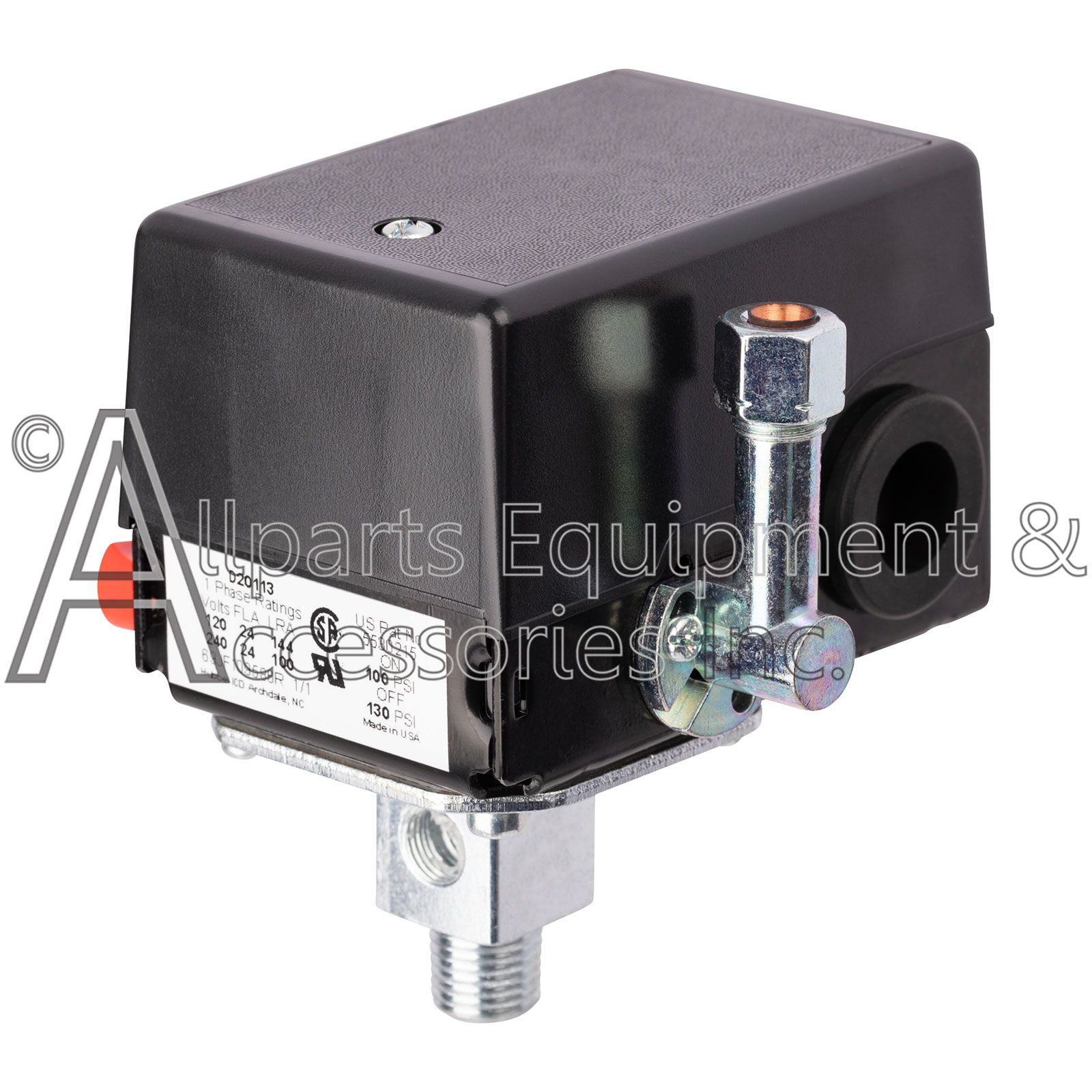

The D20113 pressure switch is a complete replacement pressure switch kit designed for air compressors manufactured by DeVilbiss Air Power Company, including select Sears Craftsman units. This pressure switch is preset to control compressor operation at a 100 PSI cut-in and 130 PSI cut-out.

The D20113 pressure switch was used on both stationary and portable air compressors produced by DeVilbiss Air Power Equipment. It is rated for use with 120V and 240V electrical systems and provides on/off motor control in compatible air compressor applications.

D20113 Specifications

• Switch type: On/Off pressure switch kit
• Cut-in pressure: 100 PSI
• Cut-out pressure: 130 PSI
• Port configuration: 2-port
• Max current rating: 24 full load amps
• Electrical: 120V / 240V
