5140117-69 Four Port Air Compressor Pressure Switch 100/125 PSI
In stock
In stock

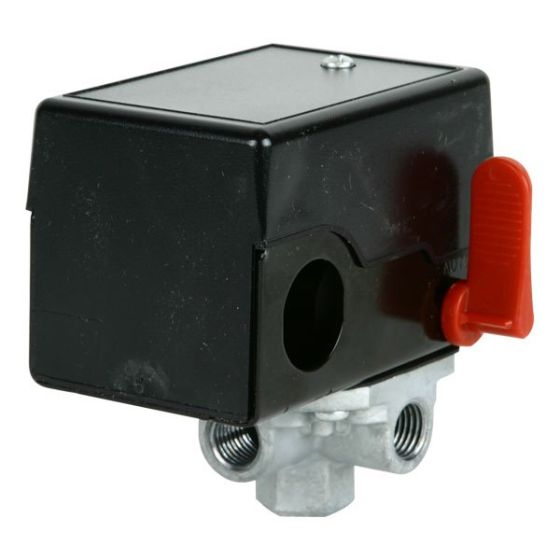

The 5140117-69 pressure switch is a four-port mechanical control component designed for air compressor systems to regulate tank pressure through automatic electrical switching.
It operates within a defined pressure range and includes an integrated unloader valve for controlled pressure release during shutdown cycles.
This switch is configured for dual-voltage operation with a two-pole electrical design and supports consistent pressure regulation through defined cut-in and cut-out thresholds.
The internal mechanism enables pressure-responsive activation and deactivation within air compressor systems operating under its rated limits.
5140117-69 Specifications
- Cut-In Pressure: 100 PSI
- Cut-Out Pressure: 125 PSI
- Port Configuration: 4-Port
- Voltage: 120V / 240V
- Switch Type: Two-Pole
- Amperage Rating: 24 Amp
5140117-69 Features
- Four-port air compressor pressure switch for tank pressure regulation.
- Integrated unloader valve for controlled pressure release.
- Dual-voltage electrical compatibility.
- Two-pole switching mechanism.
- Multi-port configuration for system connections.
Related Items
Compatible Models
The 5140117-69 pressure switch is known to properly fit and function with the following partial list of air compressors:
- 919165090
- 919165010
- 919165230
Additional compatibility may exist for other brands and models manufactured using the same pressure switch. Always verify compatibility by confirming your unit’s model number and part diagram.
No Reviews Yet
Cross Reference
- D21299
- Z-D21299
