AC-0008-1 PRESSURE SWITCH 100/125

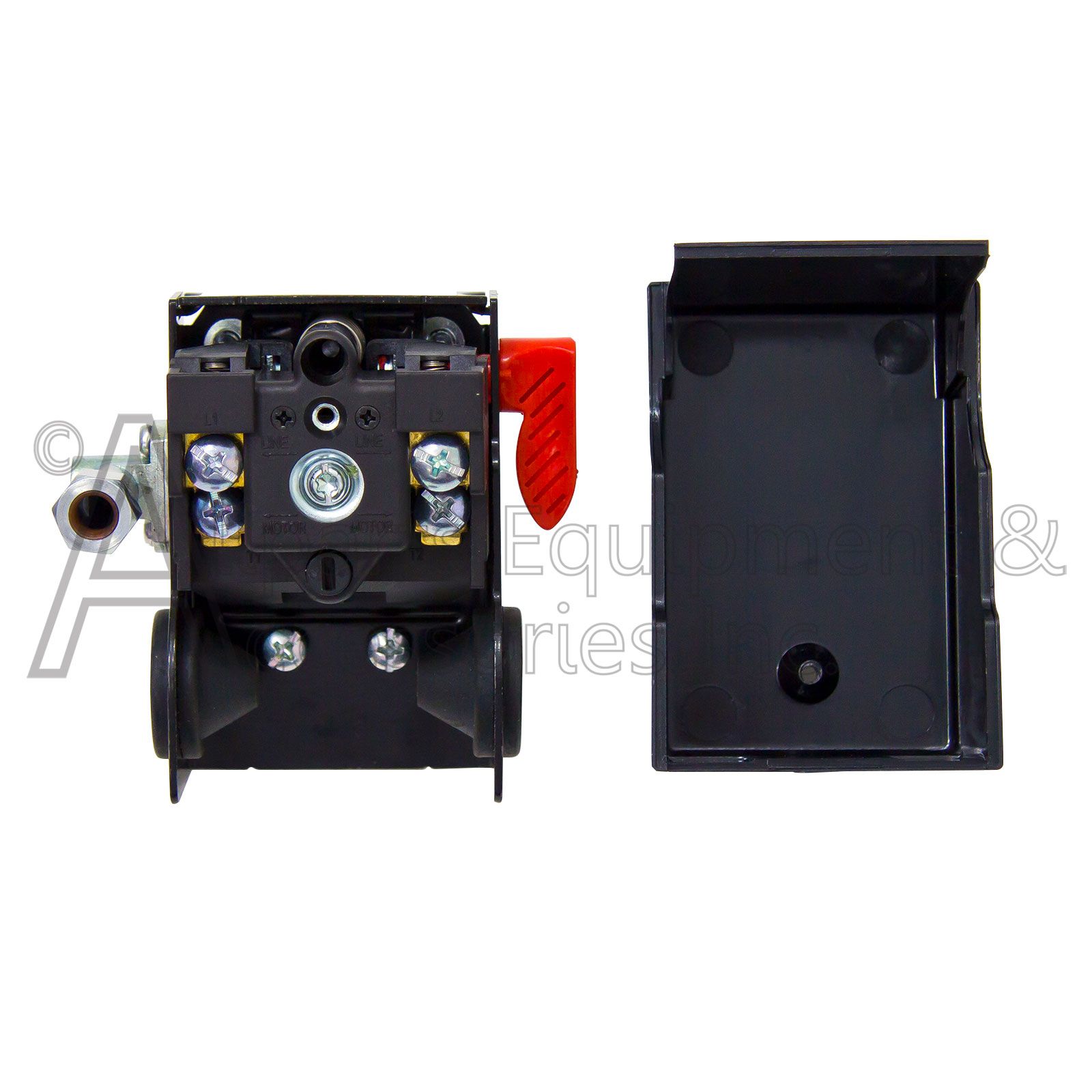

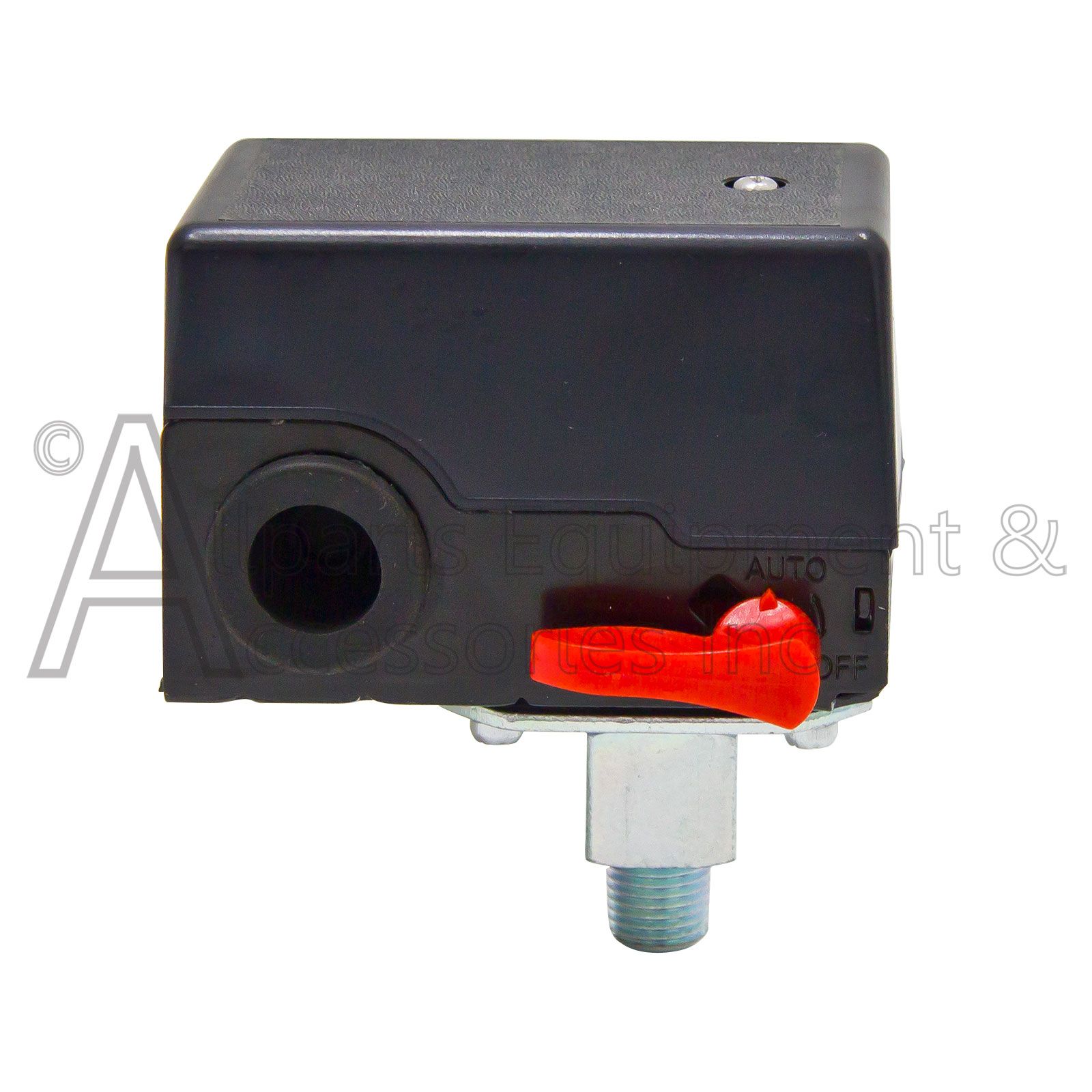

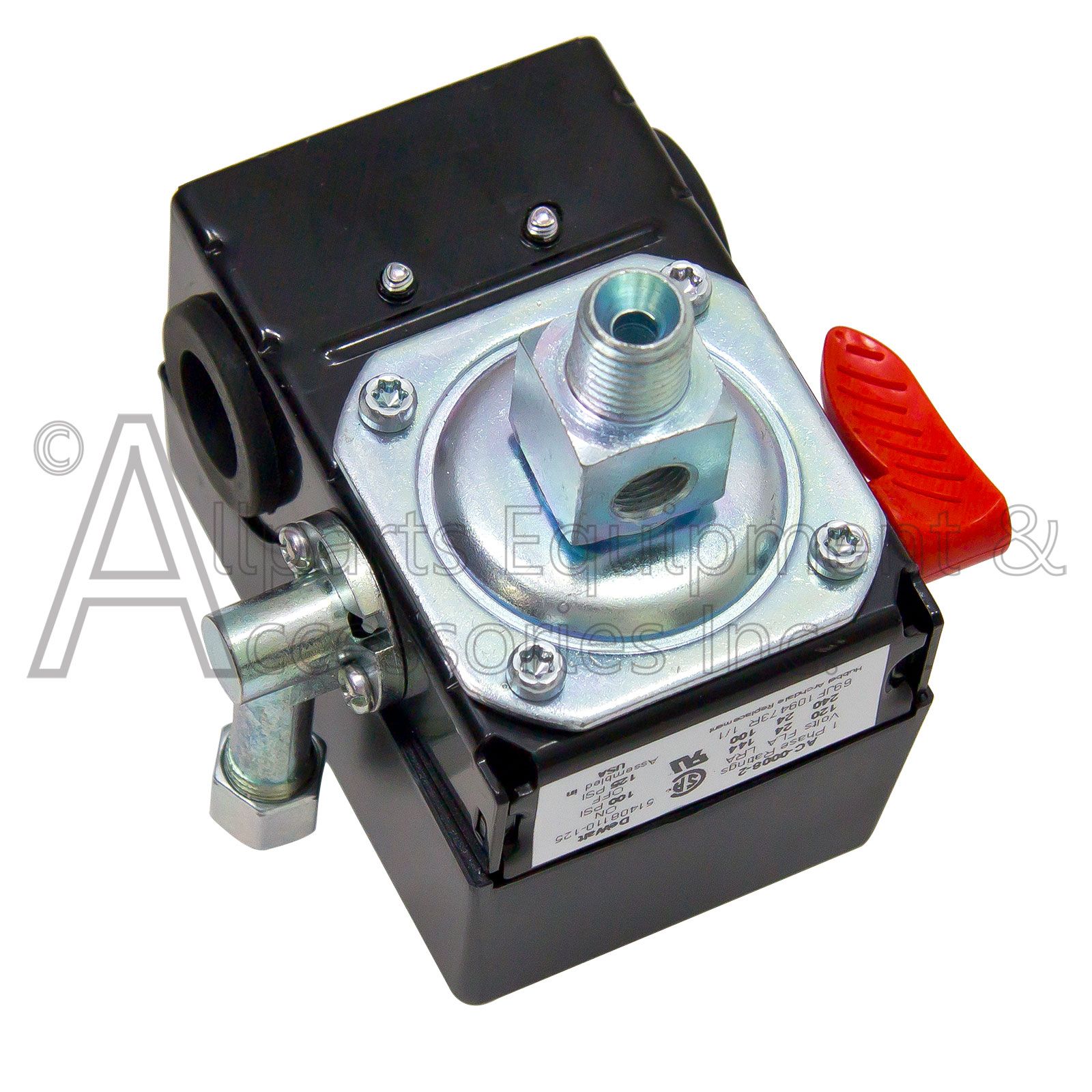

AC-0008-1 PRESSURE SWITCH 100/125 AC-0008-1 PRESSURE SWITCH 100/125 interior AC-0008-1 PRESSURE SWITCH 100/125 100 PSI 123 PSI AC-0008-1 PRESSURE SWITCH 100/125 bottom view AC-0008-1 PRESSURE SWITCH 100/125 AC-0008-1 PRESSURE SWITCH 100/125

AC-0008-1 Pressure Switch Special Base 1/8 Port 100/125

In stock
Part Number
AC-0008-1
$42.54
Part Number: AC-0008-1
Brand: DeVilbiss Air Compressor and Equipment
Shipping Weight: 1.5 Lbs
The AC-0008-1 Pressure Switch is preset at 100 psi cut in pressure and 125 psi cut out pressure.


This AC-0008-1 Pressure Switch with the special base was used on Stationary and Portable Air Compressors manufactured by DeVilbiss and is also used on Sears Craftsman Air Compressors.


The maximum rating of this pressure switch is 24 Full Load Amps 120/240 Volts


The AC-0008-2 Pressure Switch fits the following models:


  Sears Craftsman
919.152921
919.152940
919.792250
919.152930
919.72800


  DeVilbiss
DF412
DF430
DF5020
EXDF5020 and various other model of air compressors.
