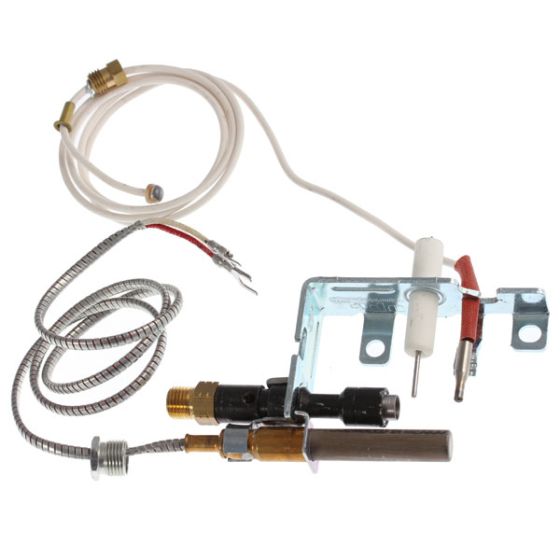

112376-01 Natural Gas ODS Pilot Assembly NG8252 with Integrated Thermocouple

The 112376-01 pilot assembly is a natural gas ODS pilot assembly used on FMI, IHP, Lennox, and Superior gas fireplaces, among others. It also goes by the part number NG8252.

This pilot ODS assembly is an OEM Hearthside part that is rated for 2500 plus hours of operation.

This natural gas pilot assembly includes a built-in thermocouple and thermopile, as well as a built-in fuel injector.

The 112376-01 NG8252 Pilot ODS / Oxyprotector parts are all integrated to provide long life and guaranteed performance.

Features of the 112376-01 Pilot Assembly

• Single long life thermocouple wire.
• Protected flame inside the pilot burner to help protect against influences by air currents.
• Built in Injector at approximately 166 W energy consumption.
• Thermopile Support.
• Complies with current European and CSA Norms.
• Suitable for all Propane Grades.
• Fail Safe Oxygen Depletion System
• 3/8" 24 UNF 2Ao5 mm Gas Connection.
• M8 x 1 Thermocouple connection nut.
