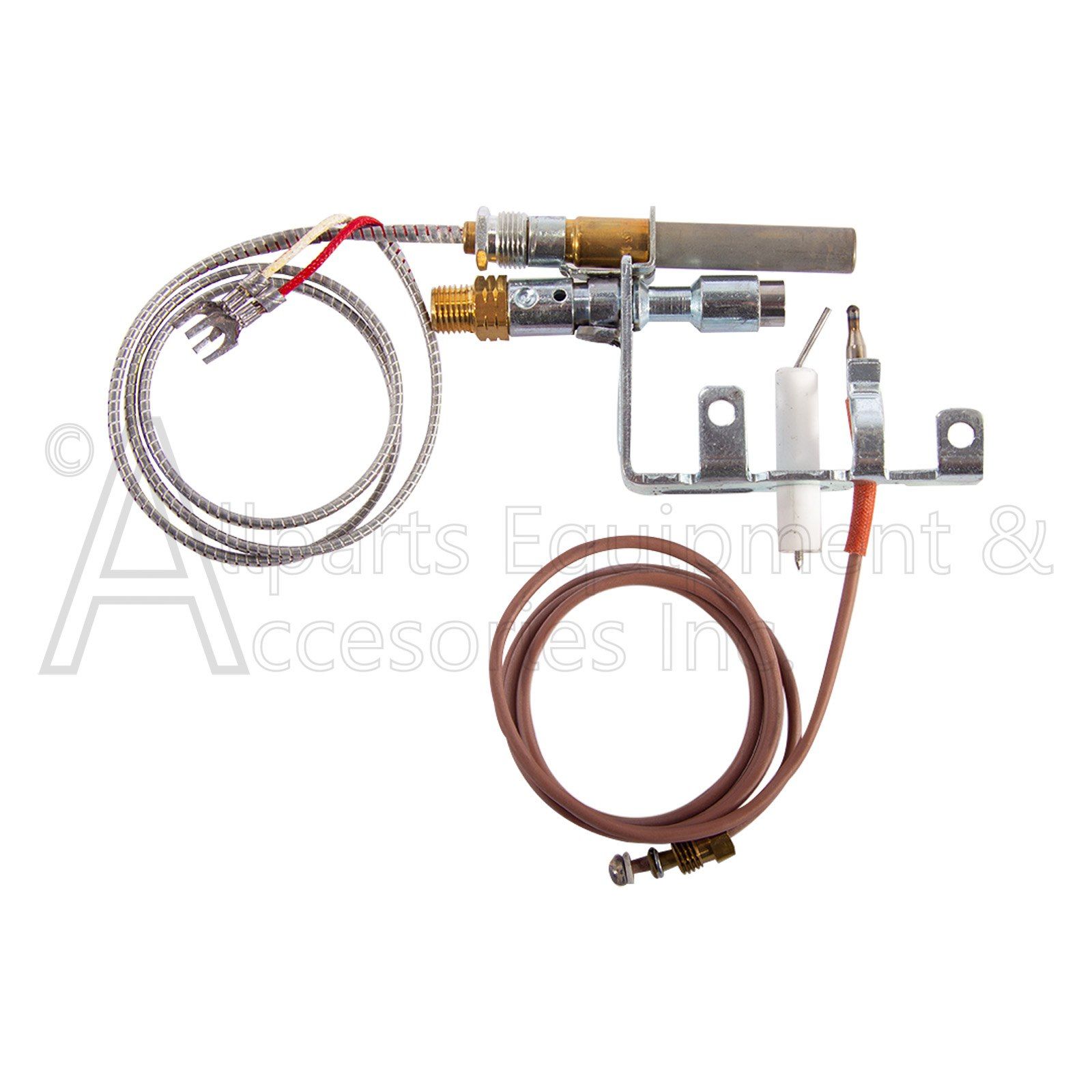

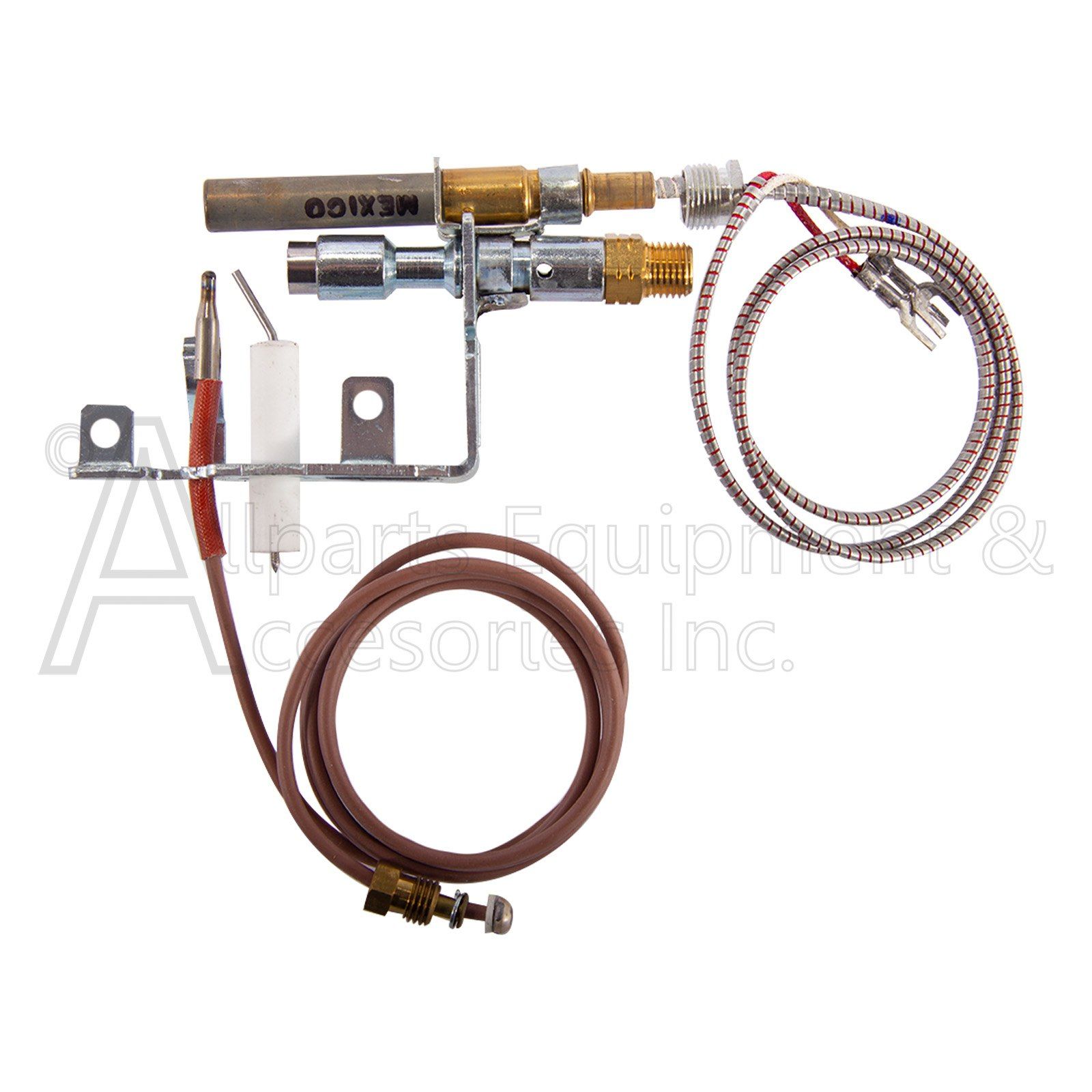

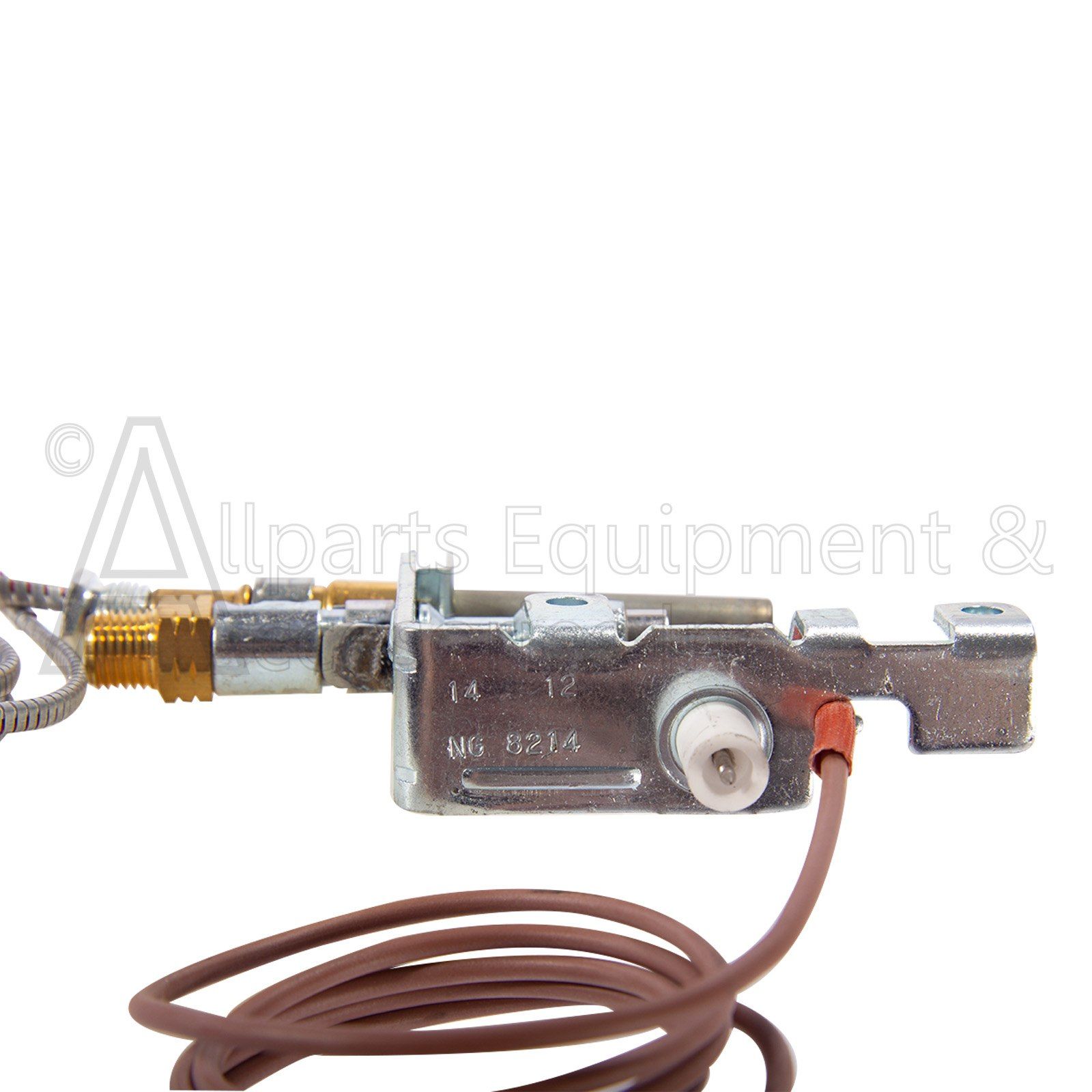

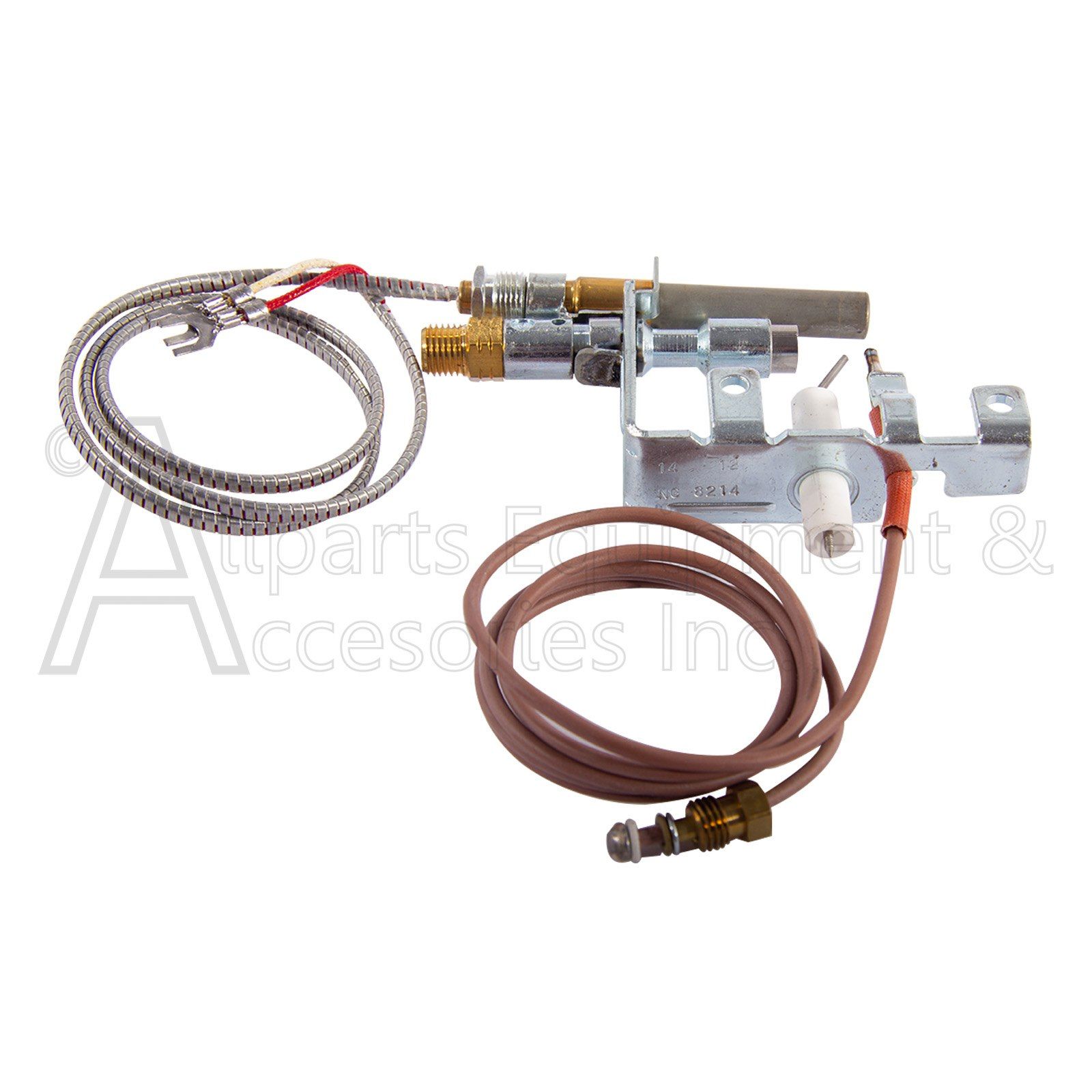

84118214000 Pilot ODS Assembly NG8214 for Natural Gas log sets
In stock
Part Number
84118214000
$64.90
The 84118214000 pilot assembly is an OEM replacement part and is rated for 2500 plus hours of operation
This Natural Gas Pilot ODS was used in many of the Empire, Monesson, Majestic, Vanguard, Vermont Castings and other fireplaces and gas logs from many different manufactures.
This assembly features an integrated thermocouple and thermopile.
Specifications of the 84118214000 Pilot Assembly
- Single long life thermocouple wire.
- Protected flame inside the pilot burner to help protect against influences by air currents.
- 0.22 Built in Injector at approximately 166 W energy consumption.
- Complies with current European and CSA Norms.
- 3/8 in. 24 UNF 2Ao5 mm Gas Connection.
- M8 x 1 Thermocouple connection nut.
The 84118214000 Natural Gas Pilot ODS / Oxyprotector parts are all integrated to provide long life and guaranteed performance.
Single long life thermocouple wire.
Protected flame inside the pilot burner to help protect against influences by air currents.
0.22 Built in Injector at approximately 166 W energy consumption.
Thermopile Support.
Complies with current European and CSA Norms.
Suitable for Natural Gas Applications
Fail Safe Oxygen Depletion System
3/8 in. 24 UNF 2Ao5 mm Gas Connection.
M8 x 1 Thermocouple connection nut.
This Pilot ODS Assembly should only be ordered if this is the exact replacement part for your heater as listed in you owners manual.
Write Your Own Review
No
NG8214,14D0473, 8400.8214.000,84008214000, R-3624, R3624
