84118427000 Pilot ODS Assembly LPG8427 for Sit Controls 11/32 Thermocouple Nut-Special
In stock
Part Number
84118427000
$94.92

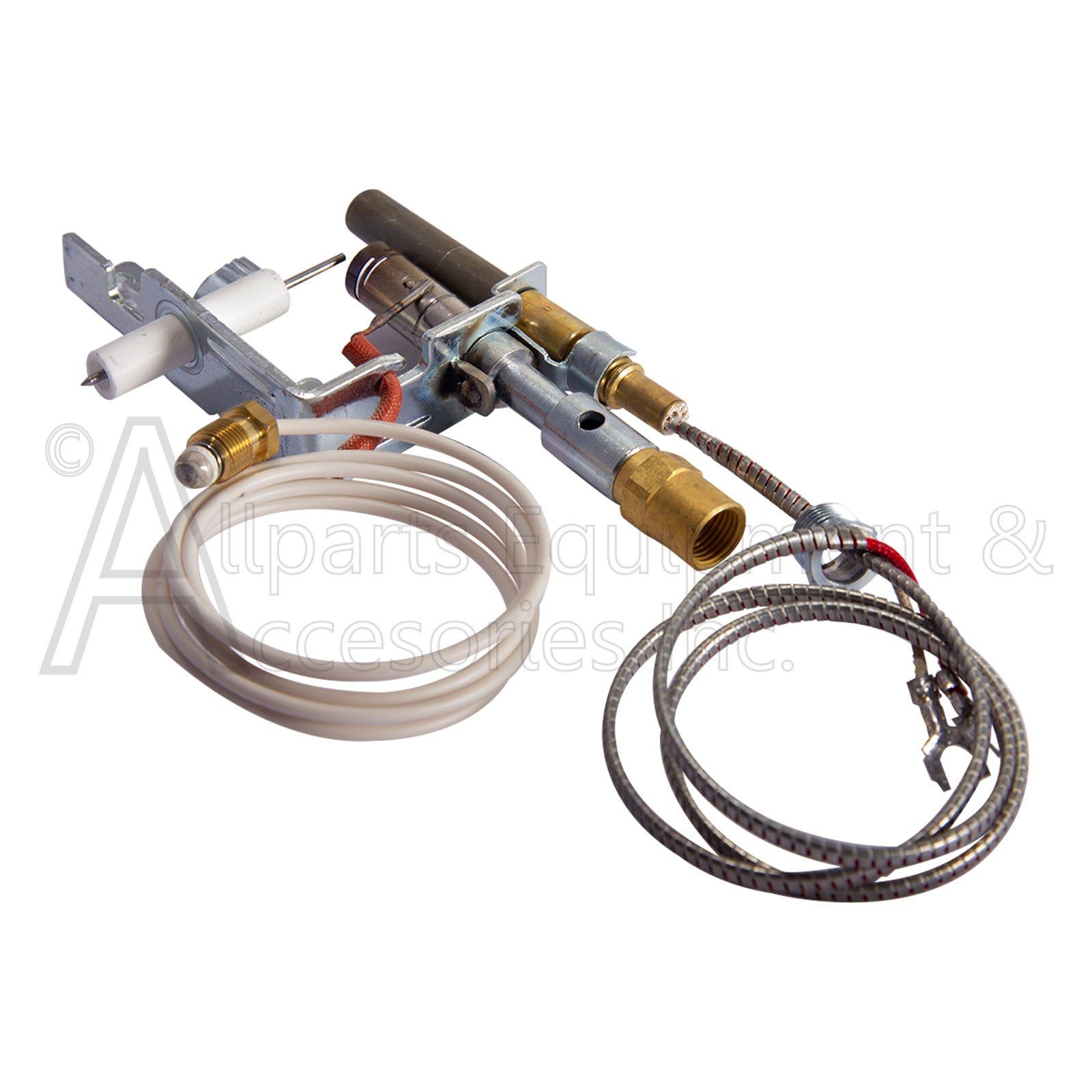

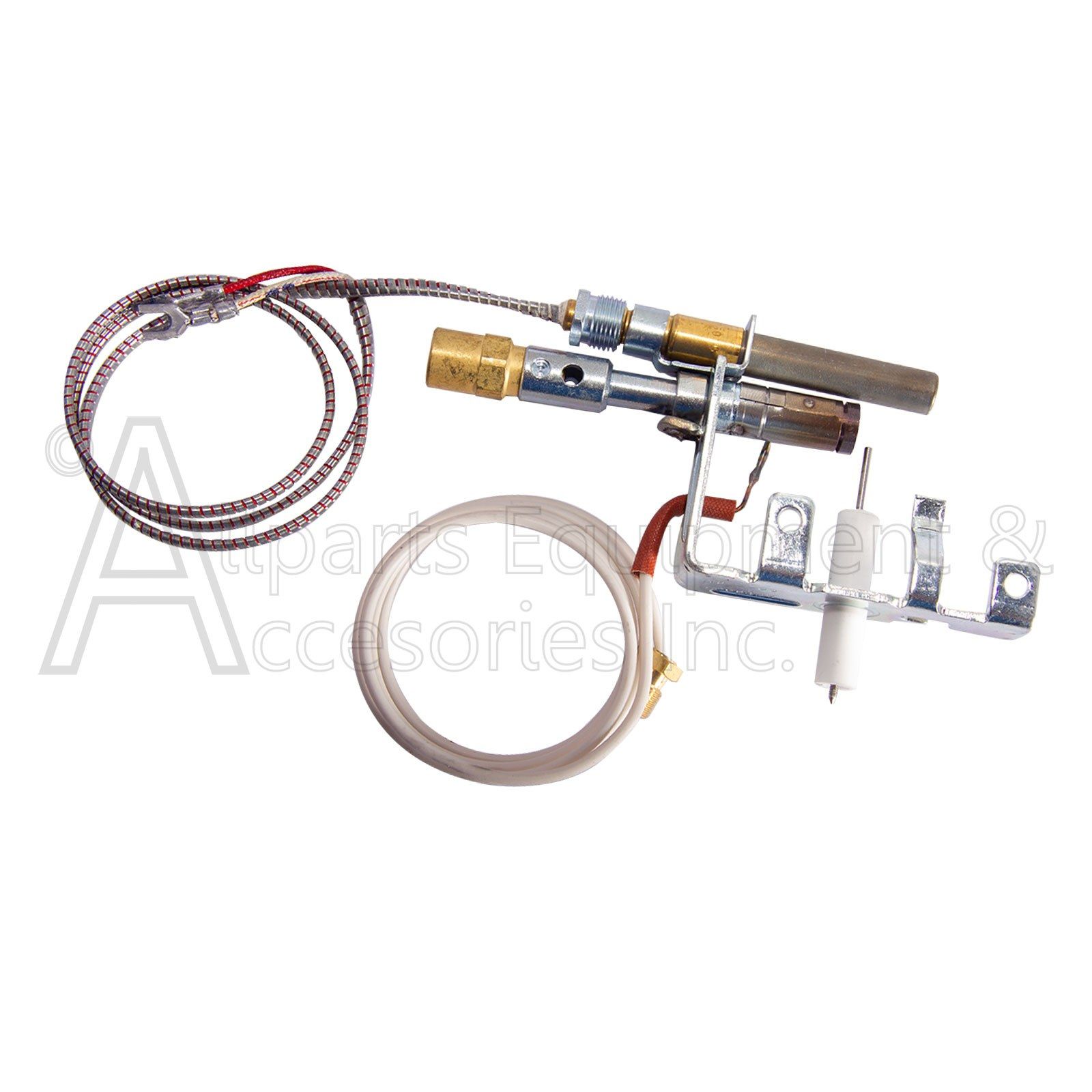

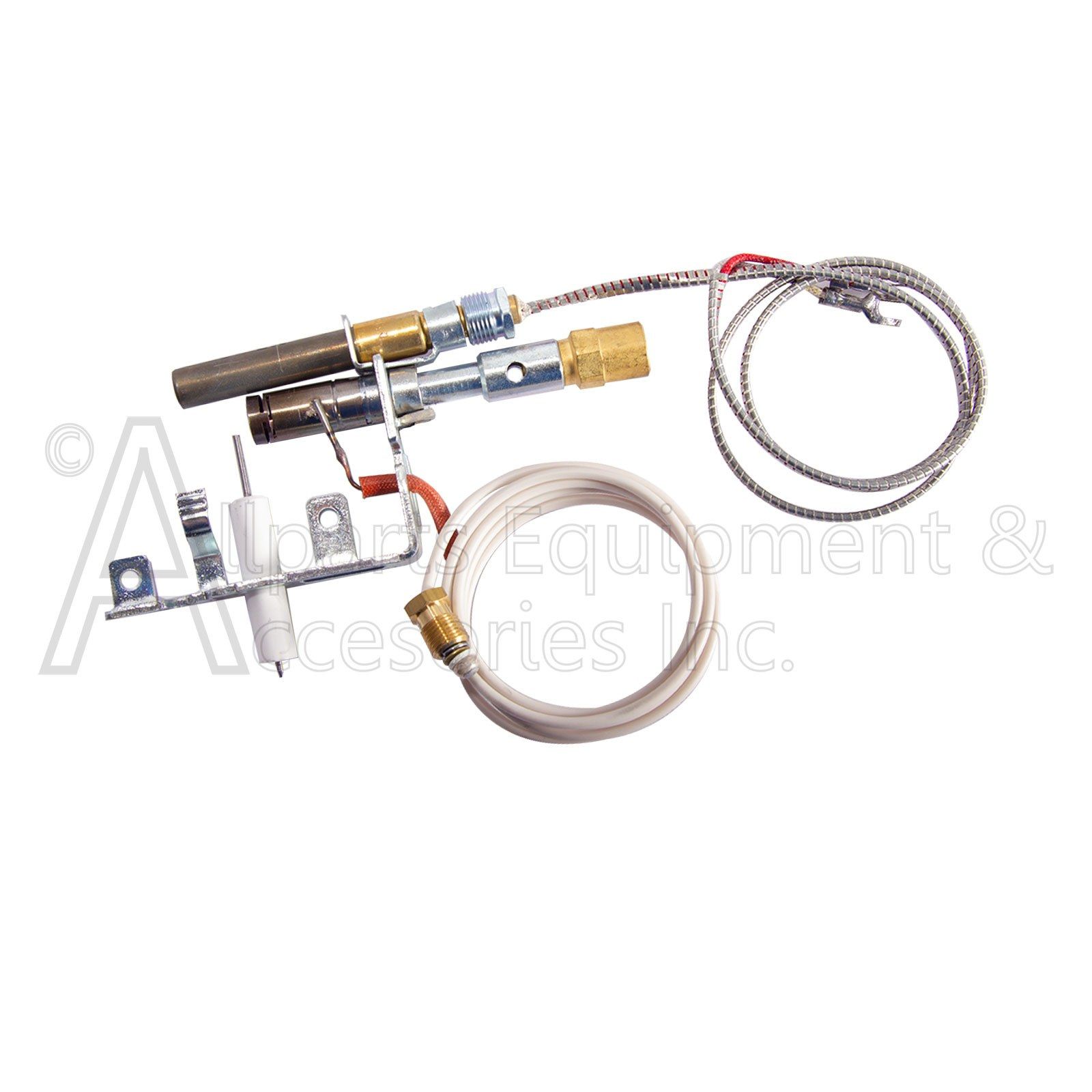

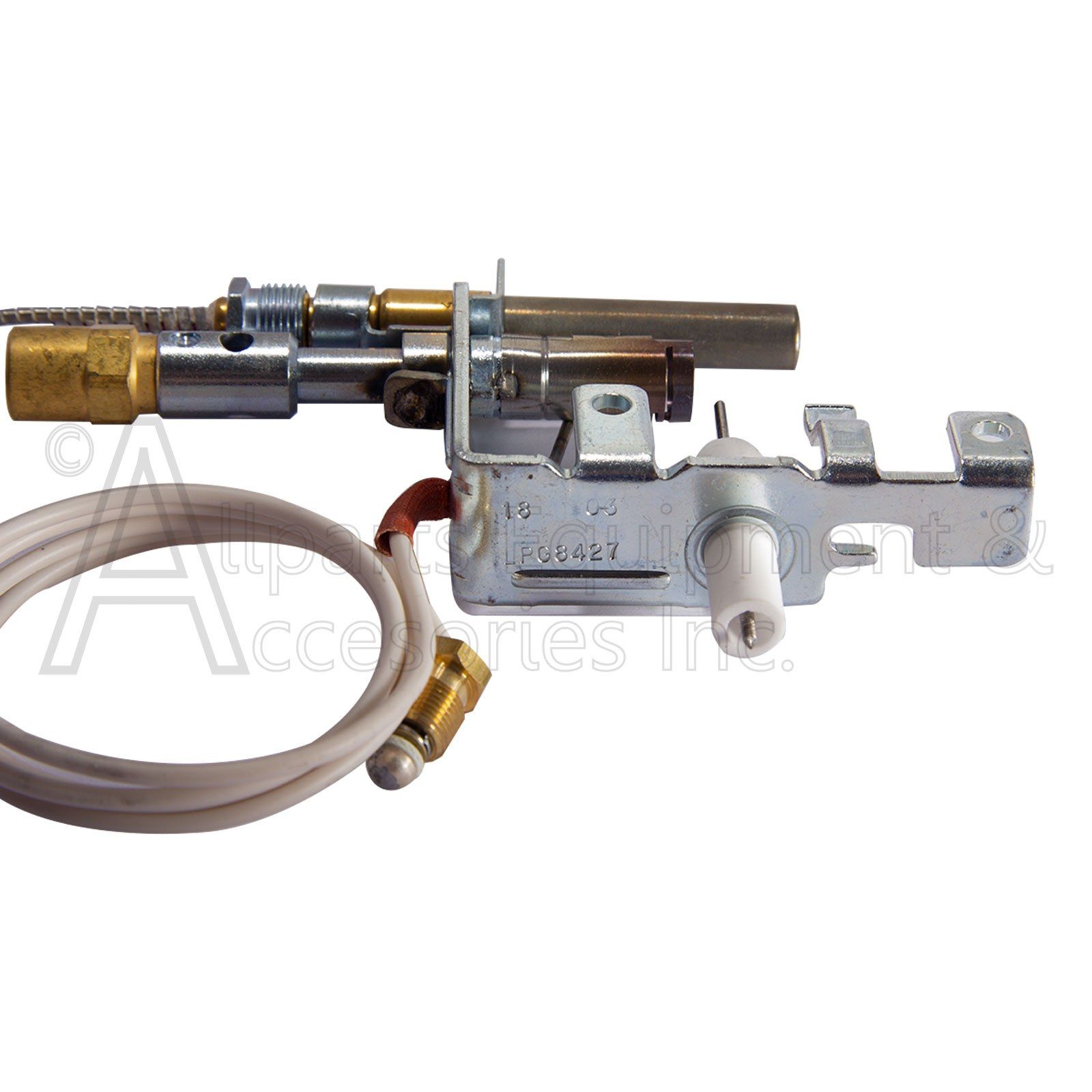

The LPG 8427, LPG8427, 84118427000 Pilot ODS Oxygen Depletion System ODS assembly with integrated thermocouple and thermopile and has a female thread connection for the pilot tube.
This Pilot ODS was used for appliances burning LPG Gas / Propane including Unvented, Vent-Free and Direct Vent fireplaces, gas logs, stoves, heaters, pedestal stoves and other similar appliances using Liquid Propane Gas for combustion.
This can be used for the LPG8423, LPG8409.
The Pilot ODS Oxiprotector Specifications for the LPG8427 made in Pernumia -PD-Italy
Code: 8411842700
Injector Size (mm): 0.22
Gas Connection: M10x1 6H Fo6/o54 mm/o 1/4"
Thermocouple Conductor: Single Wire
Thermocouple Connector Nut: 11/32
Spark Electrode o1.6
Thermopile: 24 Inch 2 Wire 750mV
Gas Pressure 8"-14" W.C.
The SIT Controls LPG 8427, LPG8427 is a common Pilot ODS system from Pernumia-PD-Italy by Sit Controls and is used on units made by Vanguard, Comfort Glow, Empire Systems, Design Dynamics, FMI Manufactures, lennox, DESA, Vermont Castings, Empire Comfort Systems, Monessen Hearth Systems, Majestic and various other fireplace and gas log system manufactures.
