LPG8405 Pilot ODS Replacement Kit Assembly with Pilot Tube

Out Of Stock
Part Number
LPG8405
$76.80
Part Number: LPG8405
Compatible Brands: Empire, Majestic, Martin, Vermont Castings
Shipping Weight: 1 Lbs
This item is NOT currently in stock and will be shipped as soon as possible. Typical lead times are 5-10 business days for common stock items that are pictured and 15-25 business days for non stock and special orders. Please email customer service for specific details if required at
customerservice@allpartsinc.com

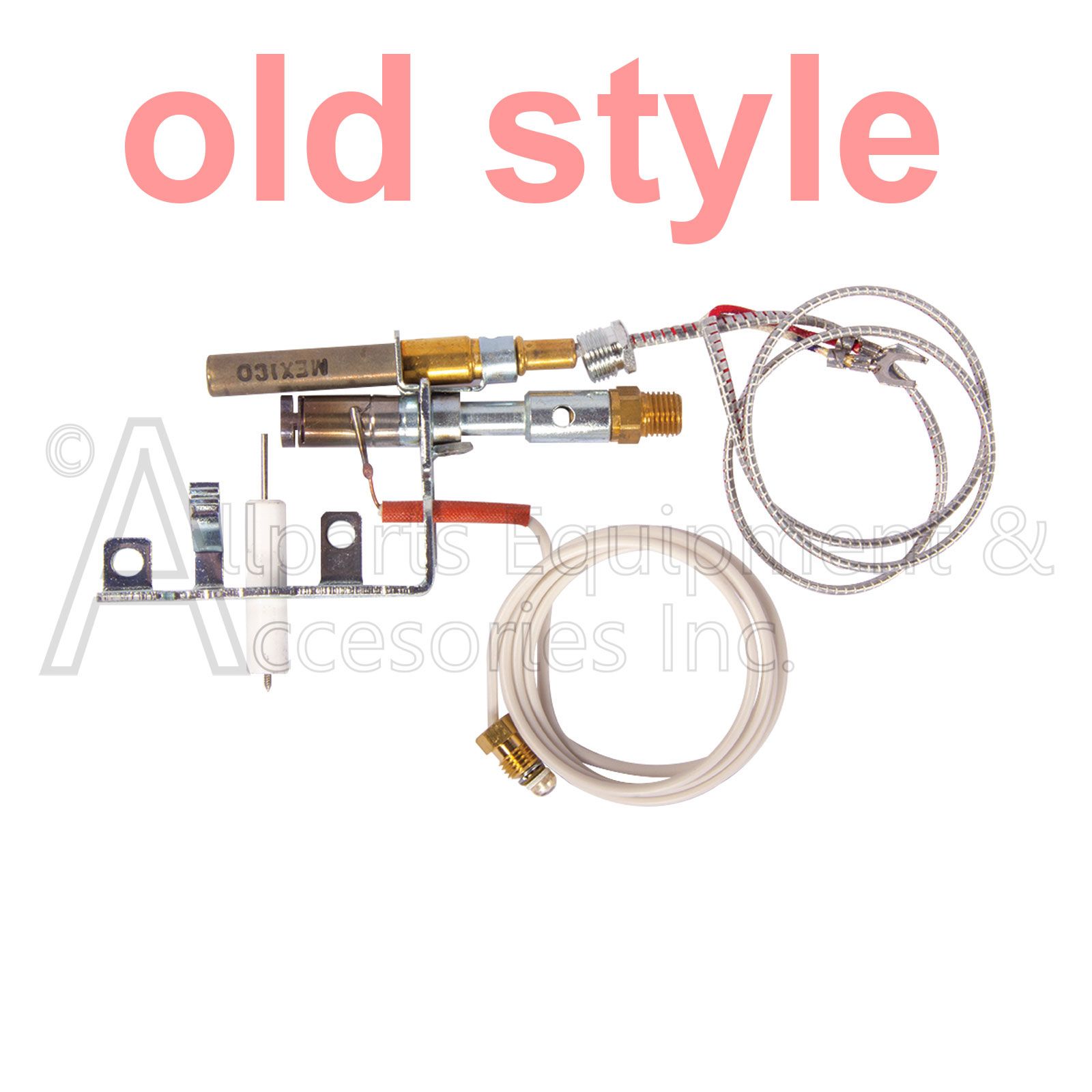

The LPG8405 Pilot with Female threads is "No Longer Available" and will be replaced with a similar new model LPG Propane Gas pilot with male threads that will be a direct replacement for mounting.

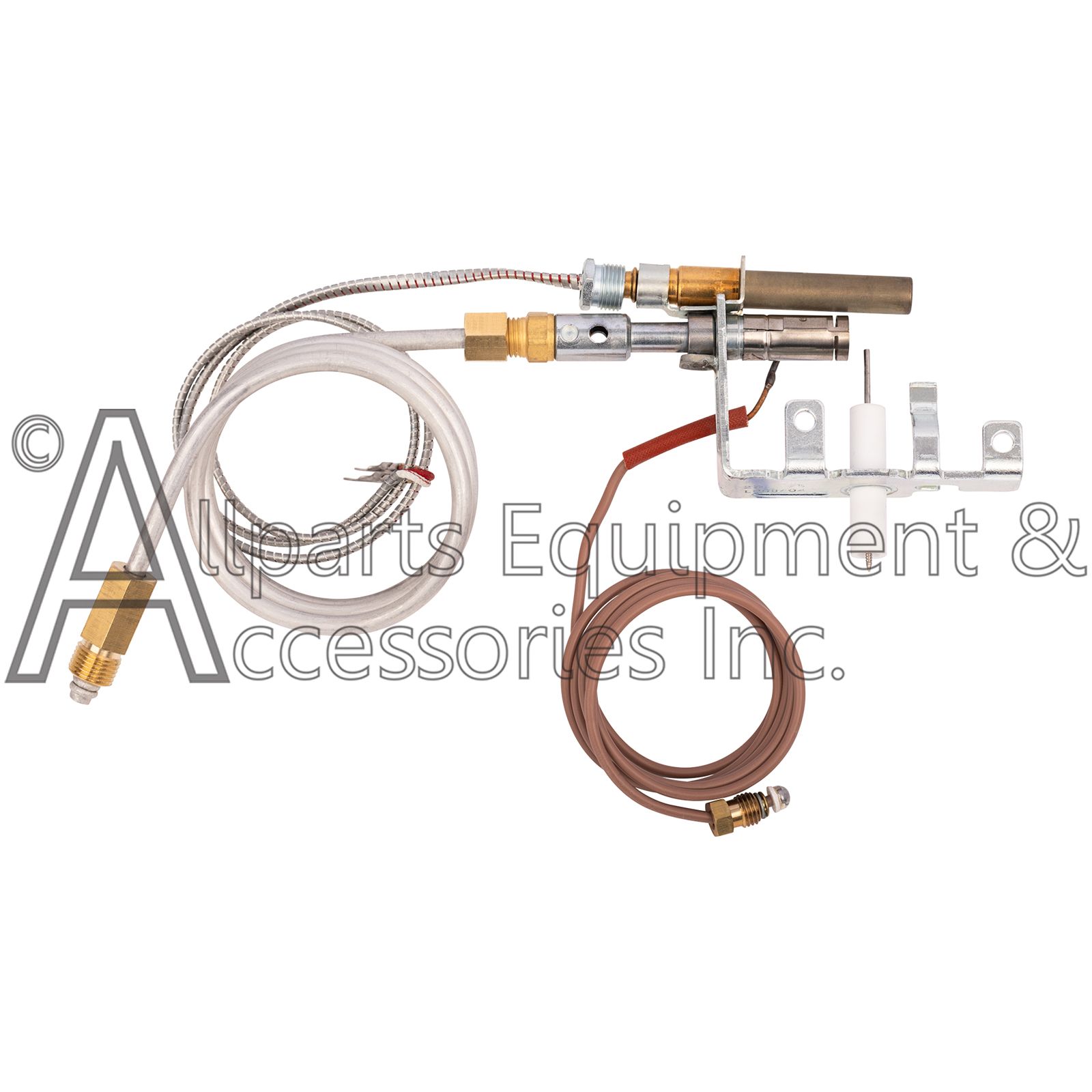

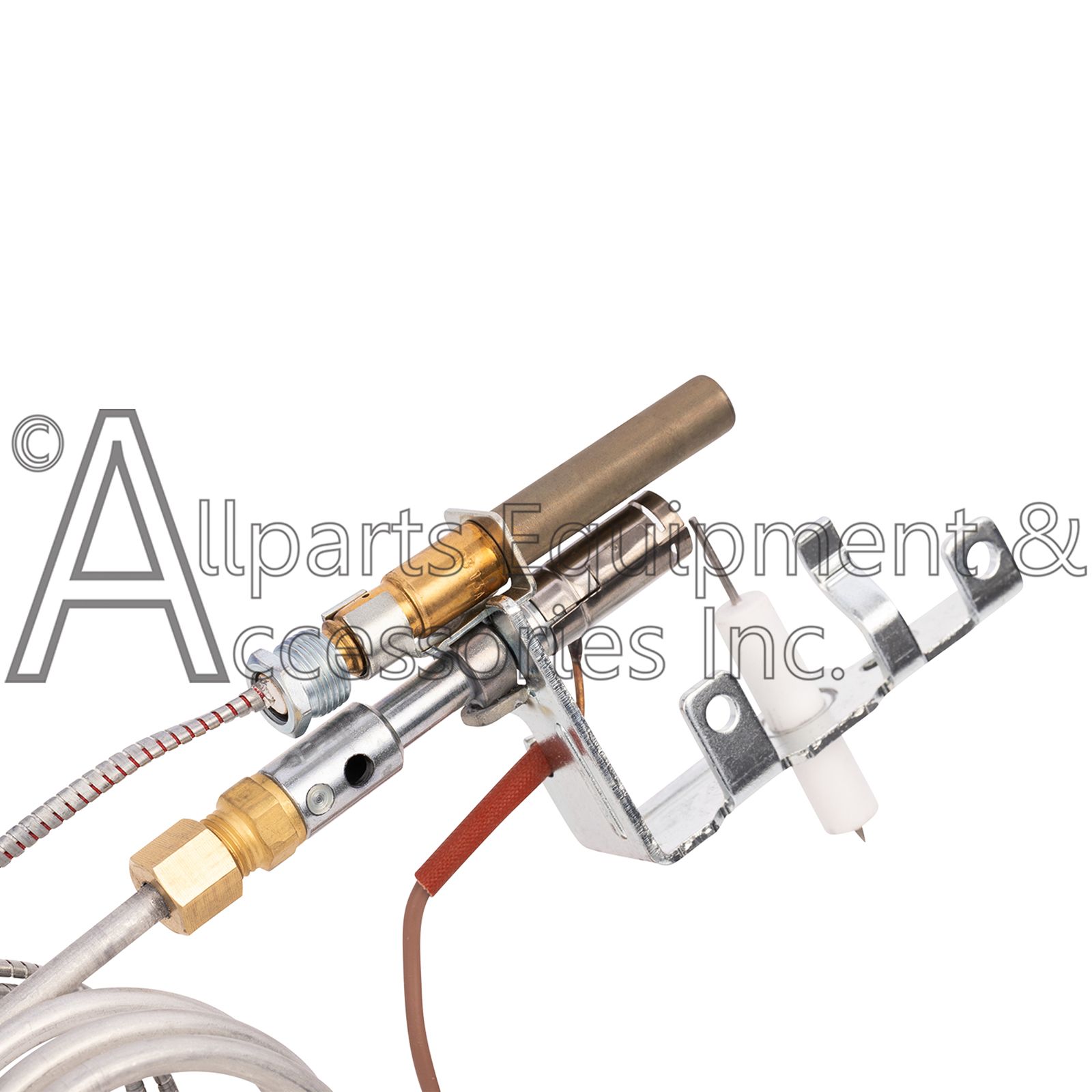

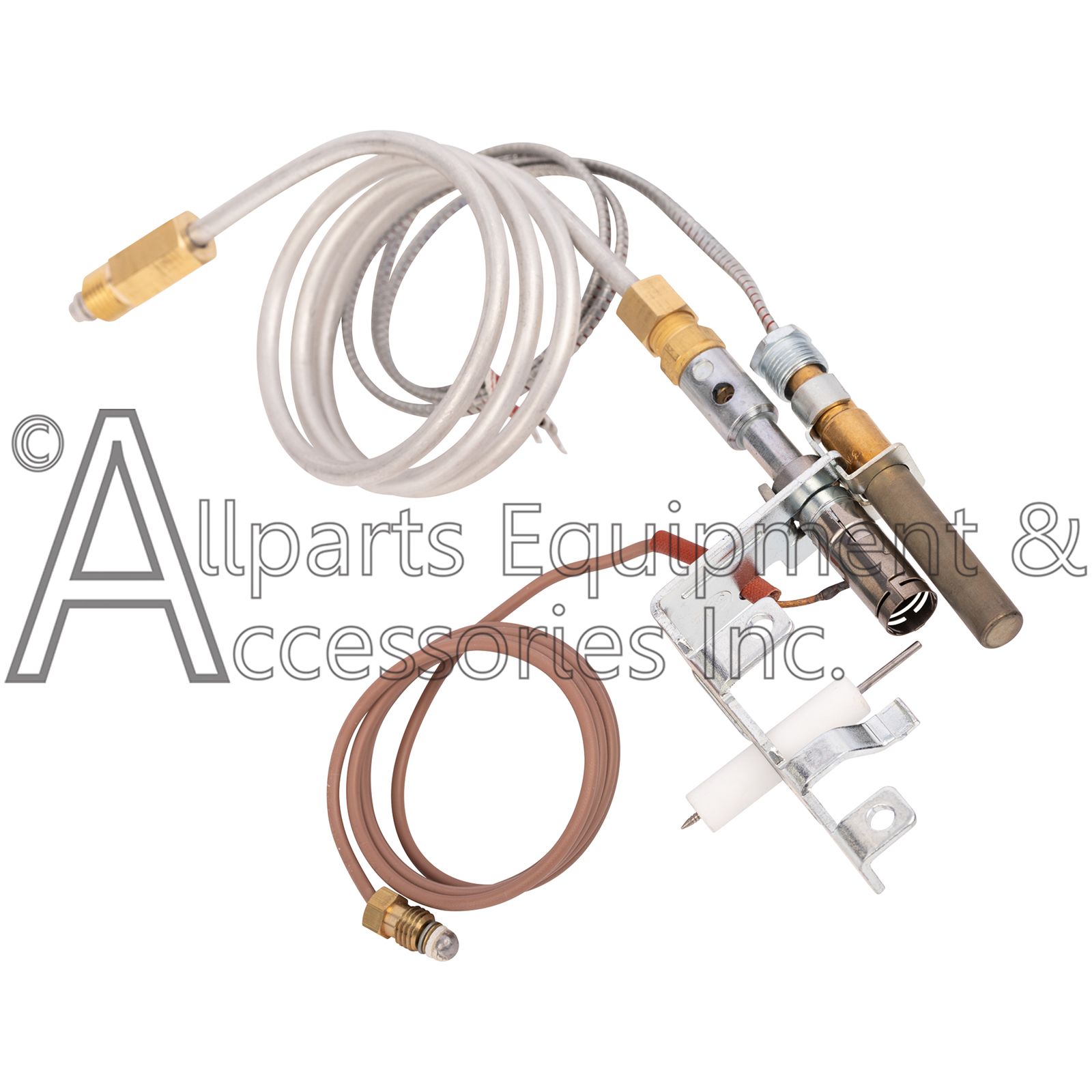

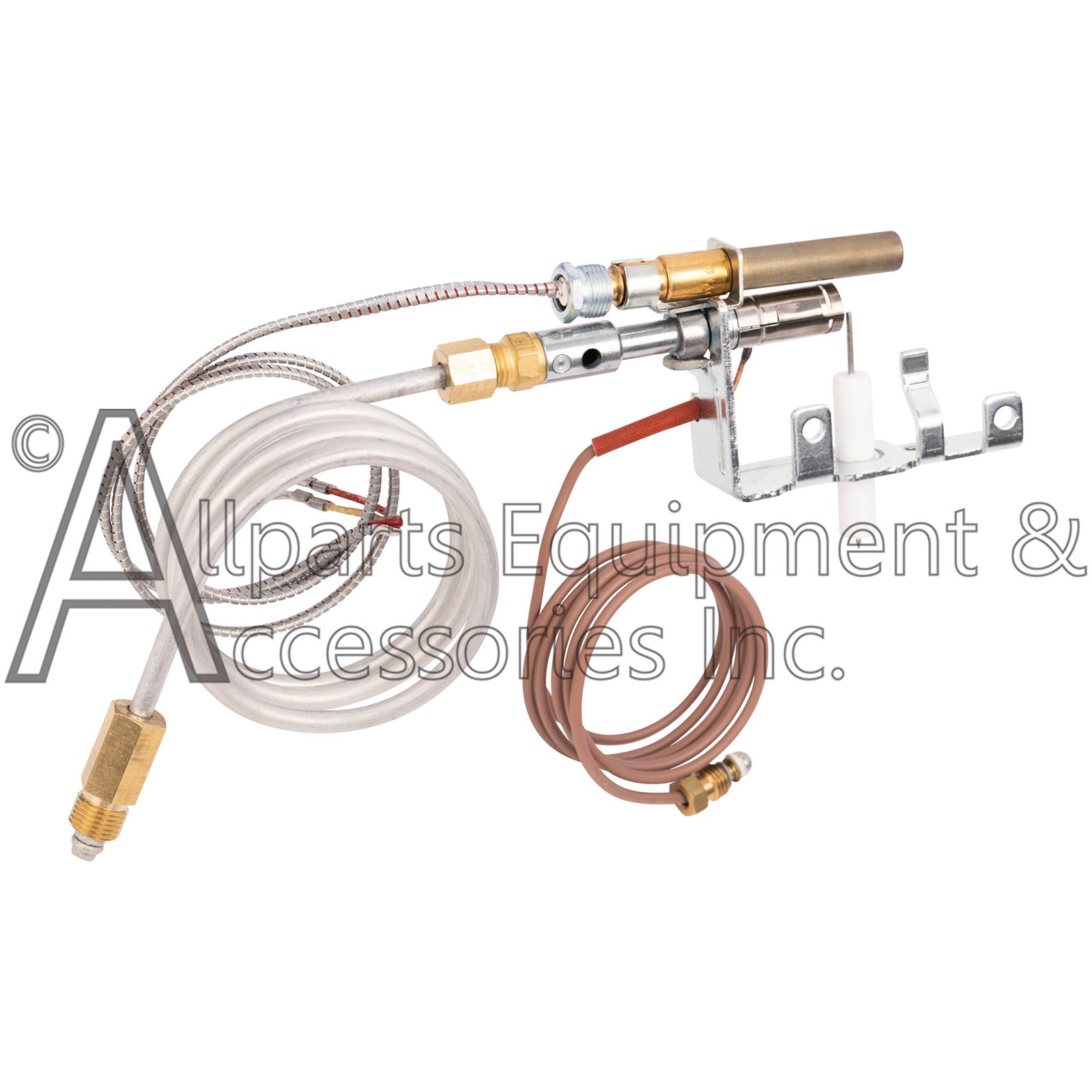

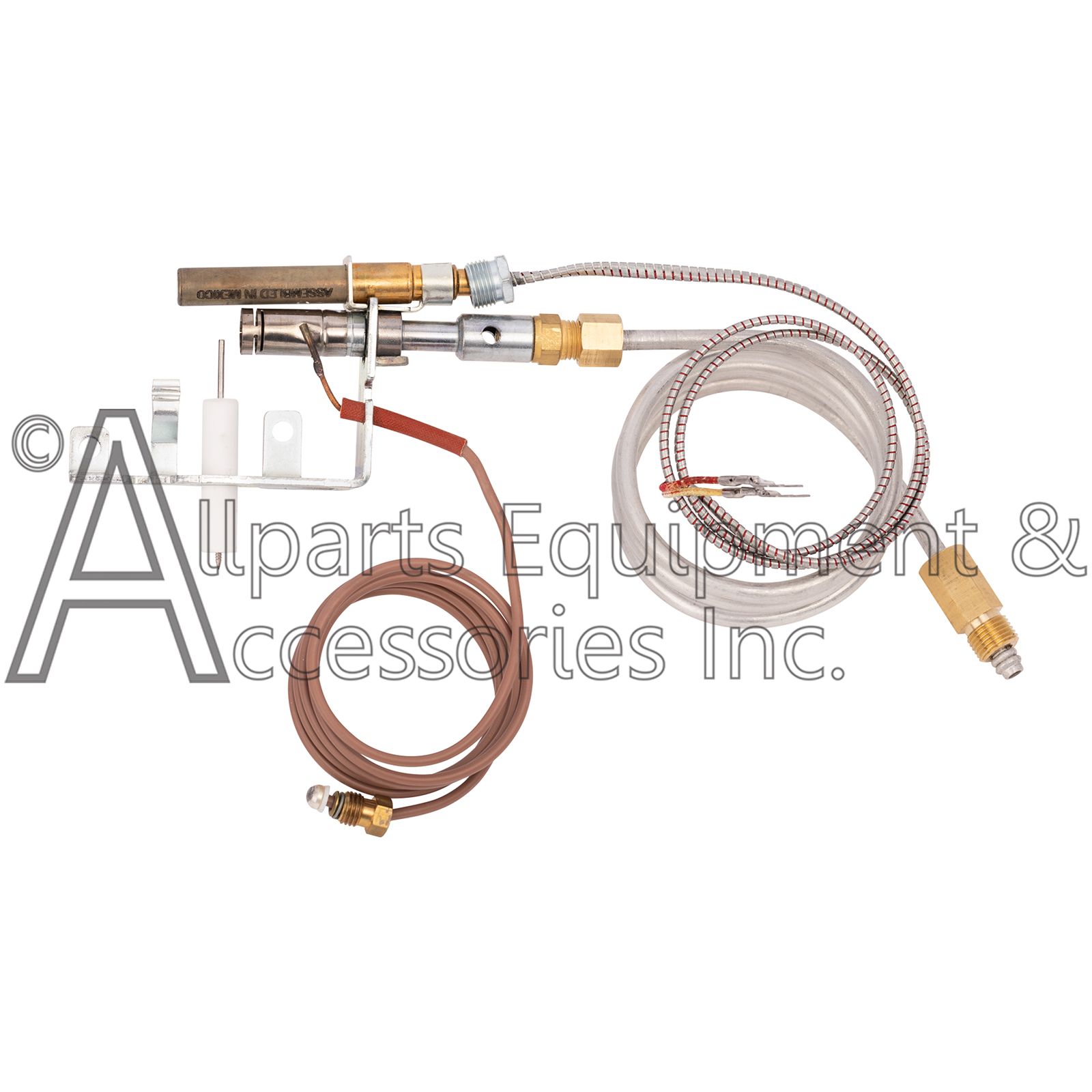

The LPG8405 Service kit will include a new Pilot ODS assembly with a new 28 inch long pilot tube that will be used to replace the old style pilot tube with make fitting on both ends.

The LPG8405 Liquid Propane Gas Pilot ODS Assembly is an OEM Replacement LPG Gas Pilot Assembly for many gas logs and fireplaces models including Martin, Vanguard, Empire and others.

The LPG8405 Pilot ODS Oxygen Depletion System (ODS) assembly with integrated thermocouple and thermopile for appliances burning LPG Gas / Propane, including Unvented, Vent-Free, and Direct Vent fireplaces, gas logs, stoves, heaters, pedestal stoves and other similar appliances using Liquid Propane Gas for combustion.

The the new replacement specifications of this Pilot ODS Oxiprotector are as follows:

Code: 8400840400 Pilot ODS Oxiprotector with integrated components to provide long life and guaranteed performance.
28 Inch Aluminum Pilot gas delivery tube with brass connection fittings.
Fail-Safe Oxygen Depletion System
Single long-life thermocouple wire.
0.22 Built-in Injector at approximately 166 W energy consumption.
Thermopile Support with 24 Inch 750mv metal Braided Thermopile
Spark Electrode o1.6
3/8" 24 UNF 2Bo5 mm Male Gas Connection.
M8 x 1 Thermocouple connection nut.
Gas Pressure 8"-14" W.C
Protected flame inside the pilot burner to help protect against influences by air currents.
Complies with current European and CSA Norms.
Suitable for all Propane Grades



All repairs on hearth products should be performed by a licensed and qualified HVAC service technician.

Service Note:

This new Pilot ODS will require either a new pilot tube or the use of a new 3/16 compression fitting to attach the old pilot tube to the pilot ODS assembly.

We suggest ordering either the 099387-03 Pilot Tube 28 Inches or 099387-18 Pilot Tube 18 Inches when replacing the old style LPG8405 Propane Gas Pilot, depending on your current length pilot tube.

If a new pilot tube is not ordered, you will need to order the X61CA-3 Compression Fitting; some modification to the pilot tube will be required to install the new 3/16 Compression Fitting.

This modification will be to remove the complete pilot tube from the appliance.
Then, cut the current male threaded fitting off from the existing pilot tube attached to the old pilot assembly; after removing the old fitting, clean the pilot tube of any debris or metal shavings.
Install both the cleaned and cut pilot tube and the new pilot ods assembly back on your current appliance.
Install the 3/16 Compression fitting on your pilot tube and push the end of your current pilot tube into the new pilot ods assembly until it seats in the pilot tube receiver.
With the pilot tube seated into the pilot fitting, tighten the 3/16 compression fitting to the pilot ods assembly.
The new 3/16 Compression Fitting with crimp down on the pilot tube and lock in place.
Tighten all fitting and check for any possible leaks before using appliance. This repair should only be performed by a qualified service technician.
