20002266 Pilot Assembly PSE-NA406 3 Way Flame Hood for Natural Gas Dual Thermopiles
In stock
Part Number
20002266
$231.37

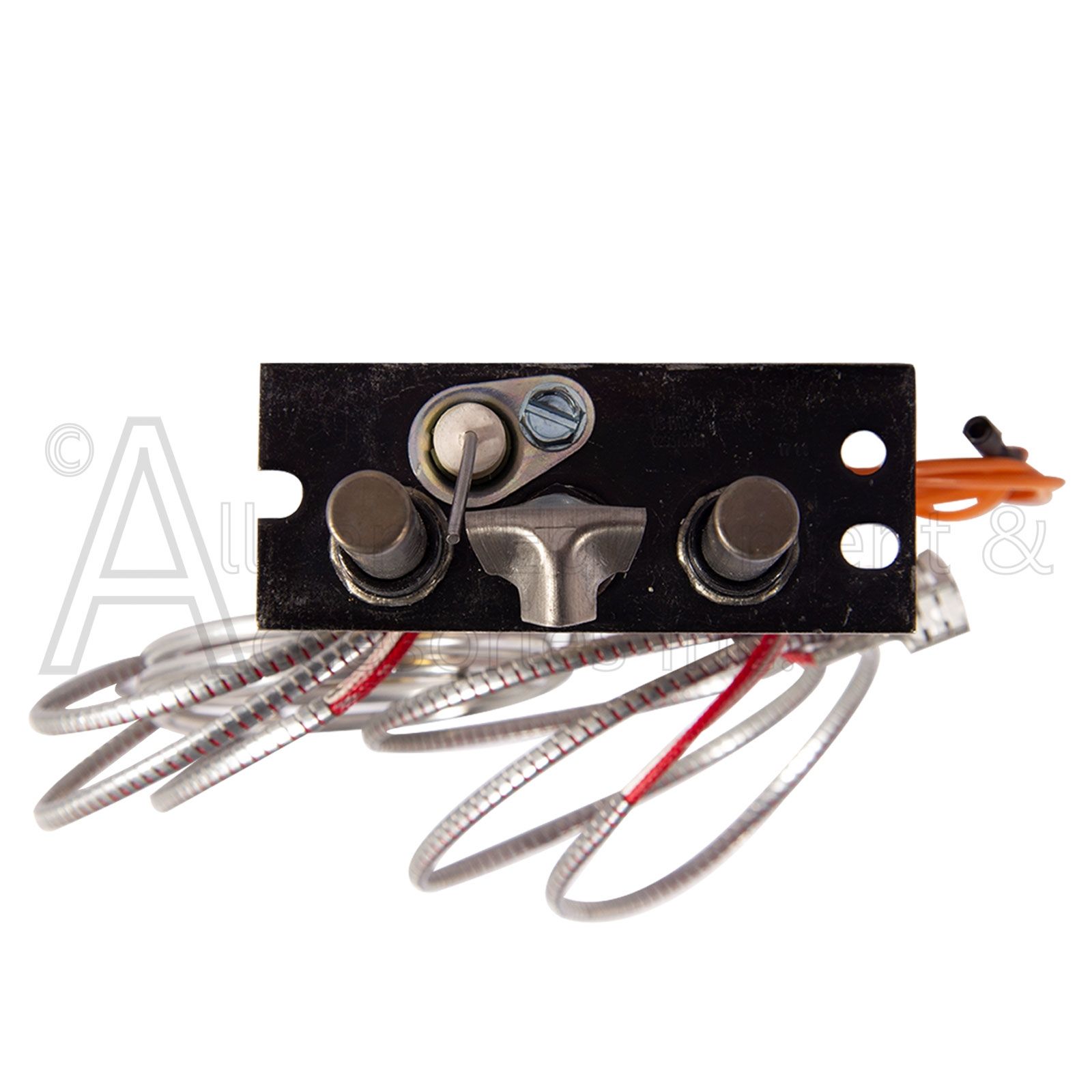

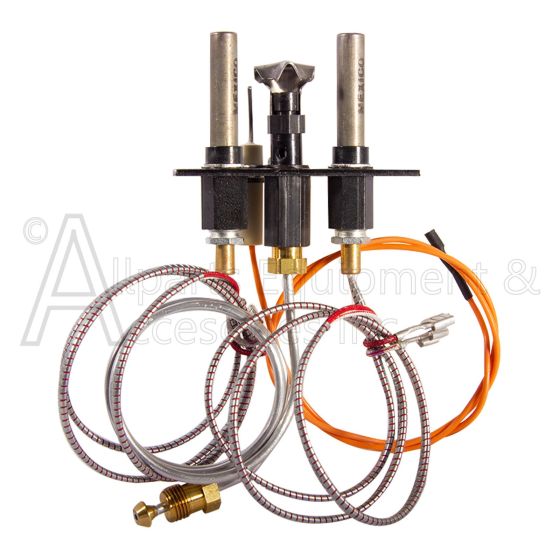

The 20002266 Pilot Assembly is a Top Mount PSE-NA406 Natural Gas Pilot Assembly for the Majestic and Vermont Castings RFN HW gas stoves and fireplaces.
Service Note:
This Pilot Assembly has 2 thermopiles and was used with many Honeywell RV8310 Gas valves with integrated circuit boards that have been discontinued.
Please refer to your owner's manual for specific parts numbers and model numbers before purchasing gas control products.
The following Majestic Gas Stoves and fireplace used the 20002266 Natural Gas Pilot:
- DV360 (Serial # GFDE / I / N / L4L1 / 2)
- DV360 (Serial # H11A / B / H / I / K / L00)
- DV360 (Serial # H12 / 13A / B / H / I / K / L00 / GFDN / L / E / I4L0)
- DV580 (Serial # GFDE / I / N4P0)
- DV580 (Serial # I11 / 12 / 13A / B / H / I / K / L00)
- DVB4136 (Serial # GF _ R6J0 / GF _ R6J1)
- DVB4136 (Serial # GF _ R6J2)
- DVRT36 (Serial # B11A / B / C / H / I / K / L00 / GFDN / L / E / I4L0)
- DVRT39 (Serial # C11 / 12A / B / H / IRT)
- DVRT41 (Serial # GF1 / GF2A / B / H / I / K / L41)
- DVRT43 (Serial # D11A / B / H / IRT)
- RFSDV34RF (Serial # U21A / B / C / K / L00)
- RHE32 Insert (Serial # K33A / B / F / G00)
- RHE42 Insert (Serial # N31K / L00)
- RHE42 Insert (Serial # N33A/ B / F / G00 N31K00 / L00)
- RHEDV32 Insert (Serial # M23A / B / F / G00 / M24A / B00 / M21K / L00)
- RHEDV42 Insert (Serial # N21A / B / F / G00 N22A / B00 N21K / L00)
- 36XDV (Serial # GFDN / E / I3J0)
- 3XDV (Serial #GFDE/ I / N3J1 / GFDL3J0 & GFDJ5J0)
- LHEC20 Insert (Serial # GICN / L4BO J34KC0)
- LHEC30 Insert (Serial # GINN / L3H0 K32K / LC0)
- LHECDV20 Insert (Serial # GIDN4B0 J23KC0)
- LHECDV30 Insert (Serial # GIDN3H0 / GIDL3H0 / M22K / LC0)
The following Vermont Castings Gas Stoves and fireplaces used the 20002266 Natural Gas Pilot:
Pinnacle
- SDV30 Stardance DV Rear Vent
- SDV30 Stardance Rear Vent PDV20 DV
- SDV30 Stardance Top Vent DV
Write Your Own Review
The 20002266 Pilot assembly was used mainly on the RV8310E Series Honeywell gas valve with the integrated circuit board.
This Honeywell RV8310 Gas valve with board has had a high failure on valves that have been in service for over 12 years.
For this reason, and past experience with new pilots being installed and not correcting the problem with the fireplace or gas log set not operating properly we suggest testing both thermopiles for millivolt current ratings before replacing the pilot assembly.
This Honeywell RV8310 Gas valve with board has had a high failure on valves that have been in service for over 12 years.
For this reason, and past experience with new pilots being installed and not correcting the problem with the fireplace or gas log set not operating properly we suggest testing both thermopiles for millivolt current ratings before replacing the pilot assembly.
