H4170 PILOT Assembly (PRO)
In stock
Part Number
H4170
$74.90

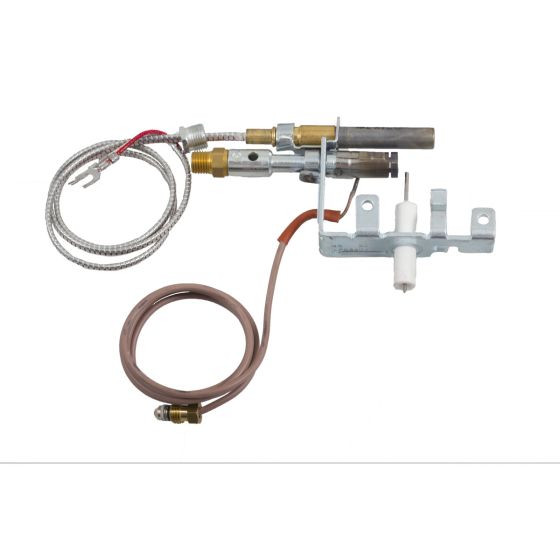

The H4170 Pilot ODS Oxygen Depletion System with integrated thermocouple and thermopile for appliances burning LPG Gas / Propane including Unvented, Vent-Free and Direct Vent fireplaces, gas logs, stoves, heaters, pedestal stoves and other similar appliances using Liquid Propane Gas for combustion.
The H4170 has the following specs:
Single long life thermocouple wire.
Protected flame inside the pilot burner to help protect against influences by air currents.
0.22 Built in Injector at approximately 166 W energy consumption.
Thermopile Support. Complies with current European and CSA Norms.
Suitable for all Propane Grades.
Fail Safe Oxygen Depletion System
3/8" 24 UNF 2Ao5 mm Gas Connection. M8 x 1
Thermocouple connection nut.
B501 Bracket Configuration
Single long life thermocouple wire.
Protected flame inside the pilot burner to help protect against influences by air currents.
0.22 Built in Injector at approximately 166 W energy consumption.
Thermopile Support. Complies with current European and CSA Norms.
Suitable for all Propane Grades.
Fail Safe Oxygen Depletion System
3/8" 24 UNF 2Ao5 mm Gas Connection. M8 x 1
Thermocouple connection nut.
B501 Bracket Configuration
