NG8218 Pilot ODS for Vent Free Hearth Fireplaces Stoves and Gas Log Set
In stock
Part Number
NG8218
$59.90

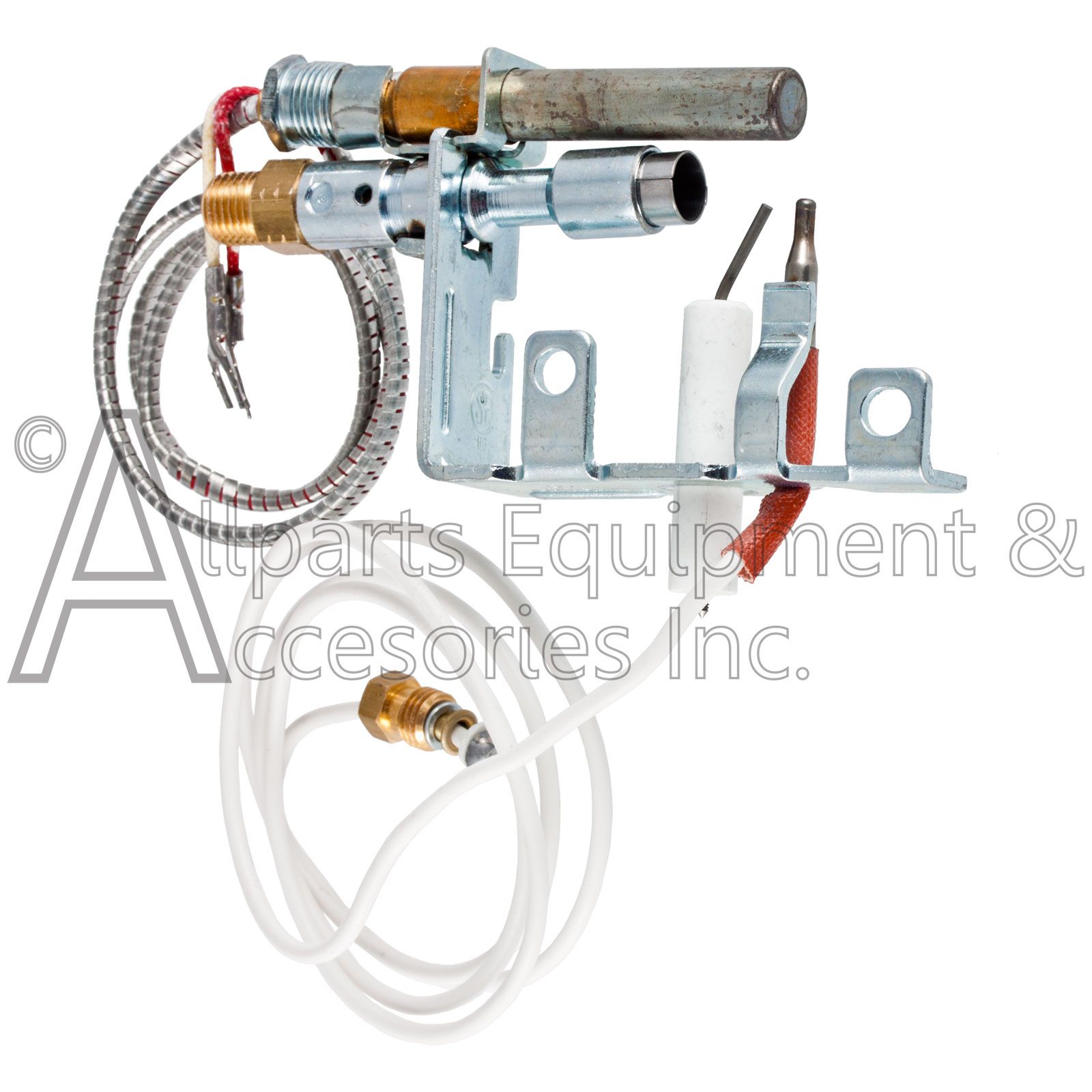

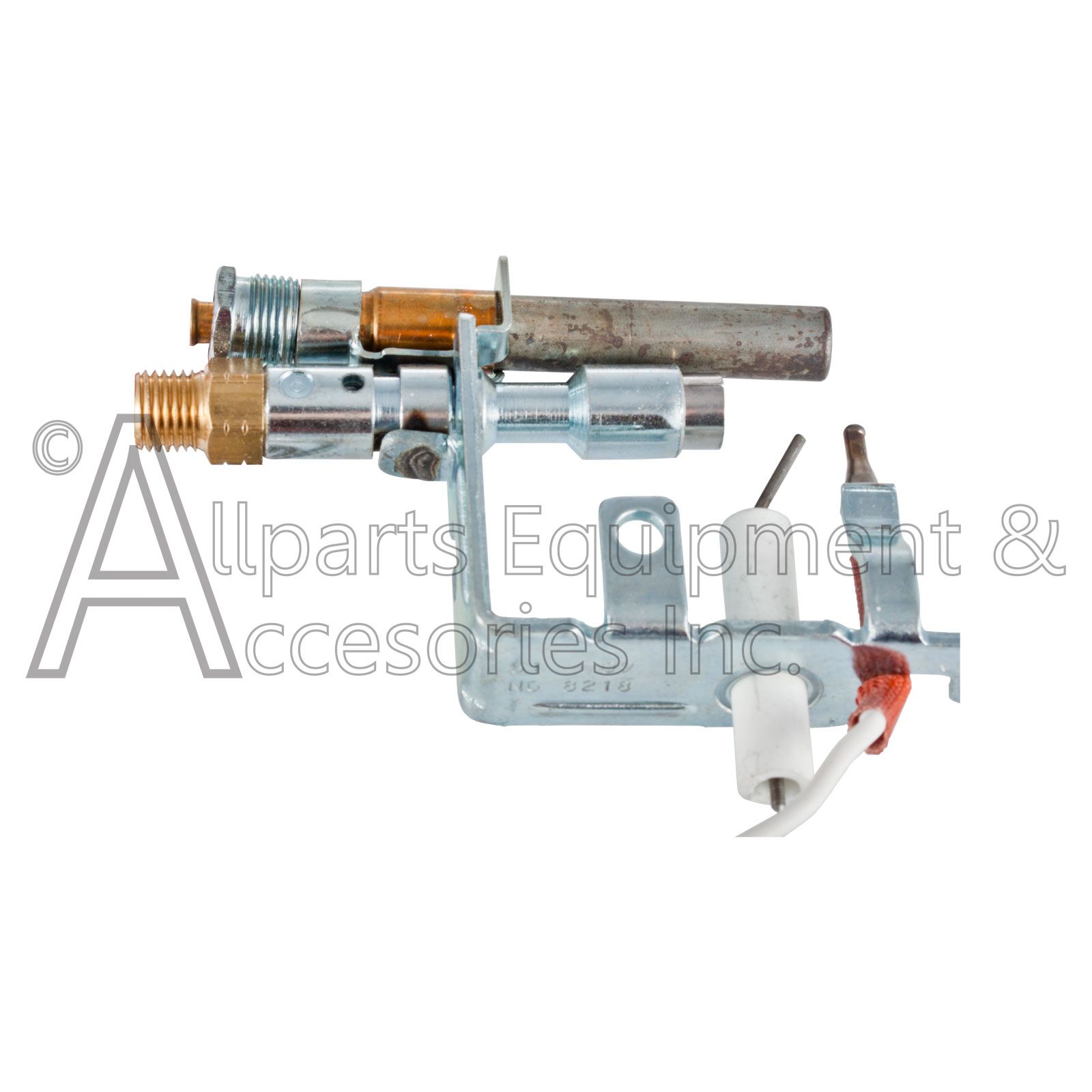

The NG8218 Pilot Assembly is made by SIT Controls for Natural Gas Vent-Free products.

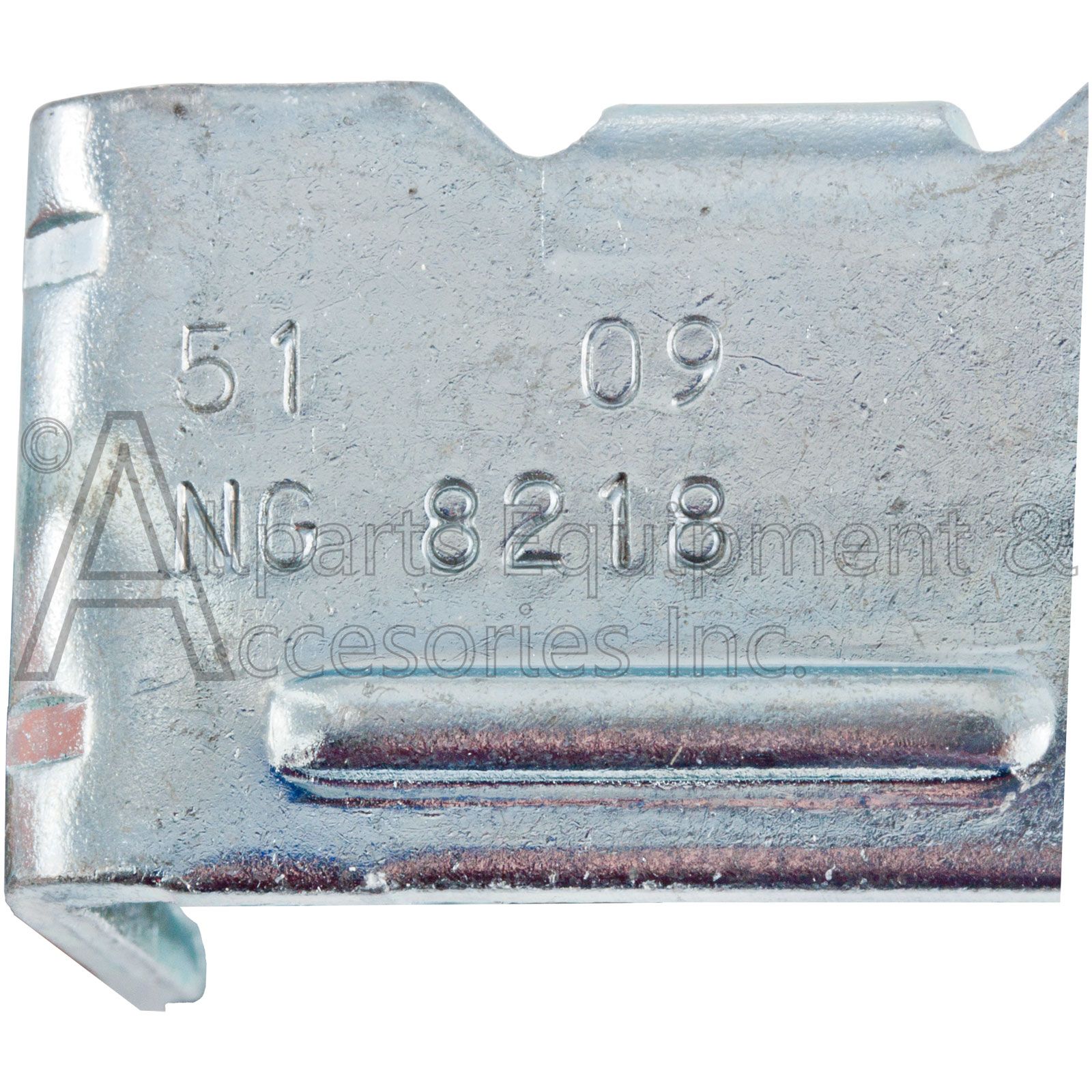

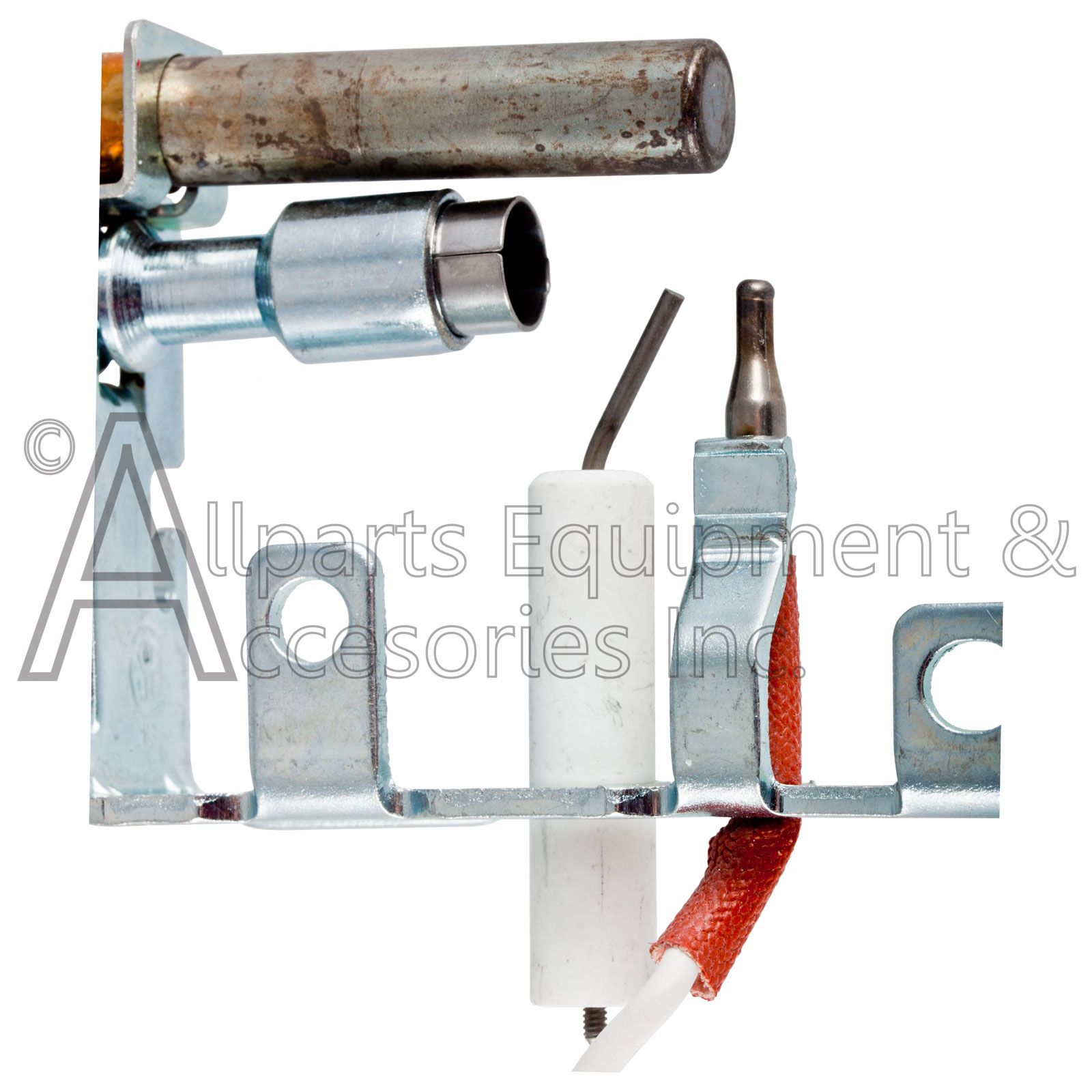

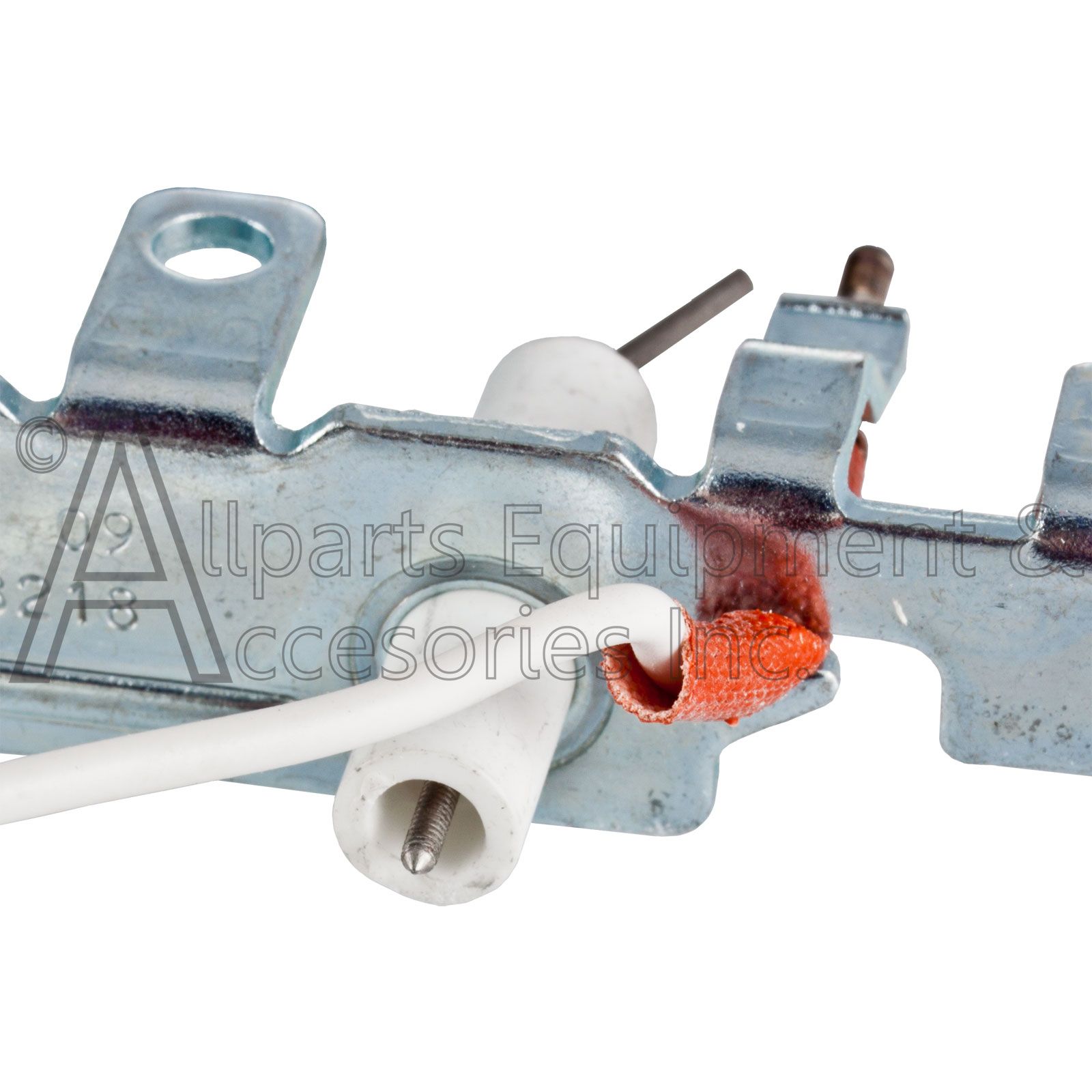

You will see stamped into the Top of the Sit Controls OEM Pilot Bracket Pernumia -PD Italy; also OEM pilot will have the NG 8218 into the bottom of the silver bracket on the outside corner between the white ceramic electrode and corner, as shown in the picture on the Allparts Equipment website.
This Pilot ODS is used by many manufacturers in vent-free heating products burning Natural Gas, including Unvented, Vent-Free fireplaces, gas logs, stoves, heaters, pedestal stoves, and other similar appliances using Natural Gas for combustion.
The NG8218 Pilot ODS Oxyprotector parts are all integrated to provide long life and guaranteed performance and features:
- Single long-life rubber-coated thermocouple wire.
- Protected flame inside the pilot burner to help protect against influences by air currents.
- 0.38 Built-in Injector at approximately 166 W energy consumption.
- Thermopile Support with Removable Thermopile.
- Complies with current European and CSA Norms.
- Suitable only for use with for Natural Gas.
- Fail Safe Oxygen Depletion System.
- 3/8 24 UNF 2Ao5 mm Gas Connection.
- M8 x 1 Thermocouple connection nut.
Allparts Equipment carries a complete line of OEM and aftermarket replacement parts for all of your residential and commercial hearth heating appliance needs.
NG8218 Pilot ODS Features Explained:
Thermocouple: The thermocouple converts the heat from the pilot flame into an electrical signal that keeps the gas valve open.
Thermopile: The thermopile generates electricity from the heat of the pilot flame, which is used to power the safety shutoff system.
Fail Safe Oxygen Depletion System (ODS): The ODS is a safety feature that shuts off the gas supply if the oxygen level in the combustion chamber drops too low. This prevents the risk of carbon monoxide poisoning.
M8 x 1 Thermocouple connection nut: This brass fixing nut connects the thermocouple to the gas valve.
3/8 24 UNF 2Ao5 mm Gas Connection: This is the male thread size on the pilot tube gas connection.
Thermopile Support: This bracket supports the thermopile.
Protected flame inside the pilot burner: This helps to protect the pilot flame from being extinguished by air currents.
Built-in Injector: This device is built into the pilot and mixes the gas and air in the pilot flame.
Compliant with current European and CSA Norms: This means that the NG8218 Pilot ODS Oxyprotector meets the safety standards of both Europe and Canada.
Suitable for Natural Gas: This means that the NG8218 Pilot ODS Oxyprotector can be used with natural gas appliances.
Single long-life thermocouple wire: This means that the thermocouple wire is designed to last for a long time.
Predrilled Mounting Holes for Easy Installation: This makes installing the NG8218 Pilot ODS Oxyprotector easy.
