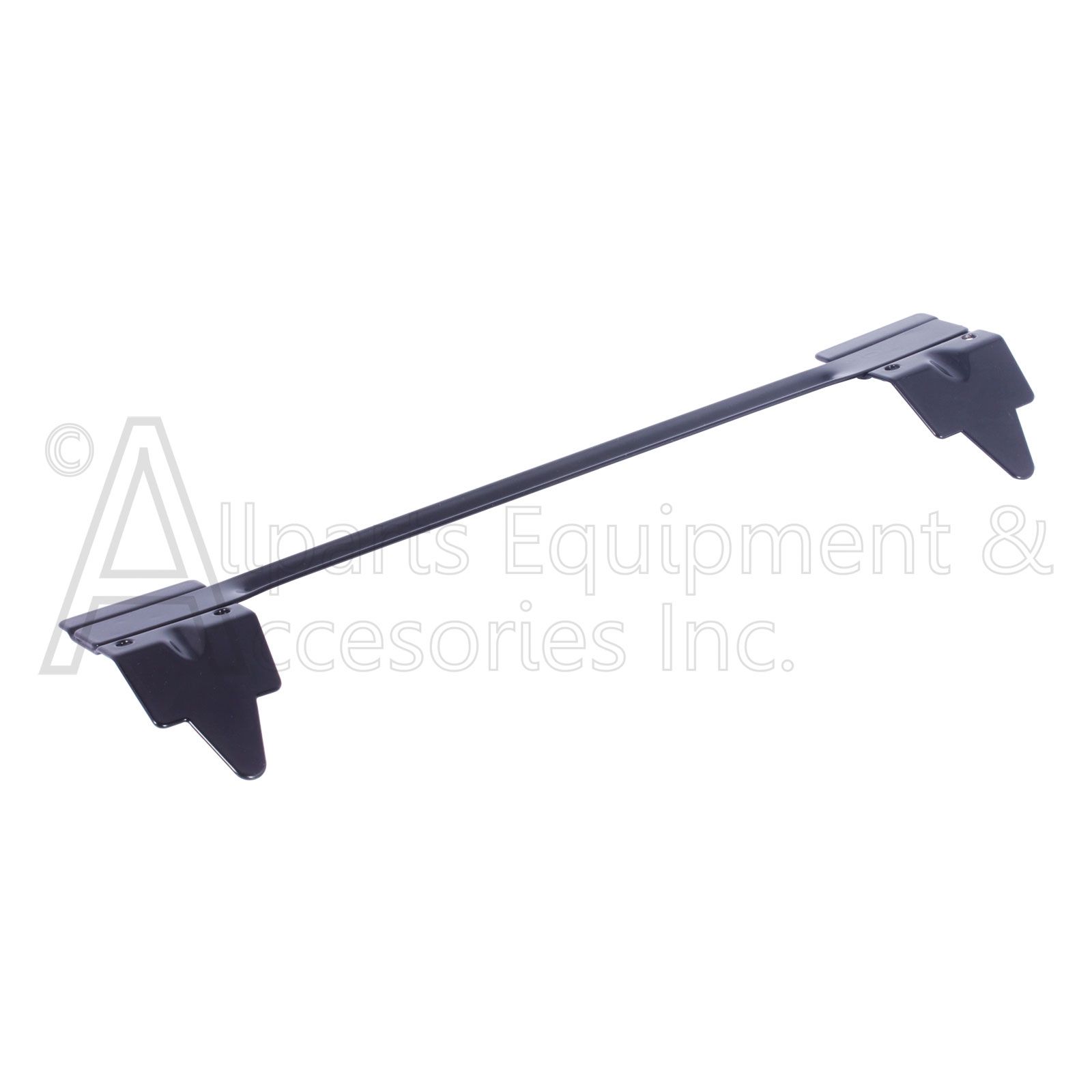

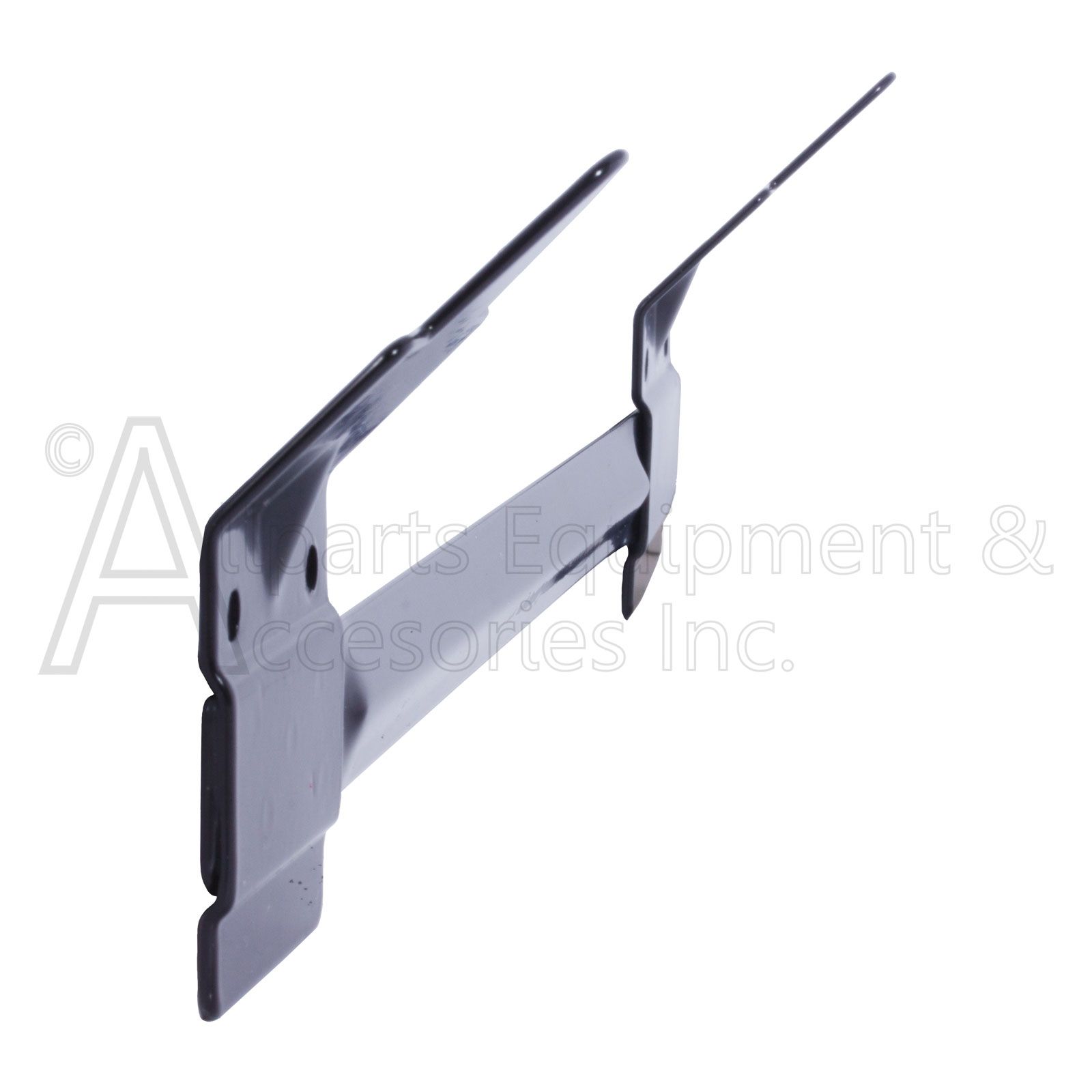

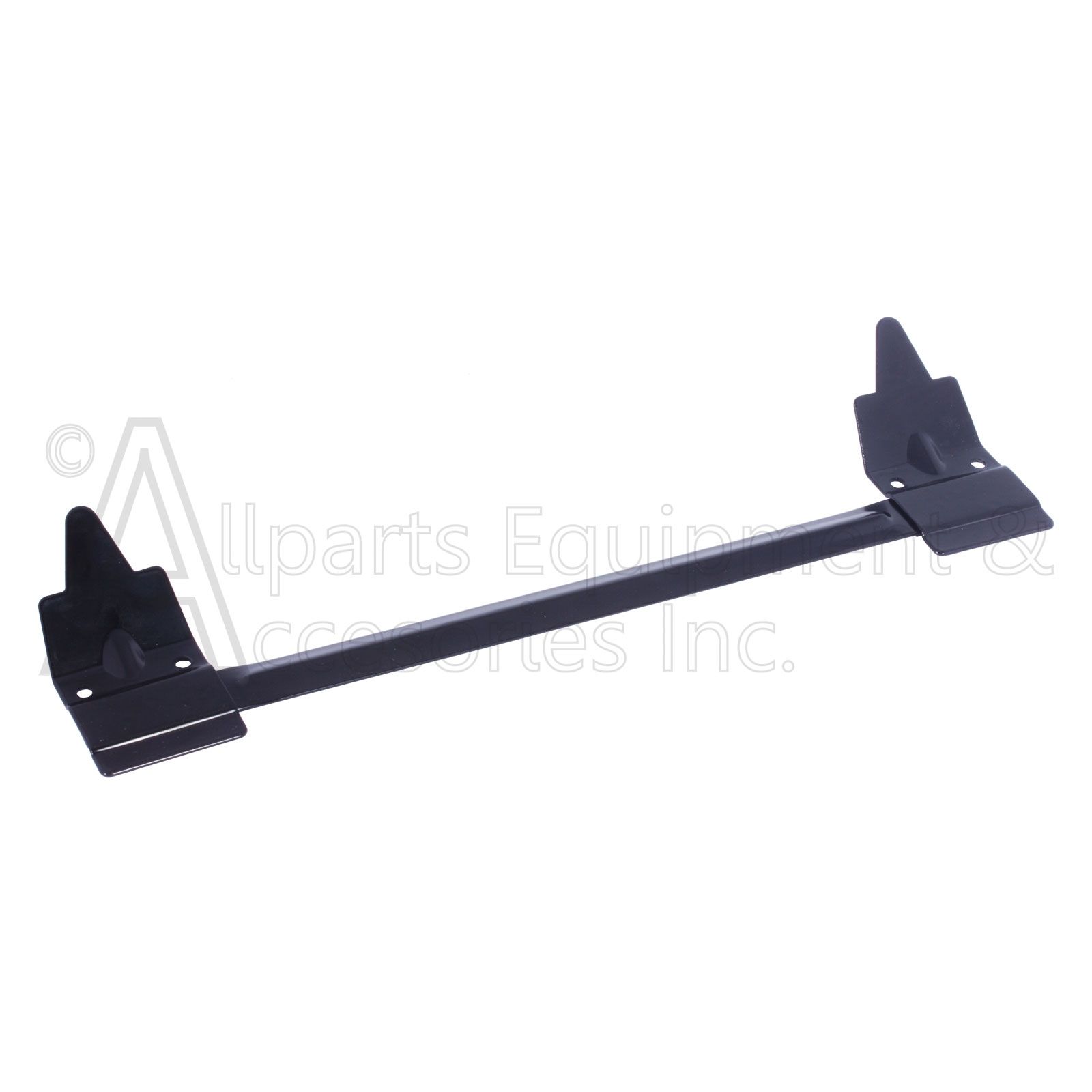

MB060-02 Vent Free Heater Mounting Bracket Black

The MB060-02 is a Wall Mounting Bracket used on 15,000 BTU and smaller vent-free gas wall heaters.

The following information is to assist in determining the correct mounting bracket for your vent-free heater:

This bracket measures:

• 12 7/8" Total length
• 12 5/16" Outside Holes - Center to Center
• 9 13/16" Inside Holes - Center to Center
• 11" Tips - Center to Center



The MB060-02 will replace the MB060.02 used for all Procom model vent-free wall heaters.

Service Note

Sometimes, the holes on the back of the heater need to be elongated with a small round file to allow the bracket to entirely center the vent-free wall heater application.
