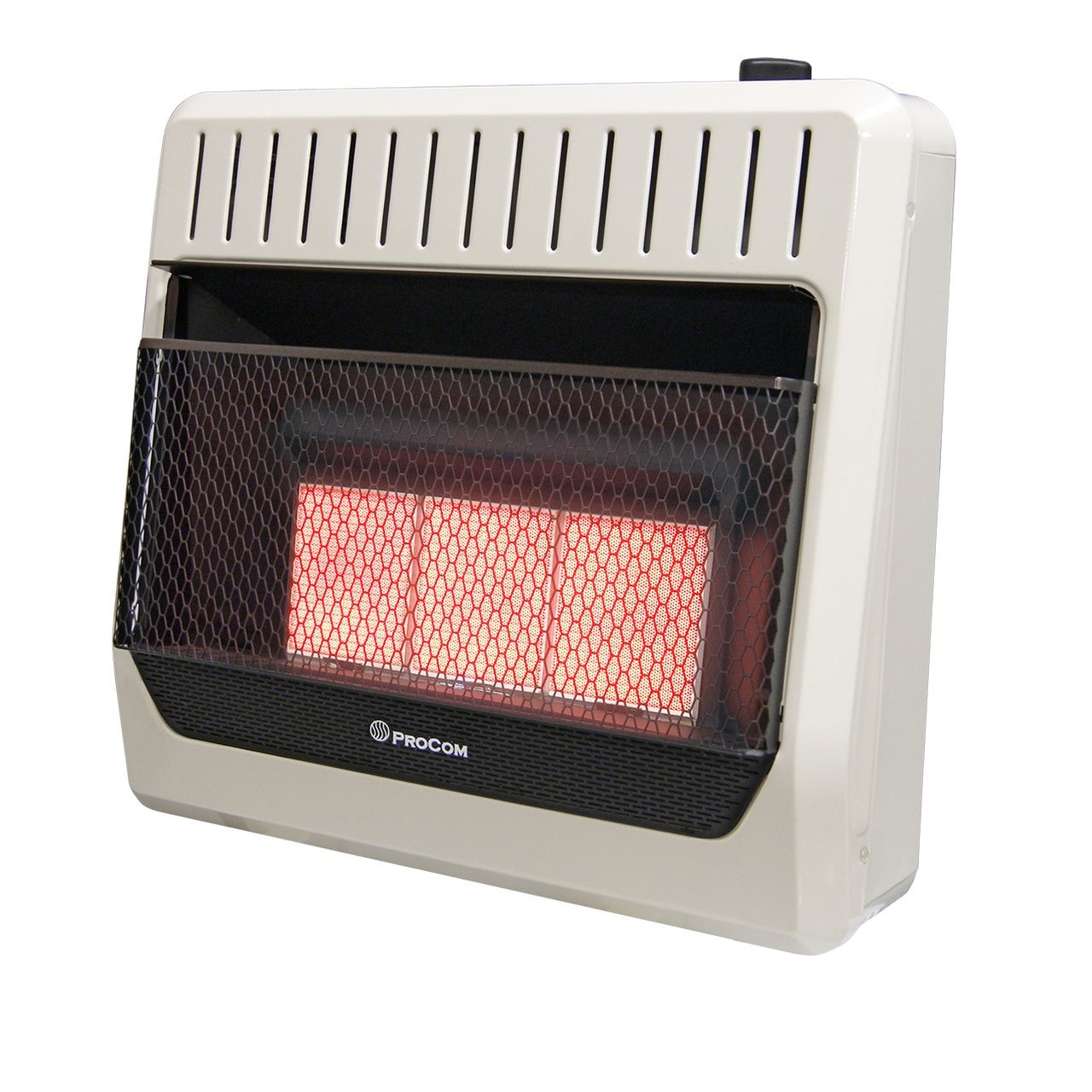

ML3PHG ProCom Infrared LPG Vent Free Heater - 28,000 BTU

ML3PHG is a 30,000 BTU liquid propane gas heater from ProCom. A Piezo push-button ignitor provides the spark that starts the heat.

This liquid propane heater has a manual control valve that is adjusted via the control knob located on the top of the heater.

This vent free ProCom heater has specific air flow and clearance requirements that are outlined in the ML3PHG's user manual. It is incredibly important to refer to these requirements before installing the ML3PHG. If improper air flow is provided, the safety shut-off system in the ODS pilot will turn off the ML3PHG.

The ML3PHG does not require an electrical connection to operate.

Specifications of the ML3PHG Infrared Heater

• Gas Type:Liquid Propane Gas
• Ignition Type: Piezo
• Heat Rating: 28,000 BTUs
• Pressure Regulator Setting: 10 in. W.C
• Max. Inlet Pressure: 14 in. W.C
• Min. Inlet Pressure: 11 in. W.C

• Height: 24 ¹/₄ in.
• Width: 25 ¹/₂ in.
• Depth: 8 ¹/₂ in.
• Weight: 24.7 lbs.
