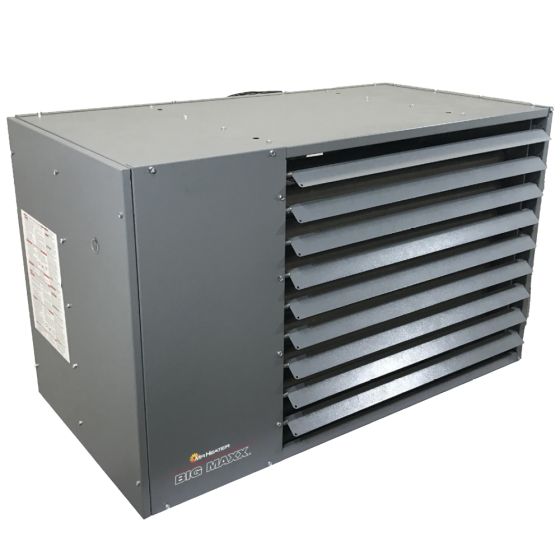

MHU200NGPALP Big Maxx 200,000 BTU Natural Gas Heater with Aluminized Heat Exchange & Painted Frame

The MHU200NGPALP is a 200,000 BTU forced air unit heater from Mr. Heater. This heavy-duty Big Maxx unit heater features a power vent system that uses vent fans to pull combustion air from outdoors and vent exhaust outside.

This Big Maxx natural gas heater is capable of heating around 6,700 sq. ft. of space, though this is dependent on several factors, including your area's climate.

Heater model MHU200NGPALP comes from the manufacturer configured for natural gas, though a liquid propane gas conversion kit is available. Gas conversions should only be performed by a licensed and qualified professional.

This variation on the Big Maxx 200,000 BTU heater comes equipped with an aluminized heat exchange that provides high thermal conductivity. It also comes with a painted cabinet.

For use at high altitudes (above 2,000 ft.), refer to the high altitude information in the operating instructions.

Specifications of the MHU200NGPALP Heater

Heat Rating: 200,000 BTUs per hour

Gas Type: Natural Gas

Efficiency: 82%

Fan Motor Rating: 1/3 HP, 1140 RPM

Max. Inlet Gas Pressure: 14 in. W.C

Manifold Pressure: 3.5 in. W.C

Dimensions:

• Height: 25.8 in.
• Length: 40.4 in.
• Width: 22.1 in.
• Approx. Shipping Weight: 168 lbs.
