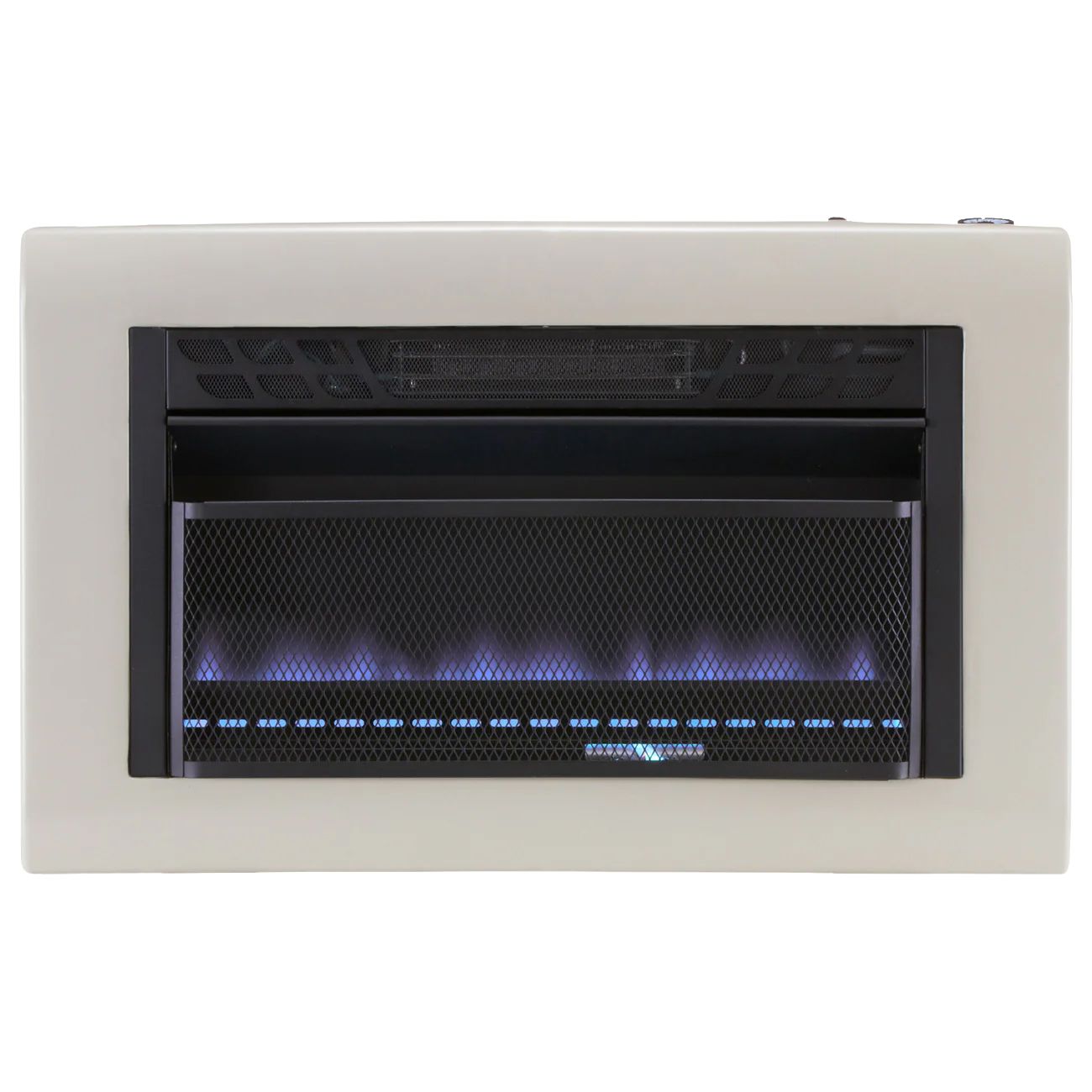

MD30TBU Cedar Ridge Hearth 30,000 BTU Wall Heater with Blue Flame

The MD30TBU is a vent free Cedar Ridge Hearth wall heater that features blue flames.

MD30TBU is capable of running on either natural gas or liquid propane gas. It comes shipped from the manufacturer configured for liquid propane gas.

A licensed installer should be the one to handle any gas conversions of this heater.

This vent-free gas-fired heater uses room oxygen for combustion. Refer to the the owner's manual for the MD30TBU for specific air flow and clearance requirements.

Features of the MD30TBU Blue Flame Heater

• An ODS pilot features an oxygen depletion detection system with a safety shutoff.
• Ignition is handled by the Piezo spark ignitor, which activates via a push-button switch.
• Thermostatic control keeps a constant desired temperature by automatically cycling the burner on and off.
• Equipped to operate with liquid propane gas when received from the manufacturer.
• An adjustable control knob is positioned on the top of the unit, next to the push-button ignitor.
• Optional base feet allow for floor-mounting as an alternative to wall-mounted operation.
• Supports an optional blower kit (sold separately.) Requires 120 VAC, 60 Hz voltage.

Specifications

Max Input Rating: 30,000 BTUs hr.

When Running Liquid Propane Gas:

Min. Input Rating: 21,000 BTUs hr.

Pressure Regulator Setting: 9 in. w.c

Max Inlet Pressure: 14 in. w.c

Min. Inlet Pressure: 11 in. w.c

When Running Natural Gas:

Min. Input Rating: 15,000 BTUs hr.

Pressure Regulator Setting: 4 in. w.c

Max Inlet Pressure: 9 in. w.c

Min. Inlet Pressure: 5 in. w.c

Dimensions:

• Height: 18.05 in.
• Width: 27.9 in.
• Depth: 5.8 in.
