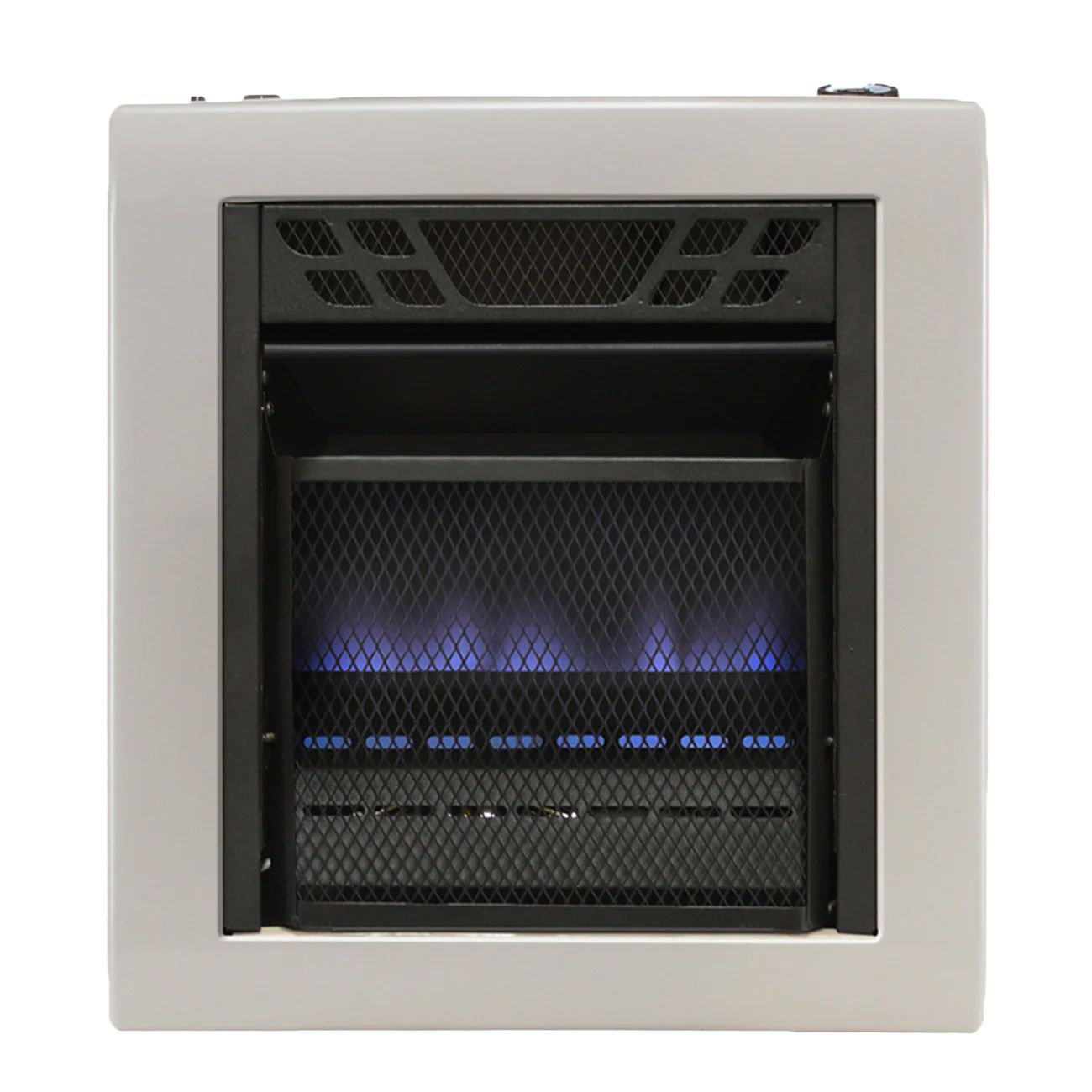

MD10TBU Cedar Ridge Hearth 10,000 BTU Vent Free Wall Heater with Blue Flames

The MD10TBU is a vent-free heater from Cedar Ridge Hearth that has both wall mounting and floor mounting options.

This blue flame wall heater is able to be configured for either liquid propane gas or natural gas. MD10TBU comes shipped configured for liquid propane, but the gas type can be swapped by a licensed installer.

This vent-free gas-fired heater uses room oxygen for combustion. The owner's manual for the MD10TBU outlines specific air flow and clearance requirements.

Features of the MD10TBU Blue Flame Heater

• Maintain safe operation with an ODS pilot that has an oxygen depletion safety shutoff, disabling the heater if there is not enough fresh air available.
• Simple to toggle on using the Piezo spark ignitor with push-button activation.
• Features thermostatic control that automatically cycles the burner to keep a consistent room temperature.
• Equipped to operate with liquid propane gas when received from the manufacturer. Able to be changed to natural gas by a qualified installer.
• An adjustable control knob is positioned on the top of the unit, next to the push-button ignitor.
• Optional base feet allow for floor-mounting as an alternative to wall-mounted operation.
• Supports an optional blower kit (sold separately.) Requires 120 VAC, 60 Hz voltage.

Specifications

Max Input Rating: 10,000 BTUs hr.

When Running Liquid Propane Gas:

Min. Input Rating: 8,000 BTUs hr.

Pressure Regulator Setting: 9 in. w.c

Max Inlet Pressure: 14 in. w.c

Min. Inlet Pressure: 11 in. w.c

When Running Natural Gas:

Min. Input Rating: 5,000 BTUs hr.

Pressure Regulator Setting: 4 in. w.c

Max Inlet Pressure: 9 in. w.c

Min. Inlet Pressure: 5 in. w.c

Dimensions:

• Height: 17.8 in.
• Width: 15.6 in.
• Depth: 6 in.
