KK-4275 Air Compressor Reed Valve Replacement Kit

The KK-4275 is an OEM reed valve repair kit used in compatible twin cylinder oil-lubricated air compressor pumps manufactured by DeVilbiss. This kit contains intake and exhaust reed valves used to regulate air flow within the compressor valve plate assembly.

The reed valves open and close during pump operation to control air intake and discharge from the compression chamber. The KK-4275 kit is used during compressor service to replace worn or damaged reed valves that affect air pressure and flow.

KK-4275 Specifications

• Component Type: Reed valve kit
• Compressor Type: Twin cylinder oil lubricated air compressor pump
• Valve Material: Carbon steel
• Intake Reed Thickness: 0.20 mm (.006 in.)
• Exhaust Reed Thickness: 0.26 mm (.009 in.)
• Reed Length: Approximately 1.963 in.
• Reed Width: Approximately 0.688 in.

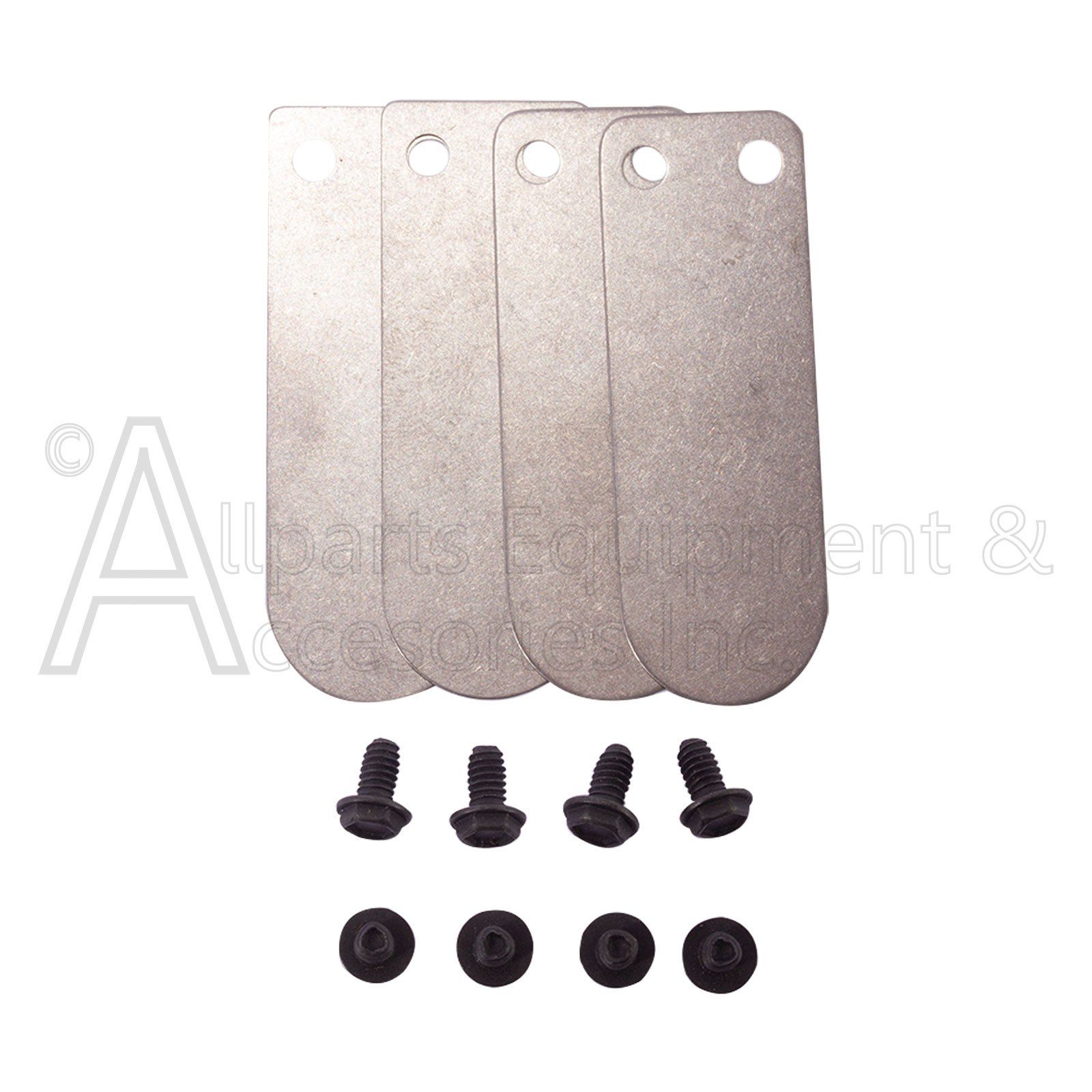

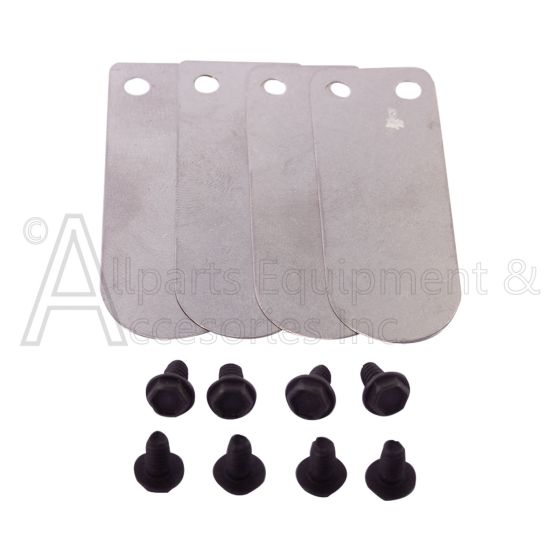

• Includes: Four reed valves and eight hex head mounting screws

KK-4275 Features

• OEM reed valve repair kit for compressor pump servicing
• Includes intake and exhaust reed valves
• Carbon steel construction for compressor applications
• Includes mounting hardware for installation
• Used to restore proper airflow in compressor pumps
