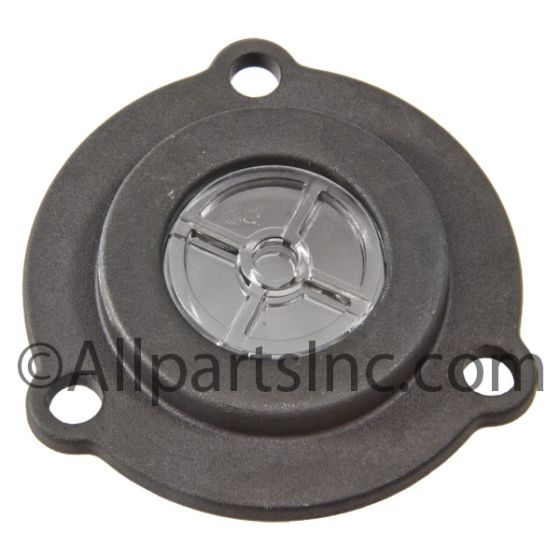

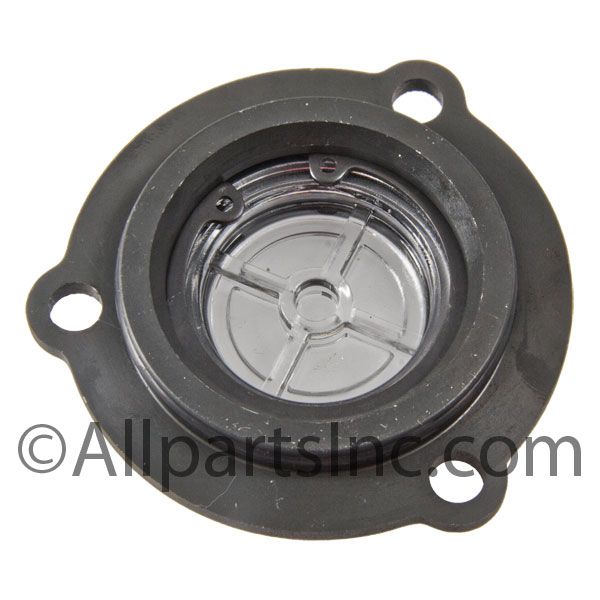

7106709 KIT, CRANKCASE SIDE COVER(SIGHT GLASS)

7106709 is a replacement crankcase side cover kit. 7106709 includes the retaining ring, sight glass, sight glass o-ring(34.59 x 2.62), metal side cover, and side cover o-ring(47.3 x 2.62).

The side cover has an insertable diameter of 52mm, with a depth of 7mm.

7106709 is held in place by 3 x M6x12 Cap Screws(5mm) torqued to 7 ft-lb, 80 in-lb, or 9 Nm.
