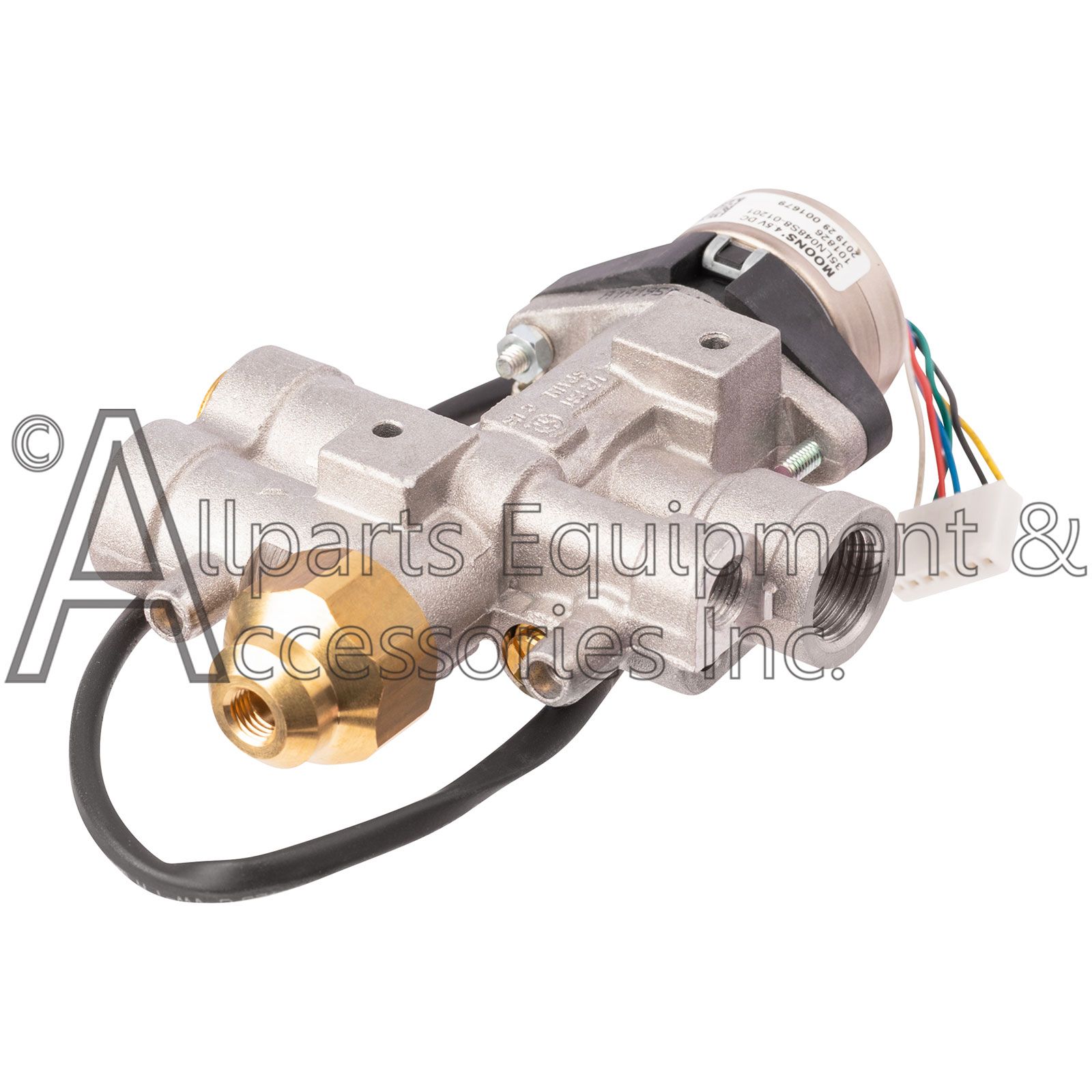

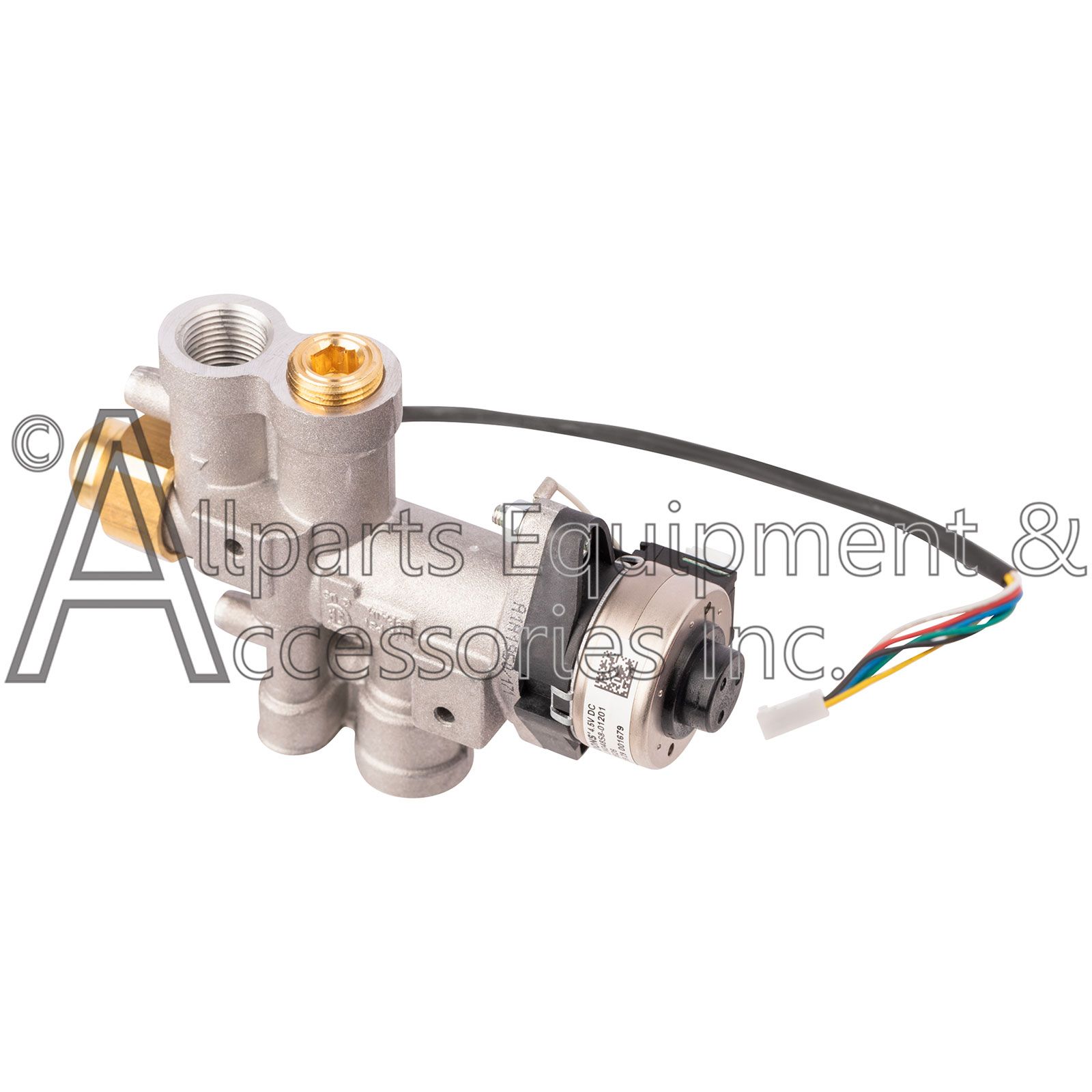

J7936-S Single Outlet Ecoflow Copreci JFM22600 Valve NG with Moons 4.5V DC Motor

The Ecoflow J7936-S Gas valve is a single outlet JFM22600 series gas valve used for multiple direct vent natural gas fireplace units.
This replacement fireplace valve is designed by Copreci for use with only Natural Gas.

Originally for Astria and Superior natural gas fireplaces, the J7936 is able to service other models of natural gas fireplace units.

Before replacing a part or repairing a fireplace appliance, consult your user manual to ensure part compatibility.

Ecoflow fueled by Copreci J7936 Product Specifications:

Key Features

• 80,000 btu’s total (Variable flow / High – Medium - Low)
• Moons 4.5V DC Motor 35LN048S8-01201

• 32°f – 176°f

• Inlet & Outlet: 3/8” x 18npt

• Pilot Outlet: 3/8” X 24unf

• Multi-Position Mounting

• Pressure Test Ports (PTP)

• Die-cast aluminum body

• 08931702 Valve wire harness 15.7 Inch

The Ecoflow J7936 gas valve with harness was used of the following models:

Superior Gas Fireplaces:

• DRI2027



Astria Gas Fireplaces:

• Altair 45DMN-B
• Altair 45DEN-B
• COMPASS35TEN
• Scorpio45DEN-B
• Scorpio CD45DEN
• Scorpio CD45DEN-B
• Gemini45DMN
• Gemini45DEN



IronStrike Gas Fireplaces:

• Bellevue27
• Bellevue32
