J3835 GAS VALVE LPG PROPANE SIT 820 NOVA MILLIVOLT VENT FREE
Out Of Stock
Part Number
J3835
$206.33

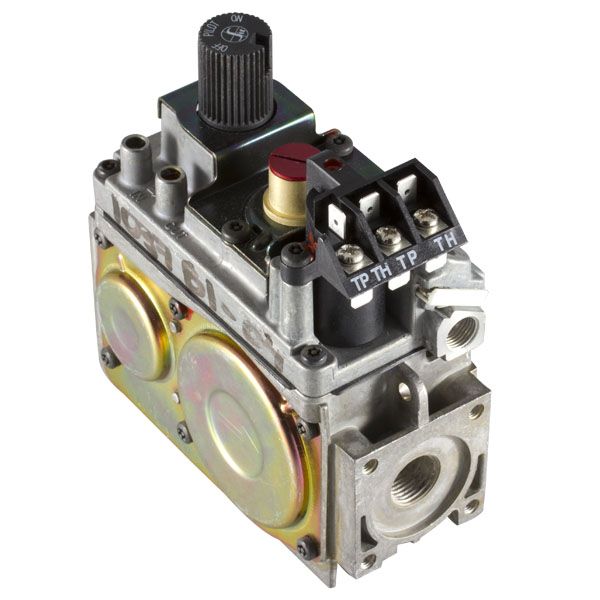

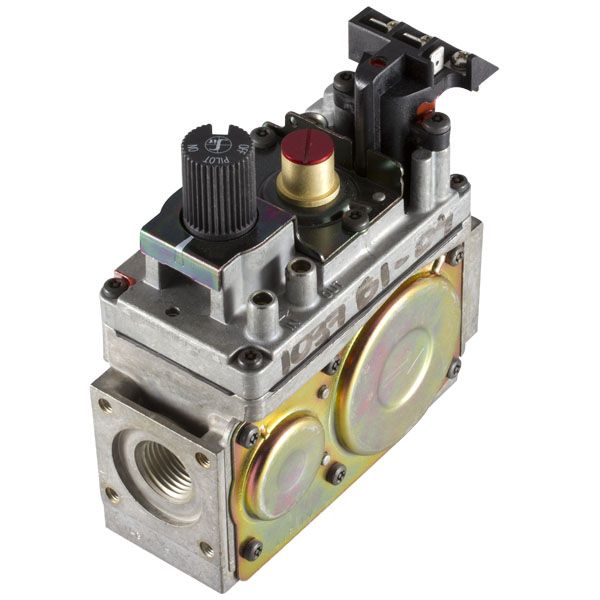

The J3835 Gas Valve is the SIT Nova-820 series LPG Propane gas valve with a fixed burn rate module regulator for use with vent-free propane gas burning fireplaces and other hearth products.
Single system millivolt control propane lpg gas valve for use in vented appliances.
Fixed burner adjustment 8 in.w.c.+-0.3
Minimum voltage Main Operator 145mV Coil resistance 2.25±0.5
This J3835 replacement OEM SIT 820 NOVA mV gas control valve is designed for liquid propane-fired fireplaces and other vent-free hearth products.
Lennox IHP Part number J3835 is a SIT Control propane gas valve with a pilot and a primary circuit control built into the gas valve.
0820660 SIT NOVA mV LPG Propane Gas Millivolt remote ready gas valve with ON/OFF milli-volt control for use in vent free appliances this gas valve is a single thermo-generator operated and single thermocouple valve for both the main burner control and the safety control.
The Sit Controls Gas valve model 0820660 has the following specifications.
Single system millivolt control propane lpg gas valve for use in vented appliances.
Fixed burner adjustment 8 in.w.c.+-0.3
Minimum voltage Main Operator 145mV Coil resistance 2.25±0.5
Thermo-Electric Unit Hold-in current less than 10Ma
Drop-out current Greater than 4mA with coil resistance 10.2 ± 0.5
Gas type Propane LPG Fixed Adjustment Pressure set-point 8" w.c. ± 0.3
Drop-out current Greater than 4mA with coil resistance 10.2 ± 0.5
Gas type Propane LPG Fixed Adjustment Pressure set-point 8" w.c. ± 0.3
Thermocouple connection M8x1 Fine
Pilot Tube 7/16 UNS x 1/4 Tubing
Pilot Tube 7/16 UNS x 1/4 Tubing
Natural Gas Inlet 1/2 in. NPT
Natural Gas Outlet 3/8 in. NPT
Maximum natural gas inlet pressure 1/2 PSIG Ambient operating
temperature 32° to 175° F
Maximum @ 1 in. w.c. pressure drop 162,000 BTU per hour Regulation capacity 8,100 to 315,900 BTU AP per hour
