IS1070B SYNETEK IGNITION MODULE CONTROL
In stock
Part Number
IS1070B
$201.67
The IS1070B Ignition Module Control is a SYNETEK CONTROLS INC replacement ignition module for many heating systems manufactured by various manufacturers and sold under several brand names.
Service Information:
The IS1070B SYNETEK control module can be used to replace the SYNETEK Model IS114S and IS114S rA Modules
The wire harness from the old IS114S Series will need to be adapted with 1/4 Female spade connector to be used on the new IS1070B Series module

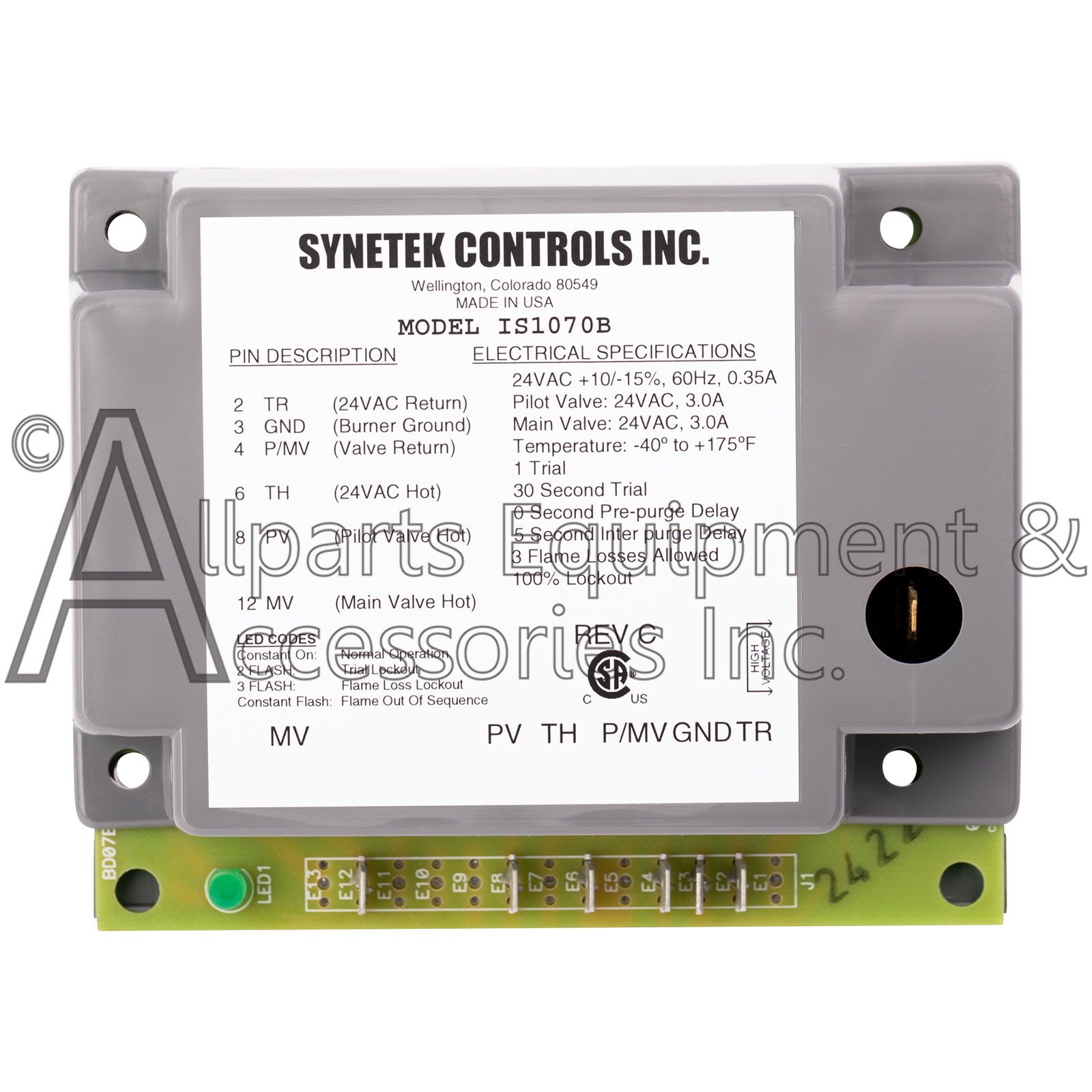

Pin Out will be as Follows
Model IS114S Wire Locations to IS1010B Wire Locations
IS114S Red Wire Location Pin 1 Equals Pin 12 IS1010B Wire Location
IS114S Green Wire Location Pin 2 Equals Pin 3 IS1010B Wire Location
IS114S Black Wire Location Pin 4 Equals Pin 6 IS1010B Wire Location
IS114S Black Wire Location Pin 5 Equals Pin 8 IS1010B Wire Location
IS114S White Wire Location Pin 6 Equals Pin 2 IS1010B Wire Location
IS114S White Wire Location Pin 7 Equals Pin 4 IS1010B Wire Location
Wire colors may be different on some installation so always refer to the Control Pin Index before stating operation
