39E0000500 IGNITION TRANSFORMER WMI924 SERIES FOR
In stock
Part Number
39E0000500
$34.29

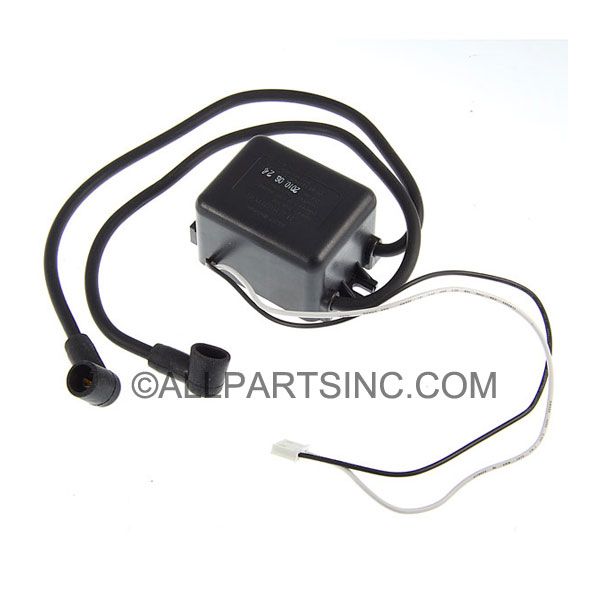

The 39E0000500 Ignitor Transformer is a component of many portable heaters manufactured by both GHP Group and World Marketing Inc. these heaters are sold under various brands including Dura-Heat, Workhorse, Dyna-Glo and Dyna-Pro, Thermoheat and others private labels.
The 39E0000500 Ignition Transformer Ignitor is a Model WMI924 with the following specifications.
Model Number WMI924 H.F. Ignitor
Primary Voltage AC 120Volts 50/60Hz with 16 inch 2 pin connector with Black and White leads
Secondary Voltage 16.5 KV o-p with 2 17 inch spark plug leads.
This 21-1046 can be used to replace the 39E0-0005-00 and the 39E0000500 Ignition transformers used by both GHP Group and World Marketing Inc.
The 39E0000500 Ignition Transformer Ignitor is a Model WMI924 with the following specifications.
Model Number WMI924 H.F. Ignitor
Primary Voltage AC 120Volts 50/60Hz with 16 inch 2 pin connector with Black and White leads
Secondary Voltage 16.5 KV o-p with 2 17 inch spark plug leads.
This 21-1046 can be used to replace the 39E0-0005-00 and the 39E0000500 Ignition transformers used by both GHP Group and World Marketing Inc.
The 39E0000500 Ignitor Transformer is a replacement ignitor transformer for the following portable kerosene, diesel fuel or fuel oil heater model numbers and others.
Dura-Heat
DFA120, DFA125, DFA125T, DFA125C,
Workhorse
KFA120WH, KFA120WH-03
Dyna-Glo
KFA120
Dyna-Pro
KFA120T-Pro
The 21-1046 Ignitor Transformer can be used to replace the 39E0000500, 39E0-0005-00 IgnitorTransformers.
Dura-Heat
DFA120, DFA125, DFA125T, DFA125C,
Workhorse
KFA120WH, KFA120WH-03
Dyna-Glo
KFA120
Dyna-Pro
KFA120T-Pro
The 21-1046 Ignitor Transformer can be used to replace the 39E0000500, 39E0-0005-00 IgnitorTransformers.
