M50570-03 IGNITION TRANSFORMER/DESA FRANCE

The M50570-03 Ignition Transformer Kit was used on various portable heaters manufactured by Desa International including kerosene and diesel portable forced air residential heaters and portable construction heater.

This M50570-03 Ignition Kit replacement is designed to replace the FRANCE Transformers and is the 5 SAY Series Ignition Transformer aftermarket replacement and has been being used as a aftermarket replacement since 2019.

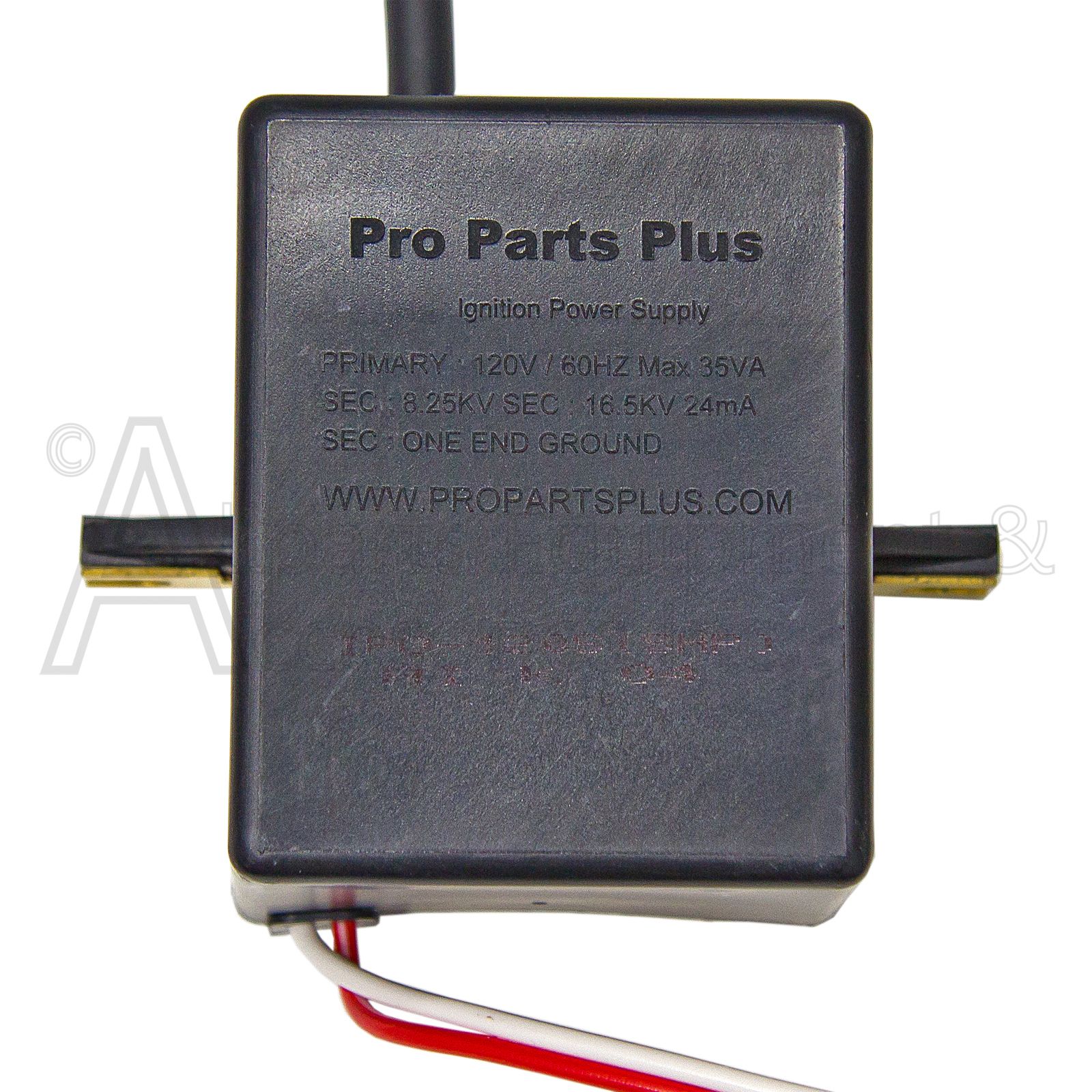

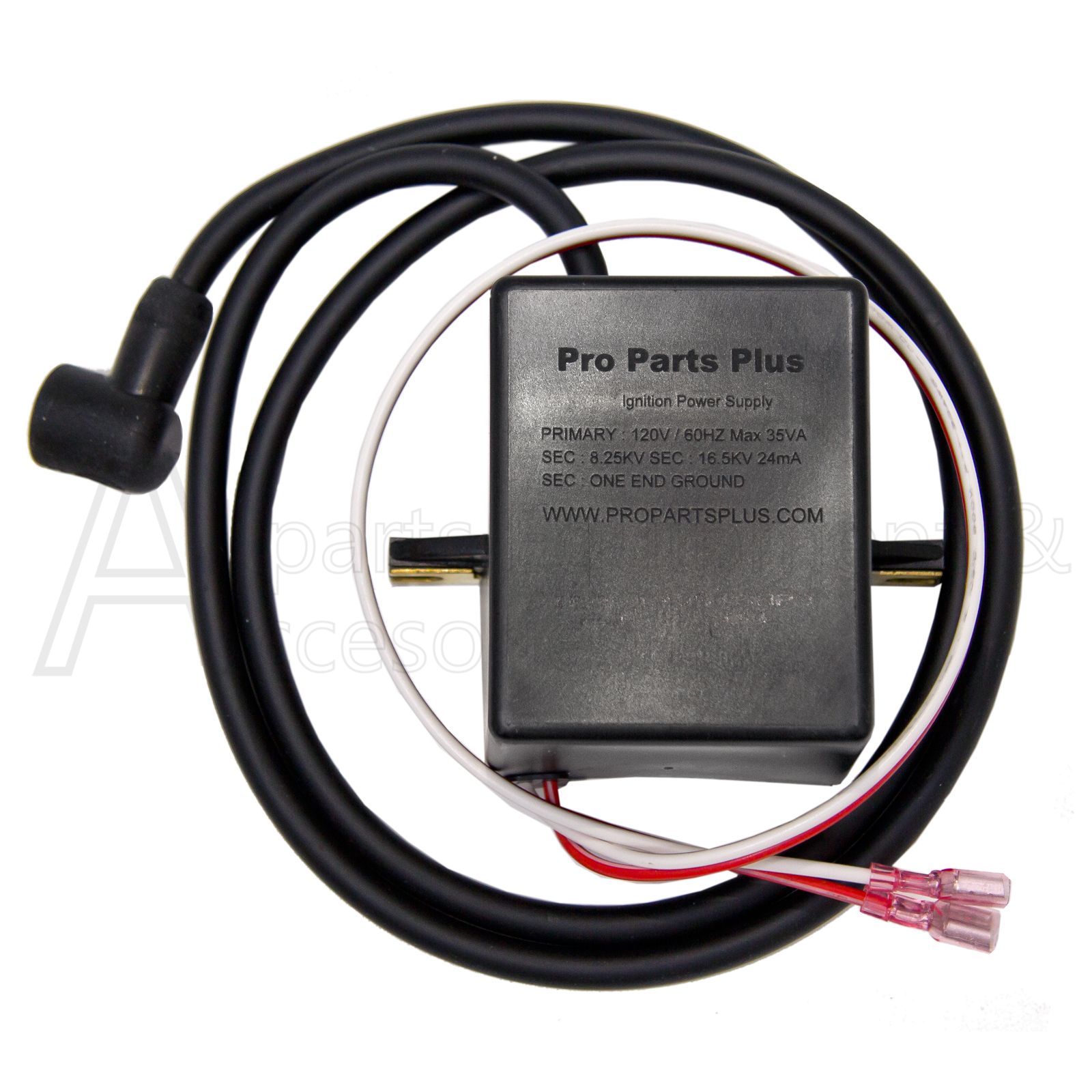

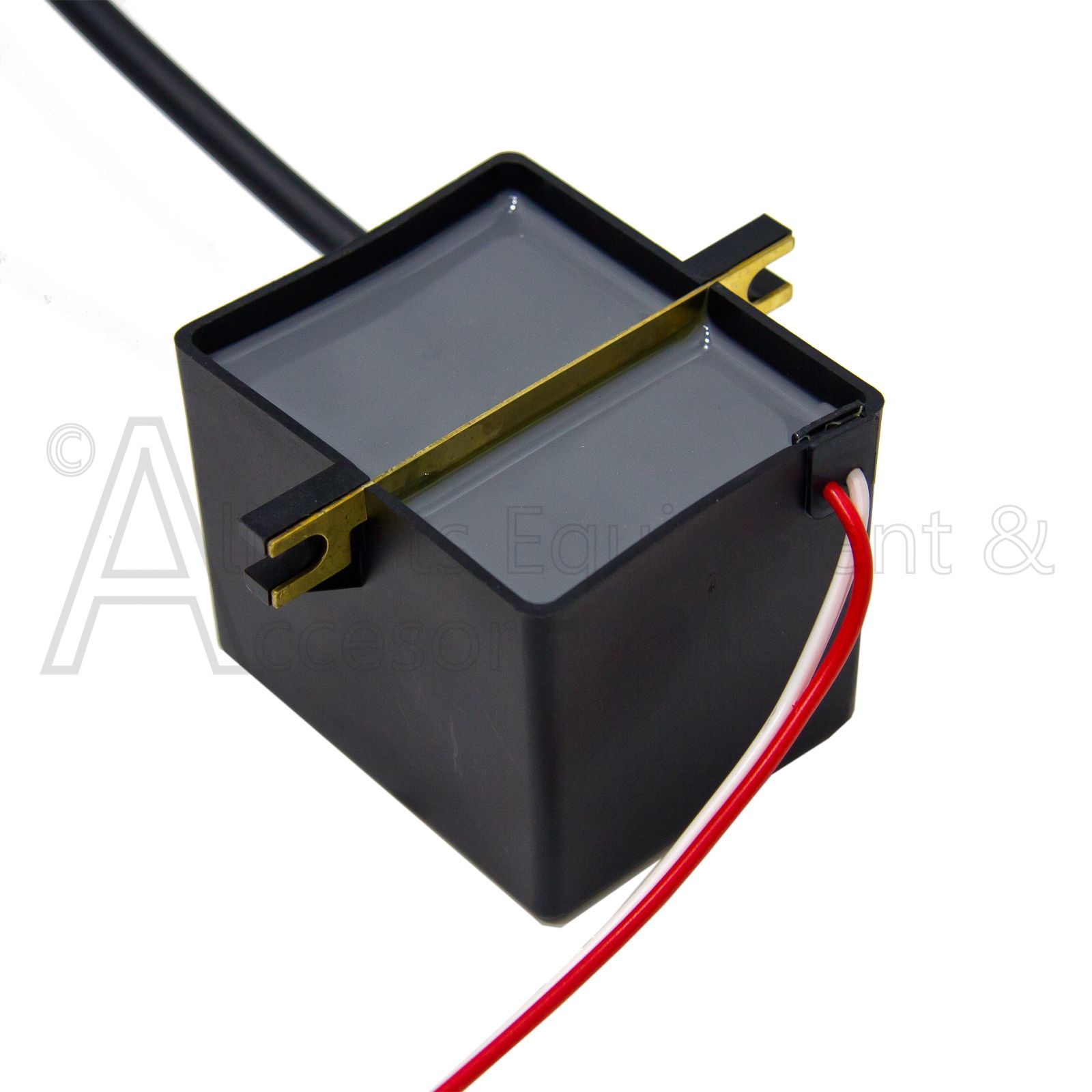

This new version ignition transformer module for the M50570-03 has the following specifications:

Gas Ignition Power Supply:

Primary: 120 Volts / 60 hertz 35VA

Secondary: 8.25KV, 16.5kVP 24mA

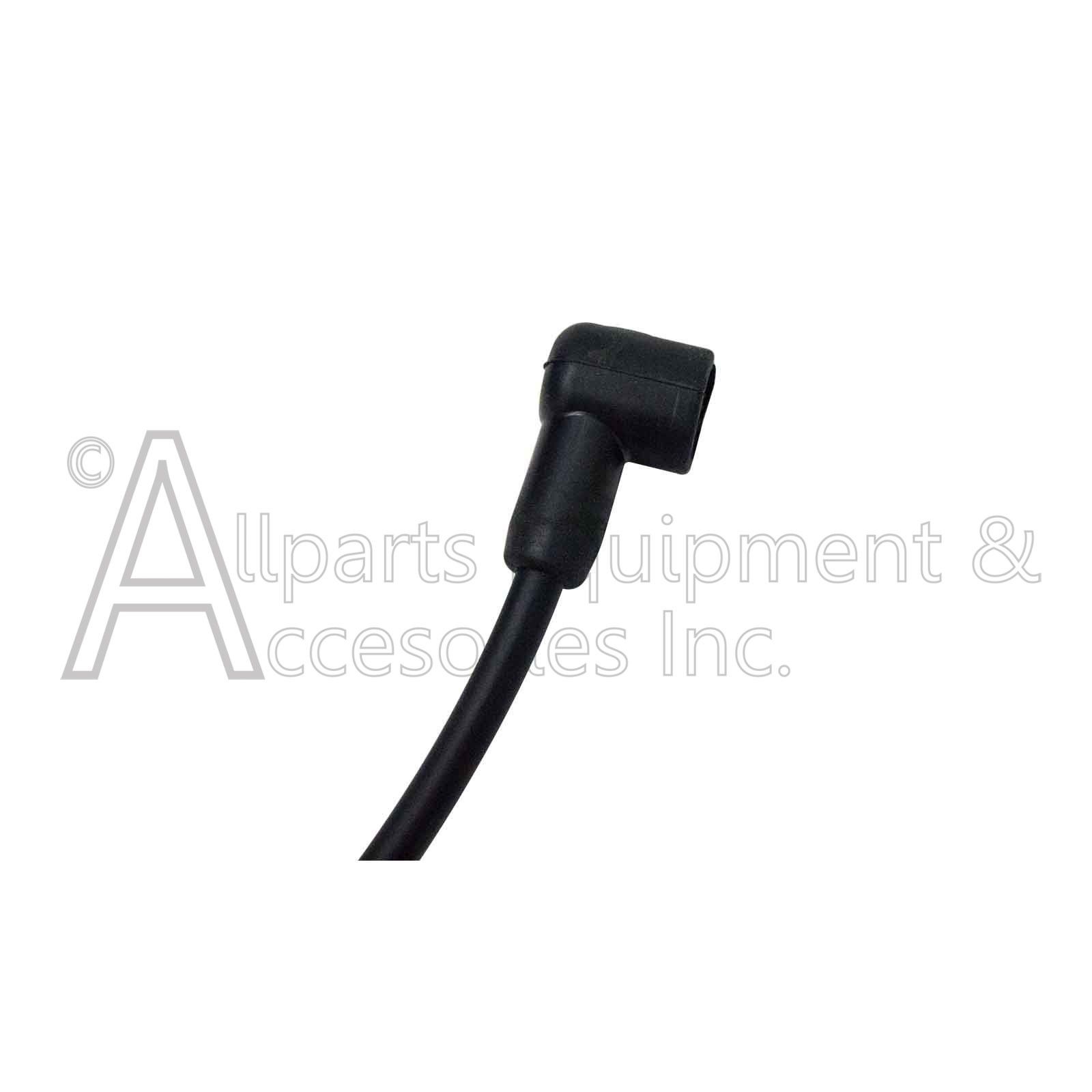

Main Lead: 24 Inches

Power Leads: 16 Inches

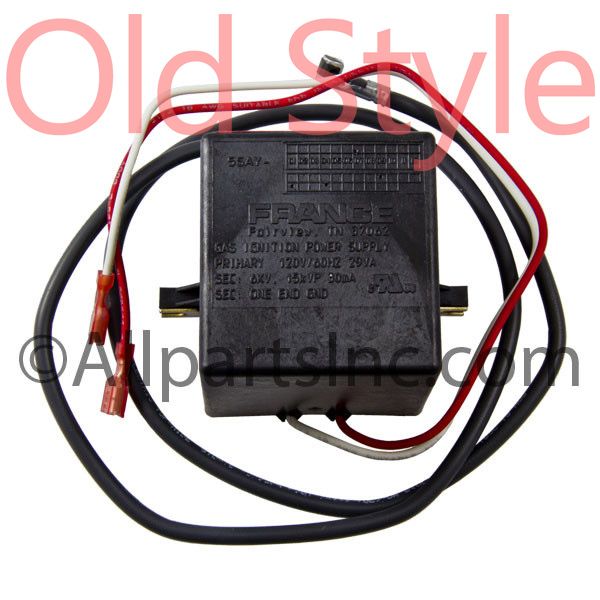

Service Note: Previous version FRANCE 5SAY has the following specifications:

Gas Ignition Power Supply:

• Primary: 120 Volts / 60 hertz 29VA
• Secondary:6Kv .15kVP 30mA
• Spark Plug lead is 28 Inches.
• Secondary Power Lead red and White 16 Inches
