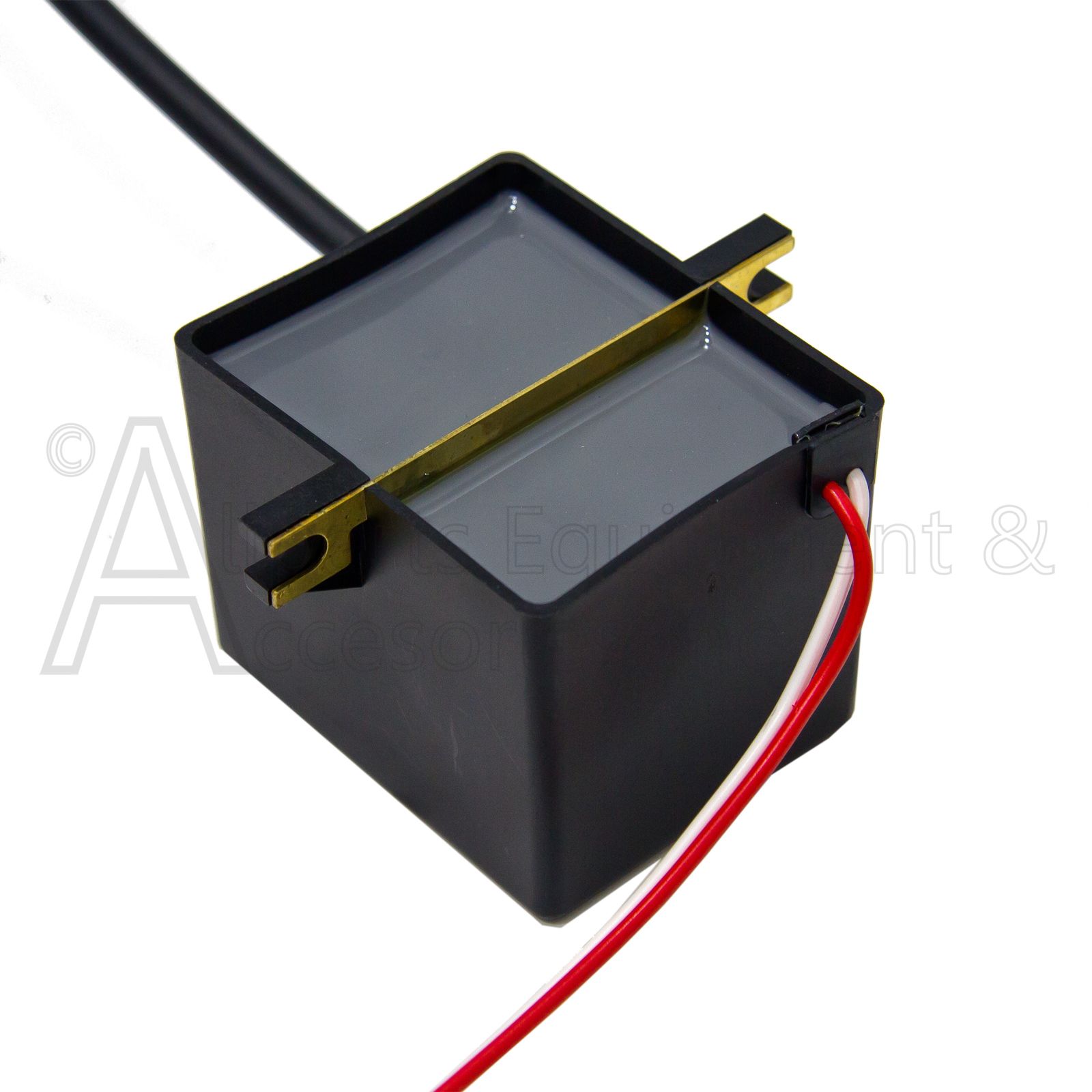

098024-05 Ignition Transformer Desa

098024-05 Ignition Kit is the most current version replacement ignition transformer used to generate continuous spark for the portable forced air heaters made by Desa International.

This Pro Parts Plus replacement 098024-05 Ignition Kit is designed to replace the FRANCE Transformers including all 5 SAY Series Ignition Transformer.

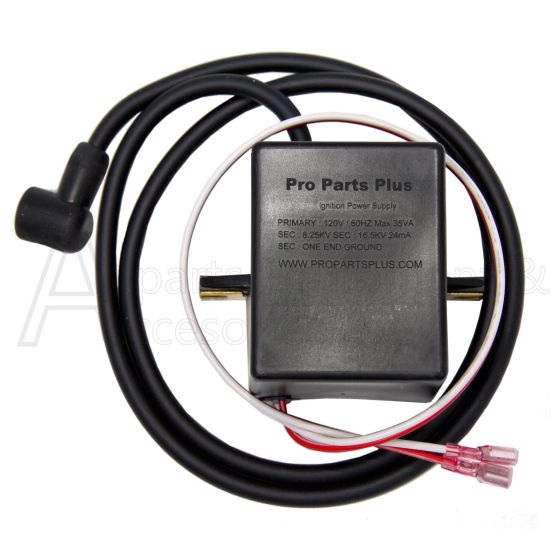

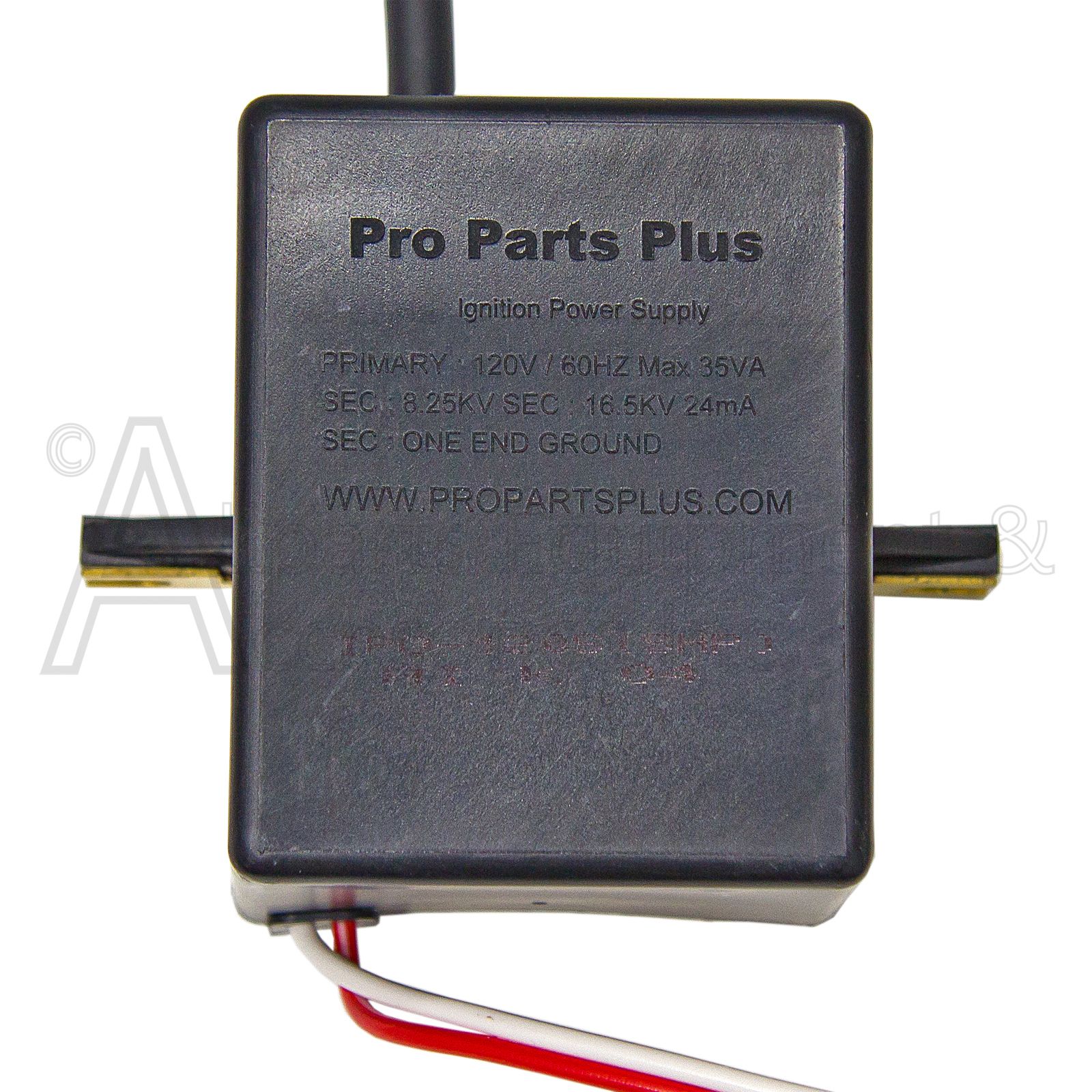

This new version ignition transformer module for the 098024-05 has the following specifications:

Gas Ignition Power Supply:

Primary: 120 Volts / 60 hertz 35VA

Secondary: 8.25KV, 16.5kVP 24mA

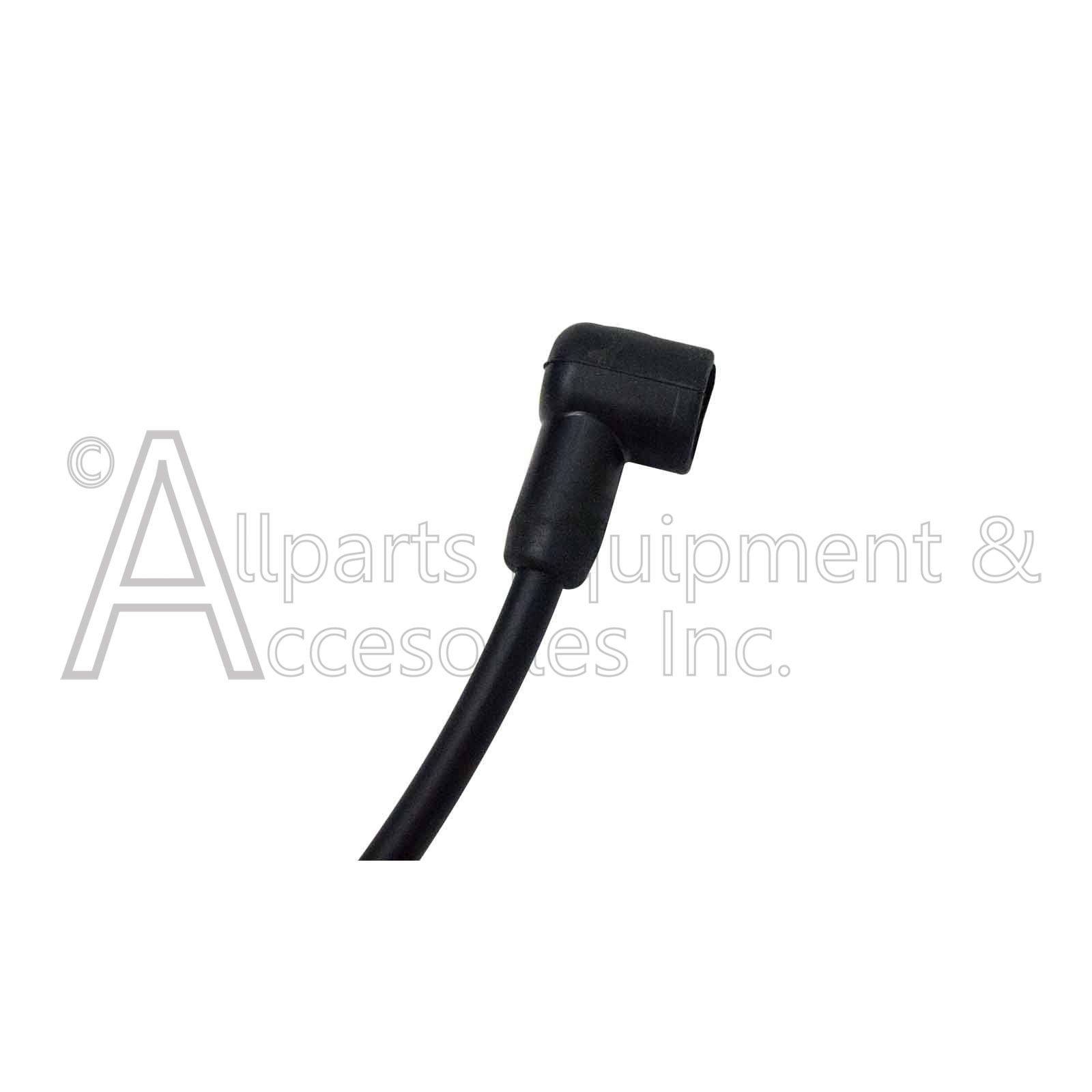

Main Lead: 24 Inches

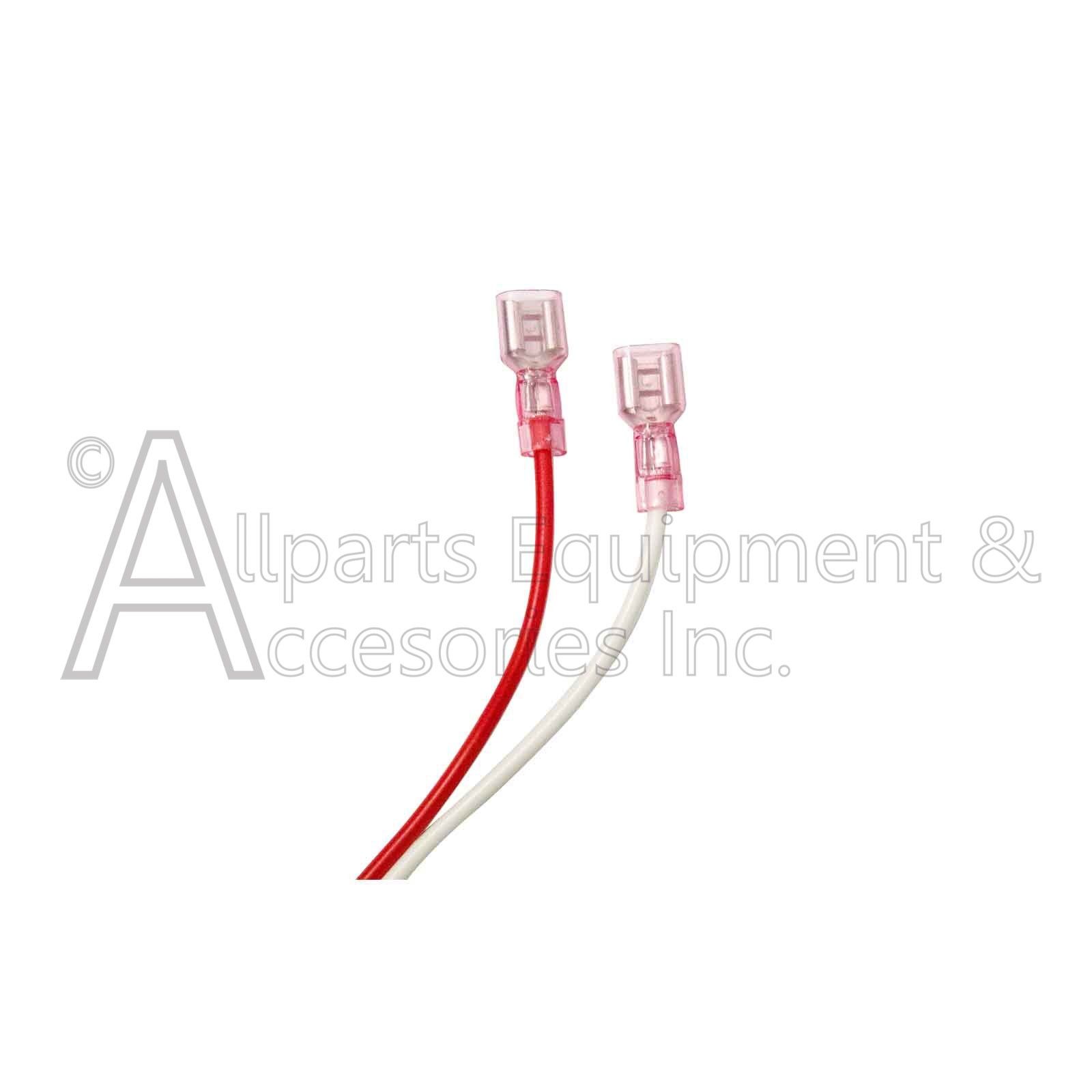

Power Leads: 16 Inches

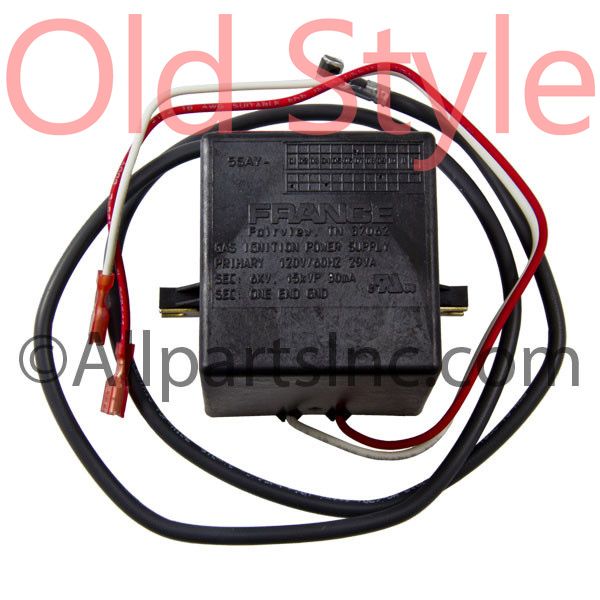

Service Note: Previous version FRANCE 5SAY has the following specifications:

Gas Ignition Power Supply:

• Primary: 120 Volts / 60 hertz 29VA
• Secondary:6Kv .15kVP 30mA
• Spark Plug lead is 28 Inches.
• Secondary Power Lead red and White 16 Inches
