098024-02 Ignition Transformer Desa
In stock
Part Number
098024-02
$48.90

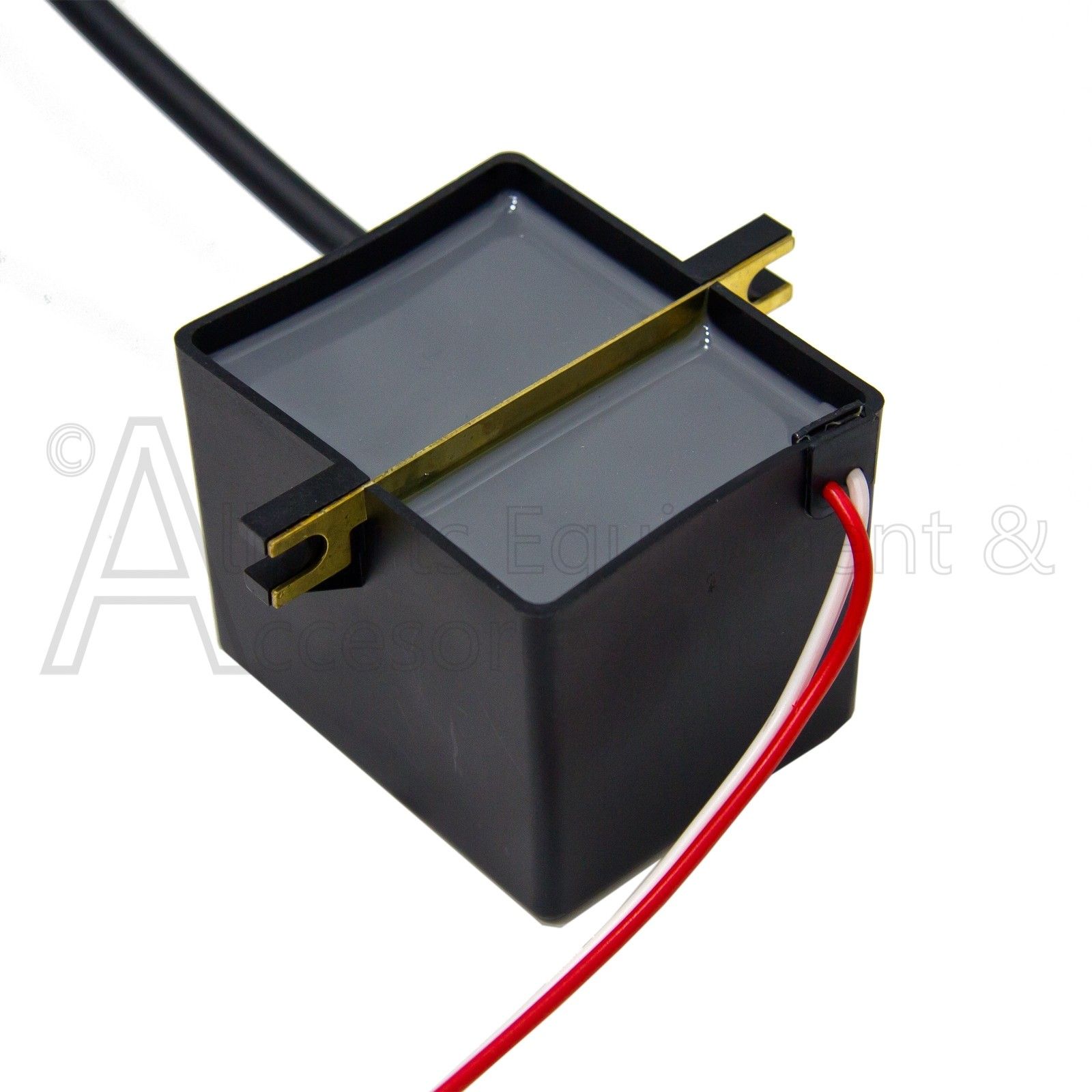

098024-02 Ignition transformer if the replacement solid state ignition module used on Desa, Reddy Heater, Master heaters and many other brands that used the ignition module made by FRANCE Transformers.
This new version ignition
transformer module for the 098024-02 has the following specifications:
Gas Ignition Power Supply:
Primary: 120 Volts / 60 hertz 35VA
Secondary: 8.25KV, 16.5kVP 24mA

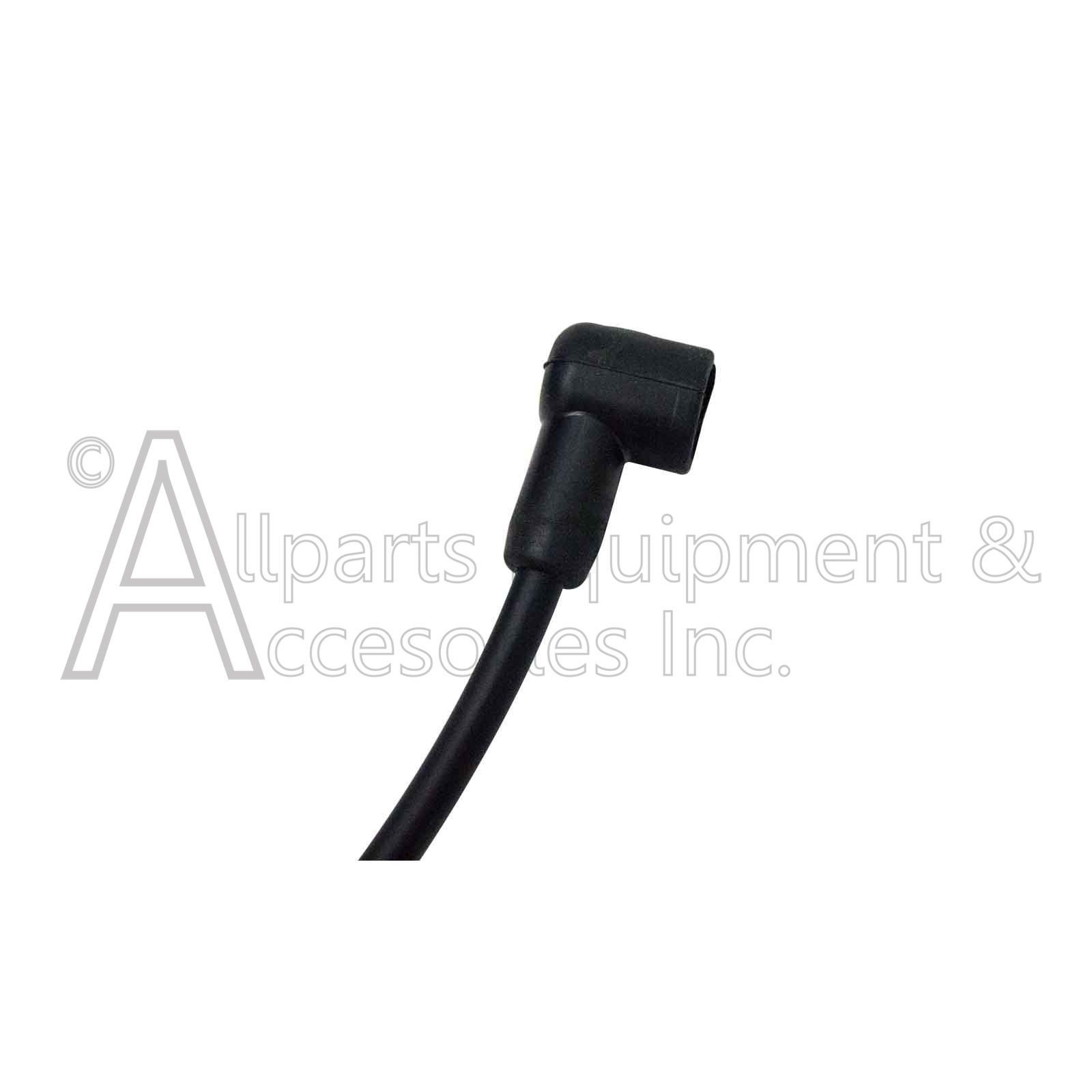

Main Lead: 24 Inches

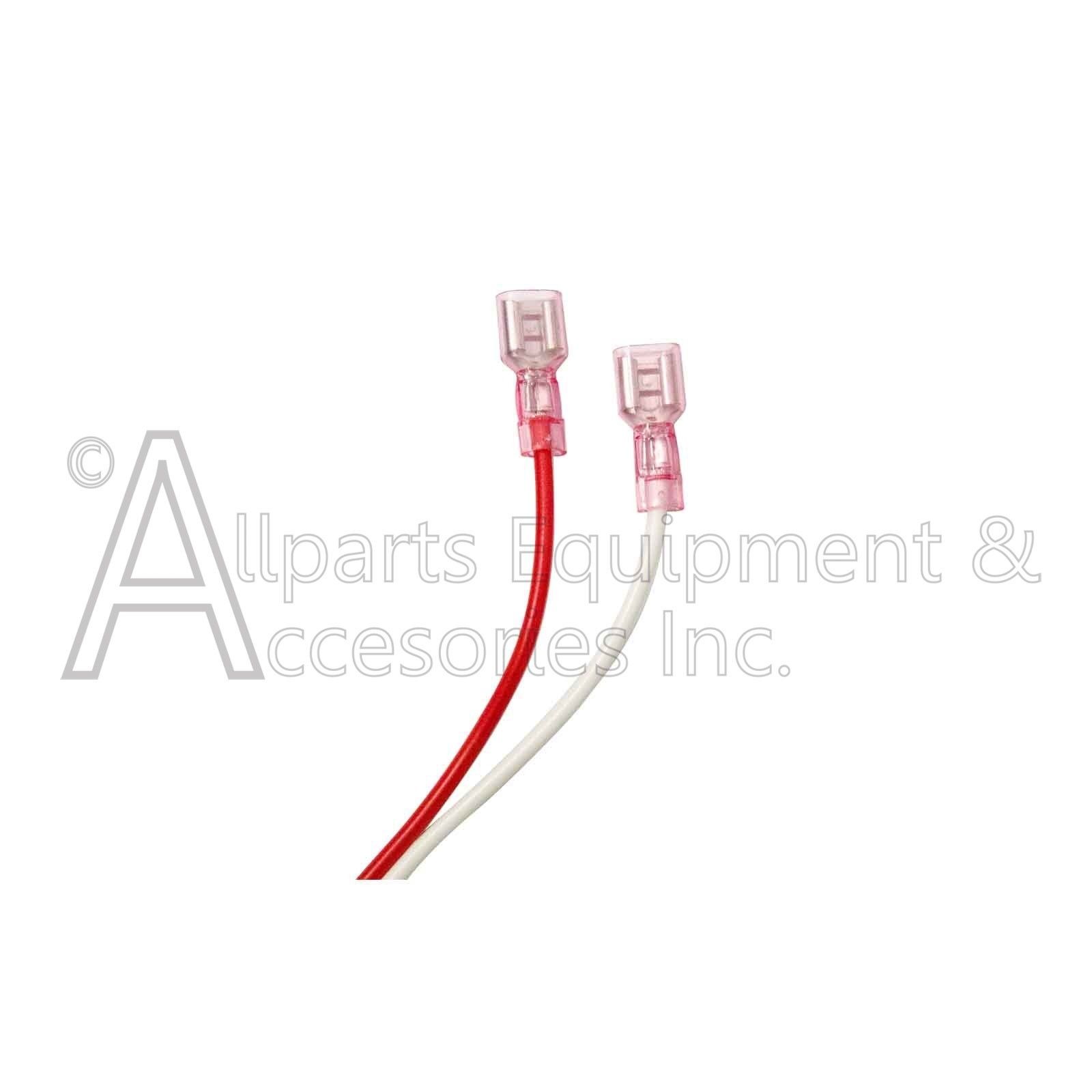

Power Leads: 16 Inches

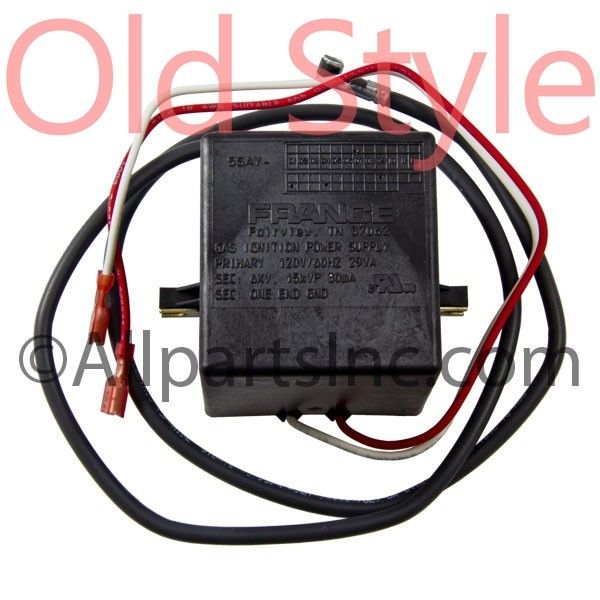

Service Note: Previous
version FRANCE 5SAY has the following specifications:
Gas Ignition Power Supply:
- Primary: 120 Volts / 60 hertz
29VA
- Secondary:6Kv .15kVP 30mA
- Spark Plug lead is 28 Inches.
- Secondary Power Lead red and
White 16 Inches
