AR42940 MANIFOLD KIT FOR SRMW SERIES PUMPS
In stock
Part Number
AR42940
$138.00

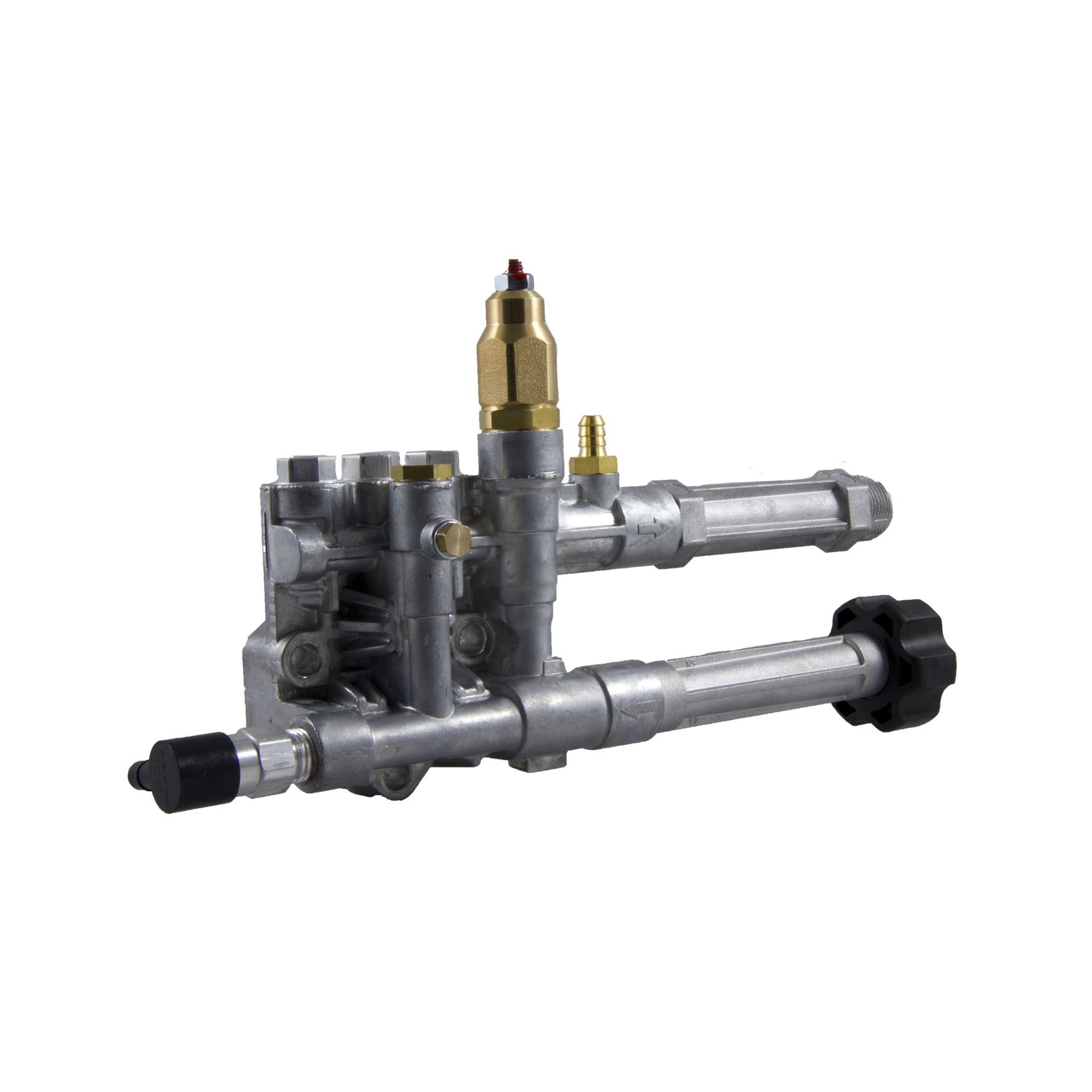

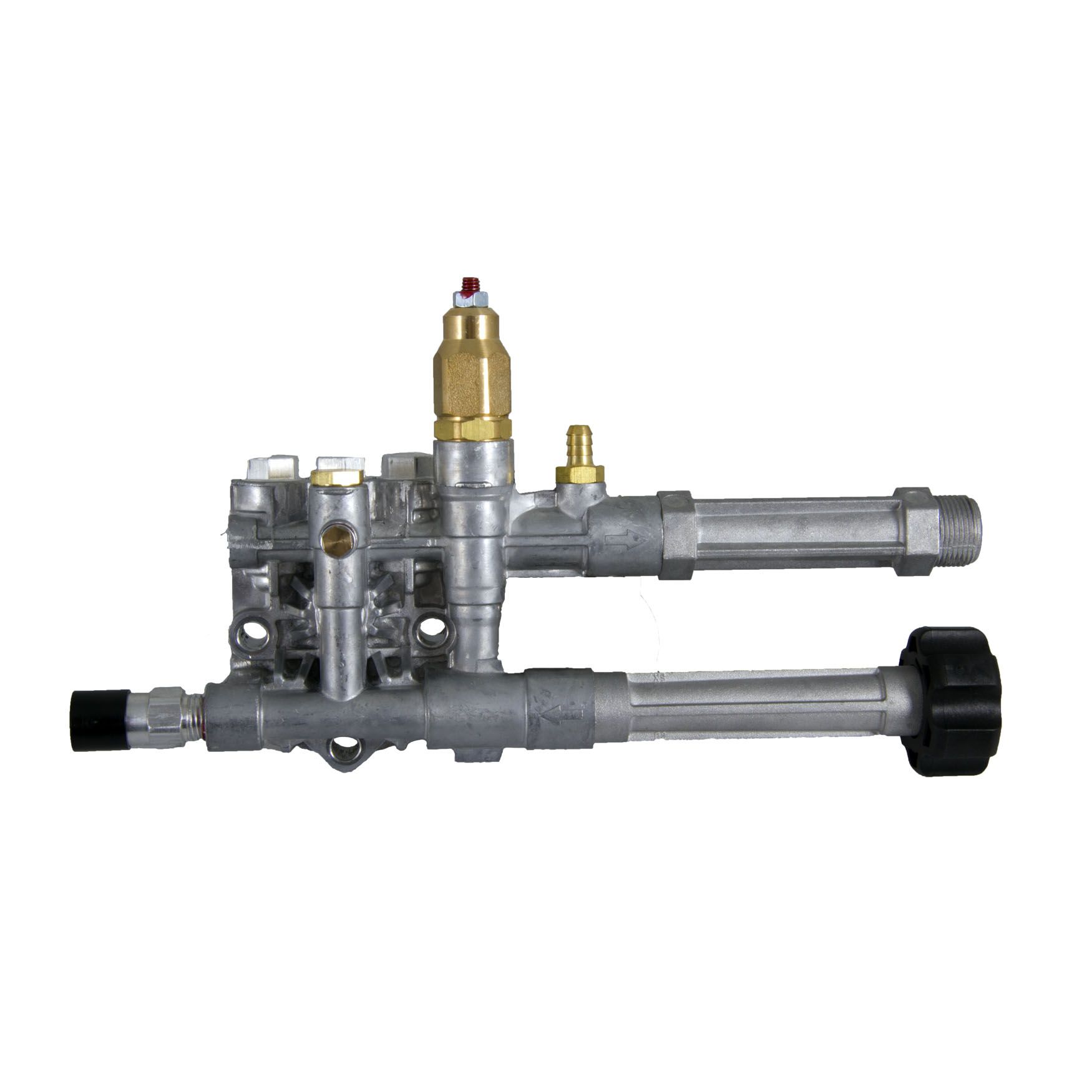

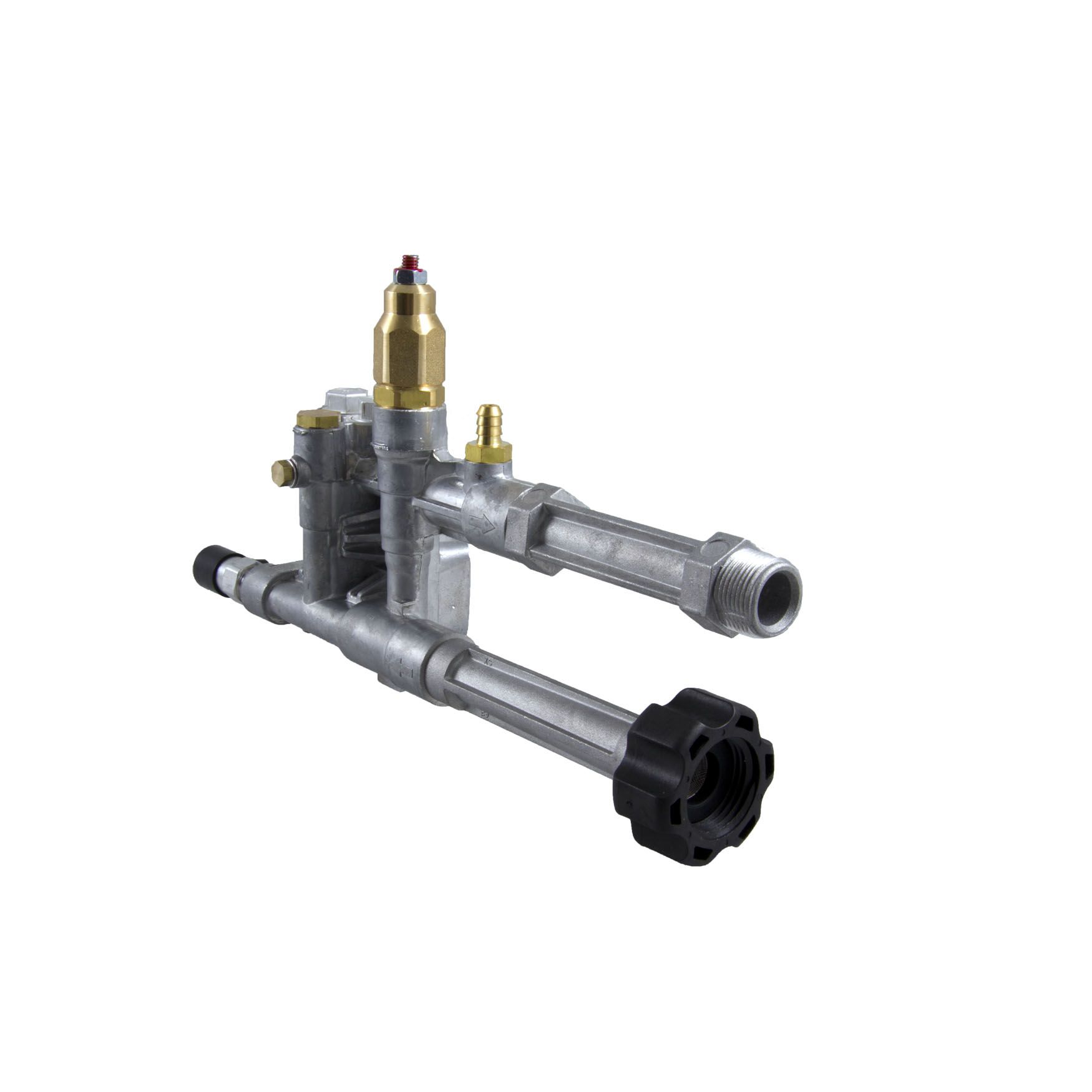

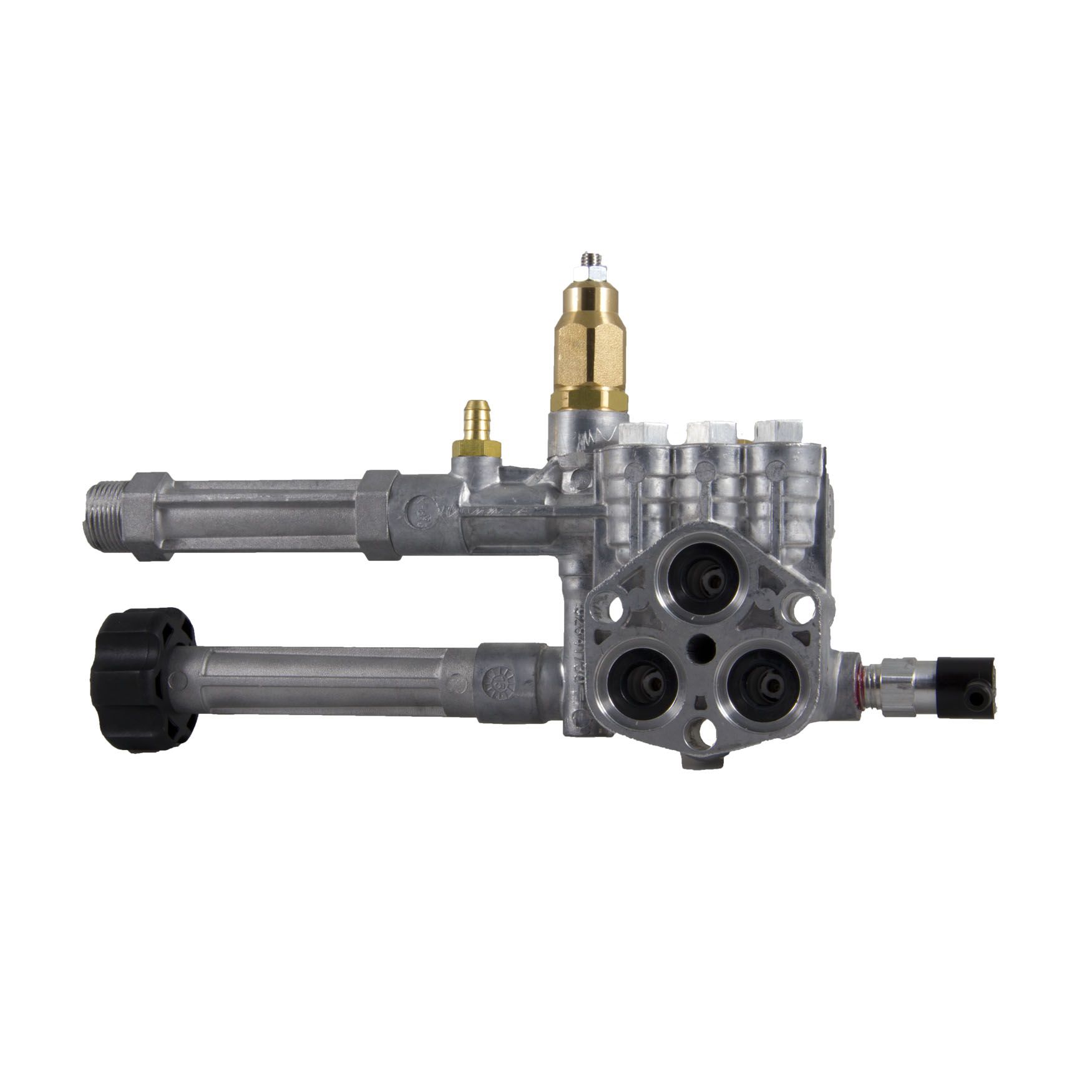

AR42940 Complete Head Assembly for the SRMW series pumps from AR North America was used on various pumps.
The AR42940 It is designed to work with Oil Lubricated SRMW series pressure washer pumps as the were used on various pressure washer.
This Head assembly kit includes the pump head, water seals, check valves, unloader valve, chemical injector, E-Z start valve, thermal relief valve, and an inlet/outlet tube for an easy repair of your AR Vertical series pressure washer pump.
Service Note:
If you have the RMW Oil Lubricated series pressure washer pump you would need the AR42518 Pump Head Assembly with the larger valves.
If you have the SRMW24G28 Oil Lubricated series pressure washer pump you would need the AR43361 Pump Head with the Raised Brass Inserts.
When the AR42940 is used on the Troy Built 020641 Pressure Washers the Inlet and Outlet tube extensions 707377 will need to be transferred from the old Briggs and Stratton 8001102 / 707773 pump head and used on the new AR42940 replacement head.replacement head.
