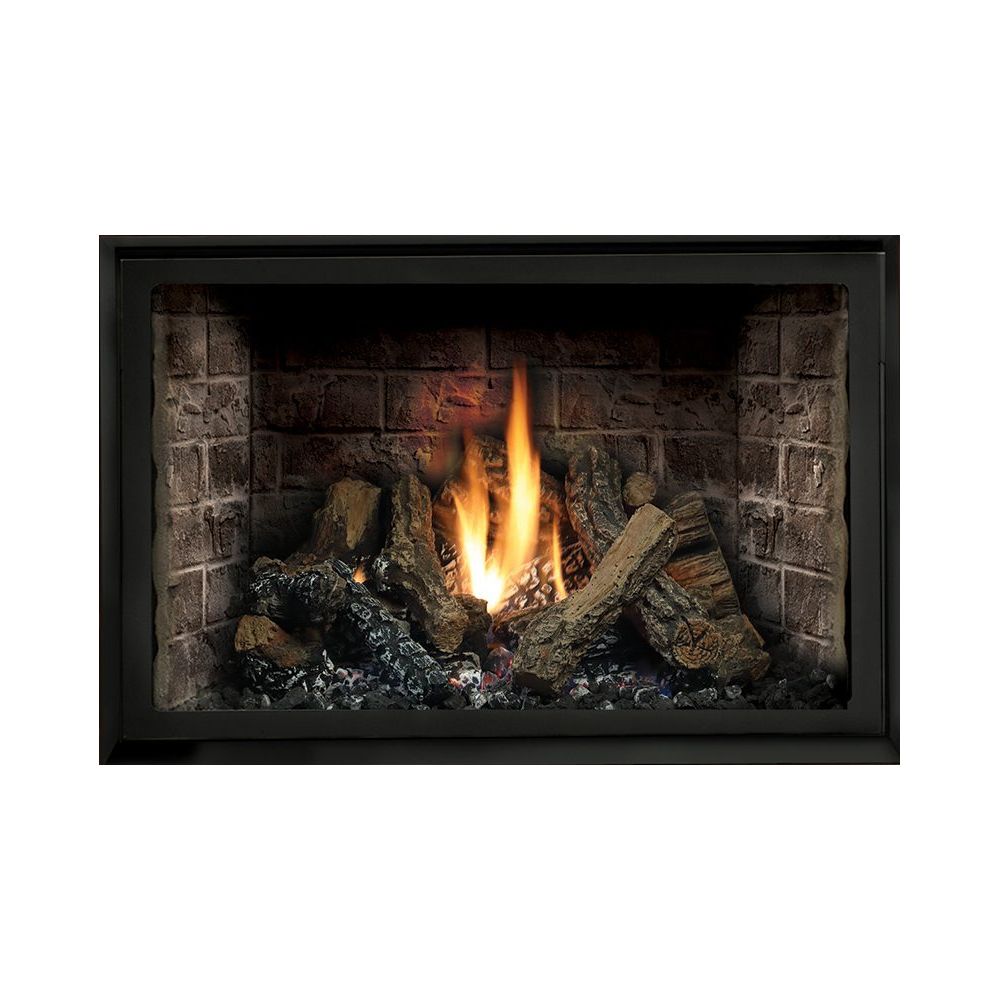

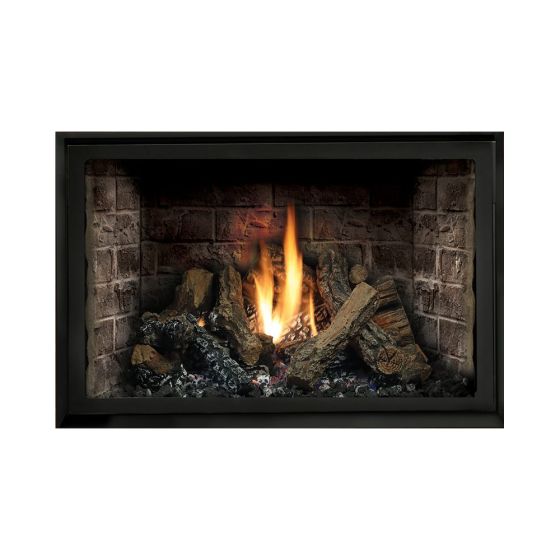

HBZDV3628NE Kingsman 28,000 BTU Natural Gas Fireplace with Proflame 1 IPI, 36 in.

The HBZDV3628NE is a natural gas Kingsman fireplace that measures 36 in. and is rated at 28,000 BTUs. This fireplace uses an electronic intermittent ignition assembly.

This zero clearance fireplace uses a direct power vent set-up, which uses outside venting and a fan to pull outside air for combustion while also expelling any combustibles.

Kingsman's HBZDV3628NE is compatible with a decorative brick liner.

Features of the HBZDV3628NE Kingsman Fireplace

• The intermittent Proflame 1 electronic pilot ignition only turns on when ignition is requested.
• Variable flame height and heat output feature Hi/Lo adjustment.
• A dual-burner setup provides realistic flame patterns.
• Power vent set-up utilizes direct outdoor venting and fans to pull outside air for combustion.

Specifications

Max. Input Rating: 28,000 BTUs

Min. Input Rating: 20,000 BTUs

Efficiency Rating: 60.61% - 62.69%

Min. Inlet Pressure: 5.5 in.

Max. Inlet Pressure: 9.0 in.

Manifold Pressure Range: 1.6 in. W.C - 3.5 in. W.C

Dimensions:

• Width: 38 1/16 in.
• Height: 34 11/16 in.
• Depth: 18 7/8 in.
