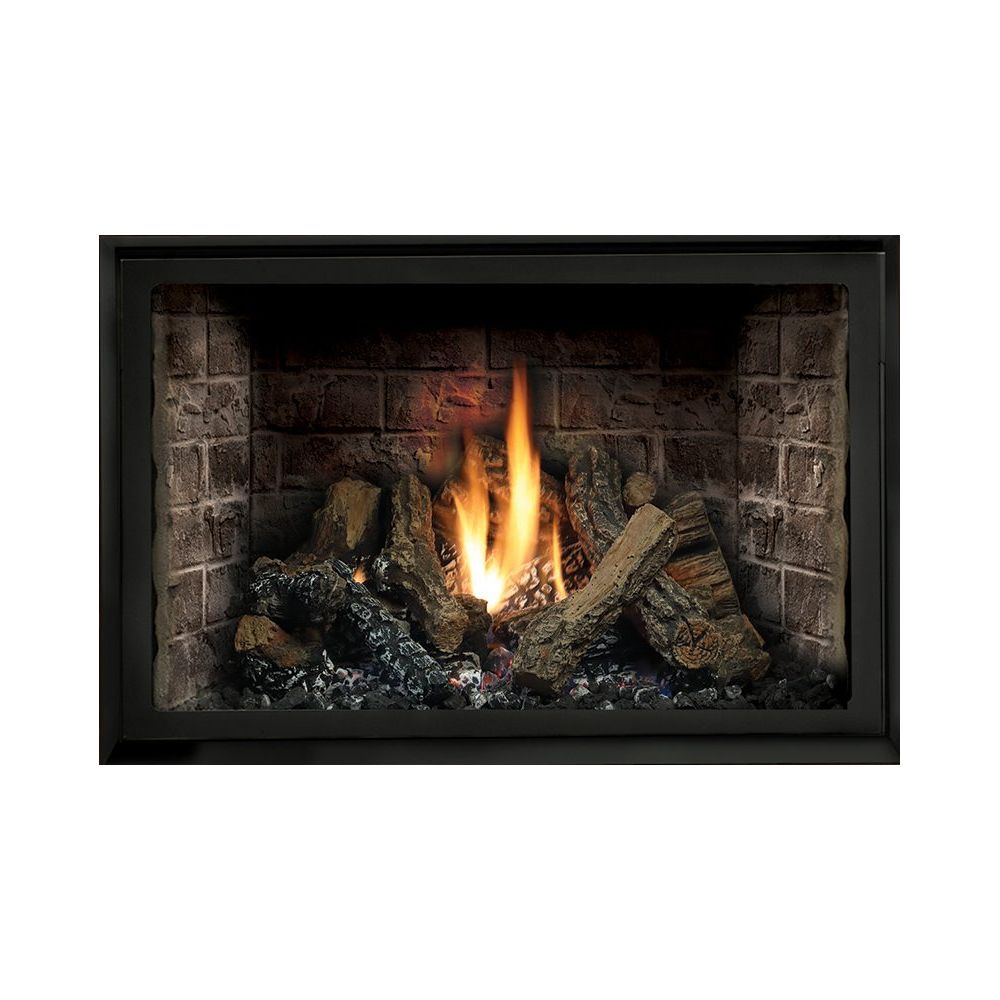

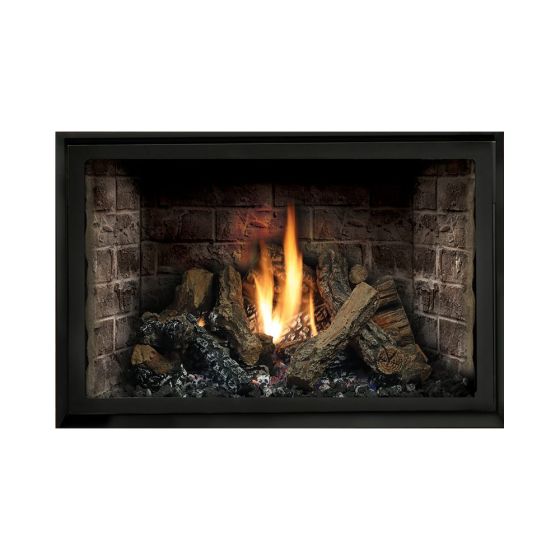

HBZDV3628N Kingsman 28,000 BTU Natural Gas Fireplace with Millivolt Pilot, 36 in.

The HBZDV3628N is a natural gas Kingsman fireplace that measures 36 in. and is rated at 28,000 BTUs. This fireplace uses a millivolt standing pilot assembly.

This zero clearance fireplace uses a direct vent set-up, which pulls fresh air from outside and uses no room air for combustion.

Kingsman's HBZDV3628N is compatible with a decorative brick liner.

Features of the HBZDV3628N Kingsman Fireplace

• A millivolt standing pilot remains on, allowing for consistent ignition
• Full HI/LO burner adjustment for variable heat output and flame height.
• A dual-burner setup provides realistic flame patterns.
• Compatible with an optional blower kit.

Specifications

Max. Input Rating: 28,000 BTUs

Min. Input Rating: 20,000 BTUs

Efficiency Rating: 60.61% - 62.69%

Min. Inlet Pressure: 5.5 in.

Max. Inlet Pressure: 9.0 in.

Manifold Pressure Range: 1.6 in. W.C - 3.5 in. W.C

Dimensions:

• Width: 38 1/16 in.
• Height: 34 11/16 in.
• Depth: 18 7/8 in.
