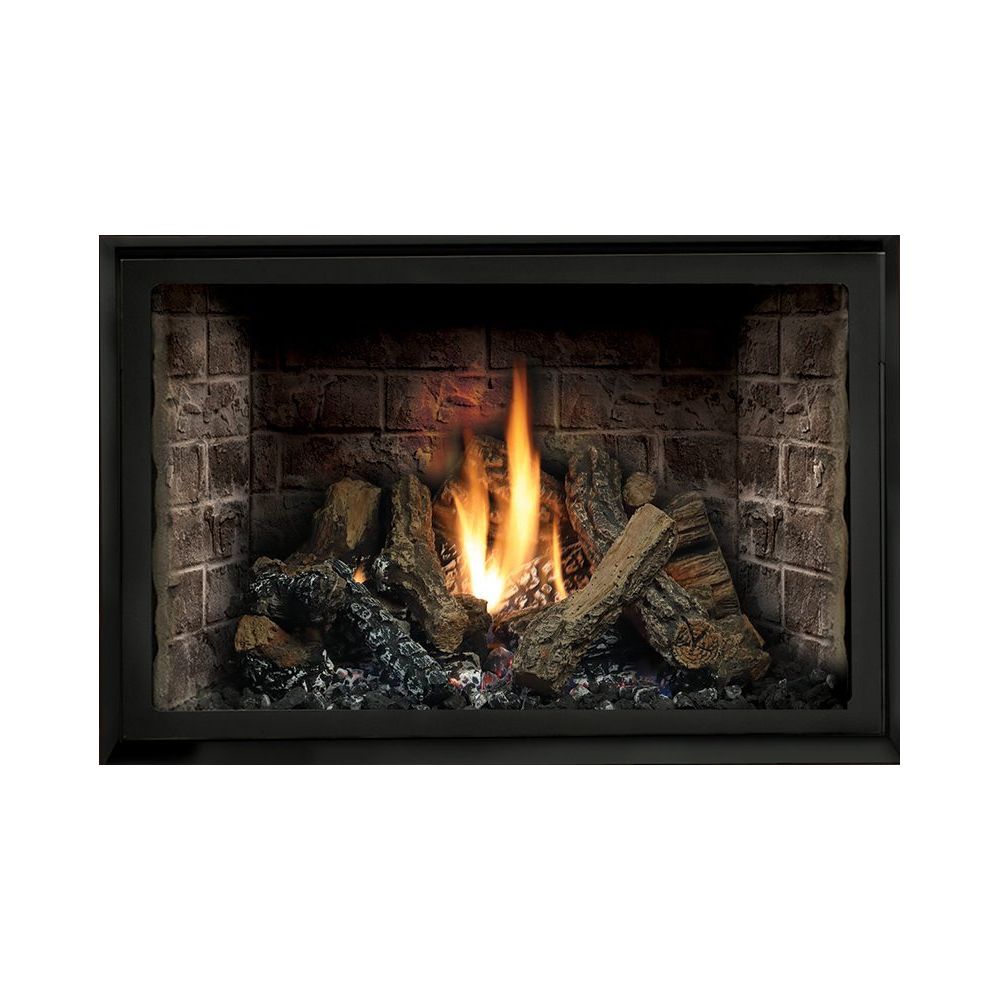

HBZDV3624N Kingsman Direct Vent Zero Clearance Natural Gas Fireplace, 36 in, 24,000 BTU

The HBZDV3624N is a natural gas Kingsman fireplace that measures 36 in. This direct vent fireplace is rated at 24,000 BTUs and uses a standing millivolt pilot.

This zero clearance fireplace uses a direct power vent set-up, which uses outside venting and a fan to pull outside air for combustion while also expelling any combustibles.

Kingsman's HBZDV3624N is compatible with a decorative brick liner.

Features of the HBZDV3624N Kingsman Fireplace

• A millivolt standing pilot remains on, allowing for consistent ignition
• The heat level and flame height are fully controllable with variable HI/LO adjustment.
• A dual-burner setup provides realistic flame patterns.
• Power vent set-up utilizes direct outdoor venting and fans to pull outside air for combustion.

Specifications

Max. Input Rating: 24,000 BTUs

Min. Input Rating: 14,000 BTUs

Efficiency Rating: 50.48% - 52.30%

Min. Inlet Pressure: 5.5 in.

Max. Inlet Pressure: 9.0 in.

Manifold Pressure Range: 1.6 in. W.C - 3.5 in. W.C

Dimensions:

• Width: 38 1/16 in.
• Height: 34 11/16 in.
• Depth: 18 7/8 in.
