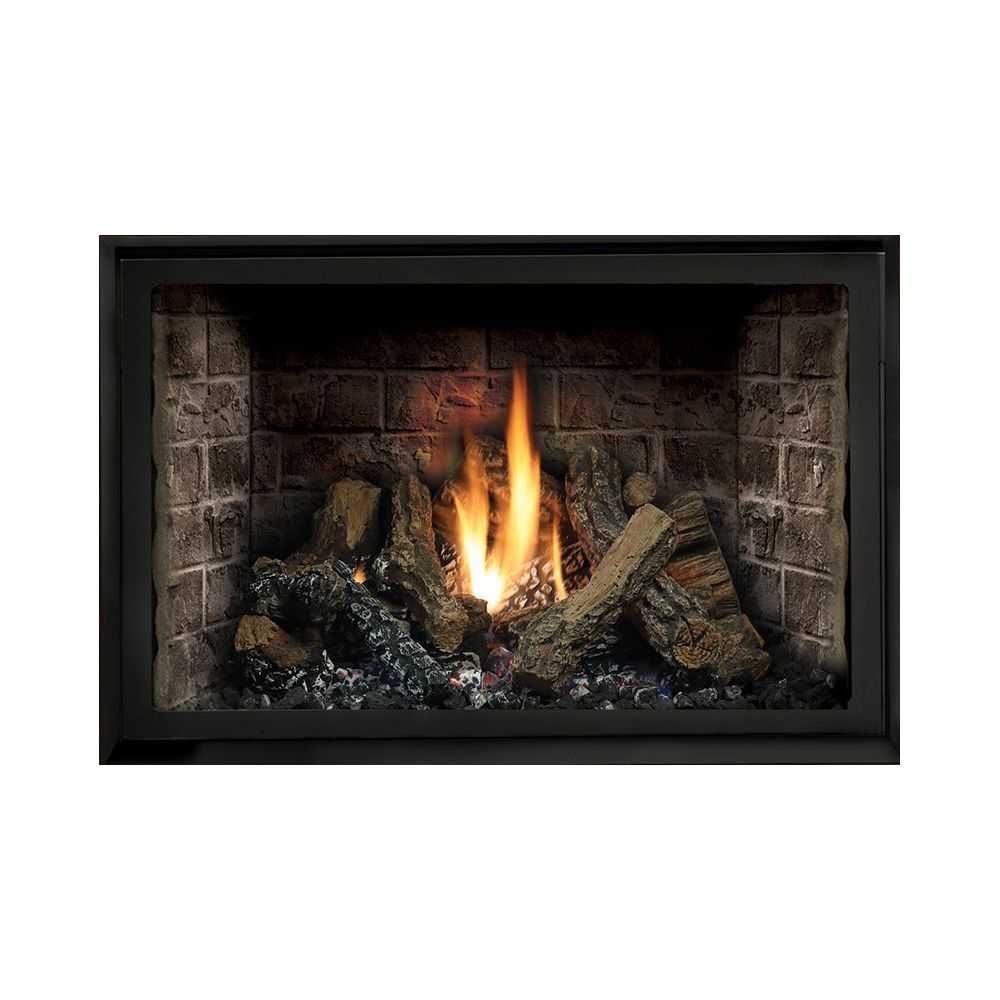

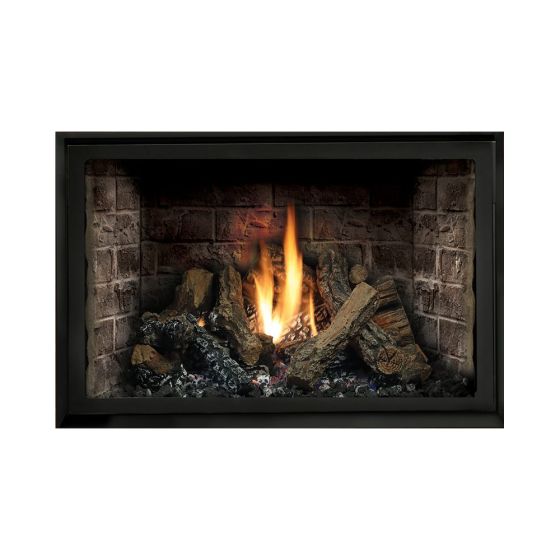

HBZDV3624LPE Kingsman 36 in. Liquid Propane Gas Fireplace with Intermittent Pilot, 22,000 BTUs

The HBZDV3624LPE is a liquid propane gas Kingsman fireplace that measures 36 in. and is rated at 22,000 BTUs. This fireplace features an electronic ignition for the pilot.

This zero clearance fireplace uses a direct power vent set-up, which uses outside venting and a fan to pull outside air for combustion while also expelling any combustibles.

The 36 in. HBZDV3624LPE supports a decorative brick liner from Kingsman.

Features of the HBZDV3624LPE Kingsman Fireplace

• An electronic IPI (intermittent pilot ignition) only activates when ignition is required.
• Features Hi/Lo adjustable flame height and variable heat control.
• Compatible with electronic Proflame 1 remote control transmitters.
• Realistic flame patterns generated by dual-burner setup.
• Power vent system utilizes direct outdoor venting and fans to pull outside air for combustion.

Specifications

Max. Input Rating: 22,000 BTUs

Min. Input Rating: 15,000 BTUs

Efficiency Rating: 52.59% - 54.24%

Min. Inlet Pressure: 11 in.

Max. Inlet Pressure: 12 in.

Manifold Pressure Range: 6.3 in. W.C - 10 in. W.C

Dimensions:

• Width: 38 1/16 in.
• Height: 34 11/16 in.
• Depth: 18 7/8 in.
