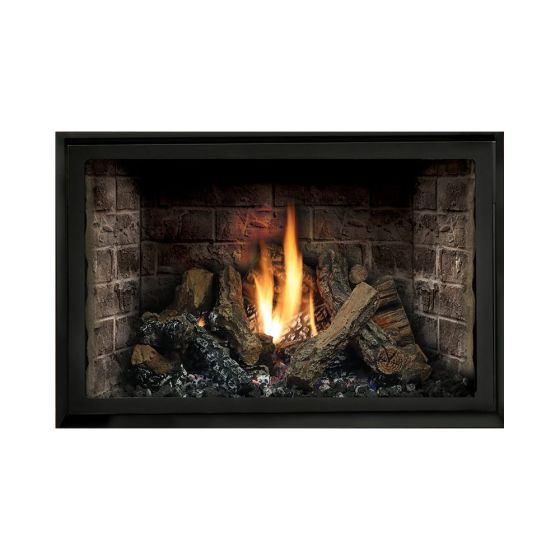

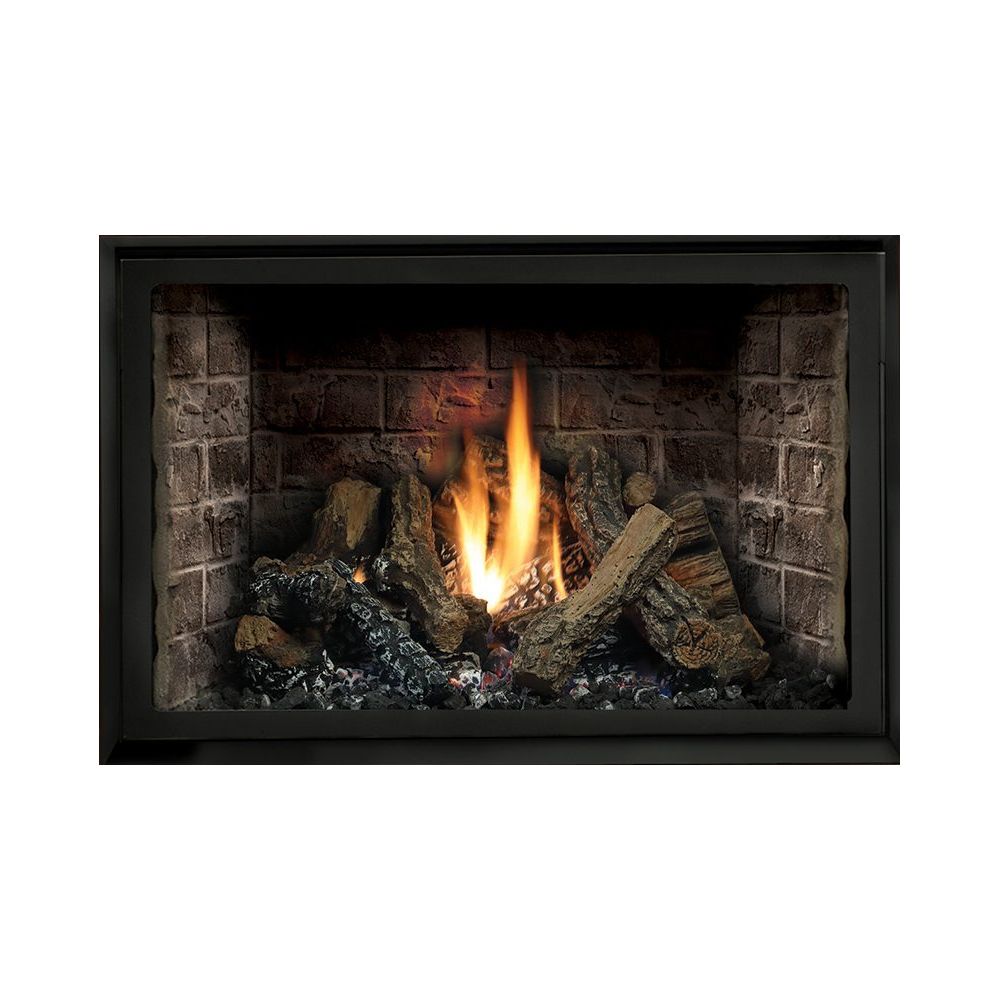

HBZDV3624LP Kingsman 36 in. Power Vent Propane Fireplace with Standing Pilot, 22,000 BTU

The HBZDV3624LP is a liquid propane gas Kingsman fireplace that measures 36 in. This direct vent fireplace is rated at 22,000 BTUs and uses a standing millivolt pilot.

Kingsman's HBZDV3624LP direct vent fireplace is compatible with a decorative brick liner. Additional accessories for this fireplace model are listed in the unit's owner's manual.

Features of the HBZDV3624LP Kingsman Fireplace

• Utilizes a millivolt standing pilot for consistent ignition
• Heat and flame height is controllable with variable HI/LO adjustment.
• A dual-burner setup provides realistic flame patterns.
• Power vent set-up utilizes direct outdoor venting and fans to pull outside air for combustion.

Specifications

Max. Input Rating: 22,000 BTUs

Min. Input Rating: 15,000 BTUs

Efficiency Rating: 52.59% - 54.24%

Min. Inlet Pressure: 11 in.

Max. Inlet Pressure: 12 in.

Manifold Pressure Range: 6.3 in. W.C - 10 in. W.C

Dimensions:

• Width: 38 1/16 in.
• Height: 34 11/16 in.
• Depth: 18 7/8 in.
